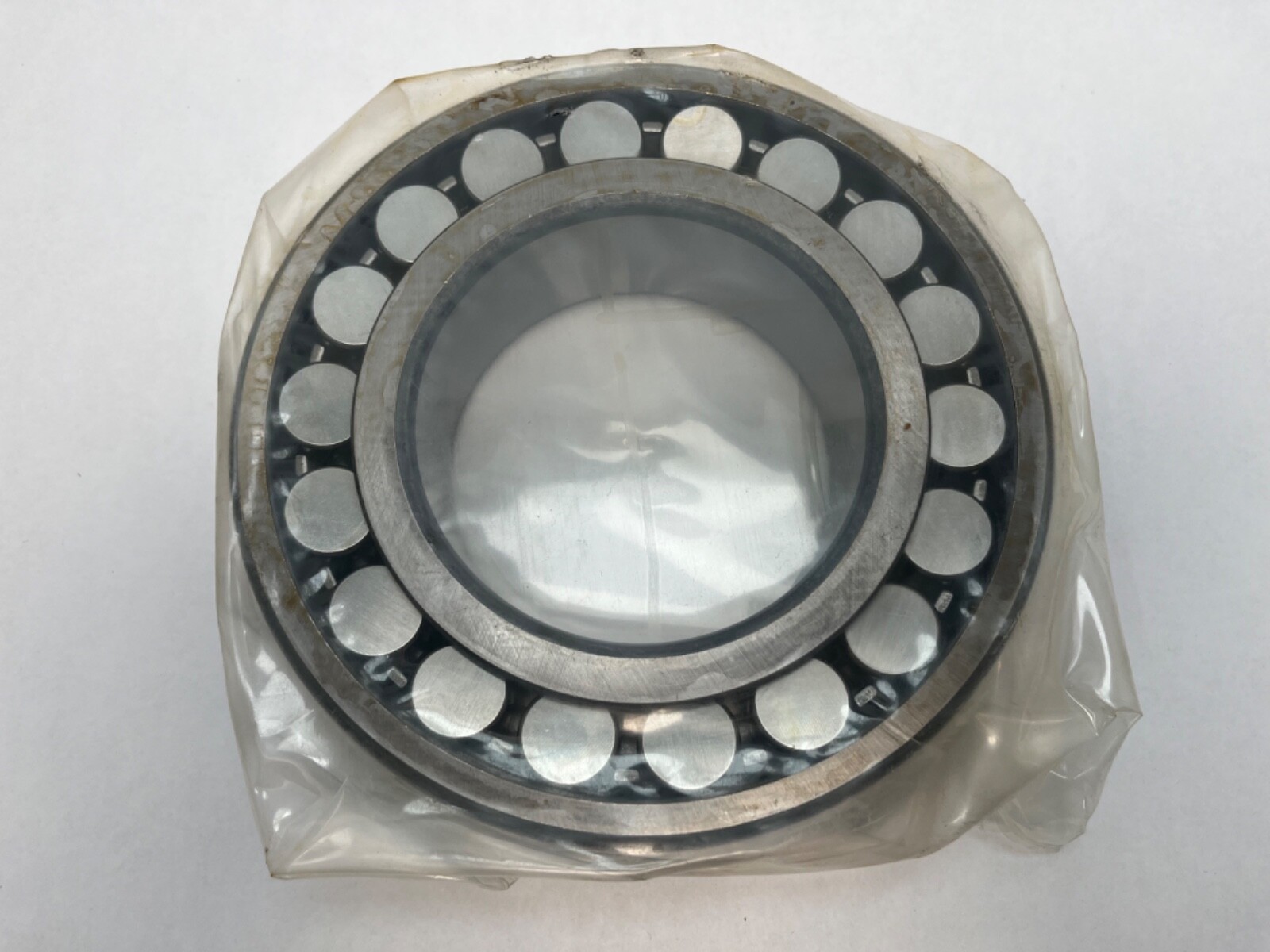

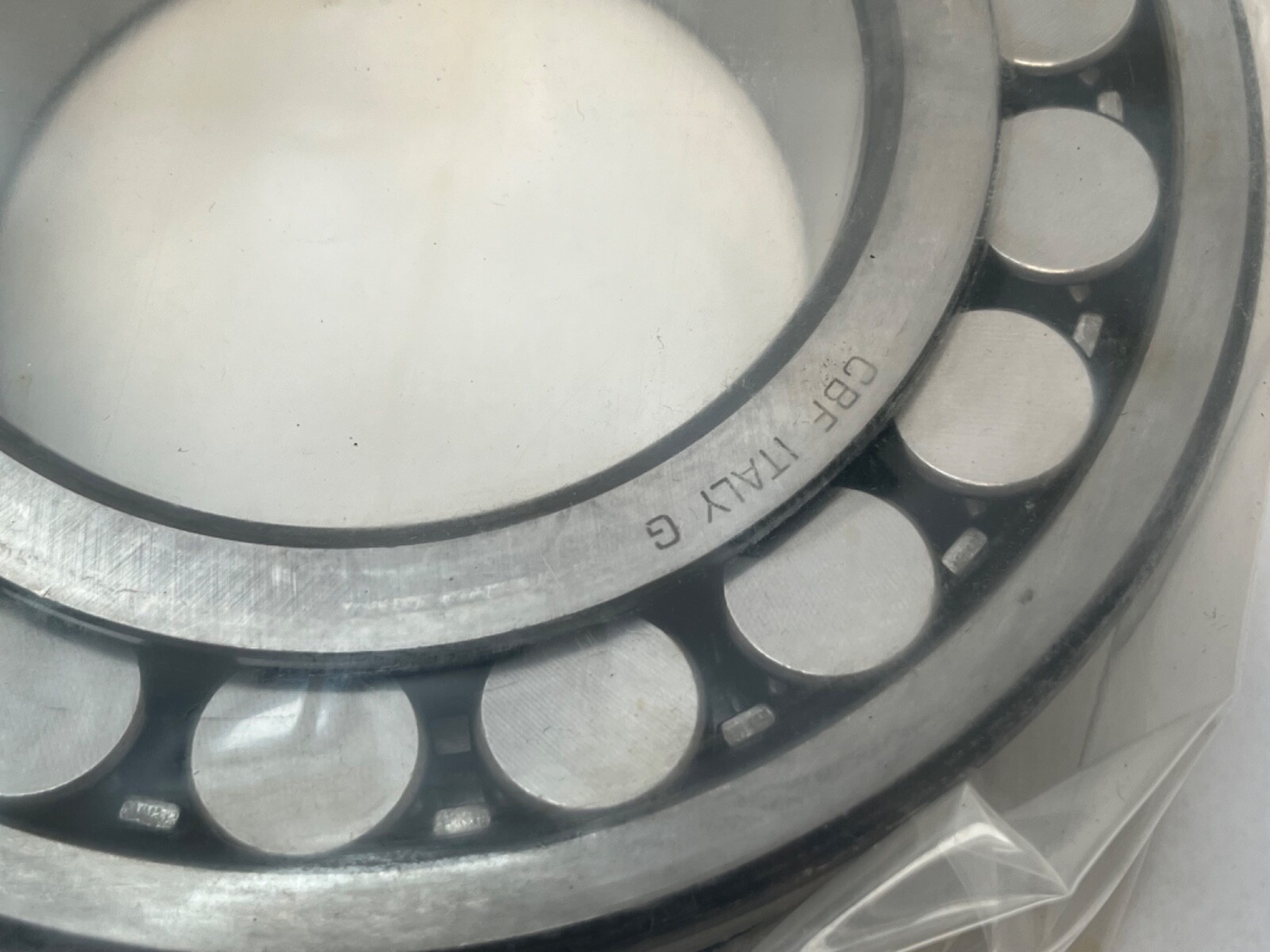

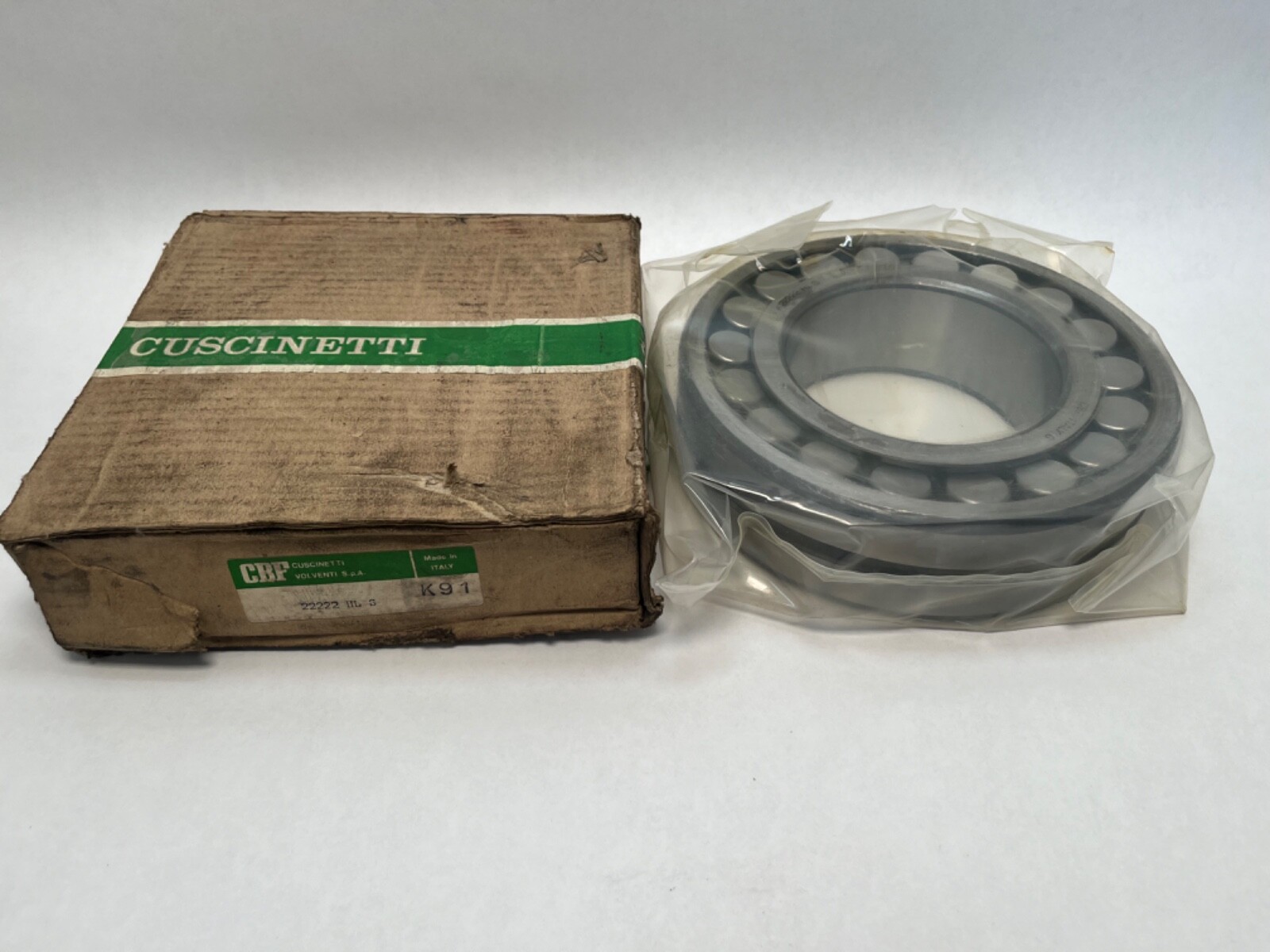

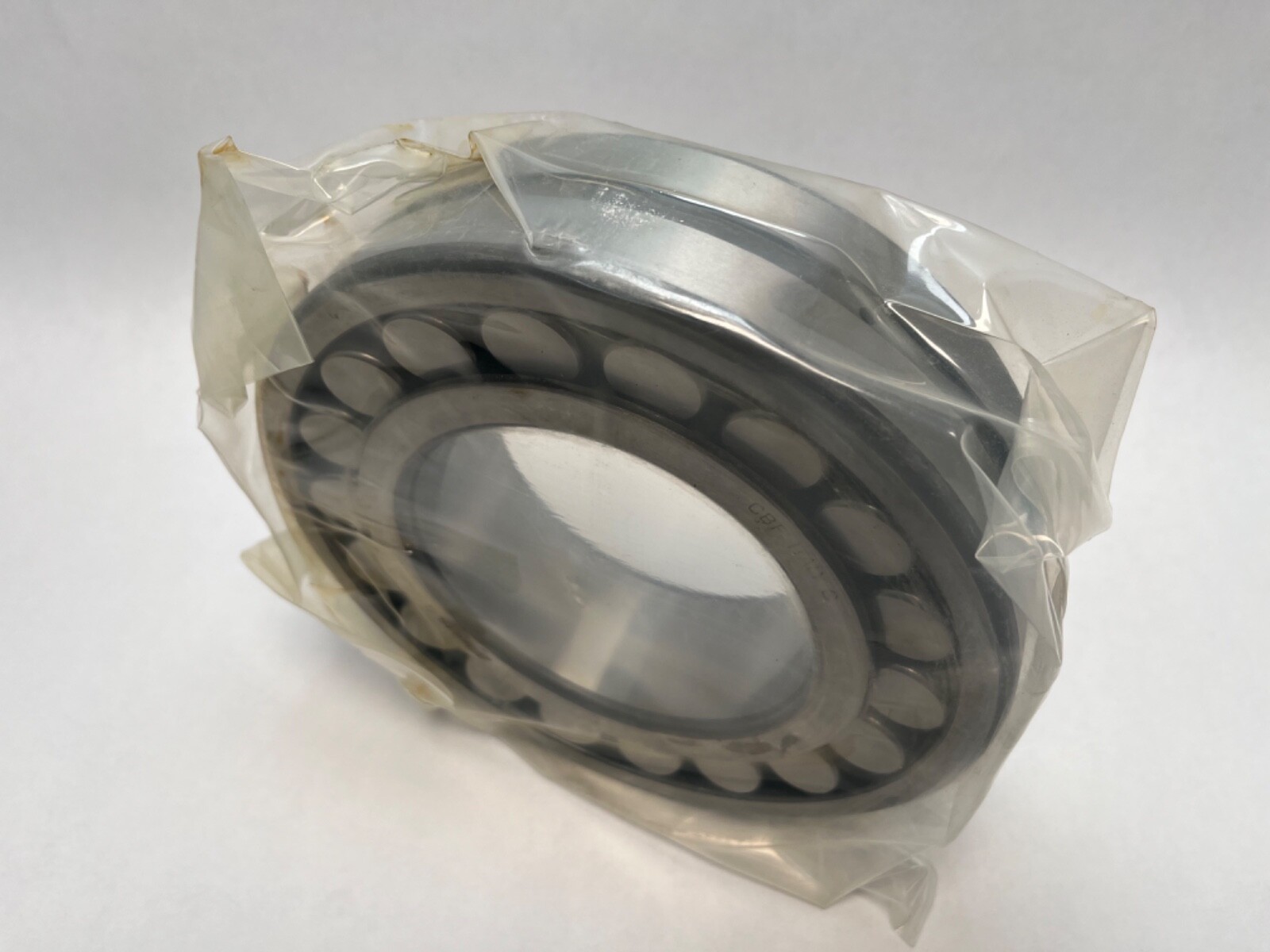

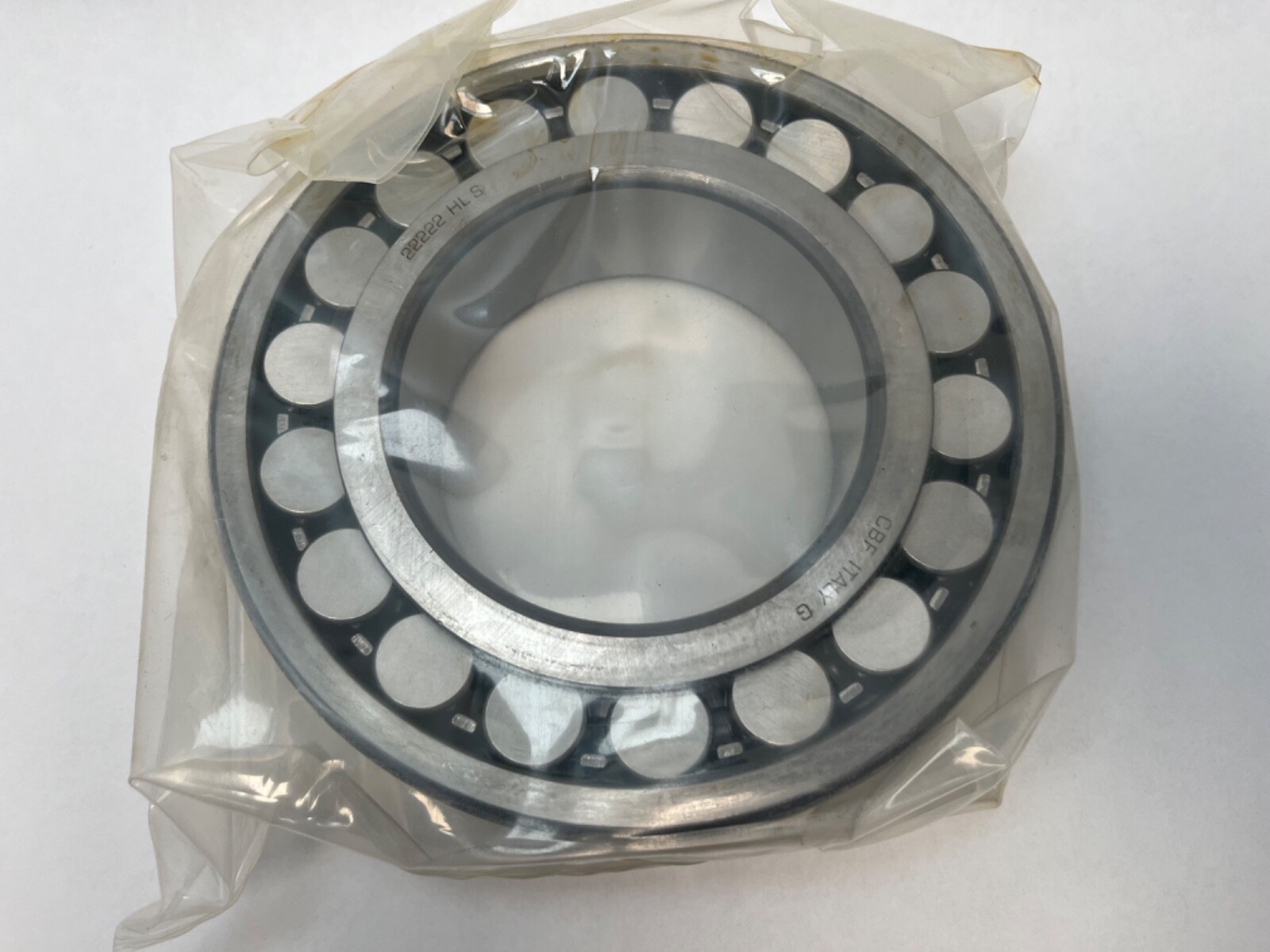

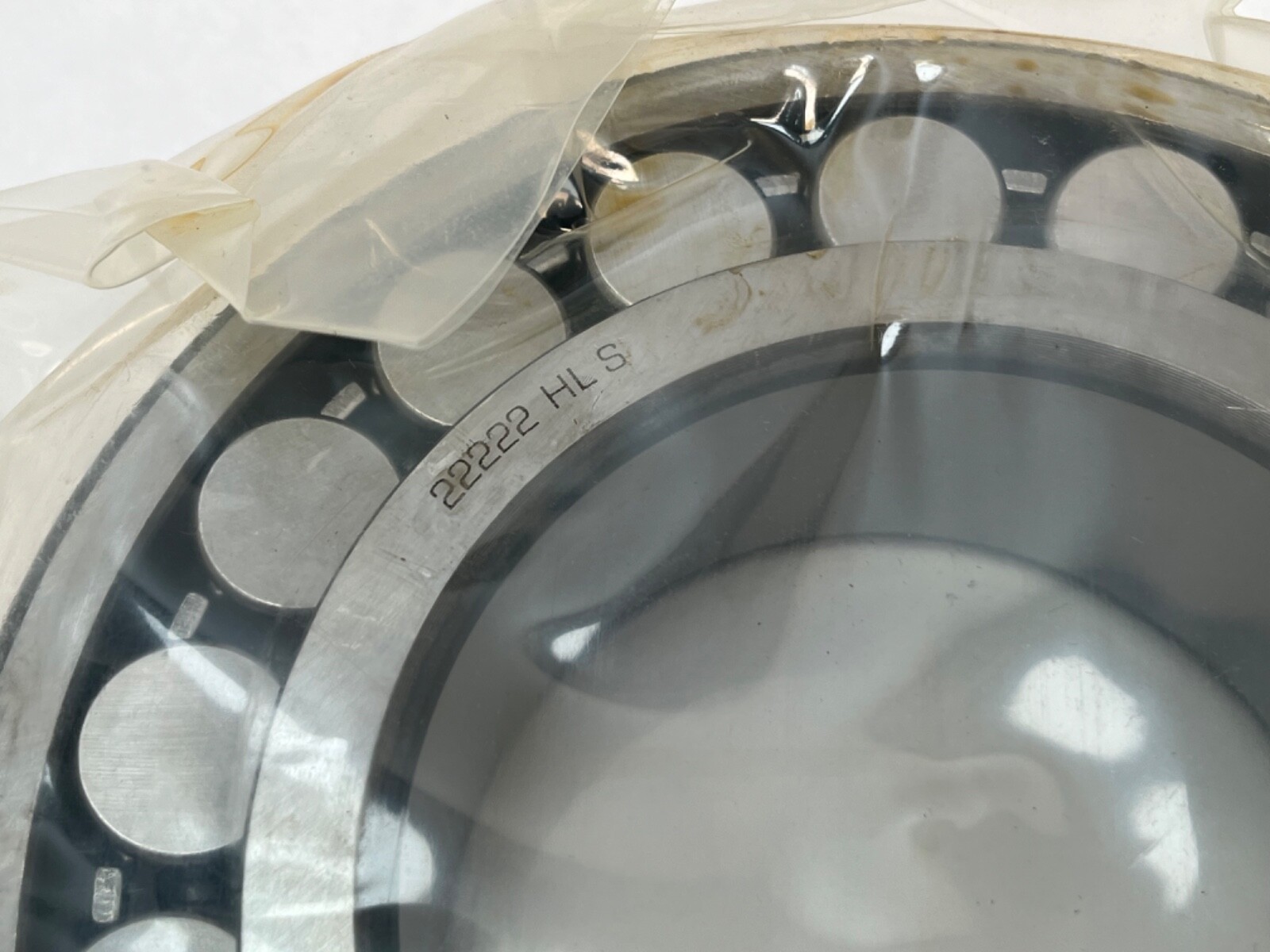

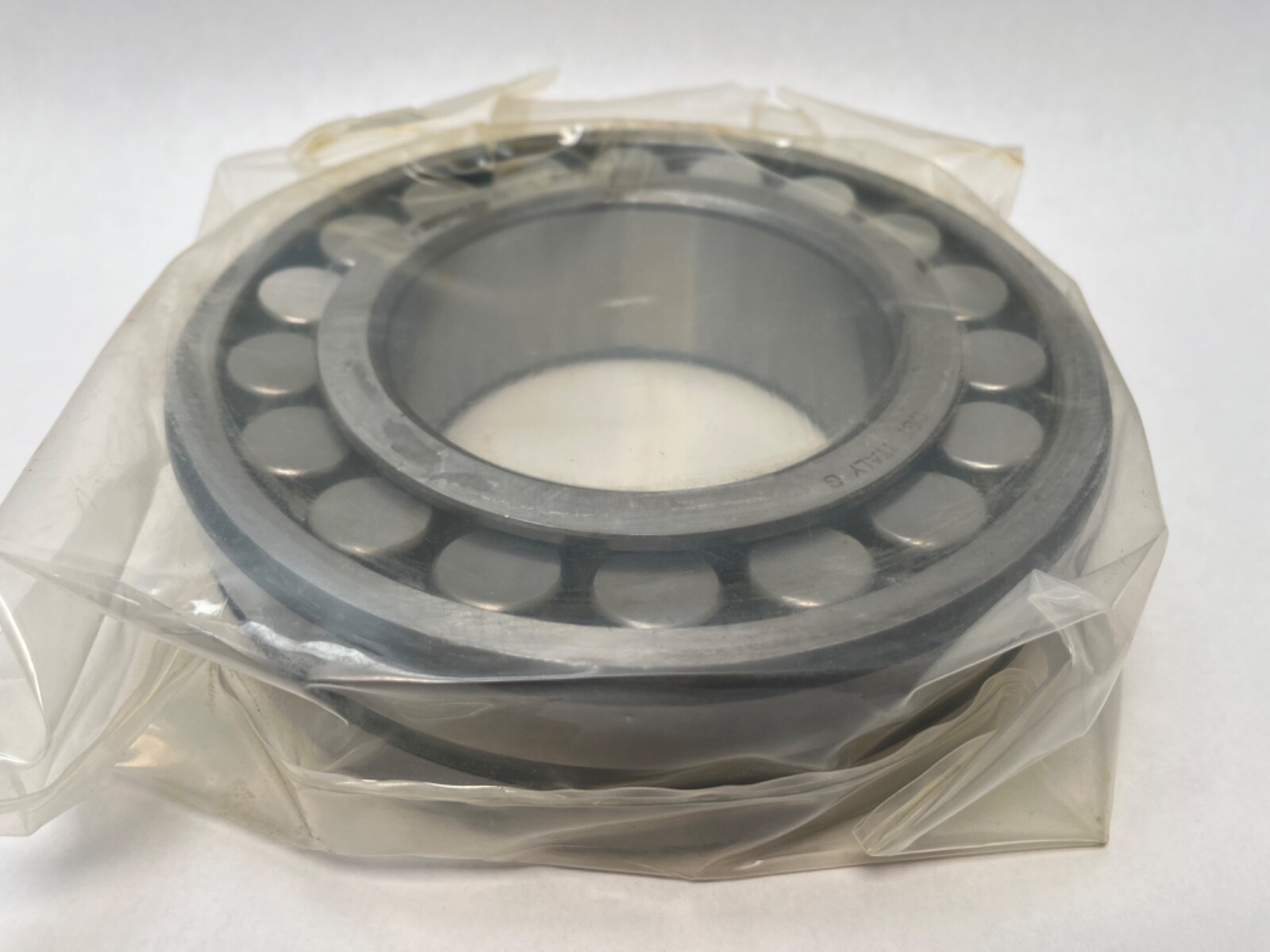

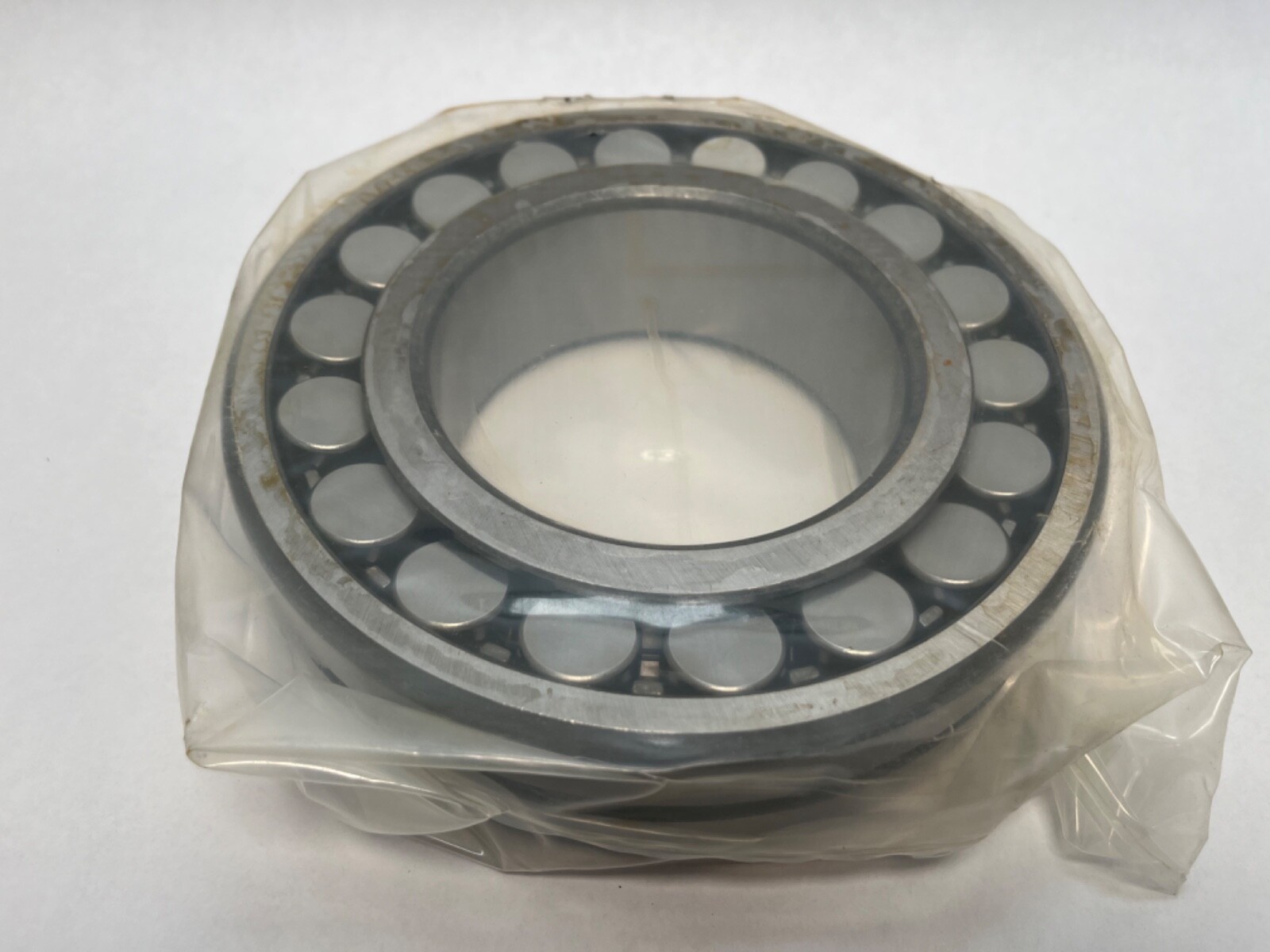

Name: Spherical Roller Bearing - Straight Bore, 110 mm ID, 200 mm OD, 53 mm Width, Open, CN Internal clearance.
Brand: CBF
SKU: B-FH4#WBPYTF
Price: 191.22 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	CBF
MPN	22222HLS
Model	22222E A K E4 C3 / 22222 E A K W33 C3
Bearing Type	Spherical Roller Bearing, Open
ID	110 mm
OD	200 mm
Width	53 mm

Specifications

Advertise	1
Material	High Carbon Chrome Steel
Series	22200
Condition	New
Lubricant	Grease
Min Temp	-30 °C
Cage Type	Roller Centered
Dynamic Load Rating	572 kN / 128590 lbf
Static Load Rating	640 kN / 143880 lbf
Precision Rating	ABEC 1 / P0
Rolling Elements	Spherical Roller
Max Temp	200 °C
Item Weight	15.54 lbs
Cage Material	Steel
Limiting Speed	1900 rpm
Number Of Rows	2
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Relubrication Feature	Yes
Harmonization Code	8482.30.00
Internal Clearance	CN
Maximum Permissible Misalignment	2°

Cross-References

Cross Reference 1	SKF 22222 E
Cross Reference 2	FAG 22222-E1
