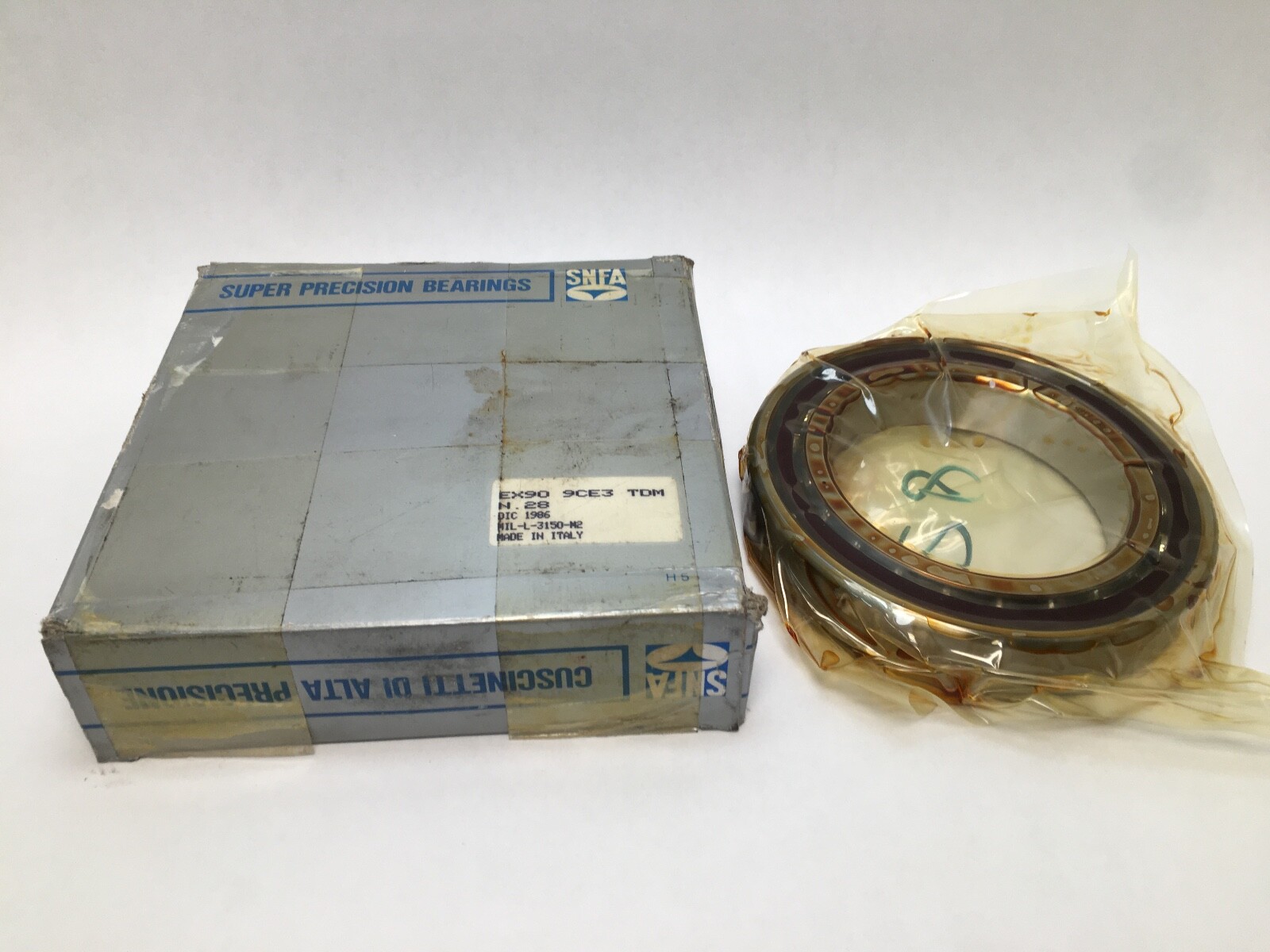

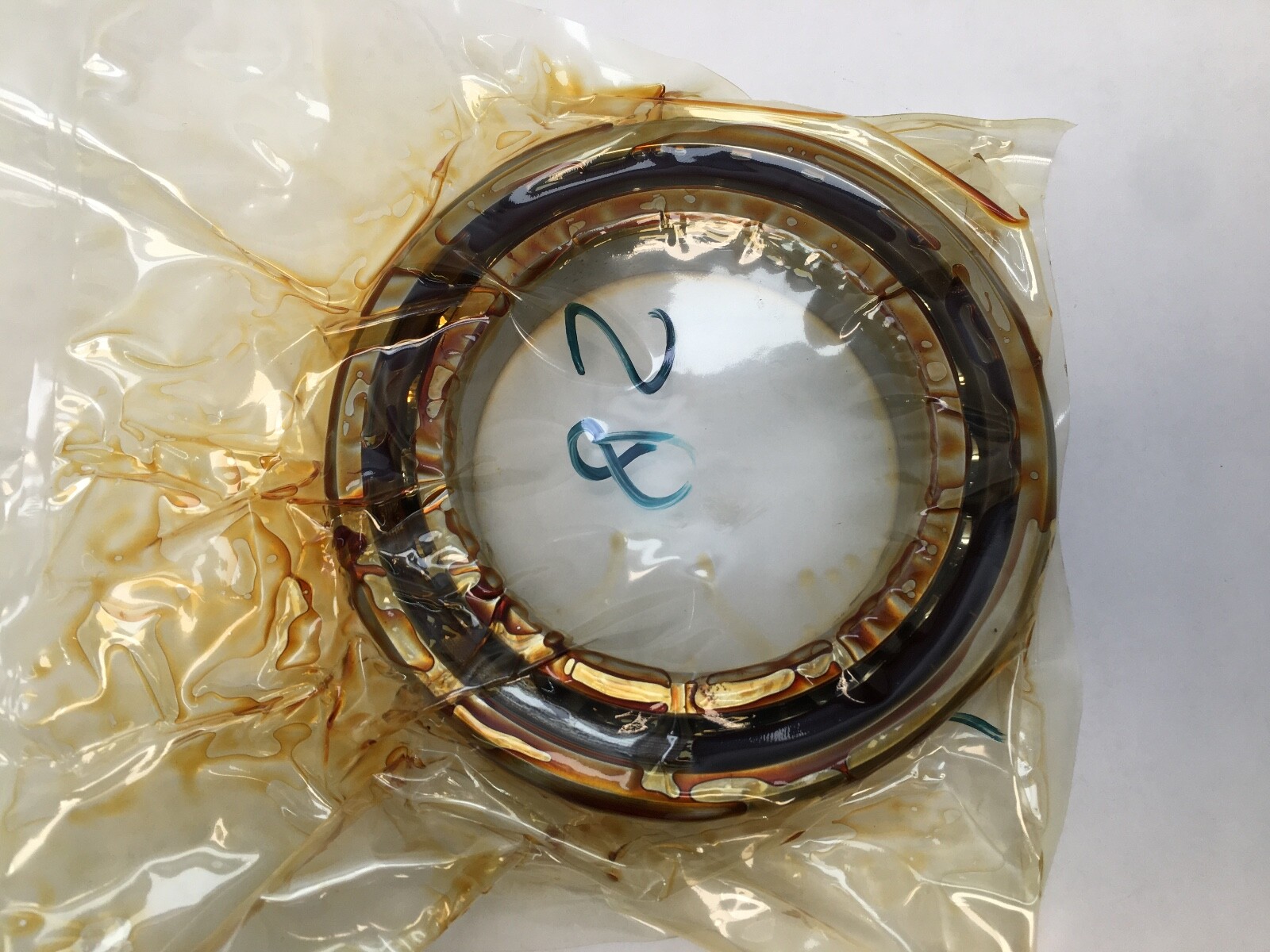

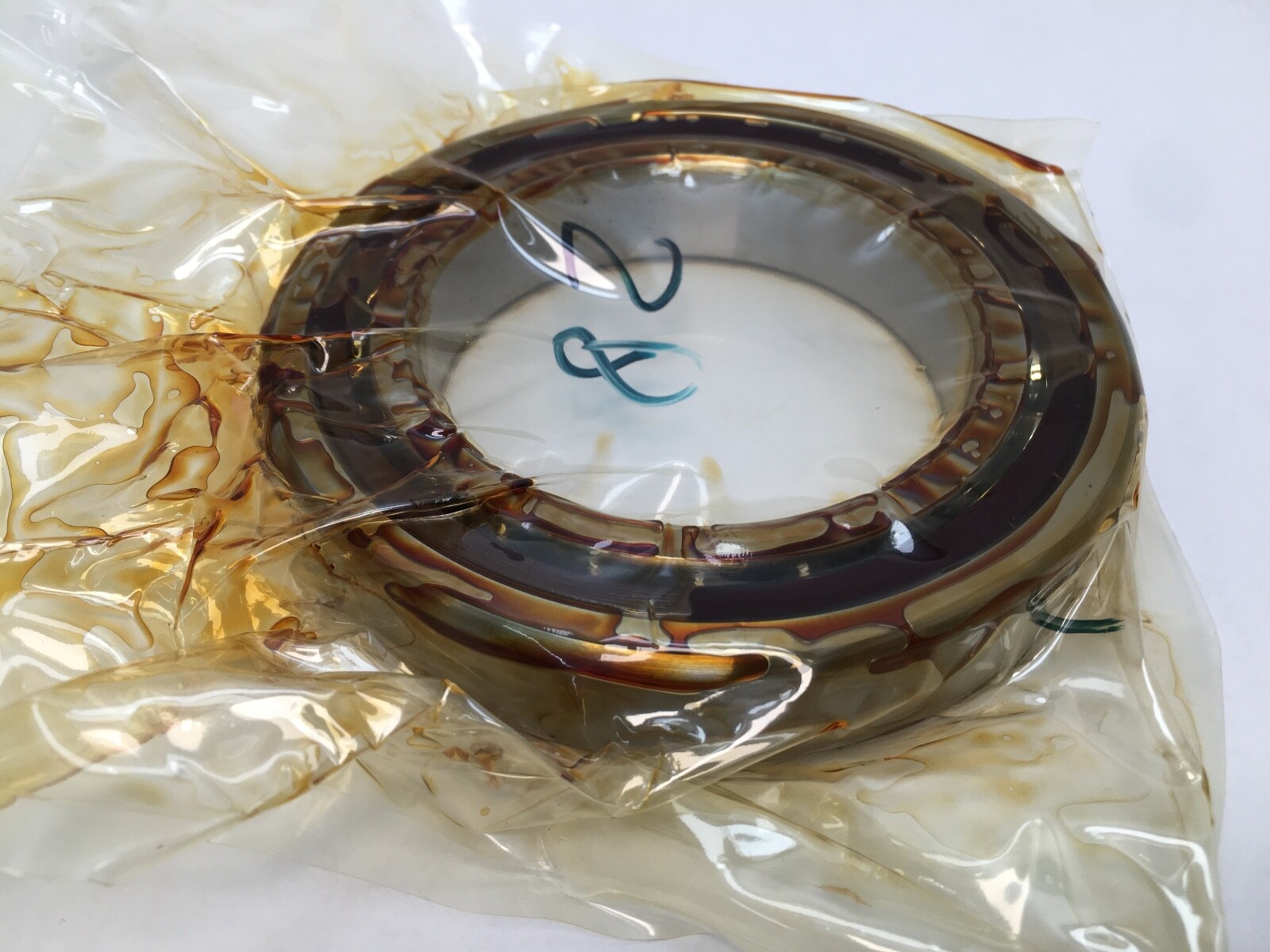

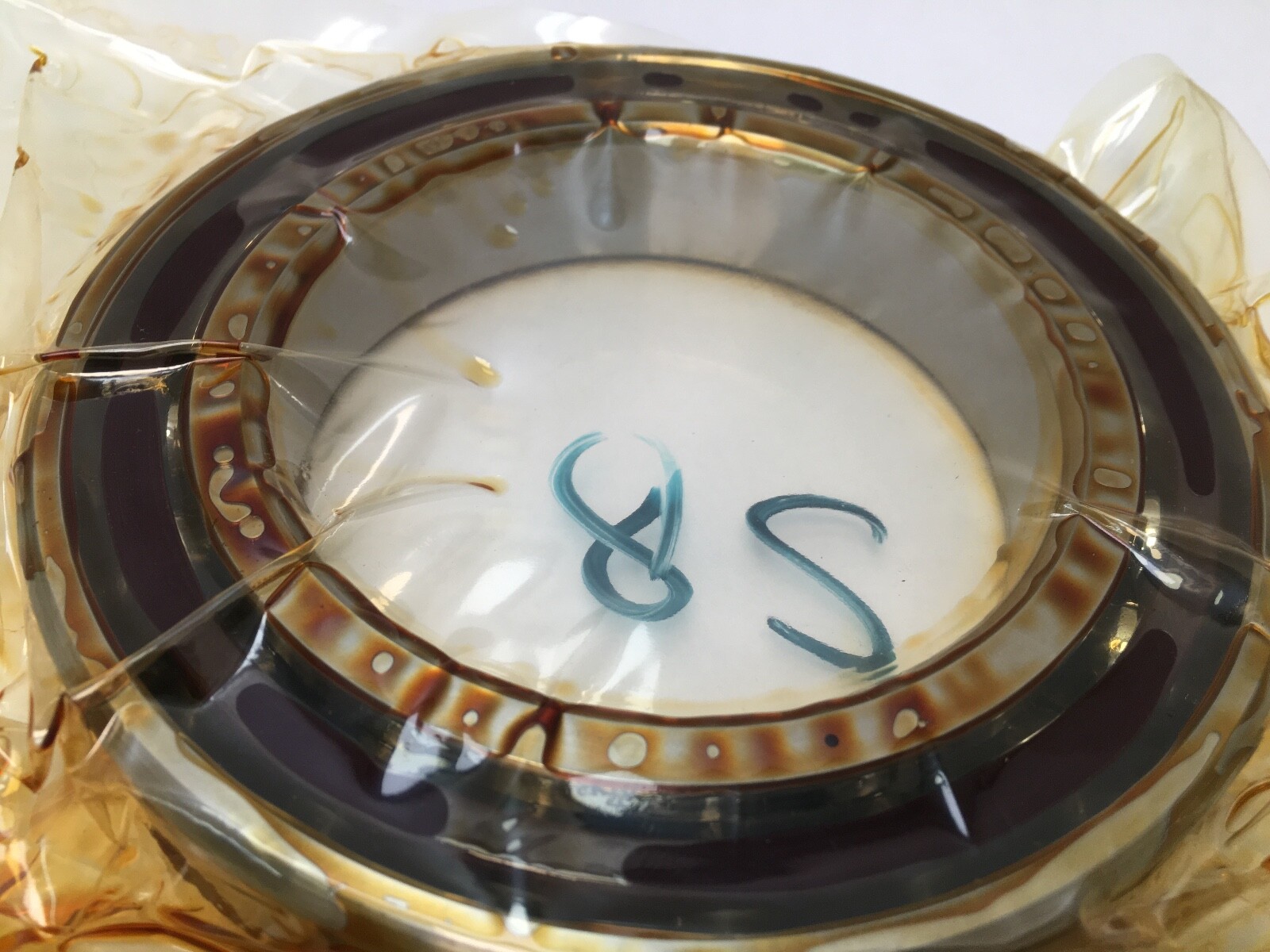

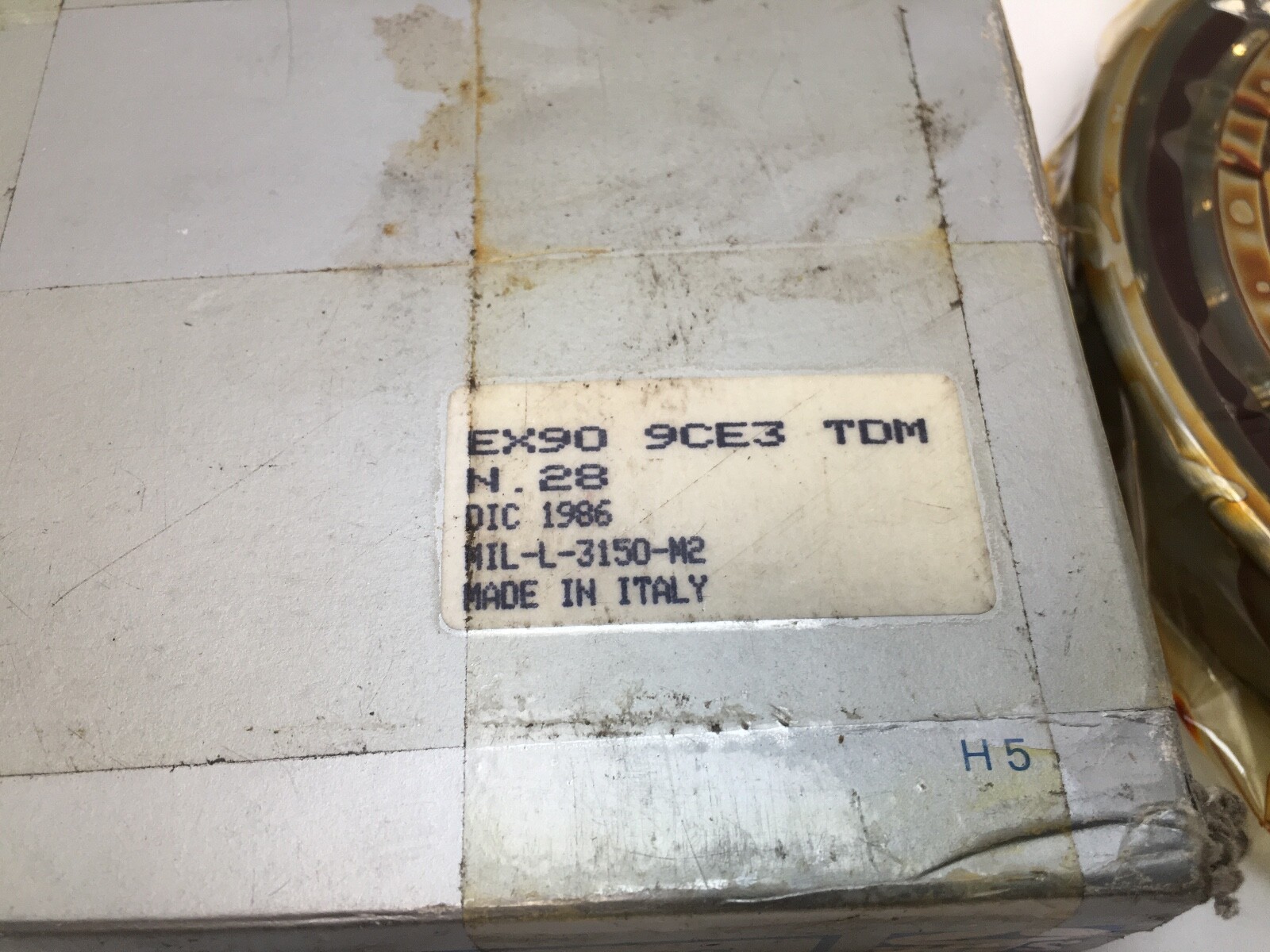

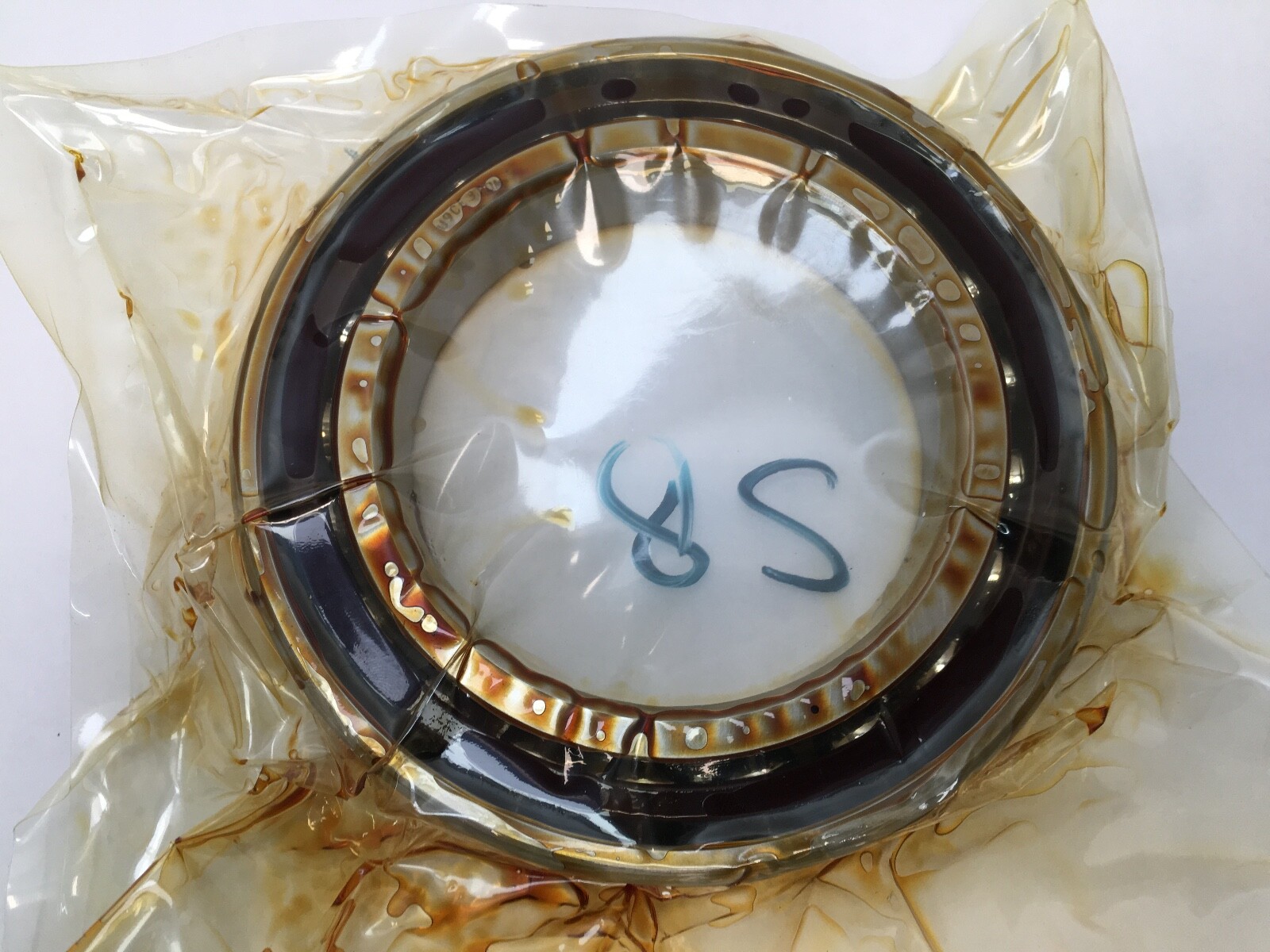

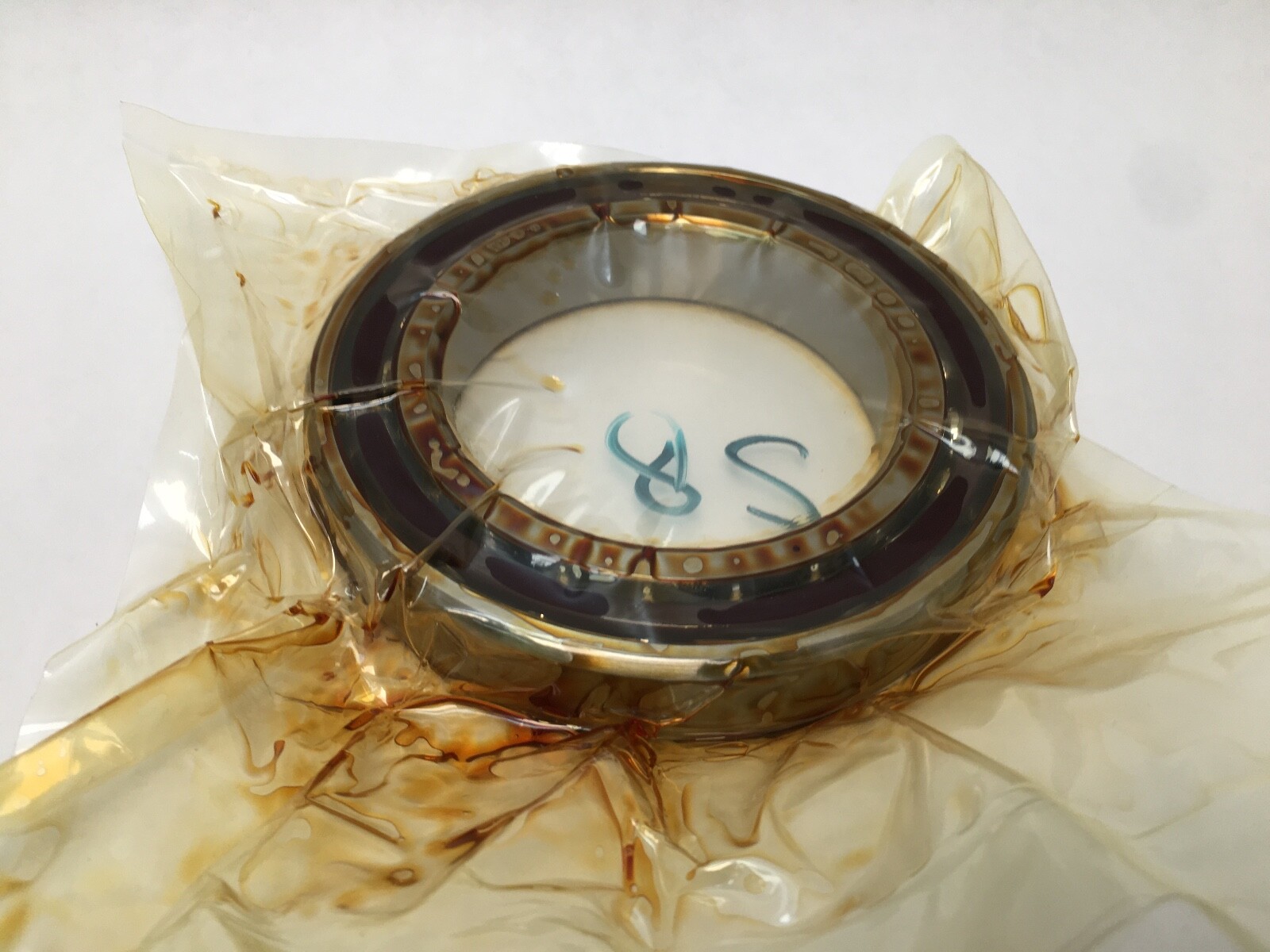

Name: Angular Contact Ball Bearing - 90 mm ID, 140 mm OD, 24 mm Width, Open, 25° Contact Angle, Medium Preload.
Brand: SNFA
SKU: O6#8D6MMJ
Price: 228.7 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	SNFA
MPN	EX90-9CE3TDM
Model	3MM-9118 TDM / 7018A P4 DUH / EX 90-9 CE 3 TDM
Bearing Type	Angular Contact Ball Bearing, Open
ID	90 mm
OD	140 mm
Width	24 mm

Specifications

Advertise	1
Material	Bearing Steel
Series	7000
Condition	New
Lubricant	Oil
Preload	Medium
Cage Type	Outer Ring Guided
Dynamic Load Rating	68 kN / 15287 lbf
Static Load Rating	75 kN / 16860 lbf
Precision Rating	ABEC 9 / P2
Rolling Elements	Ball
Item Weight	3.50 lbs
Cage Material	Phenolic
Limiting Speed	9000 rpm
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Harmonization Code	8482.10.50
Contact Angle	25°
Mounting Arrangement	Universal

Cross-References

Cross Reference 1	SKF 7018 ACD/P2ADGB
Cross Reference 2	NSK 7018A5TYNDUMPA2
