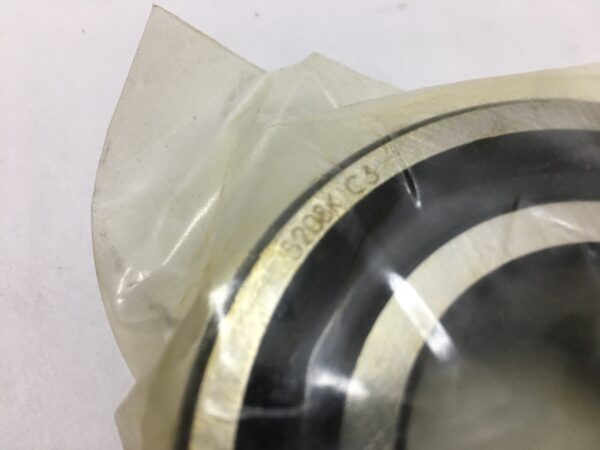

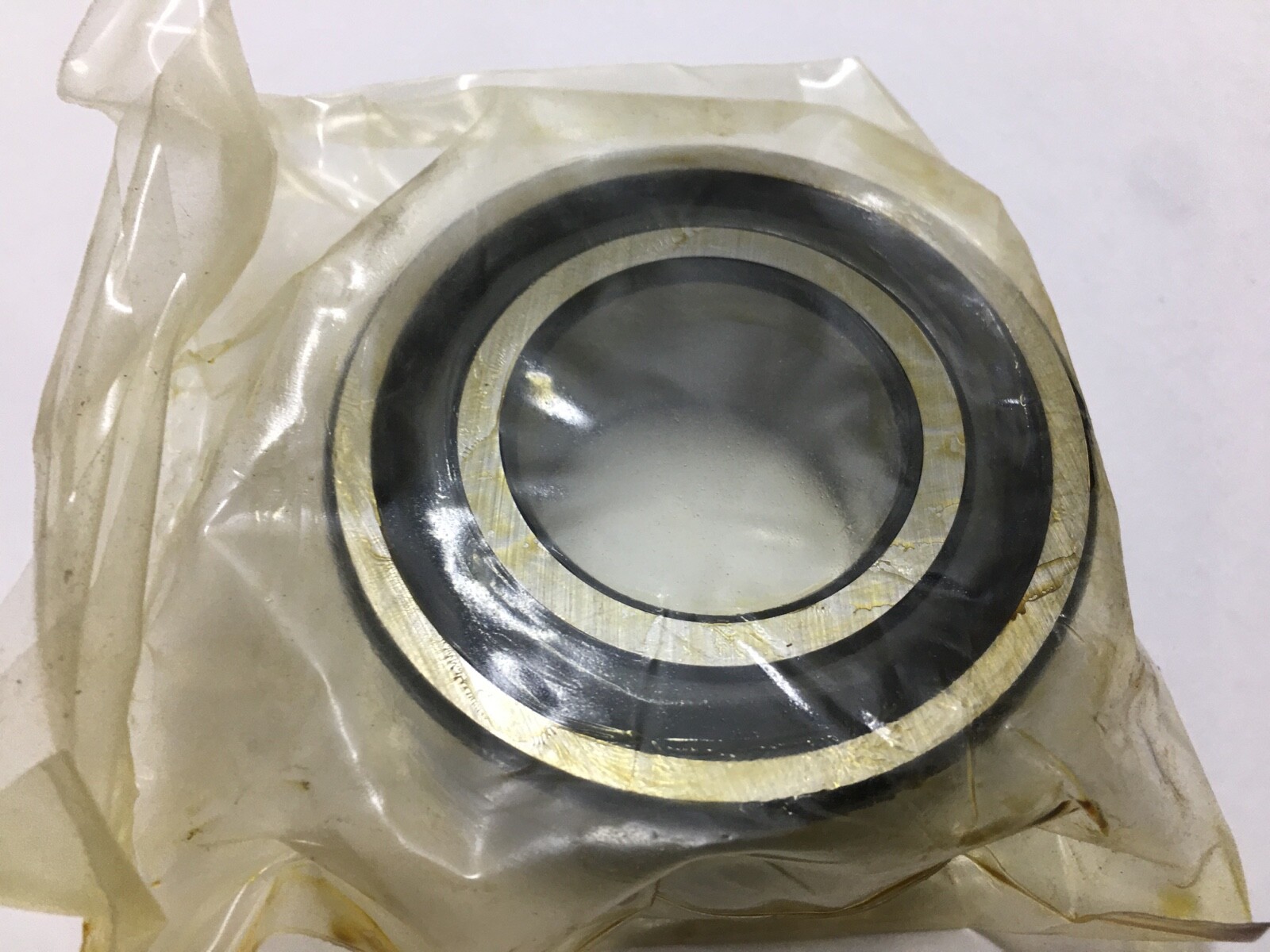

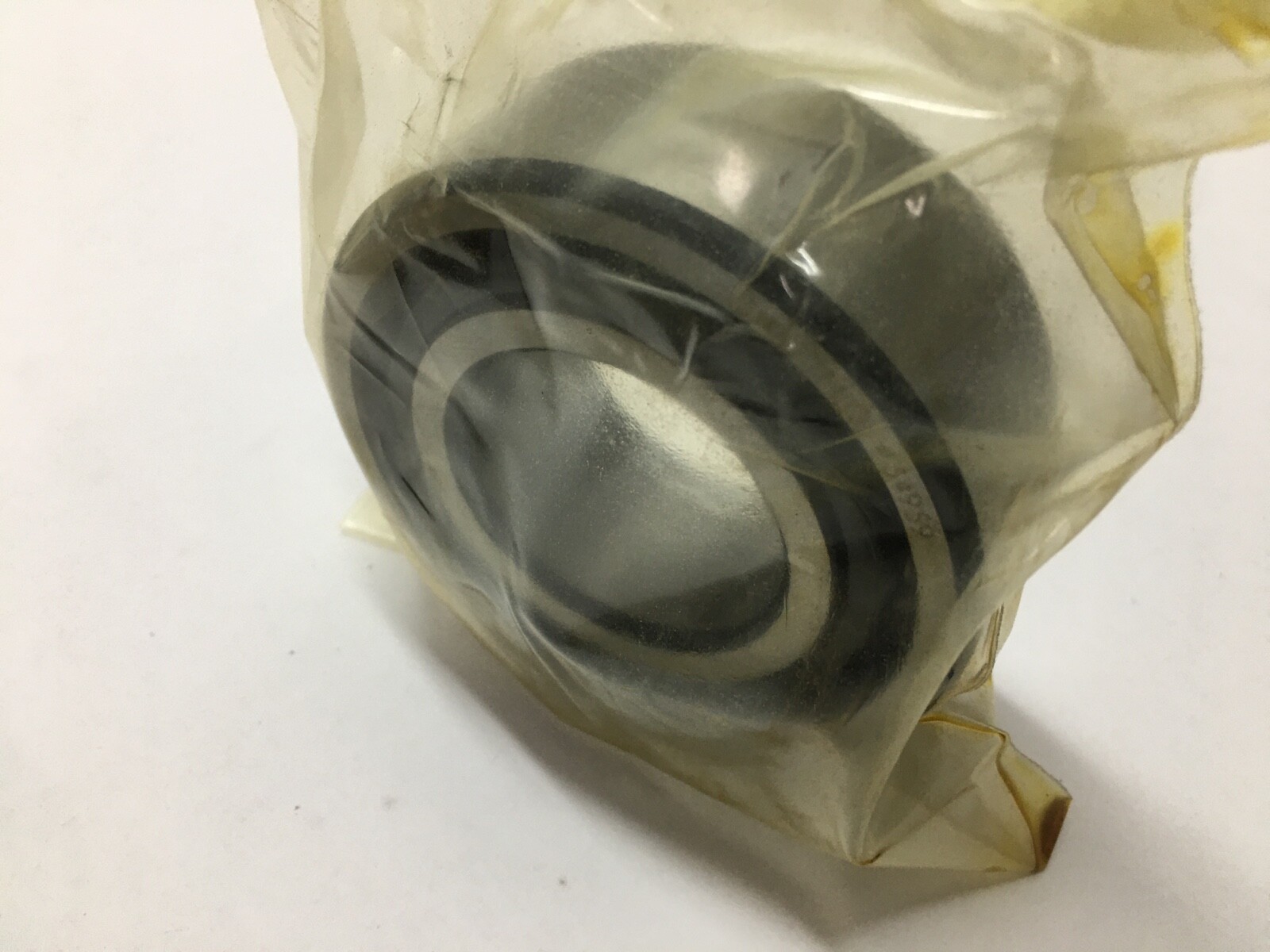

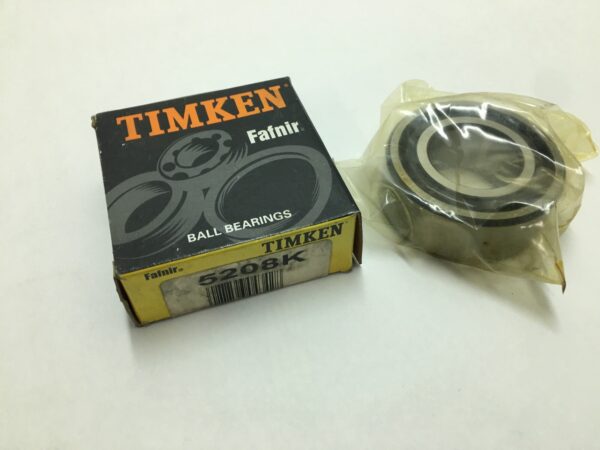

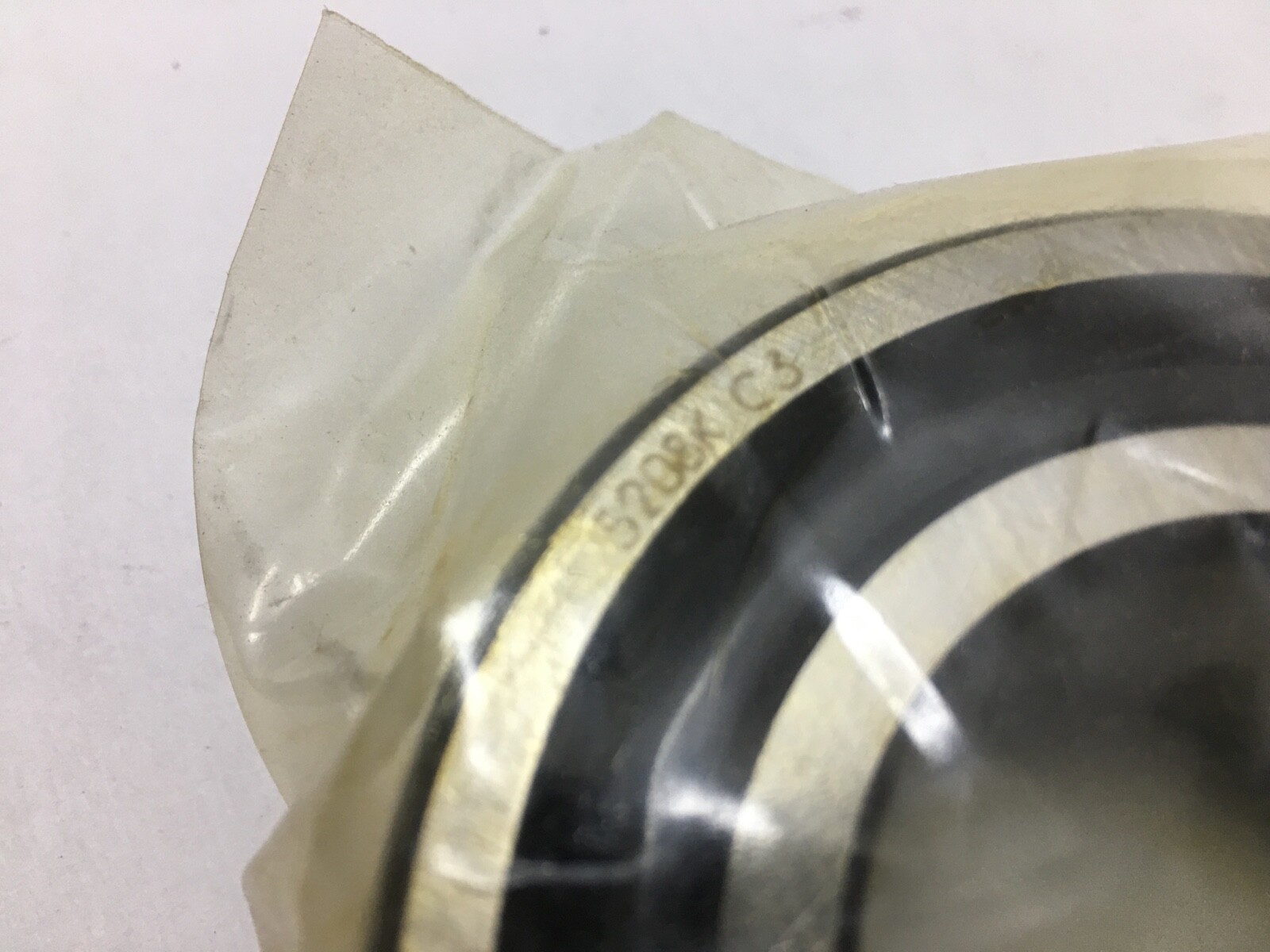

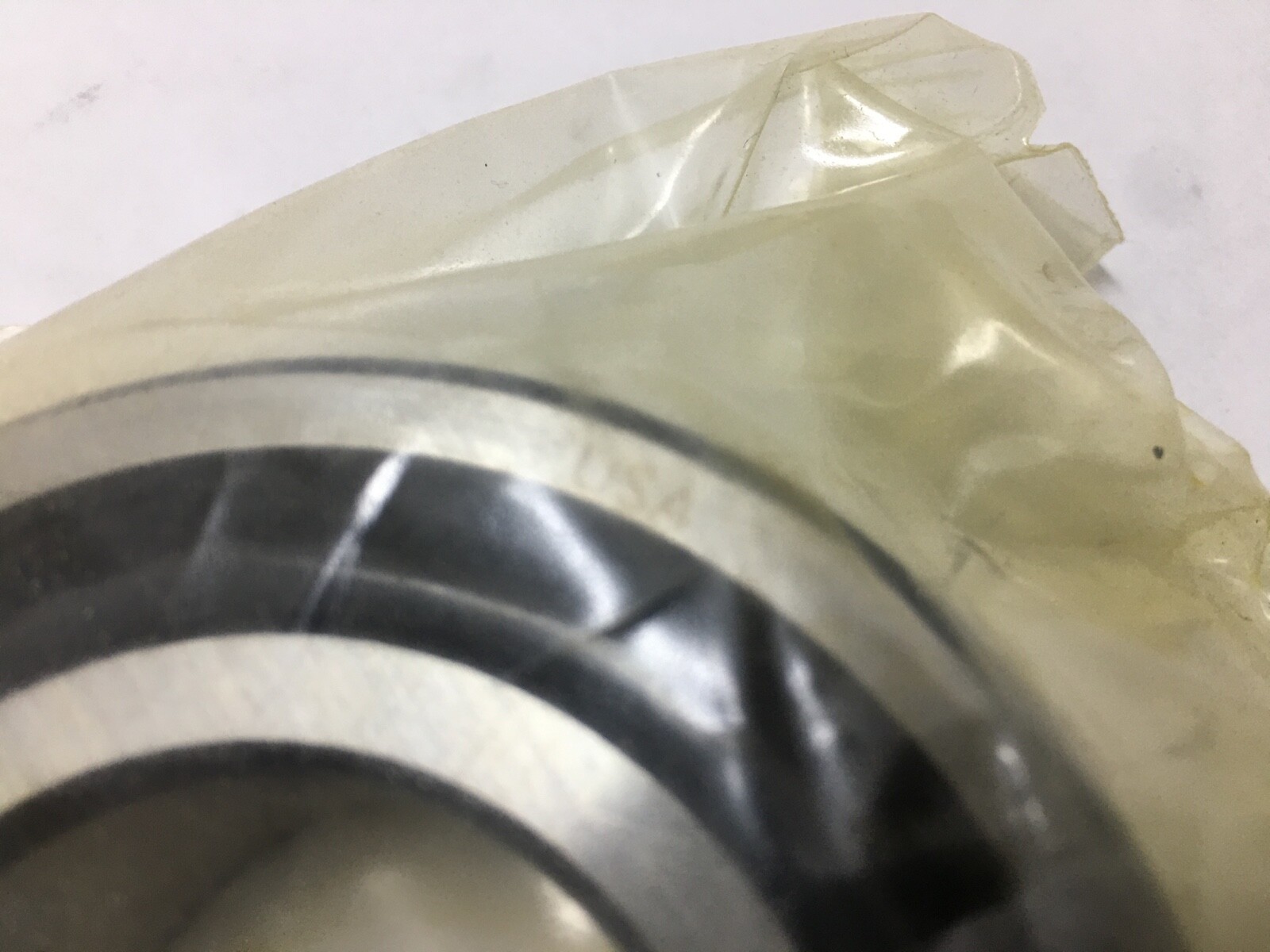

Angular contact bearings – 40 mm ID, 80 mm OD, 30.17 mm Width, Open, 20°.
List Price
$38.12
3 in stock
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Timken |
|---|---|
| MPN | 5208-K |
| Model | 5208K |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 40 mm |
| OD | 80 mm |
| Width | 1-3/16 in |
| Material | Steel |
|---|---|
| Min Temp | -30 °C |
| Dynamic Load Rating | 11600 lbf / 51.5 kN |
| Static Load Rating | 7650 lbf / 33.9 kN |
| Precision Rating | ABEC 1 / P0 |
| Series | 5200 |
| Rolling Elements | Balls |
| Max Temp | 120 °C |
| Condition | New |
| Item Weight | 1.32 lbs |
| Cage Material | Steel |
| Limiting Speed | 6500 rpm |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 20° |
| Internal Clearance | CN |
| Cross Reference 1 | SKF 3208 A |
|---|---|
| Cross Reference 2 | FAG 3208-BD |
| Cross Reference 3 | NTN 5208 |
