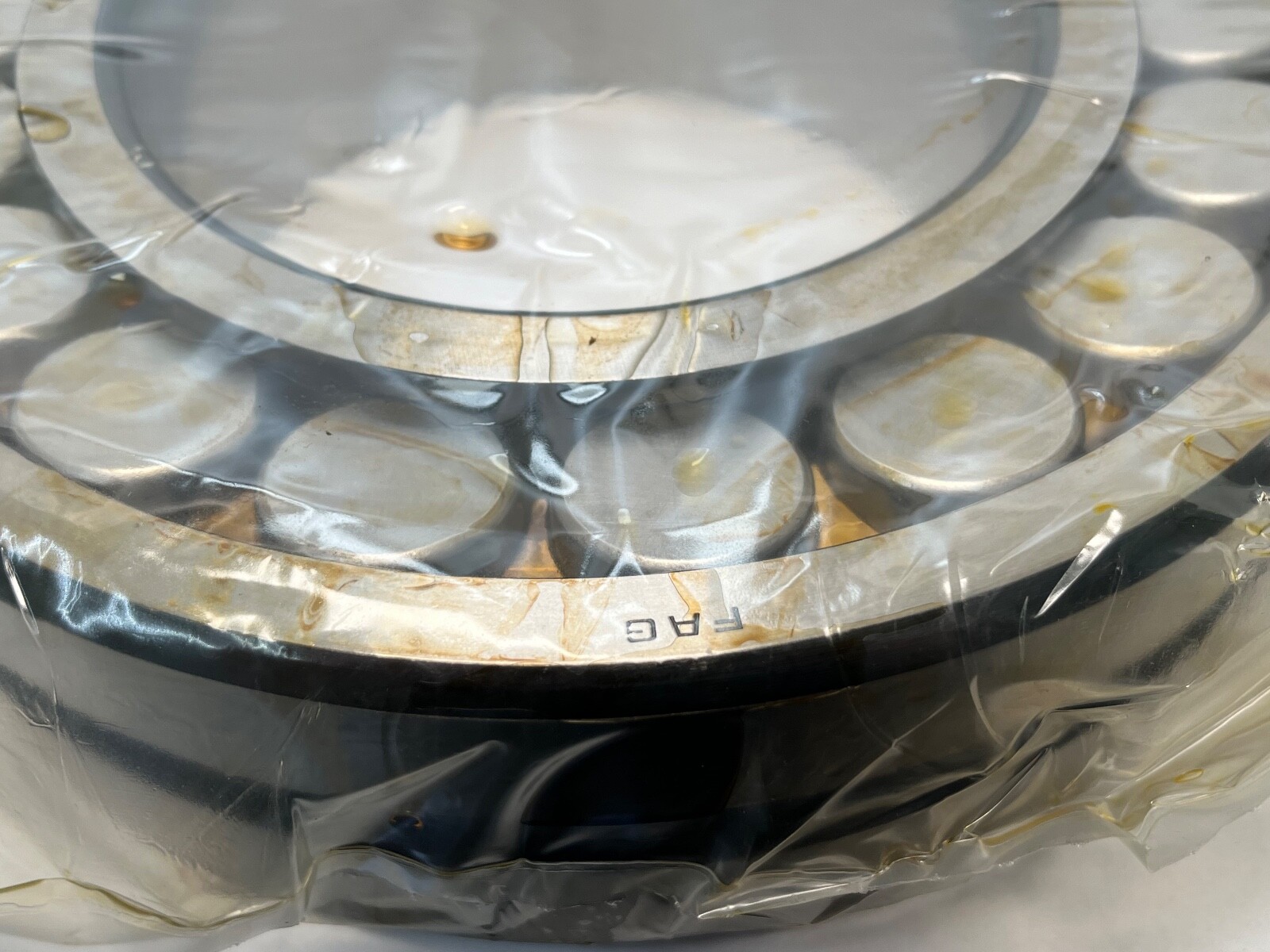

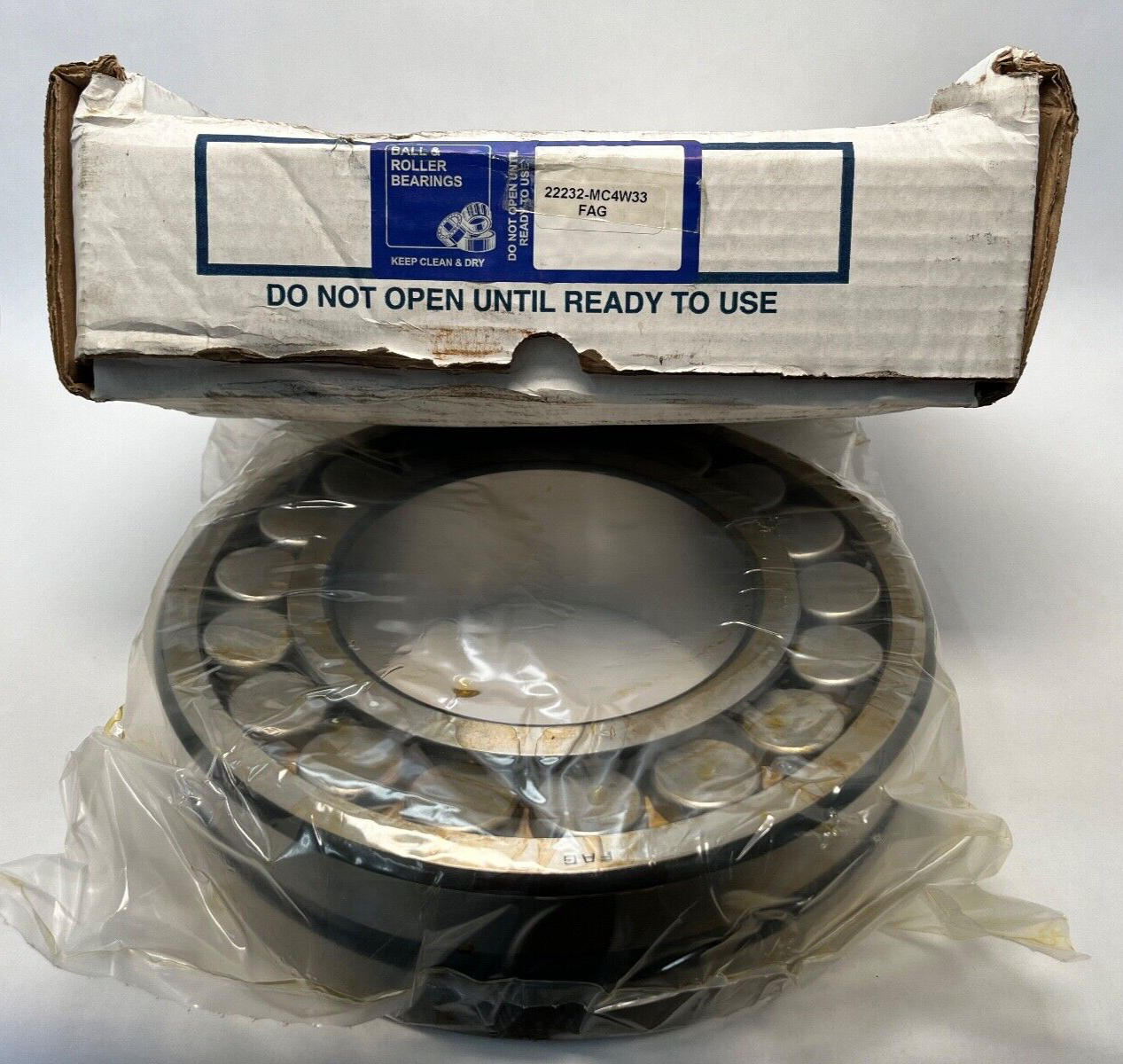

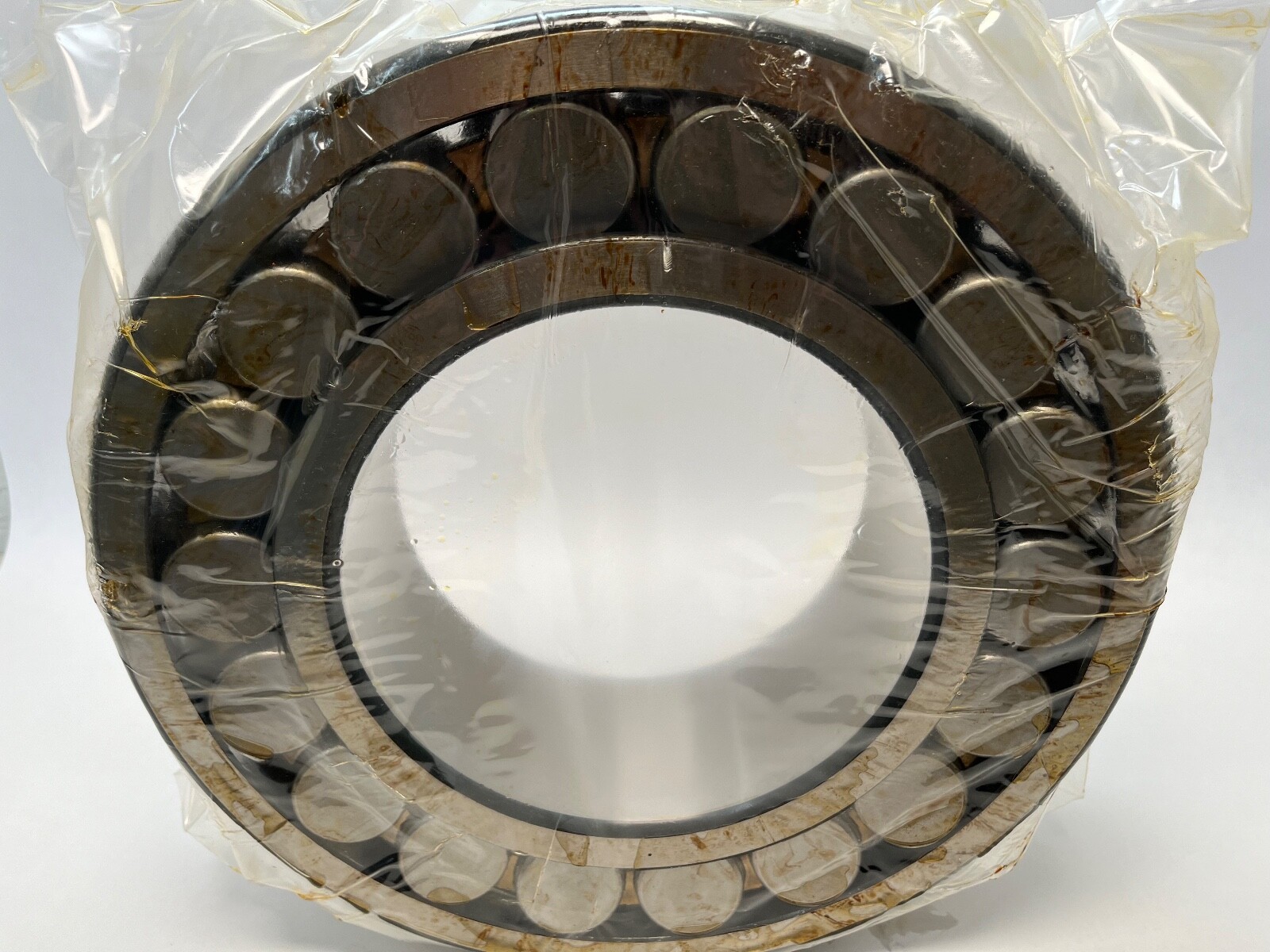

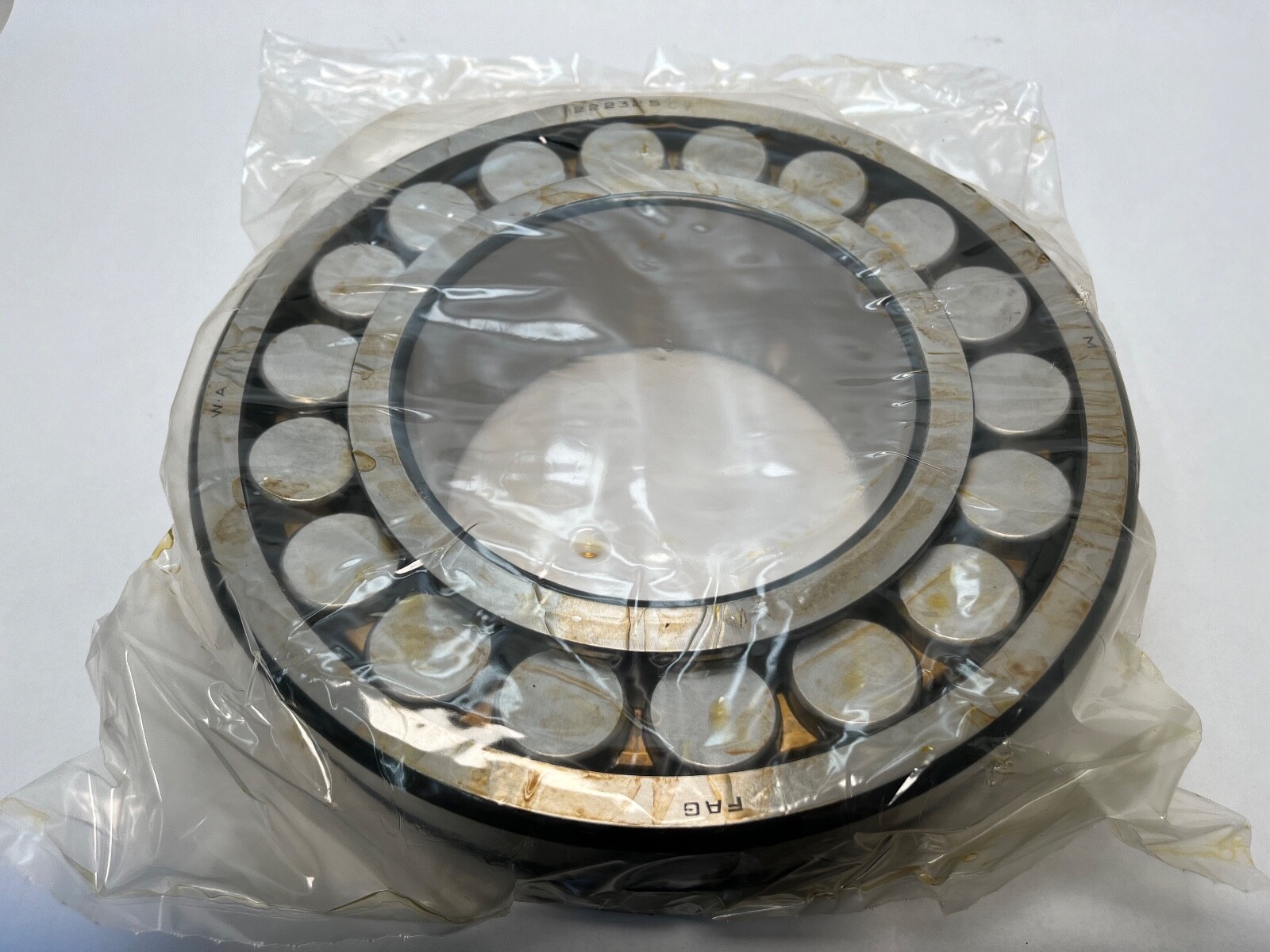

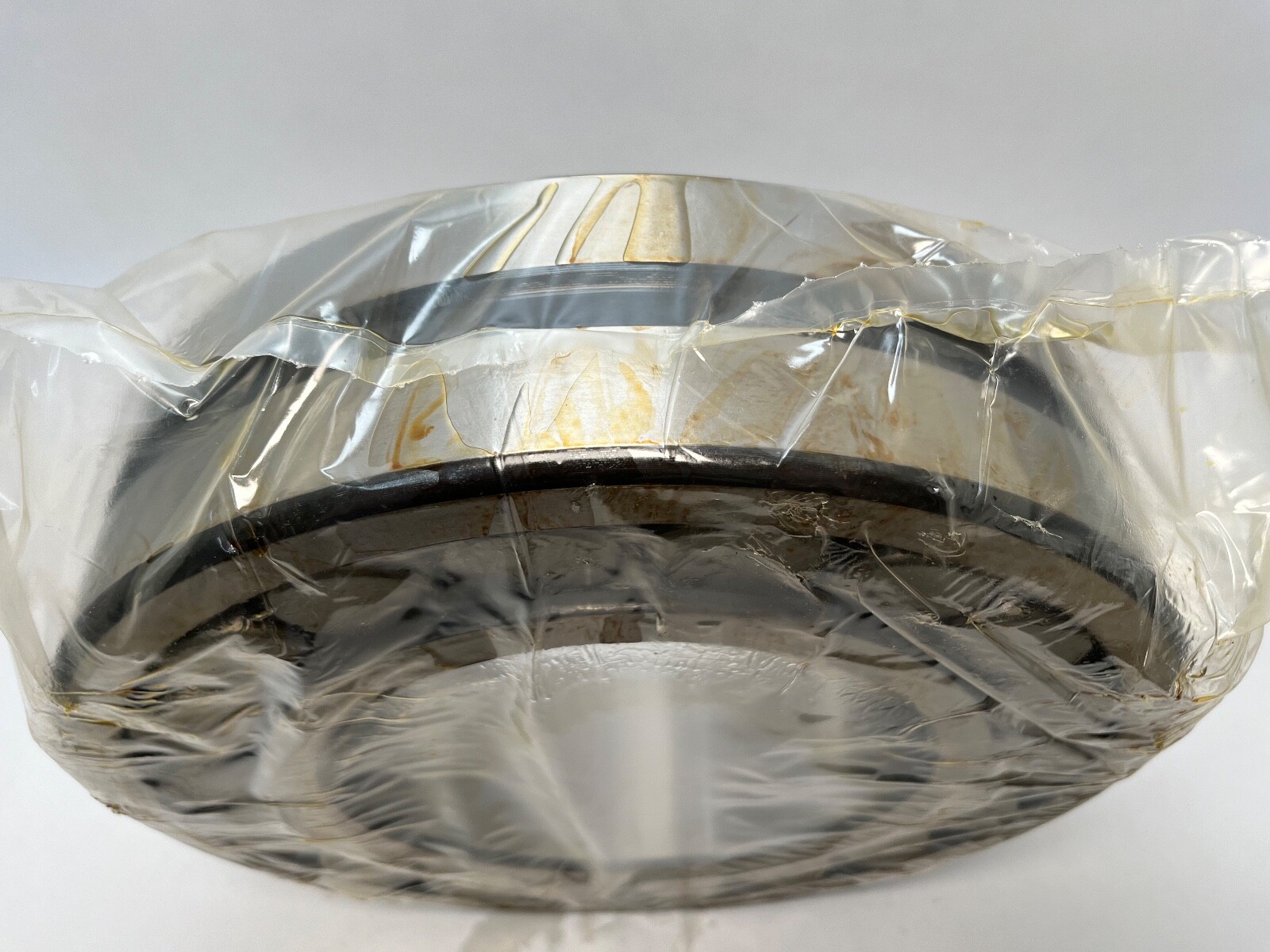

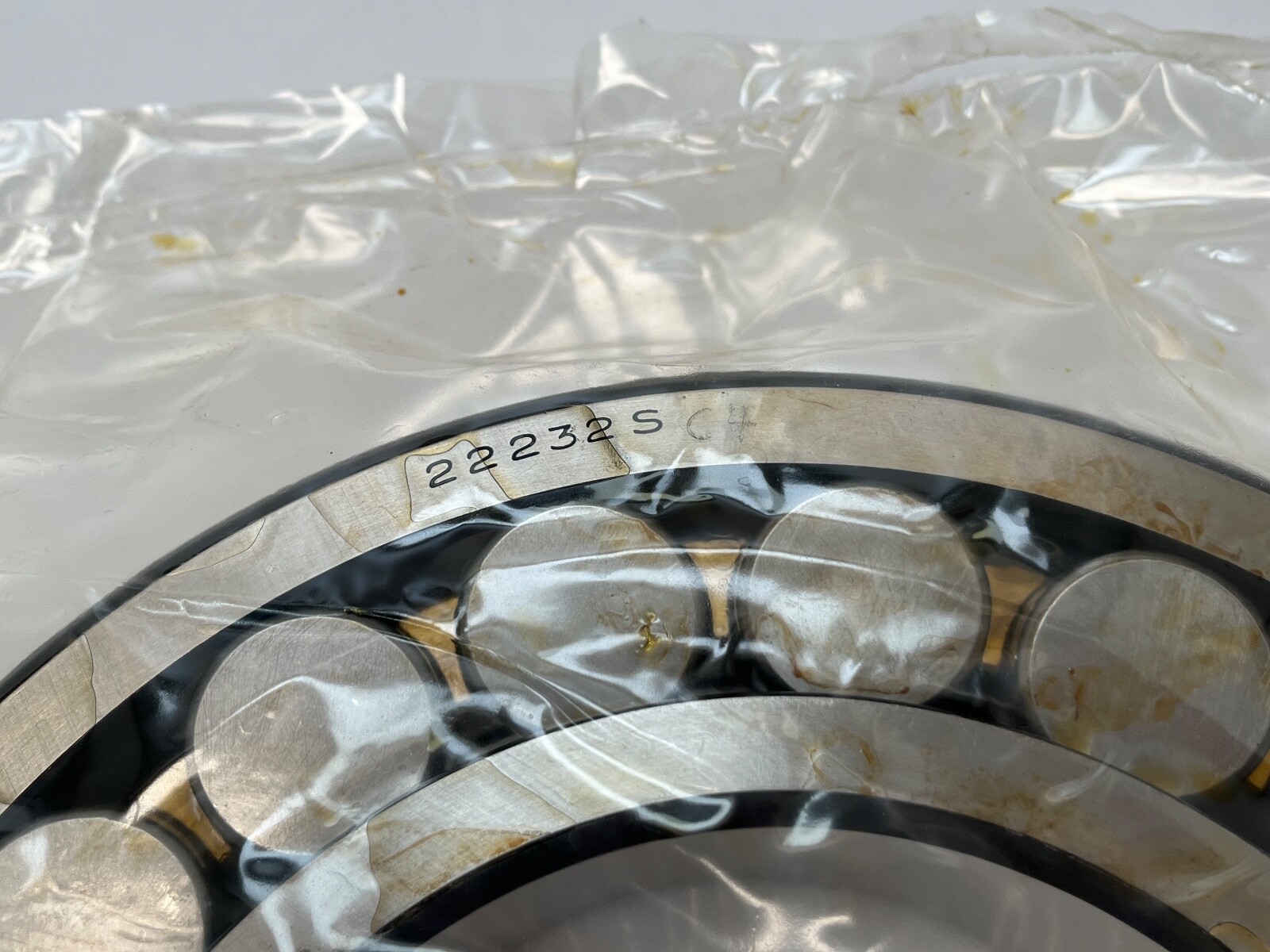

Introducing the FAG 22232MC4W33 Spherical Roller Bearing Engineered for superior mechanical power transmission, the FAG 22232MC4W33 Spherical Roller Bearing is your ideal solution for industrial automation and motion control applications. With precise dimensions of 160 mm bore diameter, 290 mm outside diameter, and a robust 80 mm width, this bearing is crafted from high-quality steel that ensures durability and longevity in demanding environments. FAG’s 22232MC4W33 model is specifically designed to withstand challenging operating conditions, offering exceptional load-carrying capabilities. Recognized within the Ball & Roller Bearings category, this bearing exceeds industry standards, thereby ensuring your machinery operates smoothly and efficiently. Here are the key features of the FAG 22232MC4W33: Bore Diameter: 160 mm Outside Diameter: 290 mm Width: 80 mm Material: High-quality Steel Condition: New Do not compromise on performance. Upgrade to the FAG 22232MC4W33 Spherical Roller Bearing and experience unparalleled reliability and efficiency within your operations. Trust in FAG’s distinguished reputation in the industry; your machinery deserves the best.
List Price
$640.21
1 in stock

1 in stock
On the Shelf & Ready to Ship
On all orders

No Risk, No Hassle
Also Available From:
| MFR / Brand | FAG |
|---|---|
| MPN | 22232MC4W33 |
| Model | 22232 E1 M M C4 W33 / 22232 M C4 W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 160 mm |
| OD | 290 mm |
| Width | 80 mm |
| Advertise | 1 |
|---|---|
| Material | Bearing Steel |
| Min Temp | -30 °C |
| Cage Type | Machined Brass |
| Dynamic Load Rating | 1000 kN / 224808 lbf |
| Static Load Rating | 1220 kN / 274268 lbf |
| Precision Rating | C4 |
| Series | 22200 |
| Rolling Elements | Spherical Roller |
| Max Temp | 200 °C |
| Condition | New |
| Item Weight | 50.00 lbs |
| Cage Material | Brass |
| Limiting Speed | 2000 rpm |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C4 |
| Cross Reference 1 | SKF 22232 CC/C4W33 |
|---|---|
| Cross Reference 2 | Timken 22232EM C4 W33 |
| Cross Reference 3 | NSK 22232EAE4 C4 |
| Cross Reference 4 | NTN 22232E C4 |
| Cross Reference 5 | SNR 22232E C4 |
