| MFR / Brand | NTN |
|---|---|
| MPN | 7010CDBGNP5 |
| Model | 7010 C DB GN P5 2MM9110 WI CR DB |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50 mm |
| OD | 80 mm |
| Width | 16 mm |
| Material | Bearing Steel |
|---|---|
| Min Temp | -40°C |
| Cage Type | Molded |
| Dynamic Load Rating | 24.1 kN / 5417 lbf |
| Static Load Rating | 19.3 kN / 4338 lbf |
| Precision Rating | ABEC 5 / P5 |
| Series | 70 |
| Rolling Elements | Ball |
| Max Temp | 120°C |
| Condition | New |
| Item Weight | 0.55 lbs |
| Cage Material | Nylon |
| Limiting Speed | 20000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Lubricant | None |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Preload | Normal Preload |
| Mounting Arrangement | Universal |
| Running Accuracy | High Precision |
| Running Accuracy Radial And Axial Runout | High Precision |
| Cross Reference 1 | SKF 7010 CD/P5DGA |
|---|---|
| Cross Reference 2 | NSK 7010CTRDULP5 |

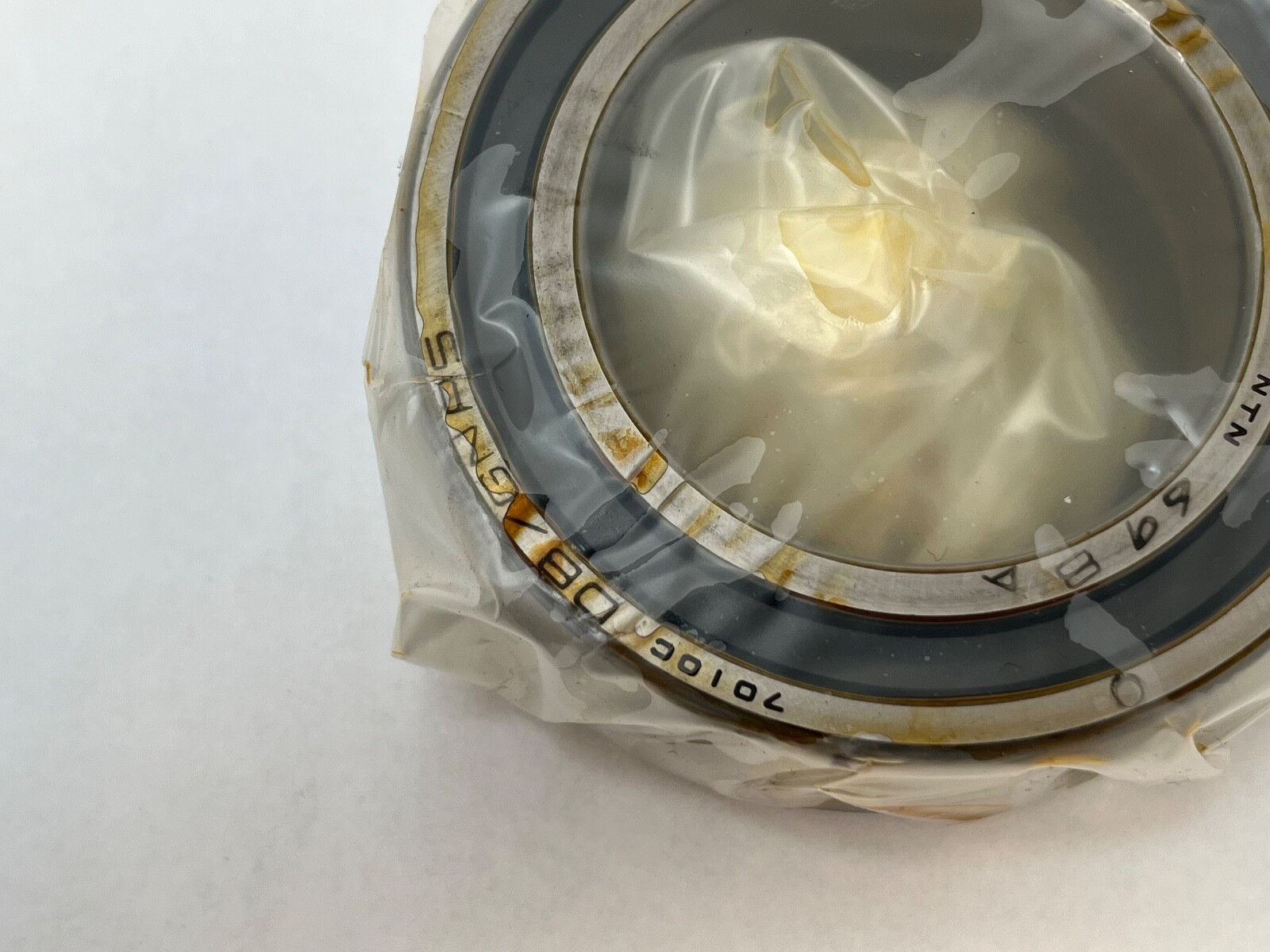

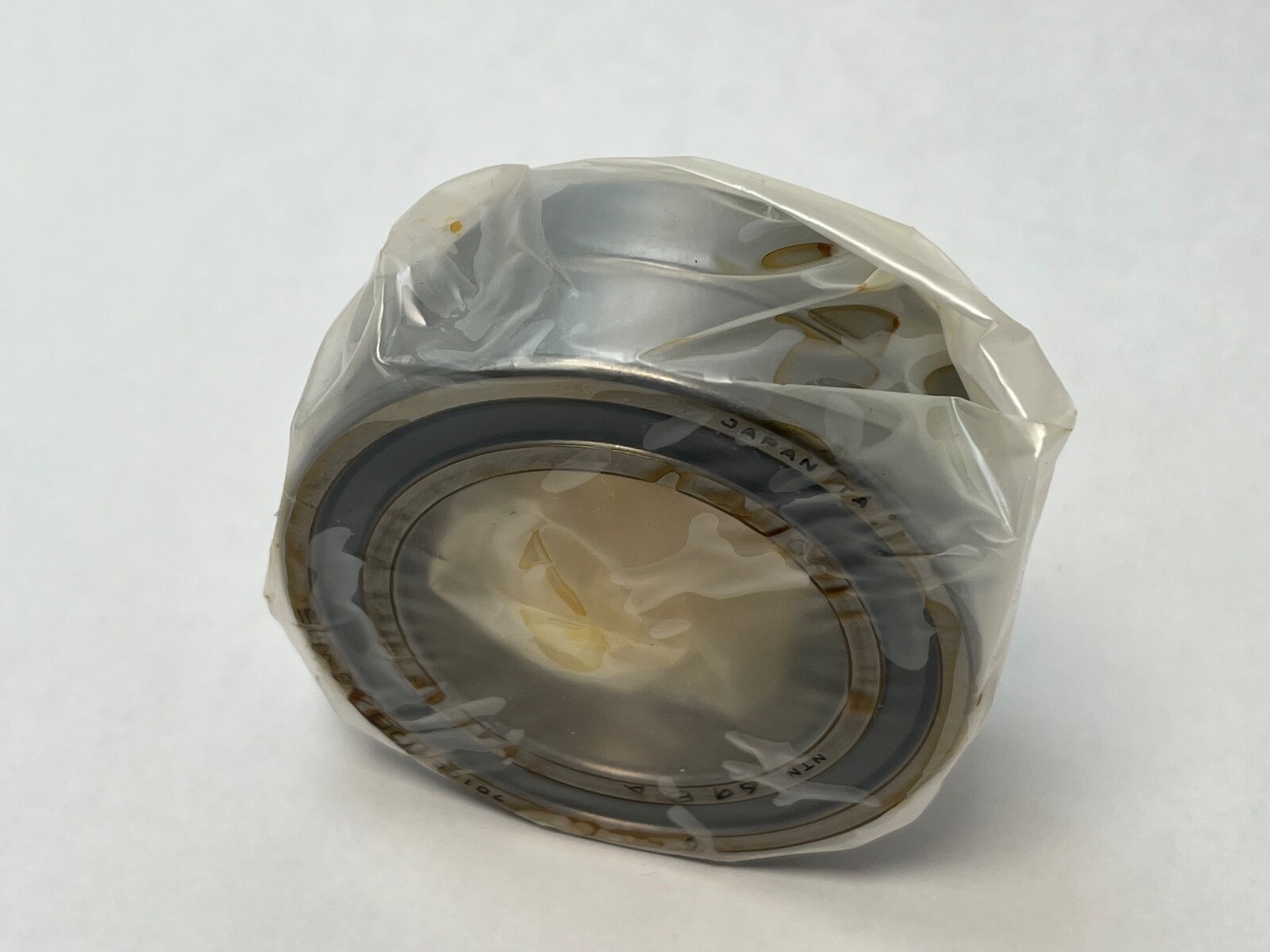

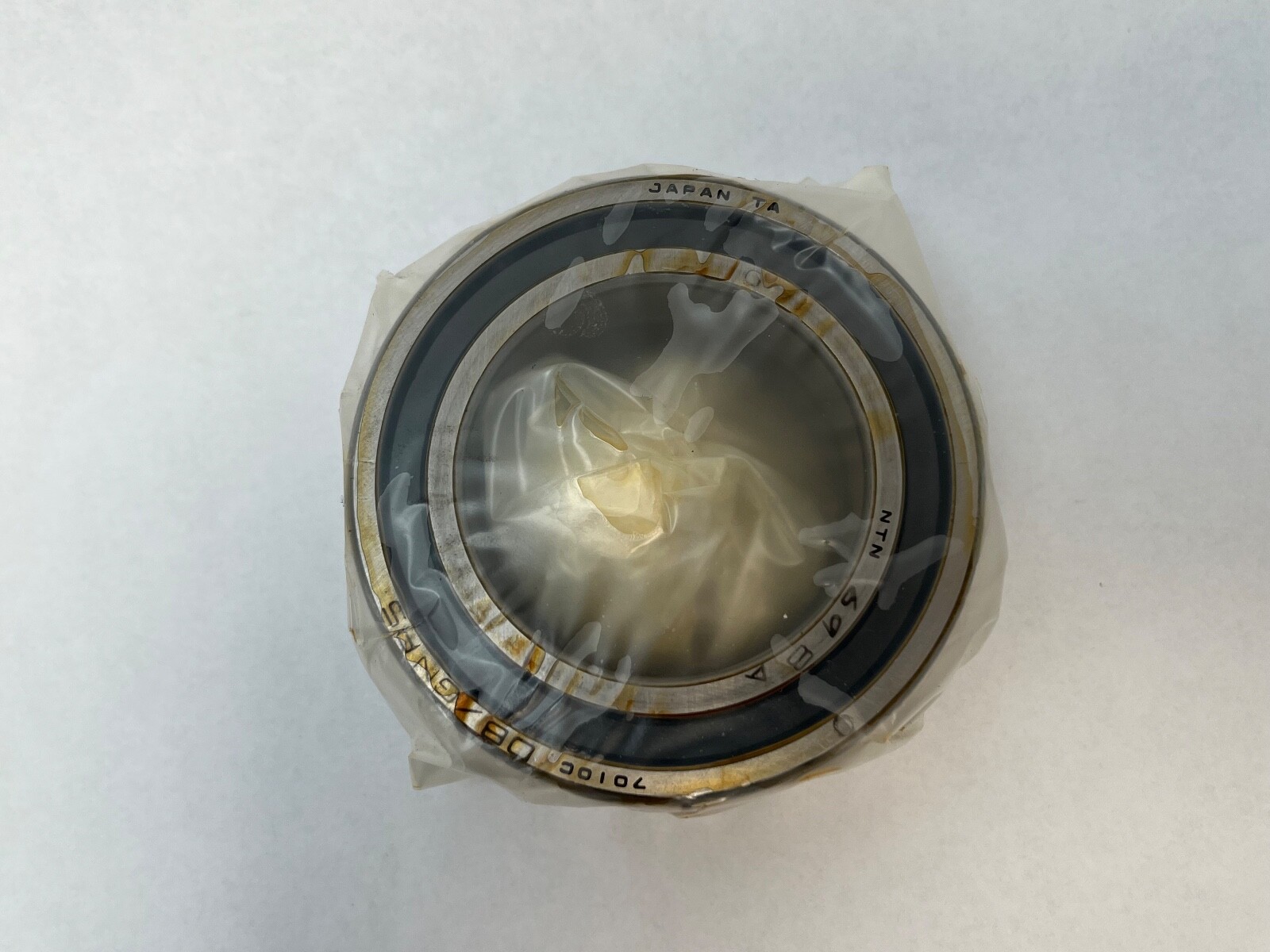

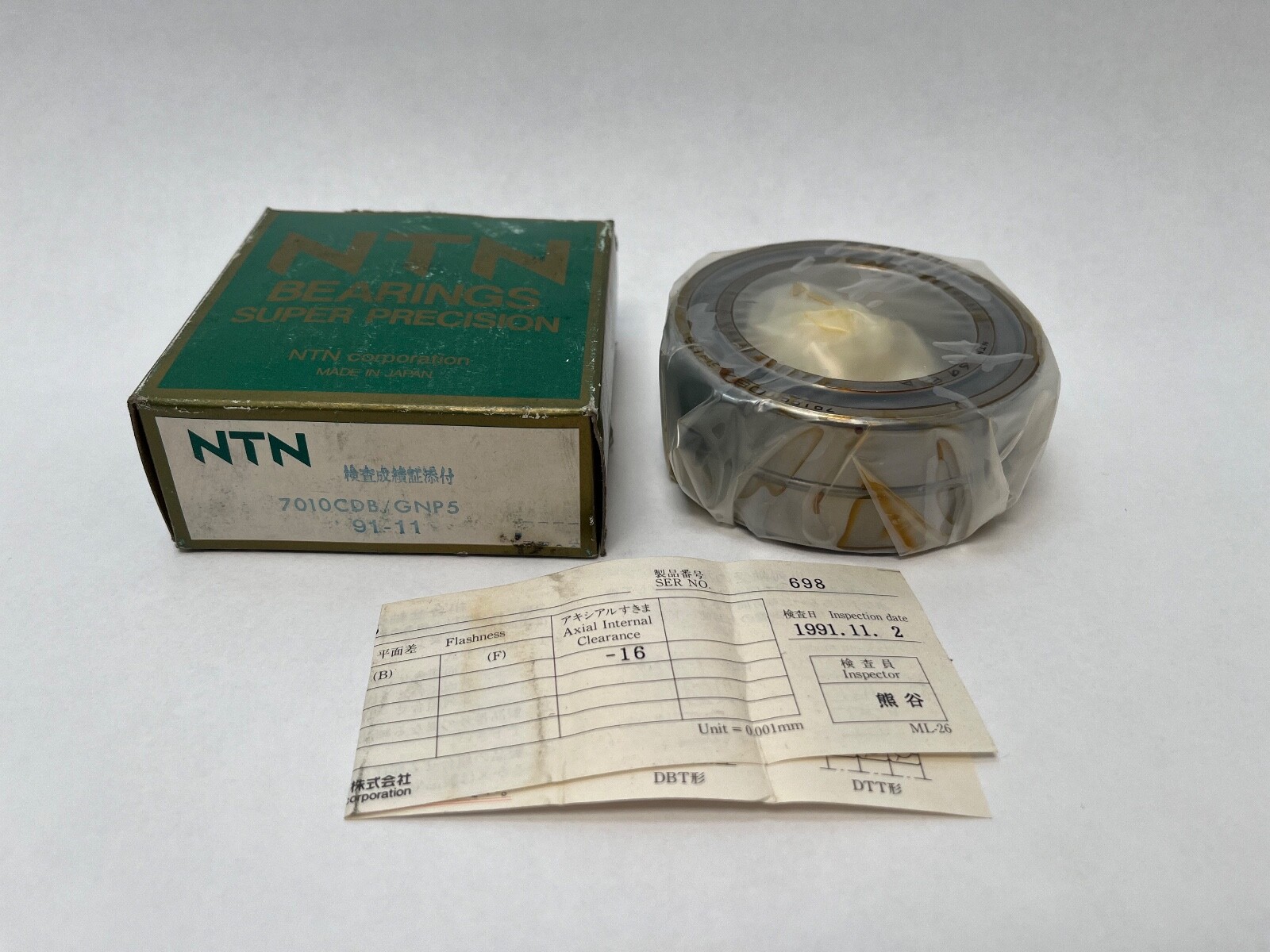

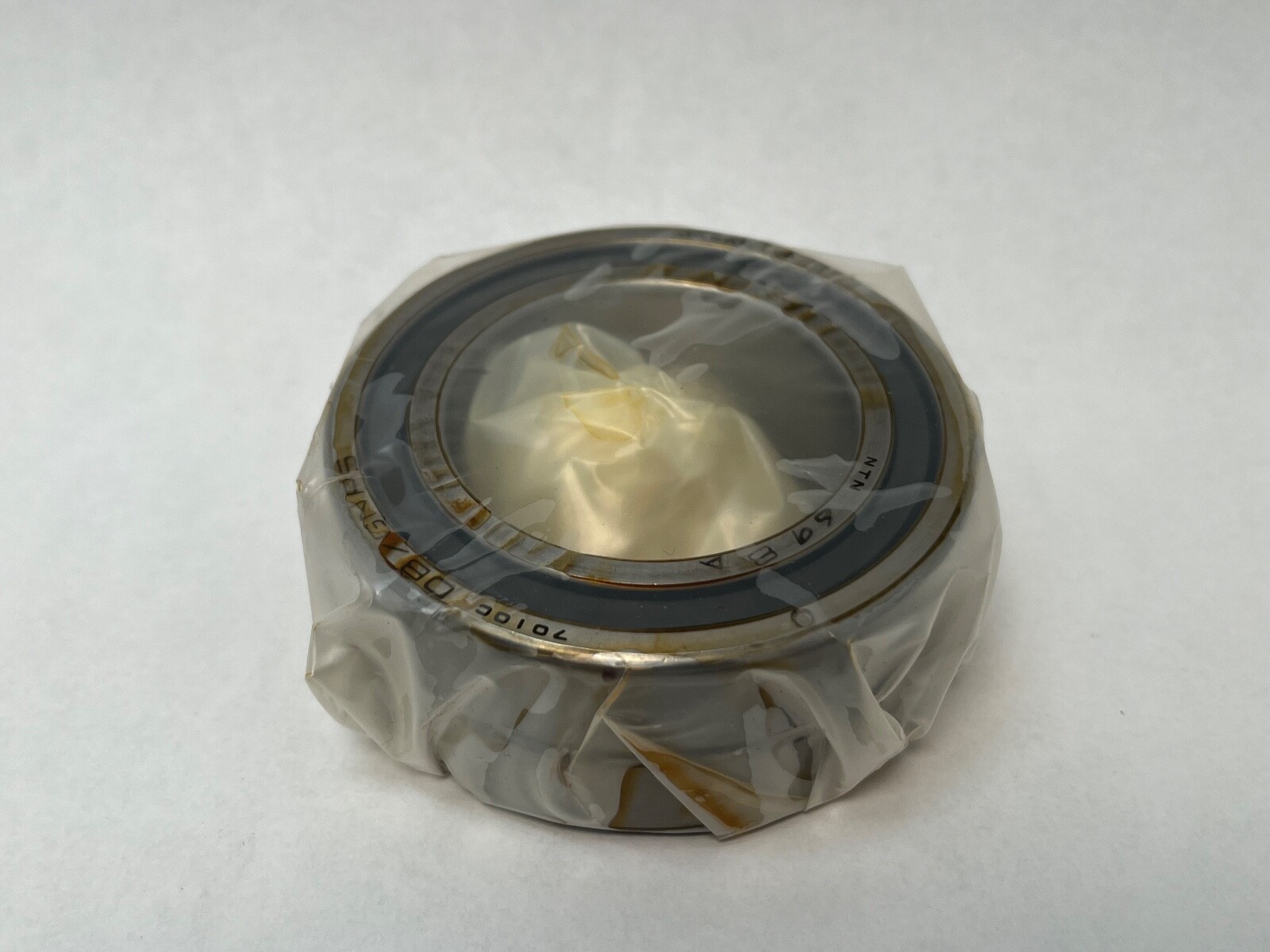

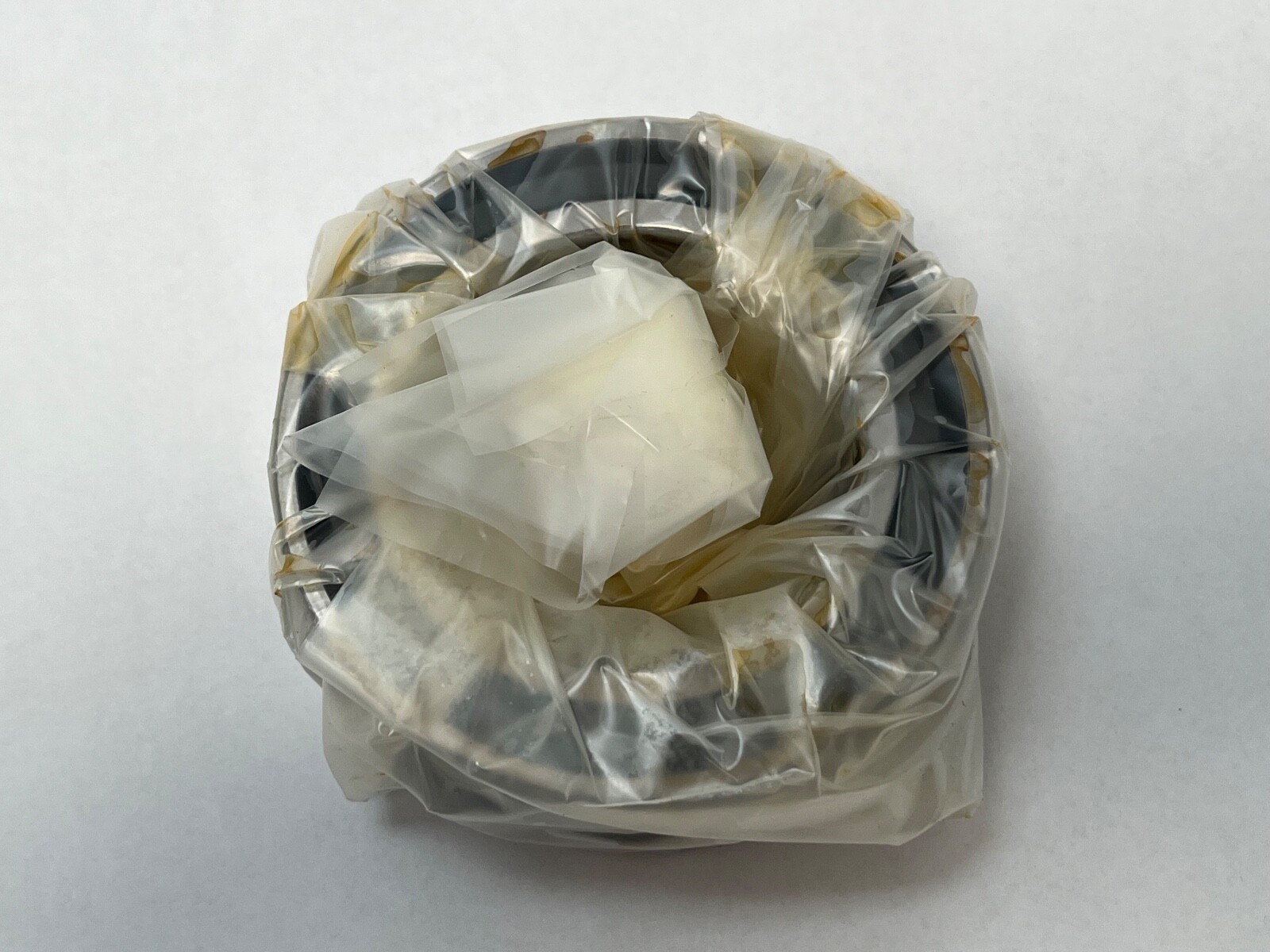

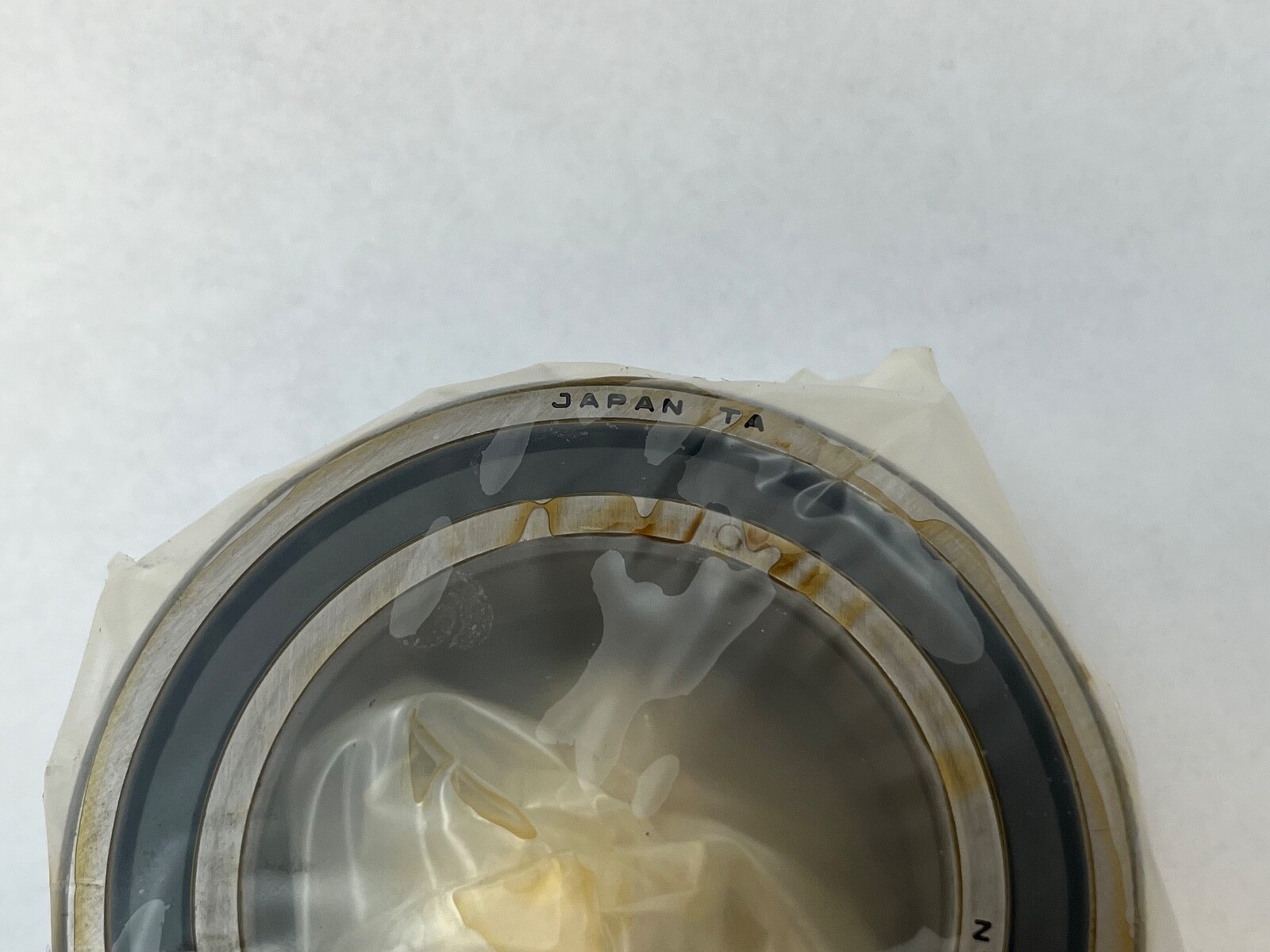

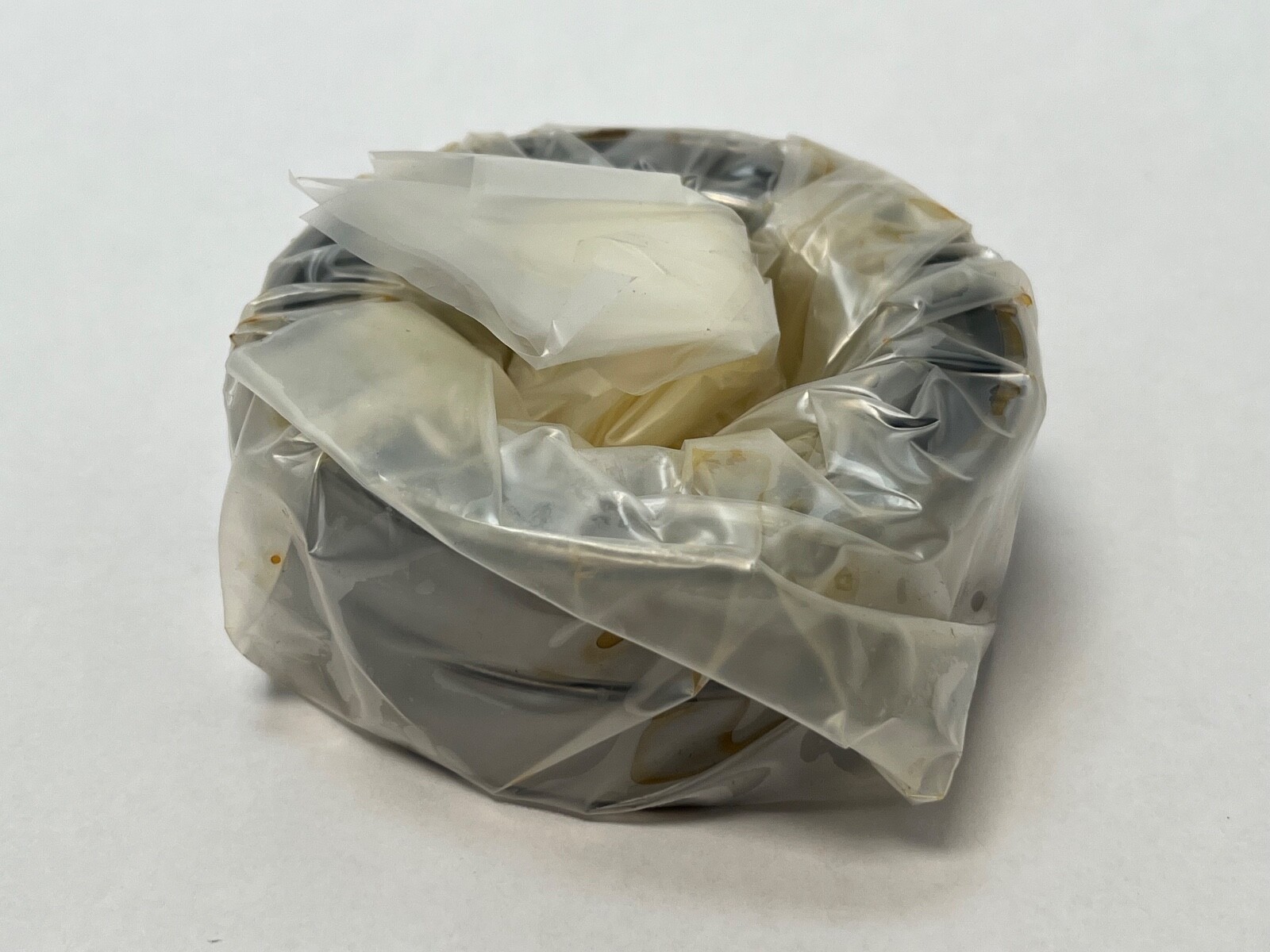

The product is a set of two high precision Angular Contact Ball Bearings with a precision rating of ABEC 5 / P5. Made by NTN in Japan, these bearings have a dynamic load rating of 24.1 kN (5417 lbf) and a static load rating of 19.3 kN (4338 lbf). With a bore diameter of 50 mm, outside diameter of 80 mm, and width of 16 mm, these bearings are designed for high accuracy and have a constant angle of 15°. The bearings are suitable for various mounting arrangements and can withstand a maximum temperature of 120°C. Ideal for industrial automation and motion control applications requiring reliable and precise bearing performance.
