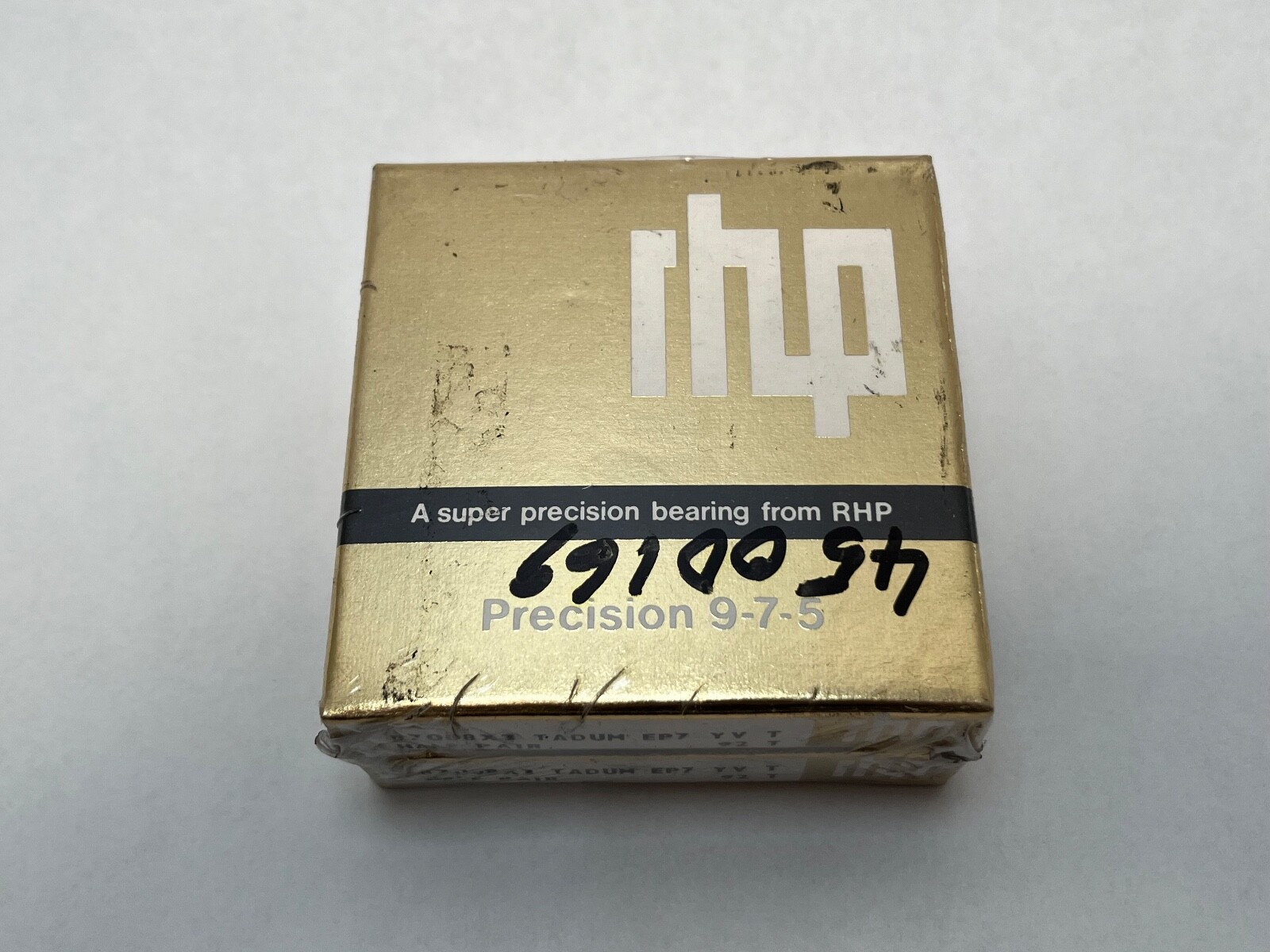

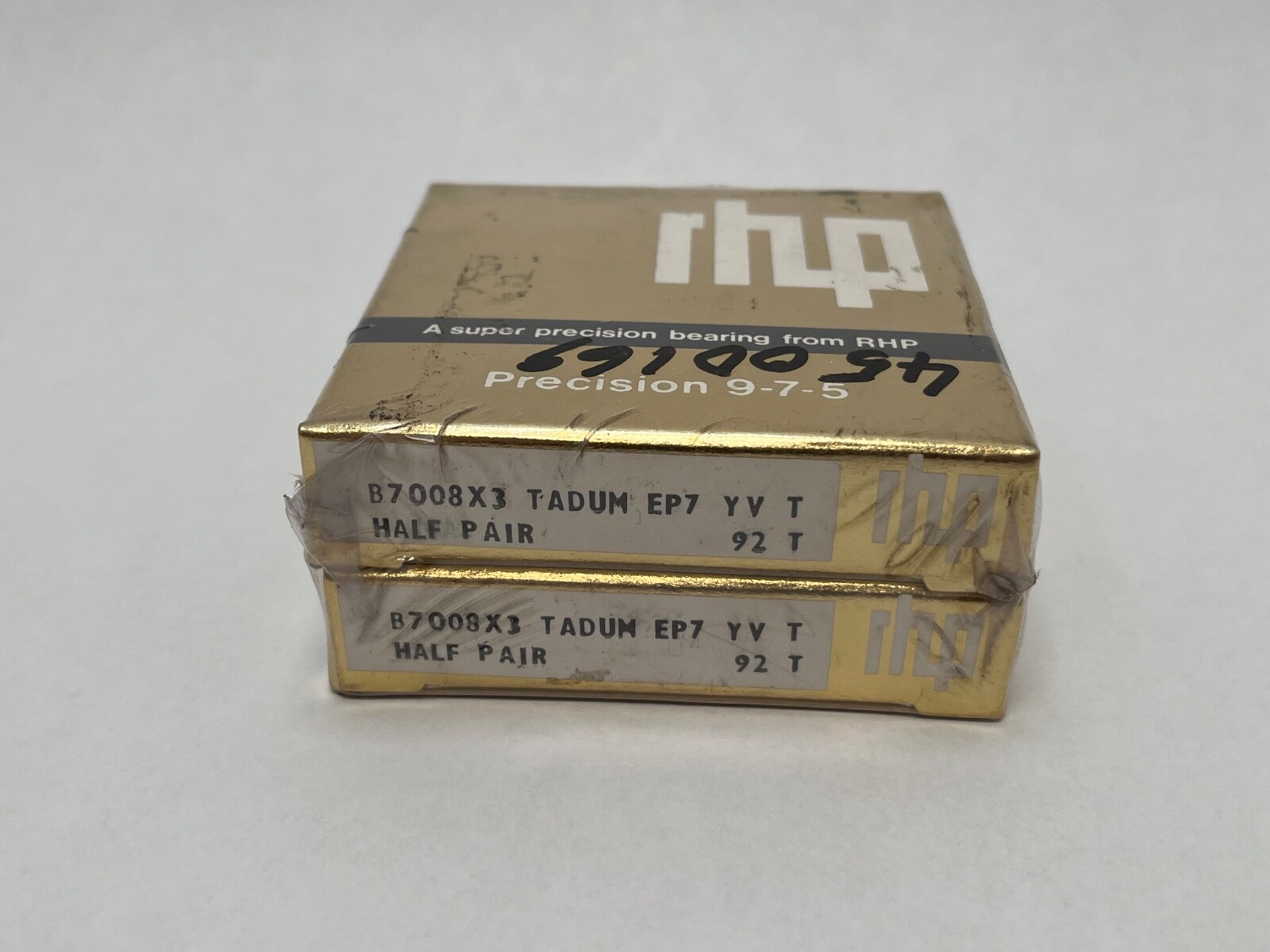

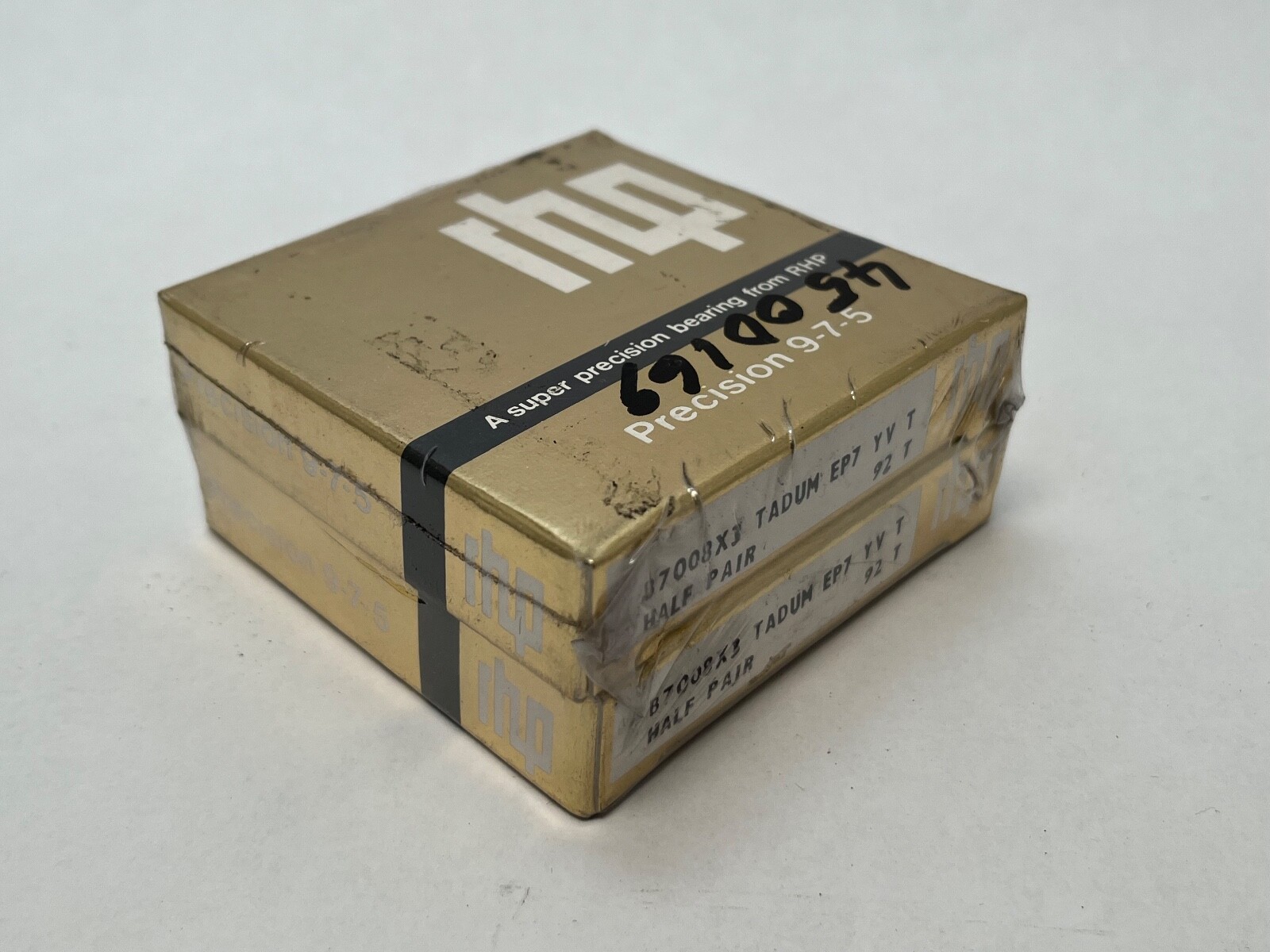

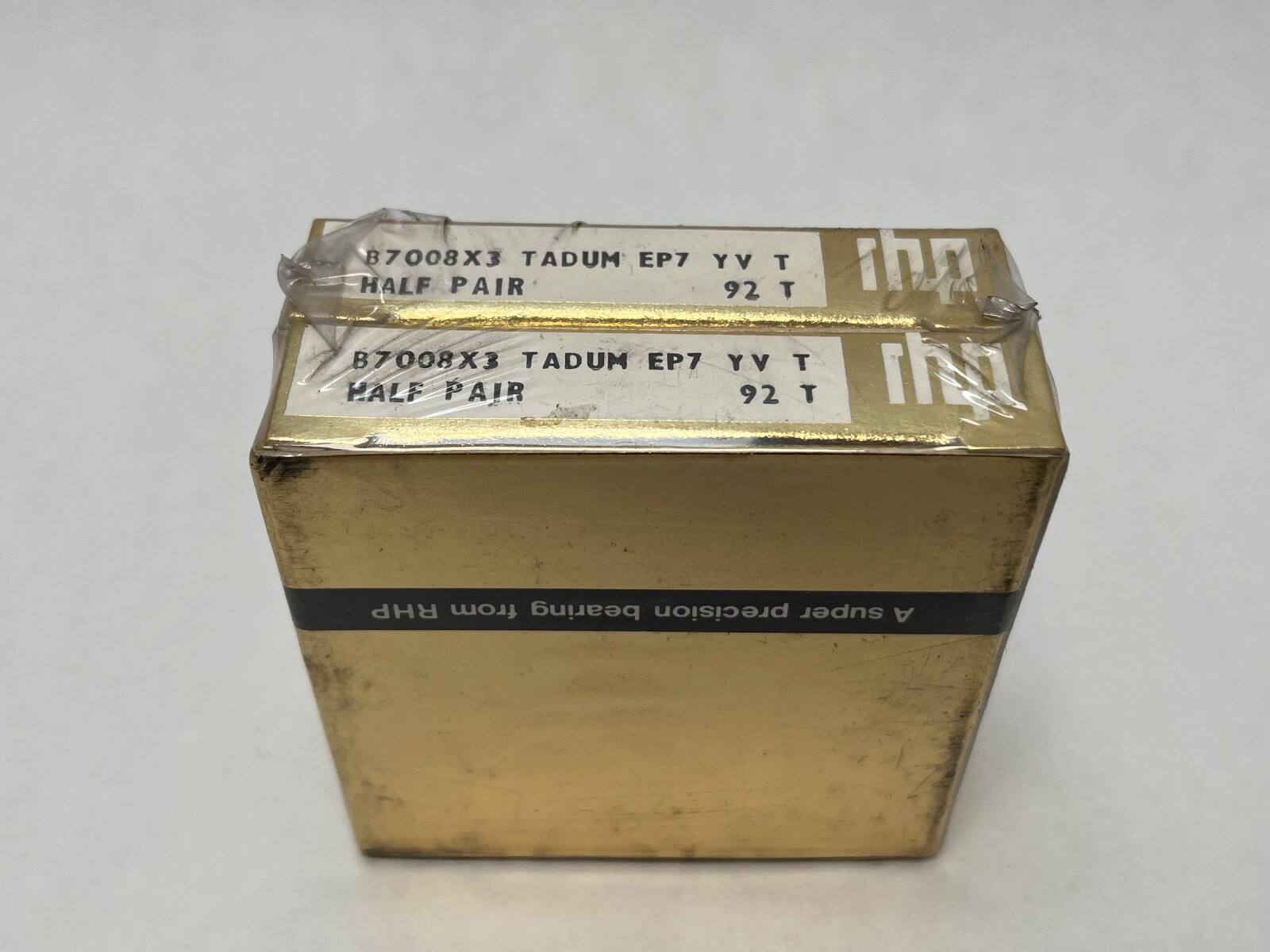

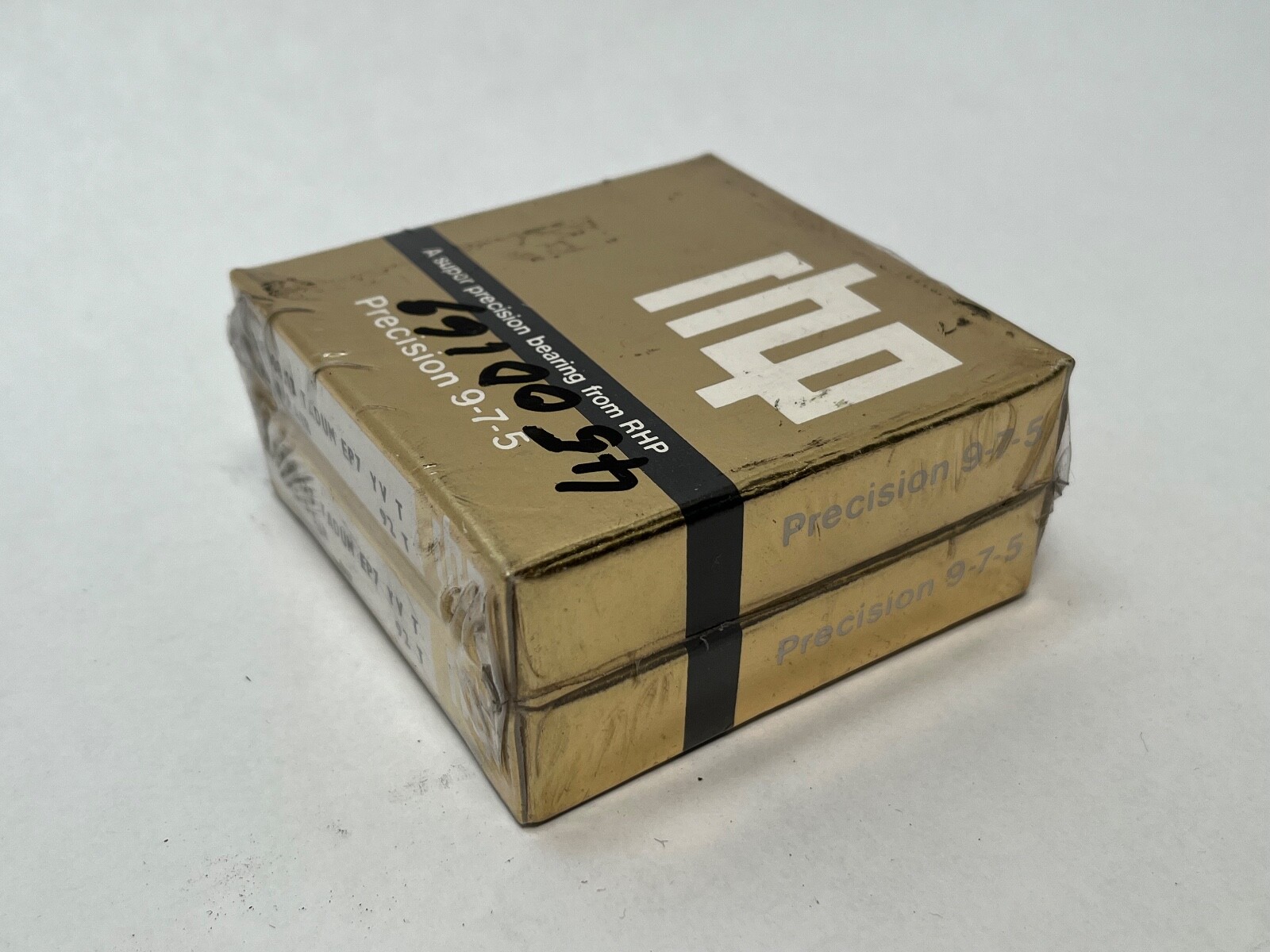

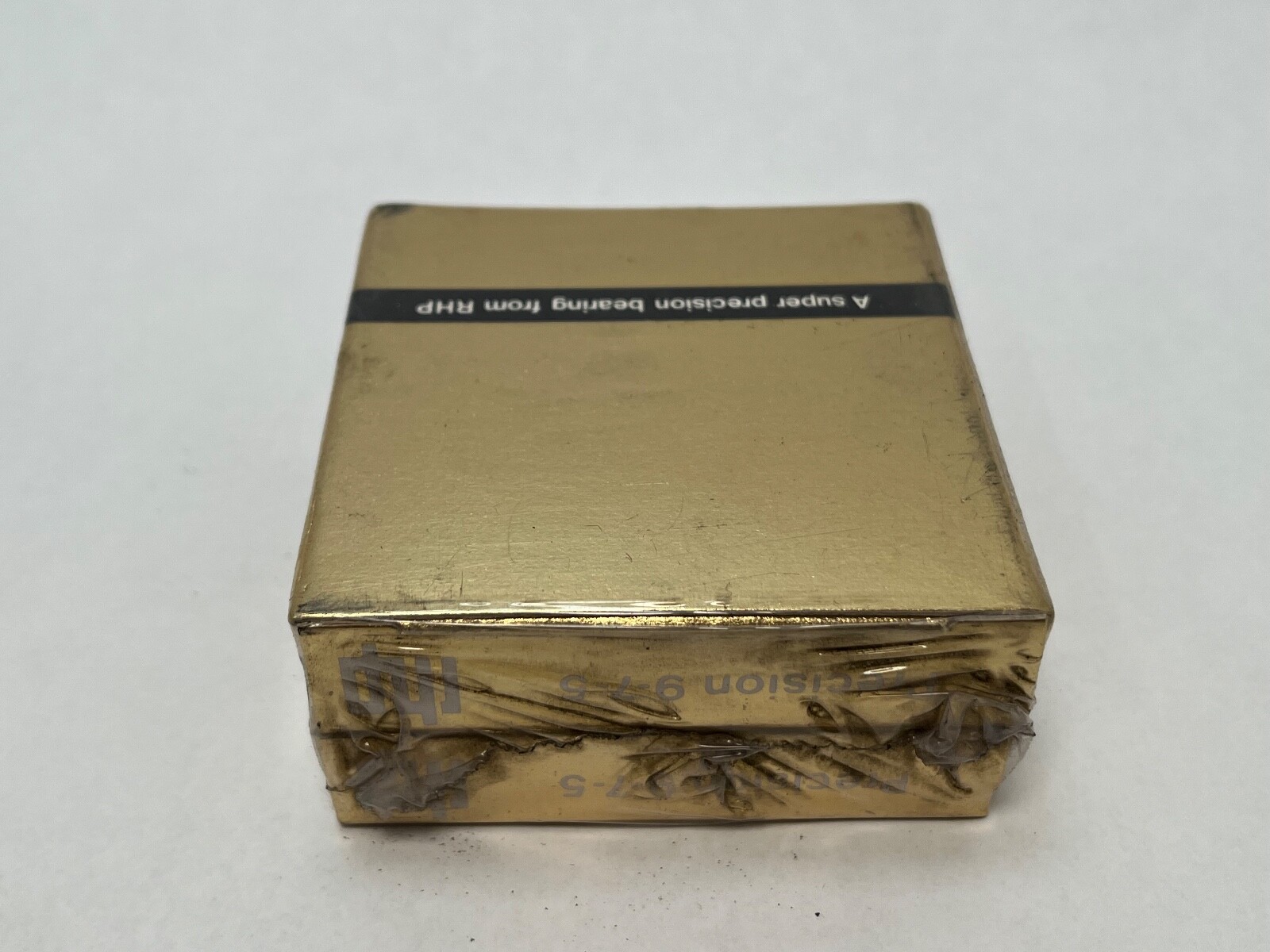

Angular Contact Ball Bearing – 40 mm ID, 68 mm OD, 15 mm Width, Open, 25°, Medium preload.
List Price
$182.89
10 in stock
10 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | RHP |
|---|---|
| MPN | 7008ETDUMP4 |
| Model | 7008 E T DUM P4 / B 7008 X3 TA DUM EP7 / 3MM9108WI CR DUM |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 40 mm |
| OD | 68 mm |
| Width | 15 mm |
| Advertise | 1 |
|---|---|
| Material | Bearing Steel |
| Min Temp | -30 °C |
| Dynamic Load Rating | 17.5 kN / 3935 lbf |
| Static Load Rating | 11.5 kN / 2585 lbf |
| Precision Rating | ABEC 7 / P4 |
| Series | 7000 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Condition | New |
| Item Weight | 0.42 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 24000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Lubricant | Oil |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 25° |
| Preload | Medium Preload |
| Mounting Arrangement | Universal |
