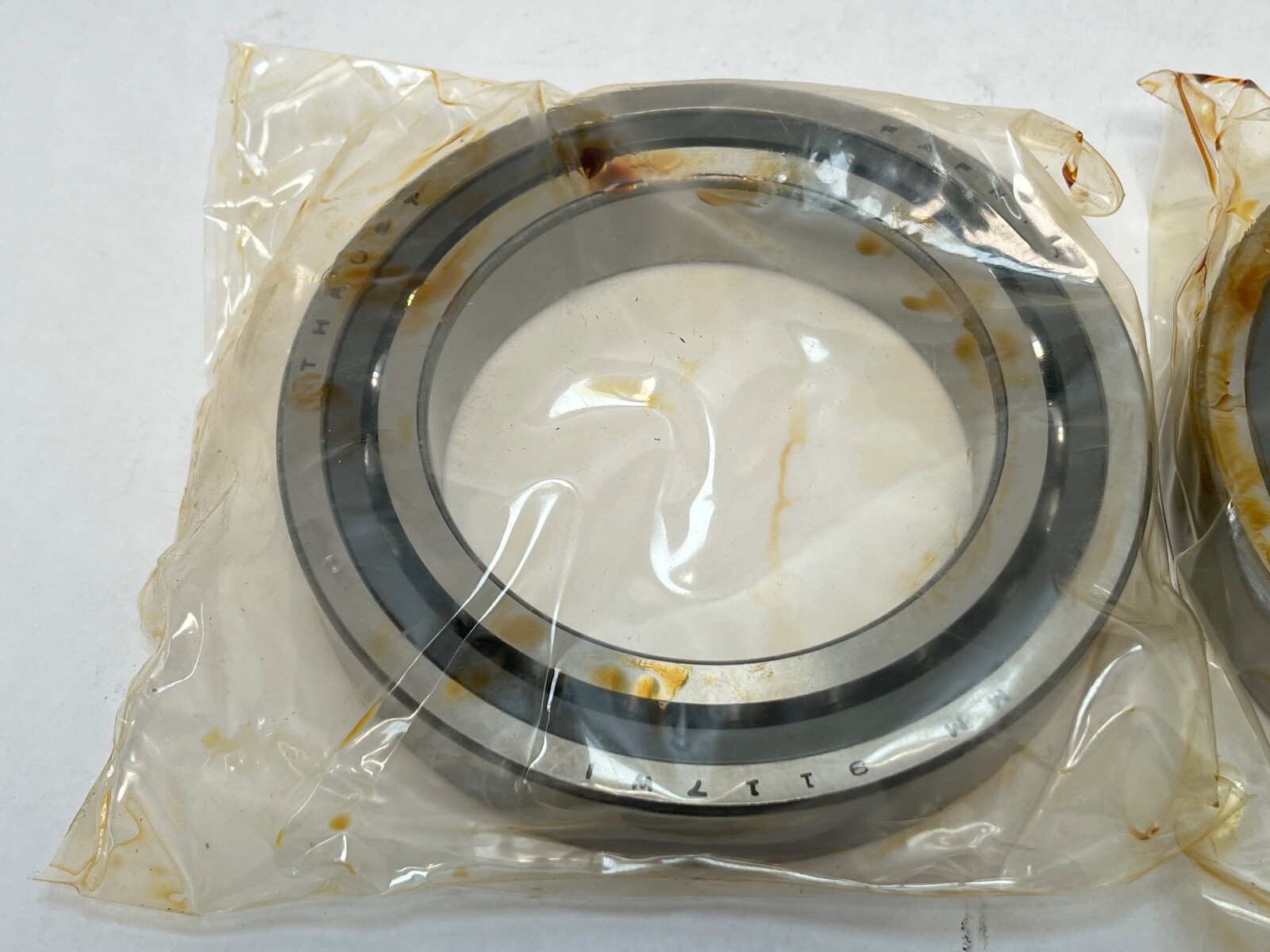

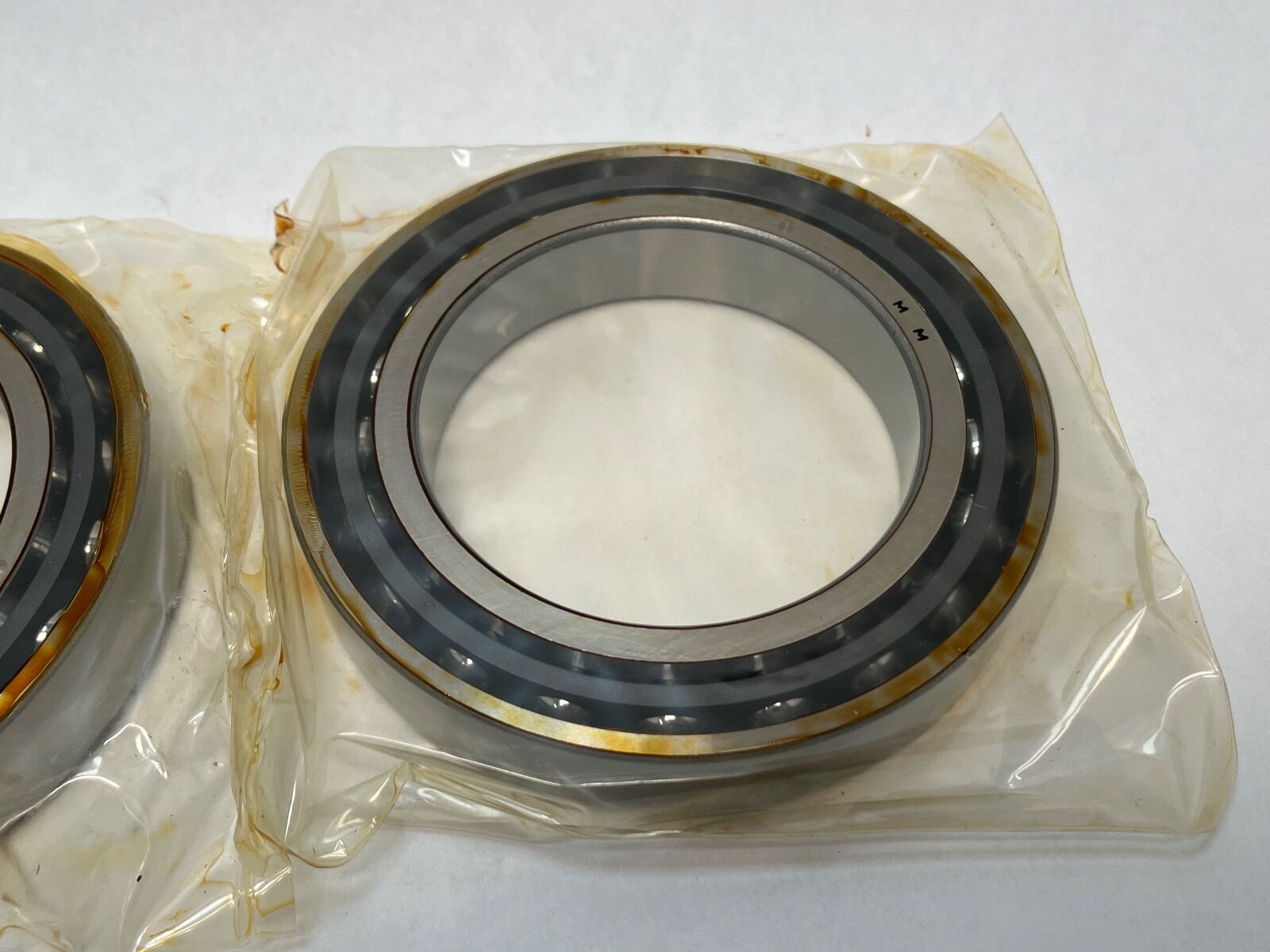

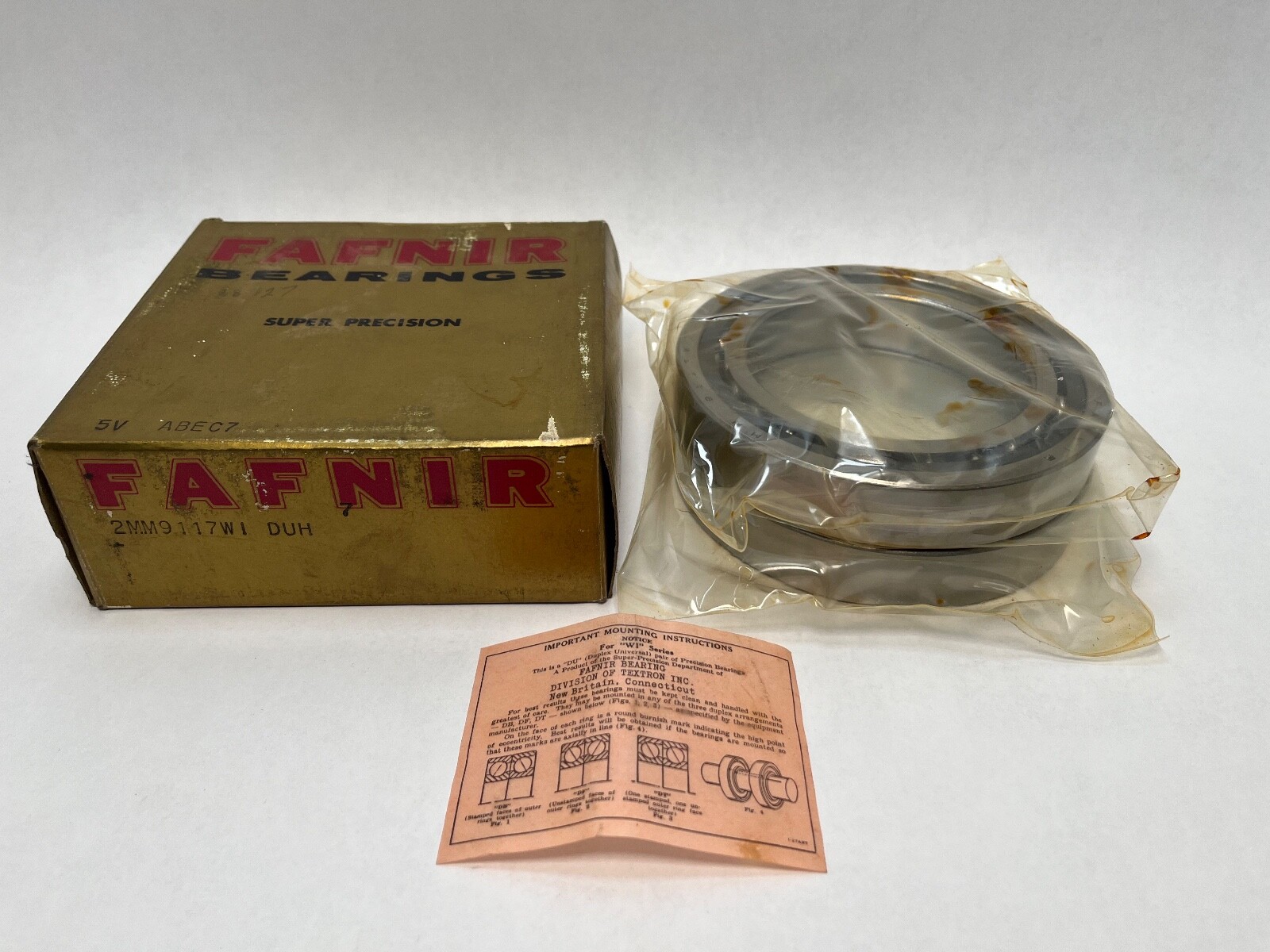

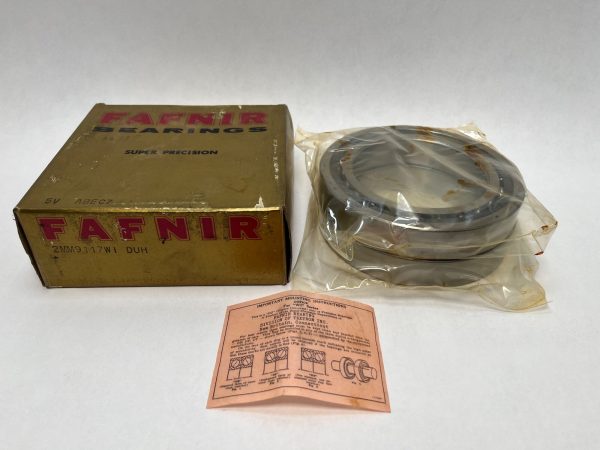

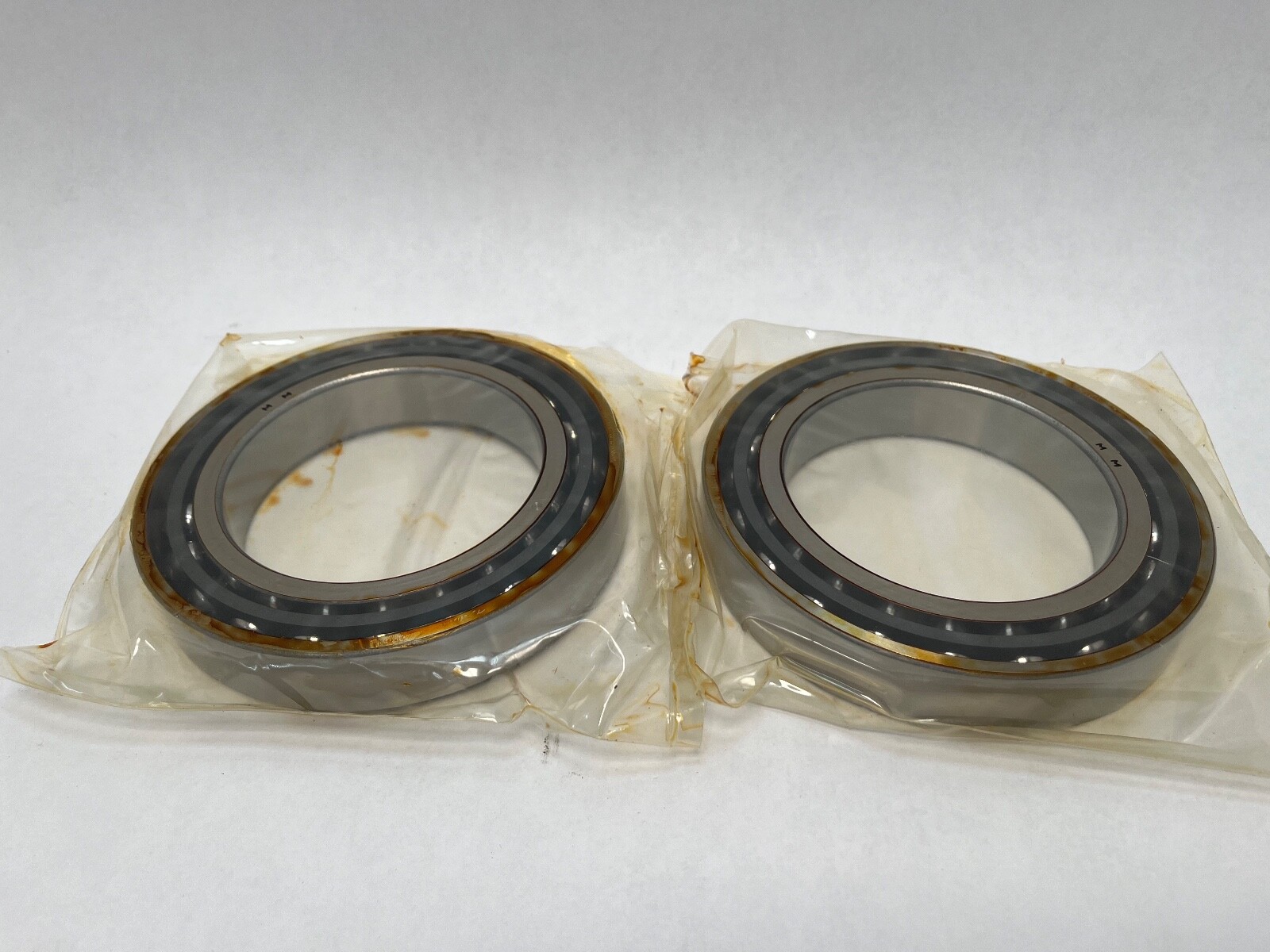

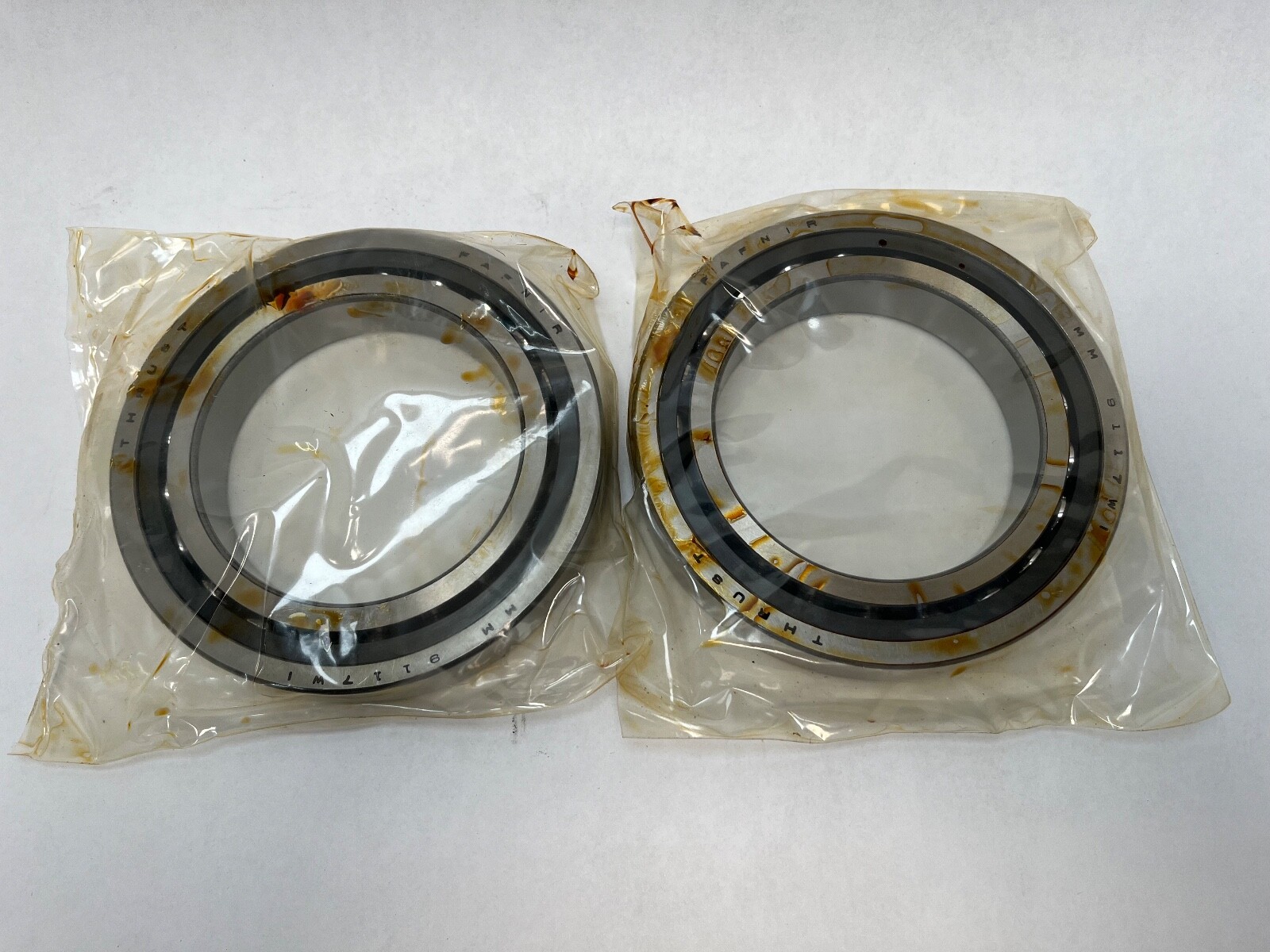

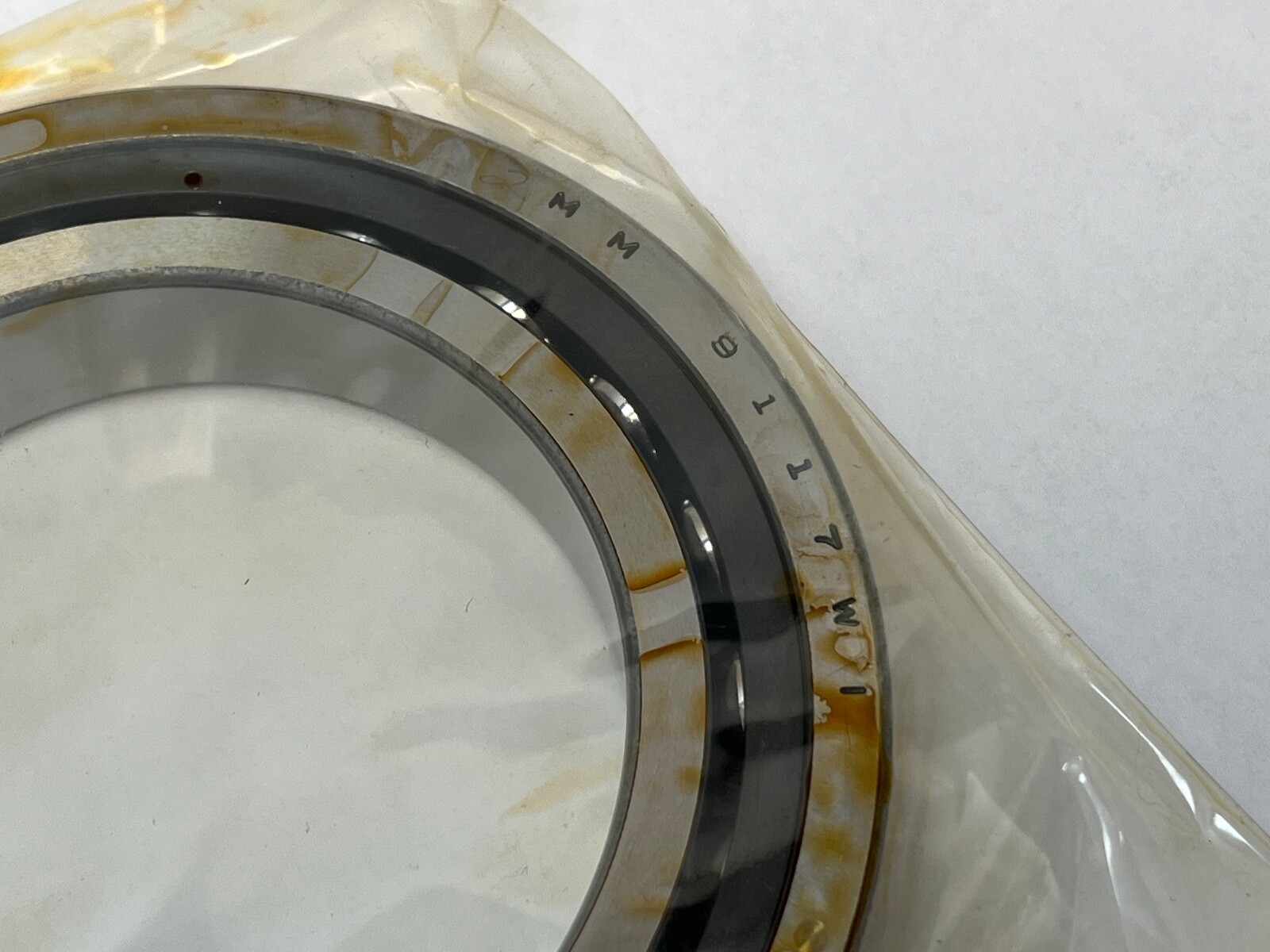

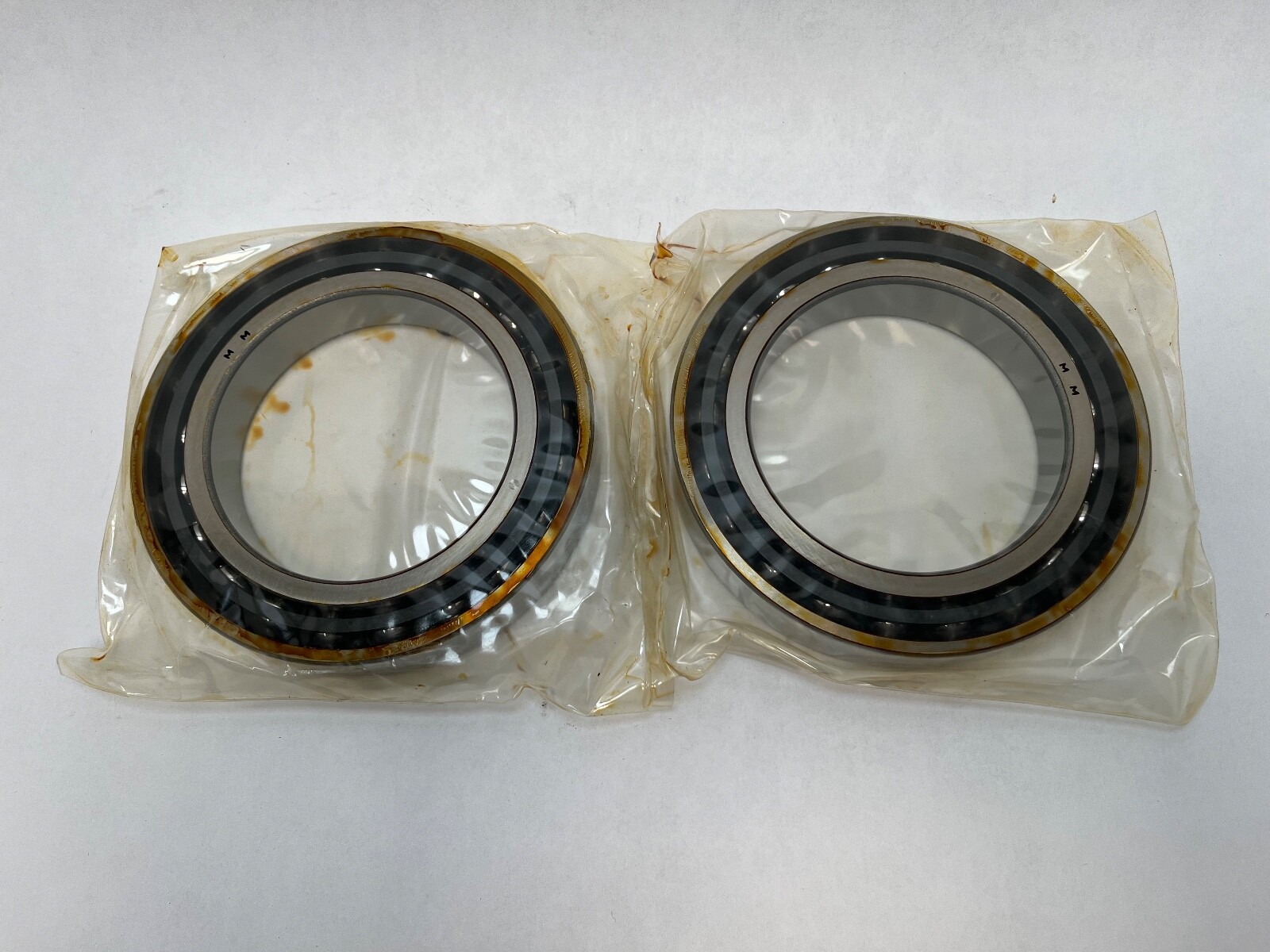

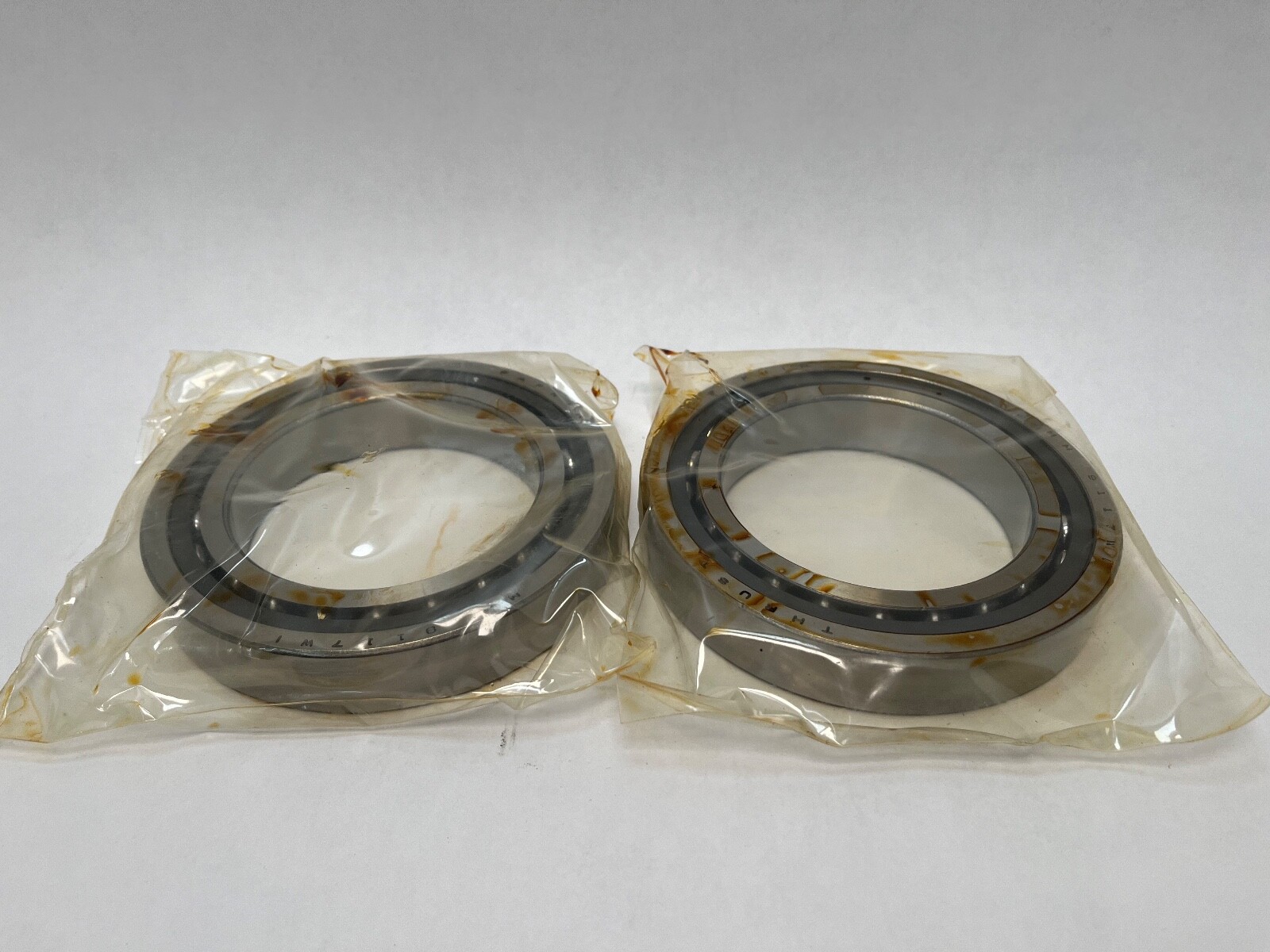

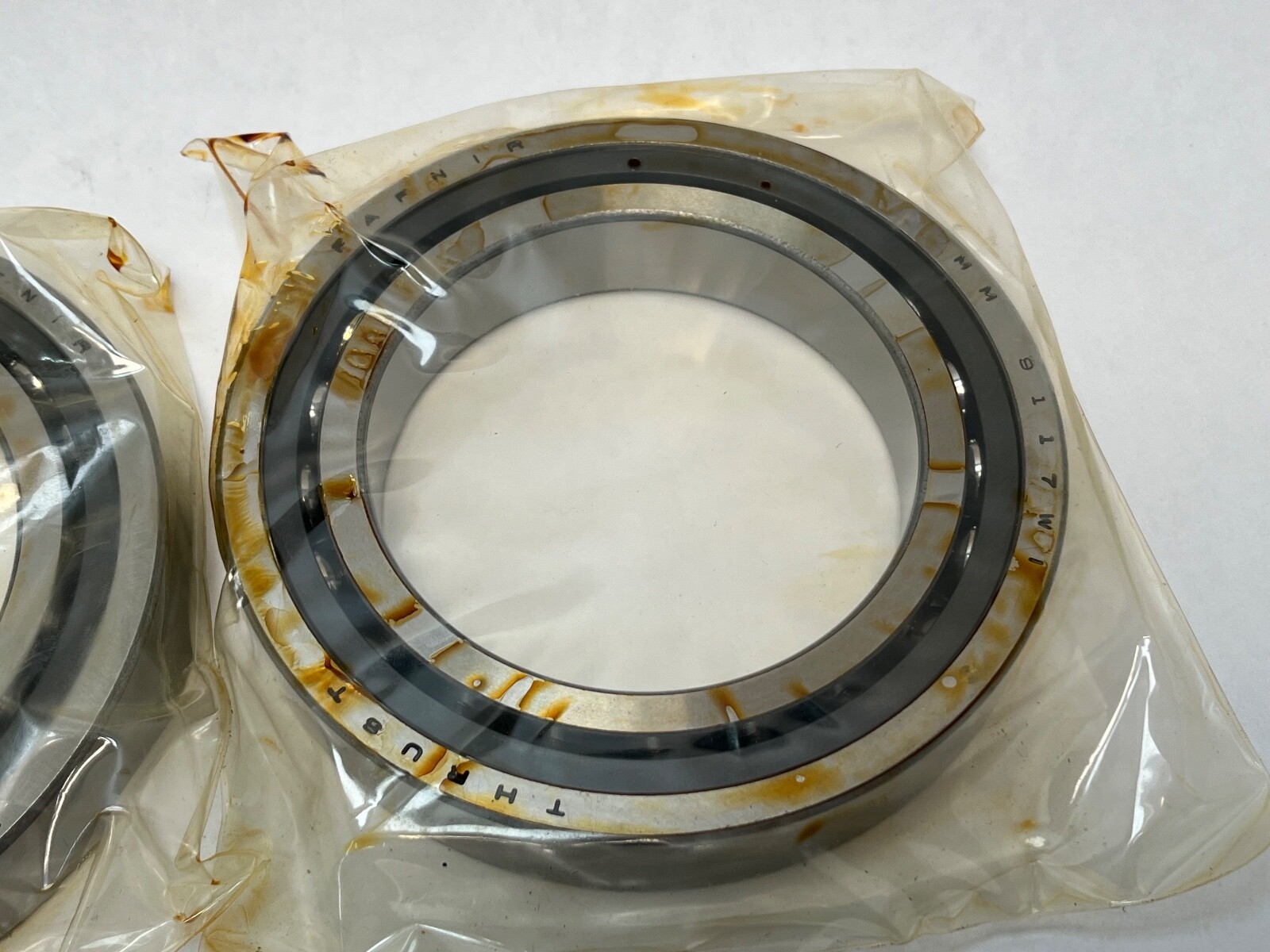

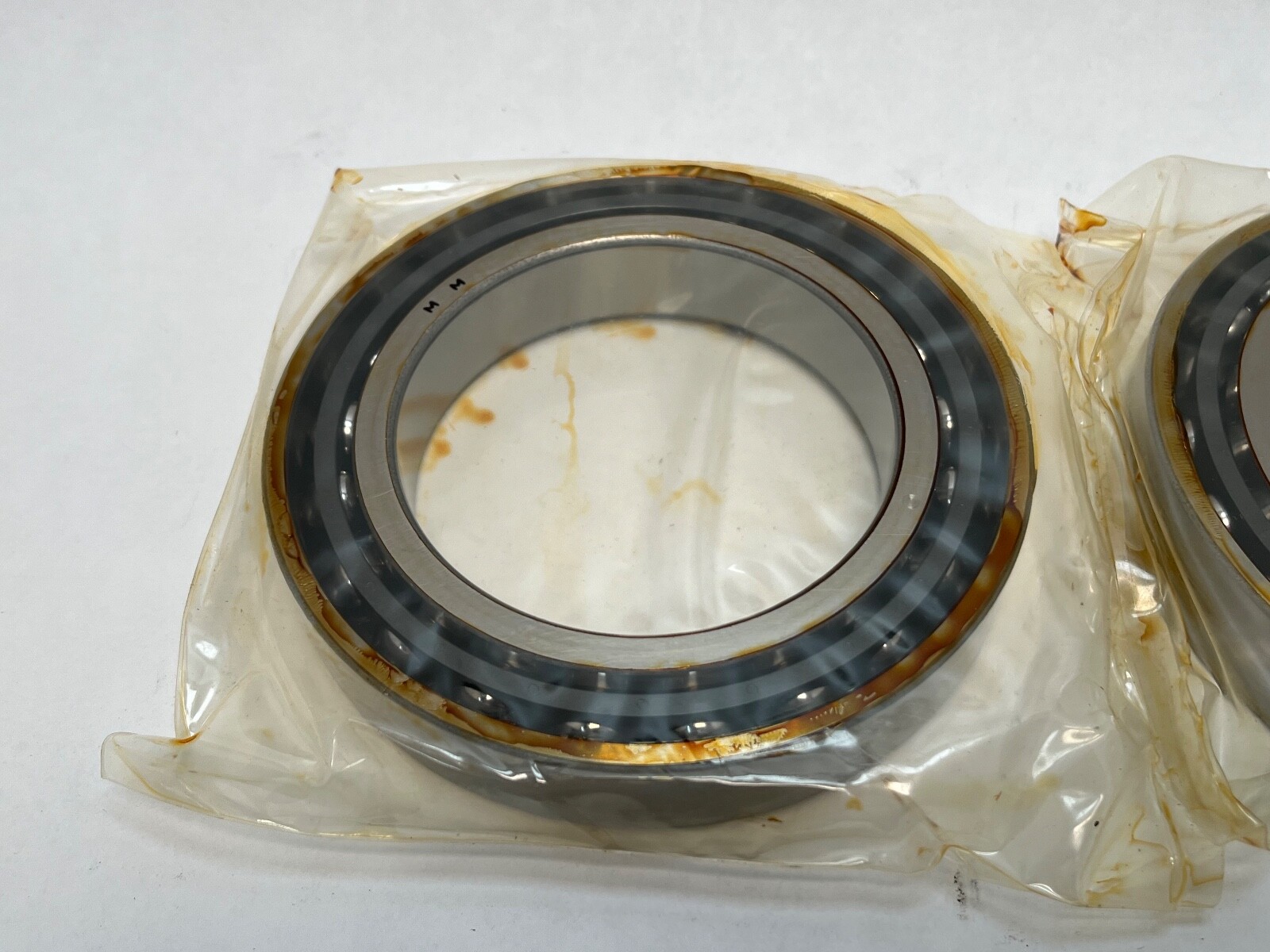

The Fafnir 2MM9117WI-DUH Bearing is a set of two high-quality angular contact ball bearings designed for industrial applications. Made of steel, these bearings have a bore diameter of 85mm, an outside diameter of 130mm, and a width of 22mm. Manufactured in the United States, these bearings are ideal for mechanical power transmission and industrial automation systems. With the ABEC7 rating, these bearings offer reliable performance and long-lasting durability for various motion control applications.
List Price
$487.79
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM9117WIDUH |
| Model | 2 MM 9117 WI DUH 7017C |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 85 mm |
| OD | 130 mm |
| Width | 22 mm |
| Advertise | 1 |
|---|---|
| Material | Bearing Steel |
| Min Temp | -30 °C |
| Cage Type | CR - Phenolic Outer Land Riding Cage |
| Dynamic Load Rating | 66.7 kN / 15000 lbf |
| Static Load Rating | 58.7 kN / 13200 lbf |
| Precision Rating | ABEC 7 / P4 |
| Series | 9100 WI |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Condition | New |
| Item Weight | 4.26 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 9700 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Preload | Heavy |
| Mounting Arrangement | Universal |
| Cross Reference 1 | FAG B7017-C-T-P4S-DUH |
|---|---|
| Cross Reference 2 | SKF 7017 CD/P4ADGC |
| Cross Reference 3 | RHP 7017CTDUHP4 |
