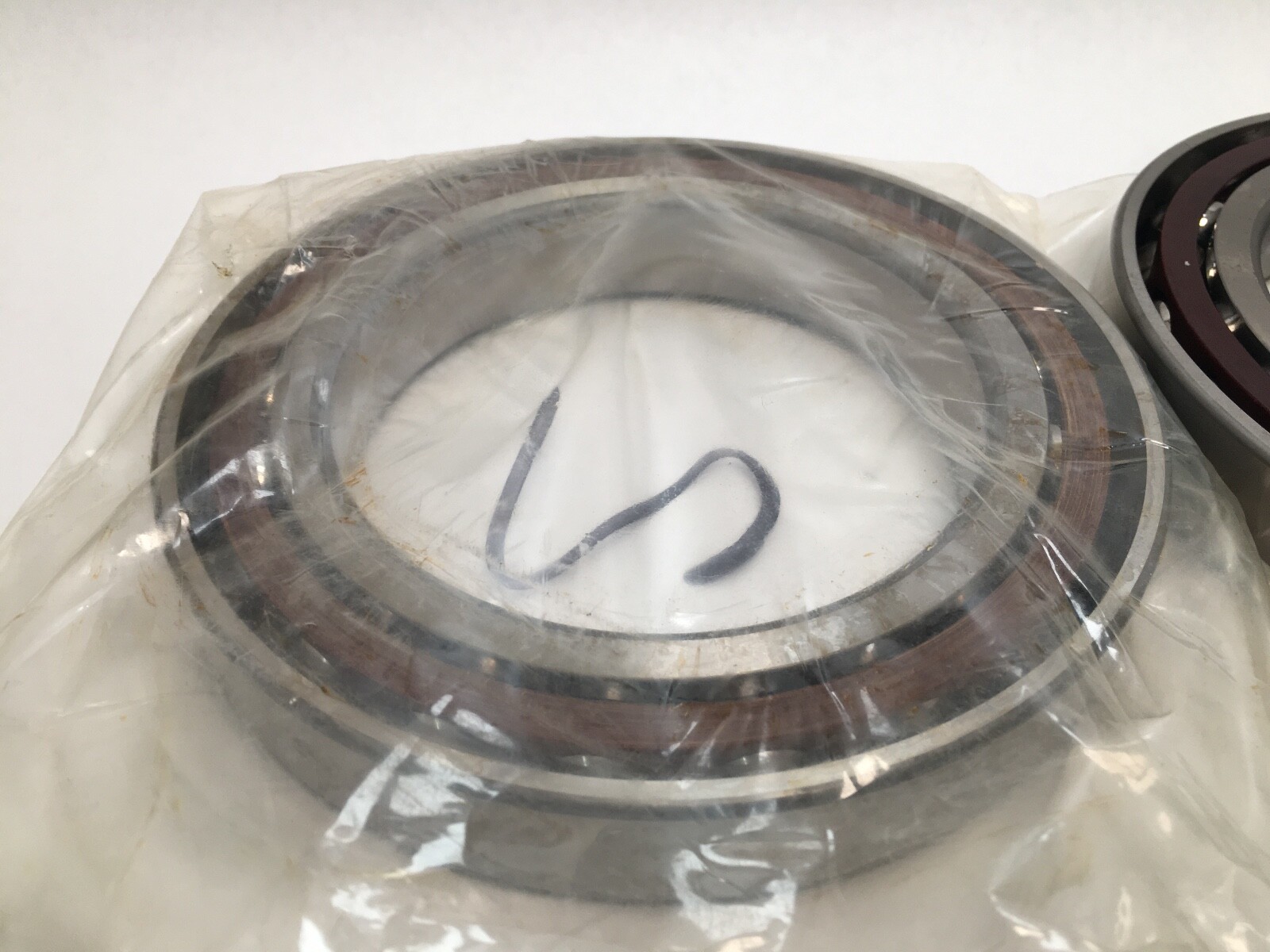

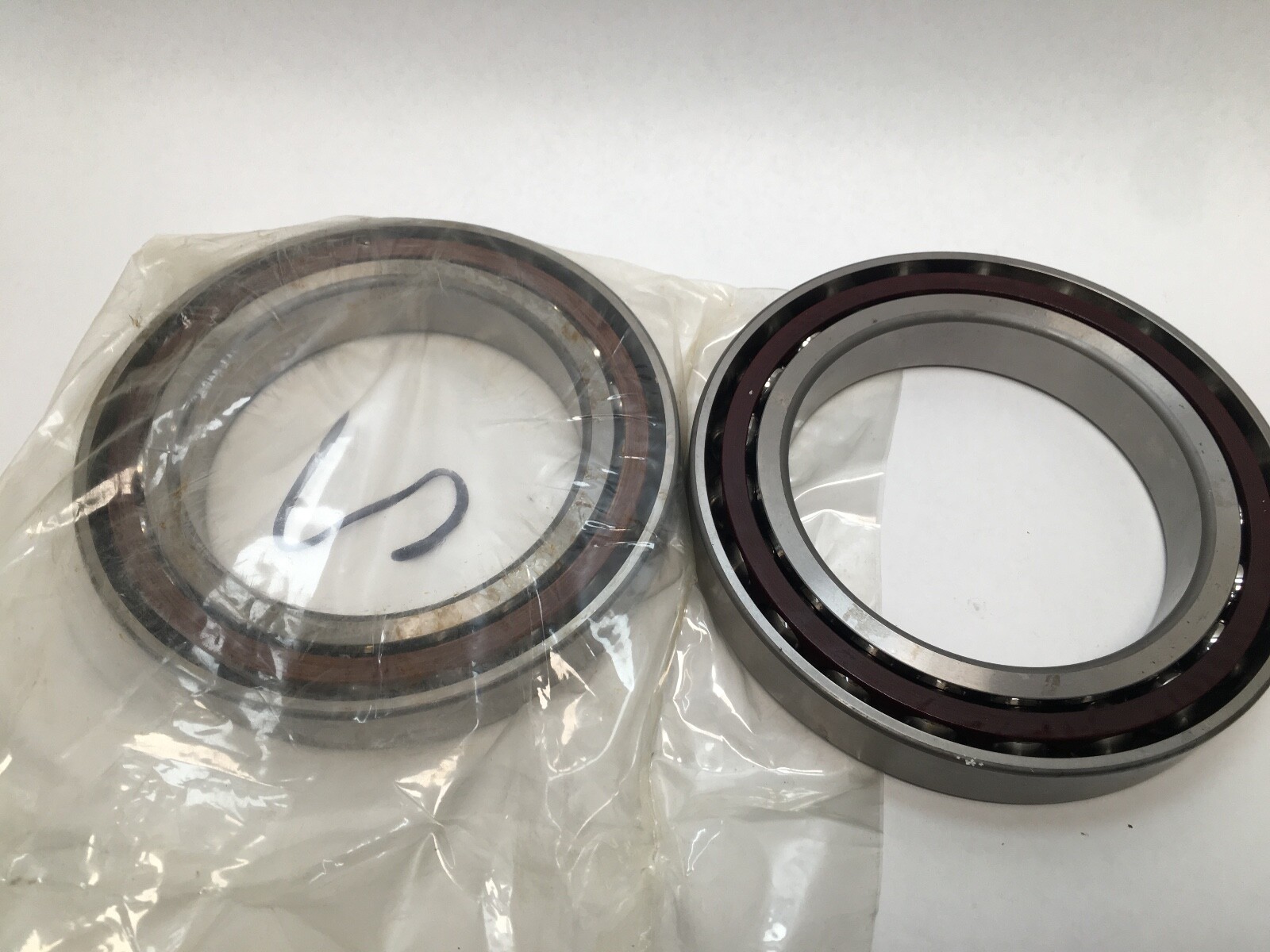

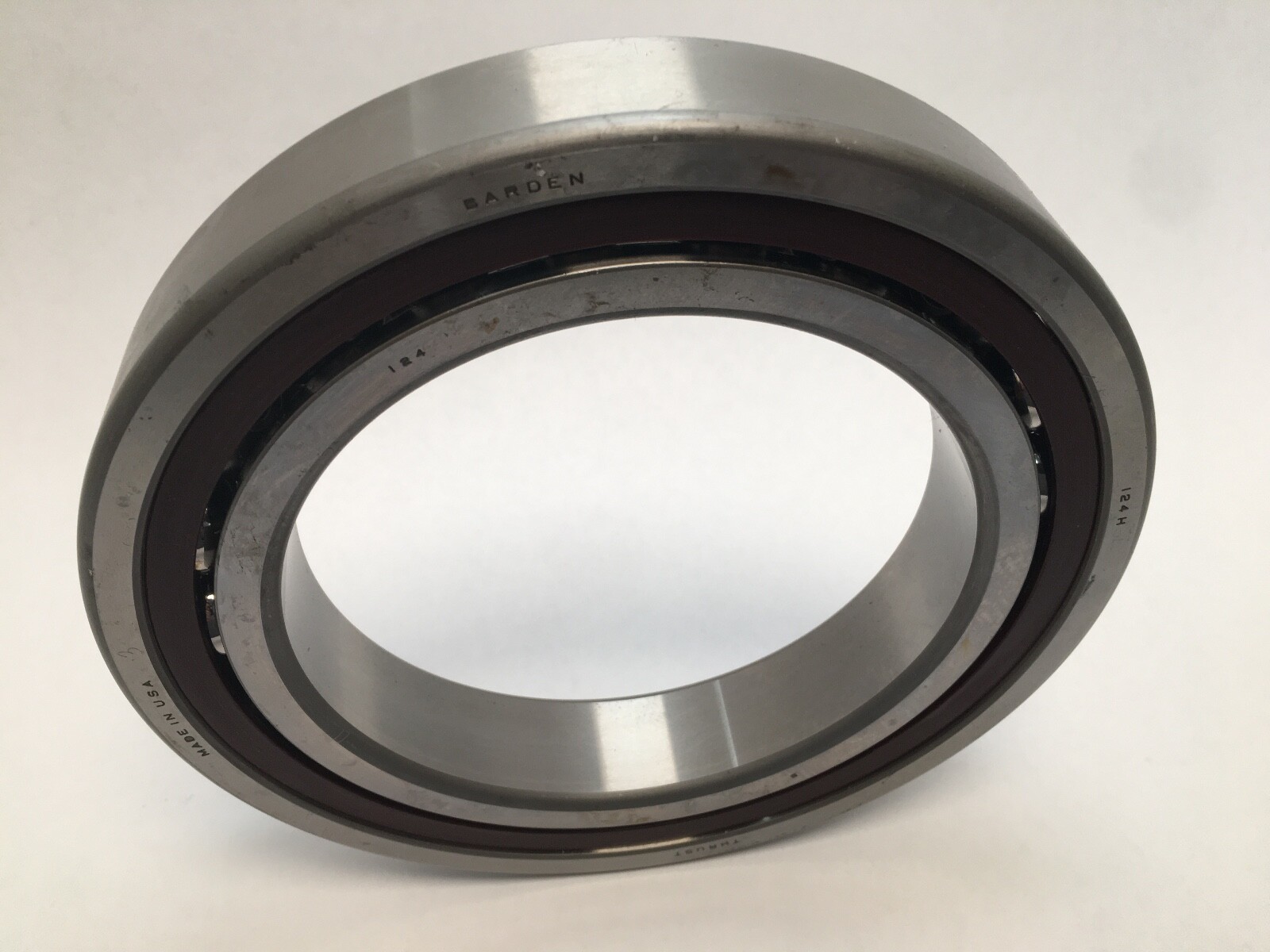

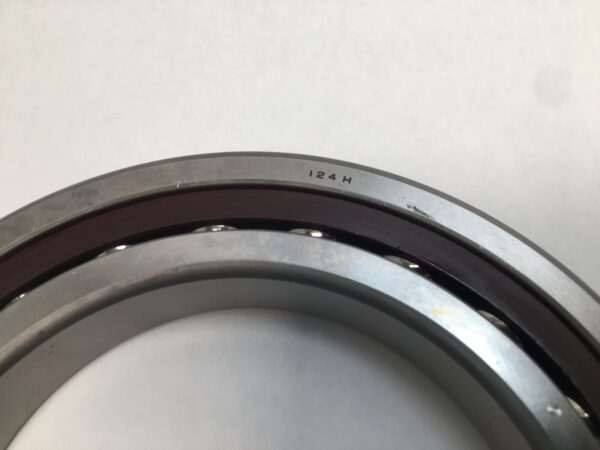

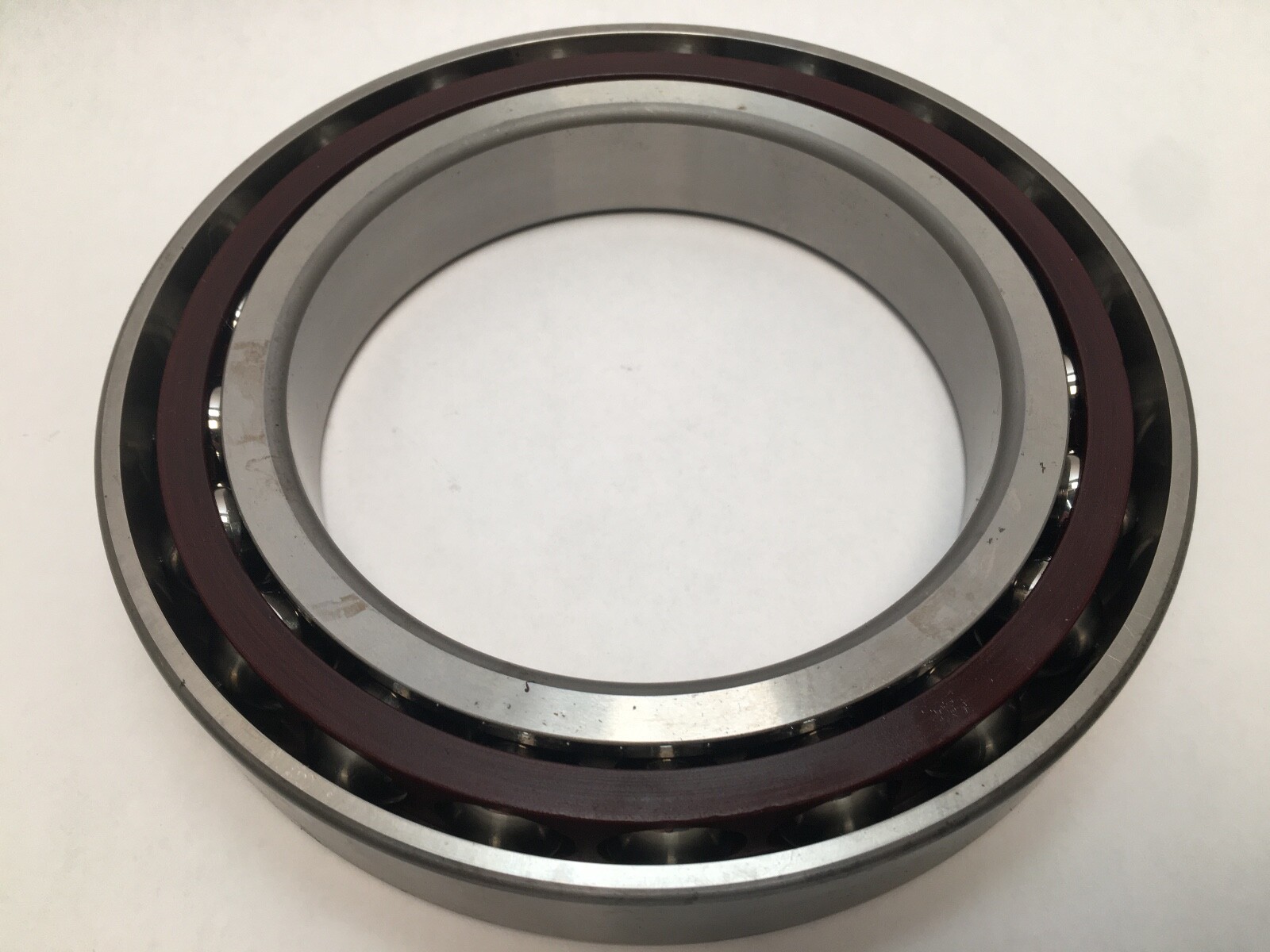

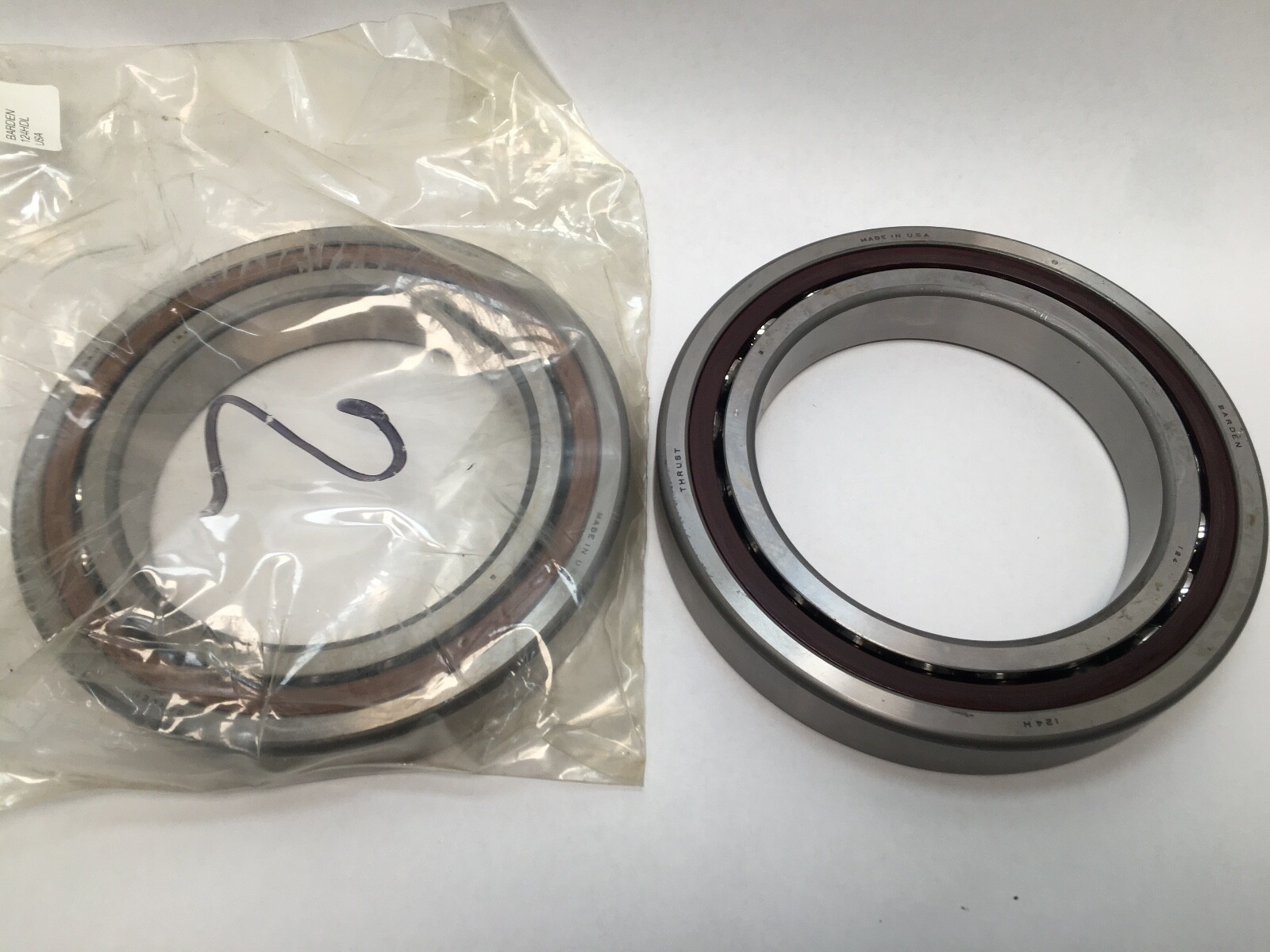

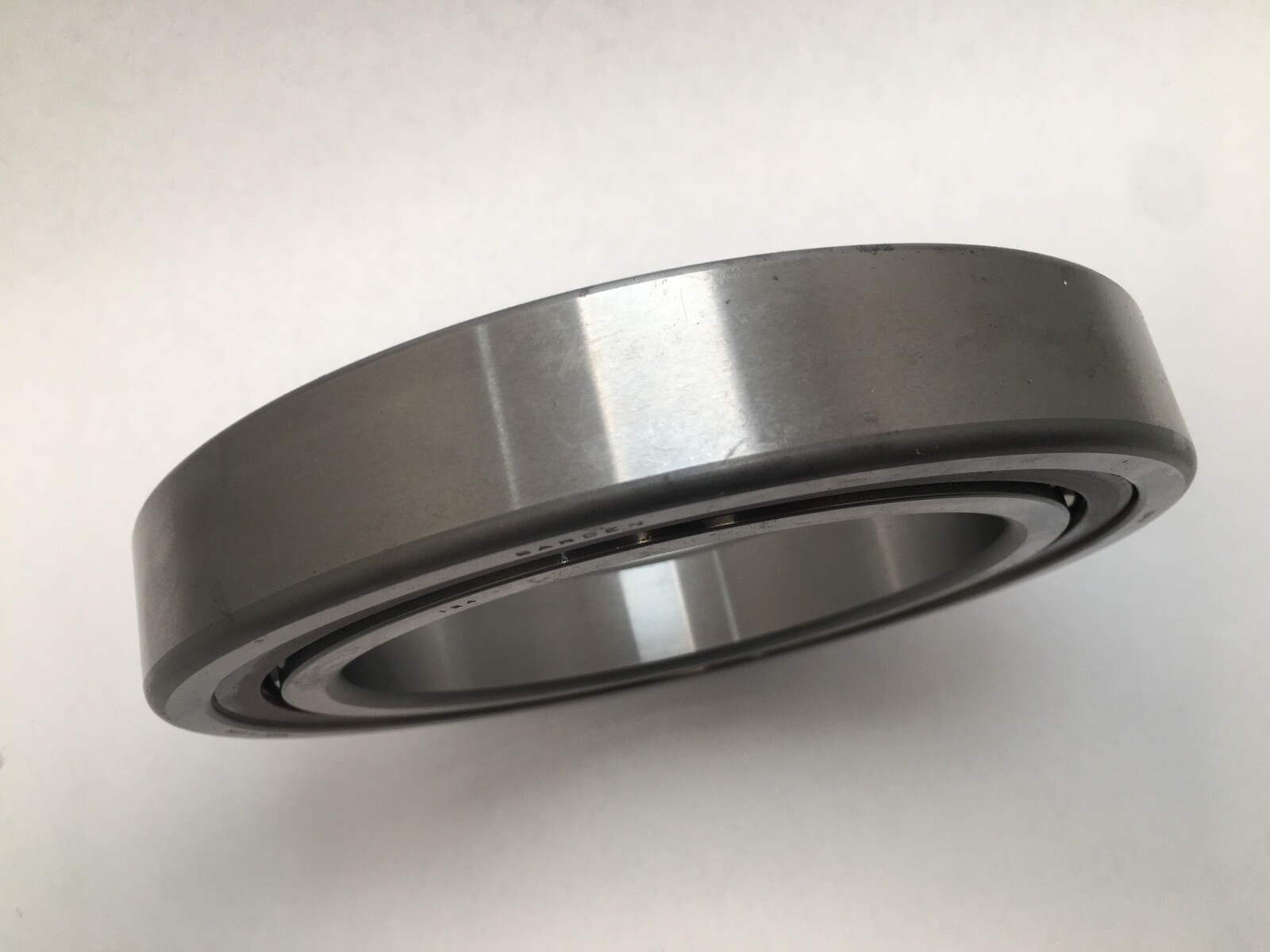

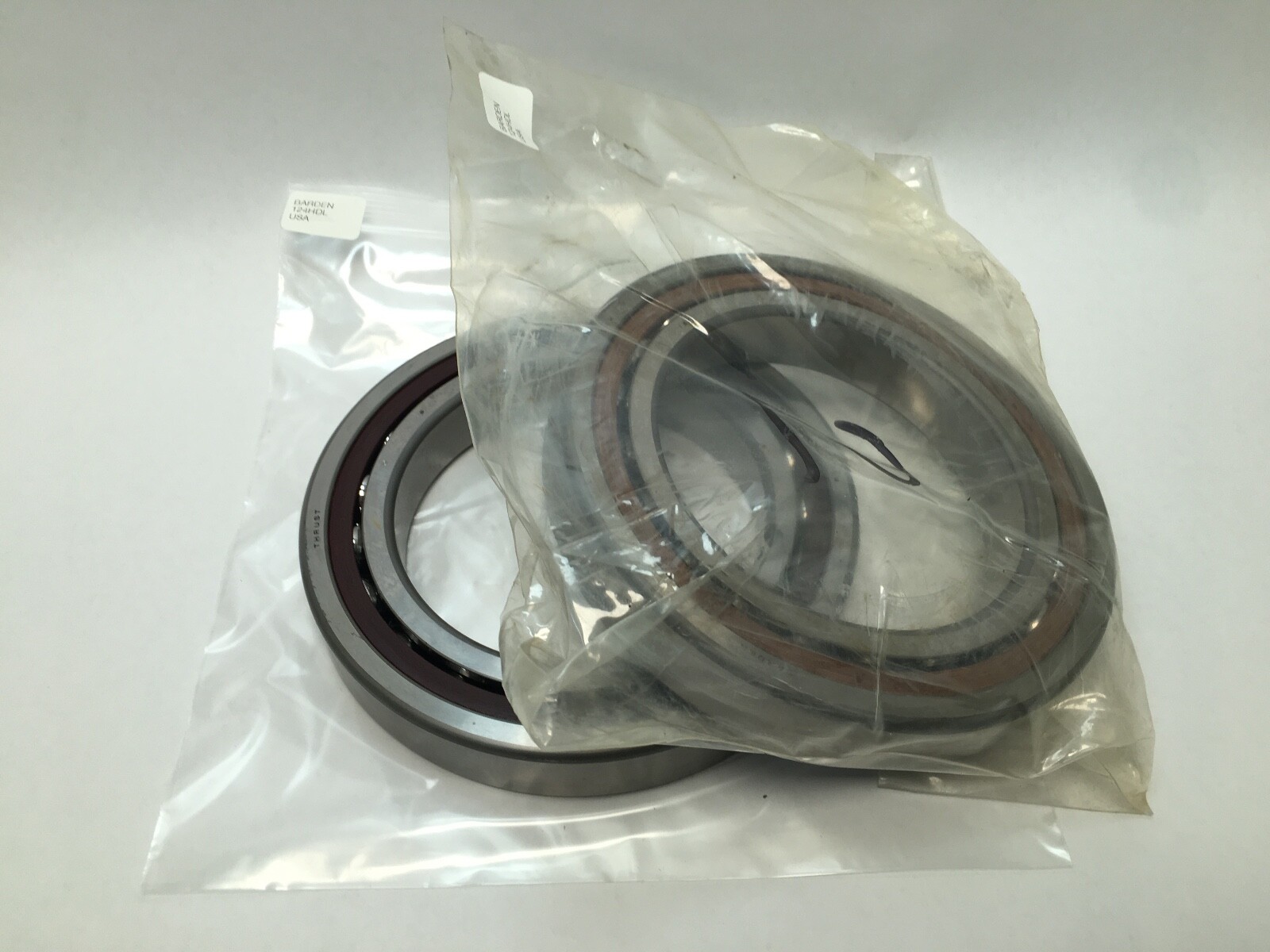

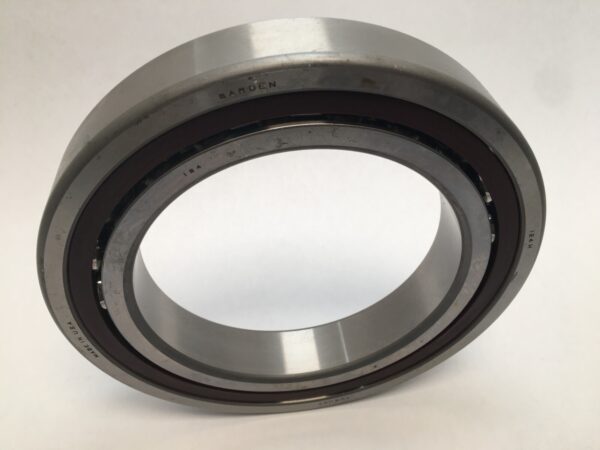

The Barden 124HDL Angular Contact Bearing is a high-quality steel bearing with a bore diameter of 120mm and an outside diameter of 180mm. Made in the United States, this bearing has a width of 28mm and is designed for industrial automation and motion control applications. As an angular contact ball bearing, it offers reliable performance and durability, making it a valuable component for various mechanical power transmission systems. The Barden brand is known for its precision engineering and commitment to quality, ensuring that this bearing set is both reliable and efficient.
List Price
$630.73
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Barden |
|---|---|
| MPN | 124HDL |
| Model | 124H DL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 120 mm |
| OD | 180 mm |
| Width | 28 mm |
| Advertise | 1 |
|---|---|
| Material | Bearing Steel |
| Min Temp | -30°C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 88 kN / 19800 lbf |
| Static Load Rating | 93 kN / 20900 lbf |
| Precision Rating | ABEC 7 / P4 |
| Series | 100 |
| Rolling Elements | Balls |
| Max Temp | 120°C |
| Condition | New – Open box |
| Item Weight | 5.30 lbs |
| Cage Material | Phenolic Resin |
| Limiting Speed | 8500 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Lubricant | Oil Preservative |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Preload | Light |
| Mounting Arrangement | Duplex |
| Running Accuracy | P4 |
| Running Accuracy Radial And Axial Runout | P4 |
| Internal Clearance | CN |
| Cross Reference 1 | SKF 7024 CD/P4ADGA |
|---|---|
| Cross Reference 2 | FAG B7024-C-T-P4S-DUL |
