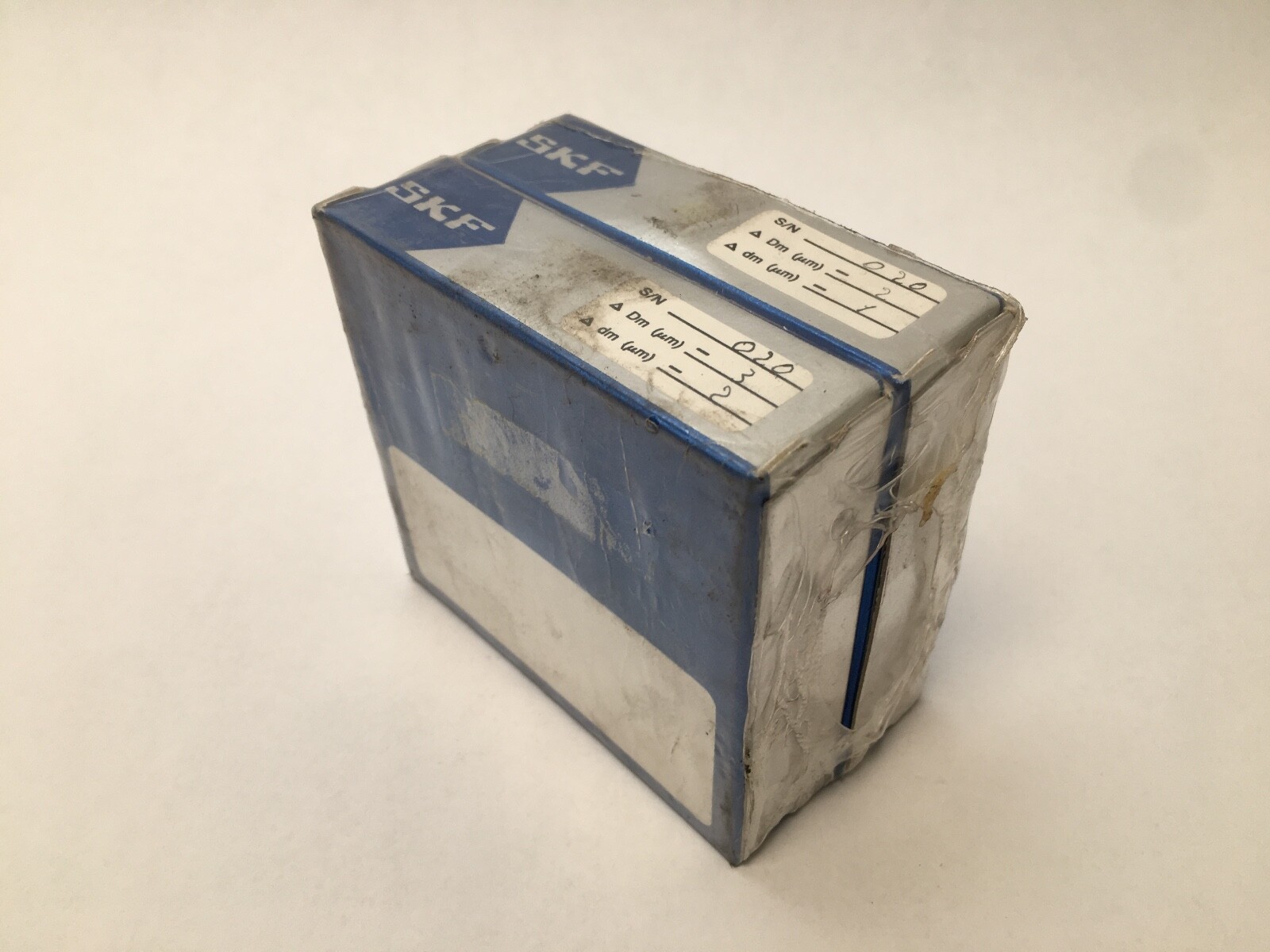

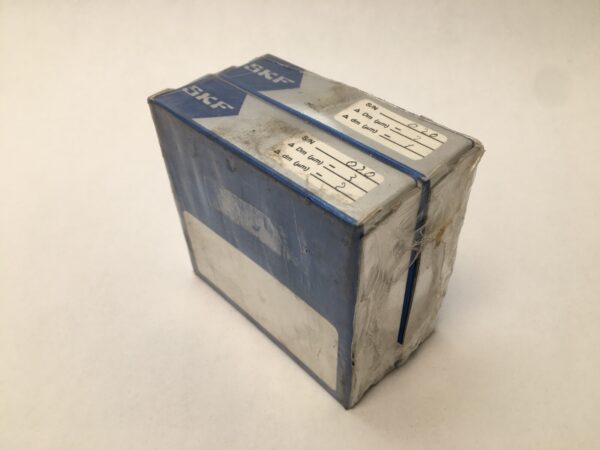

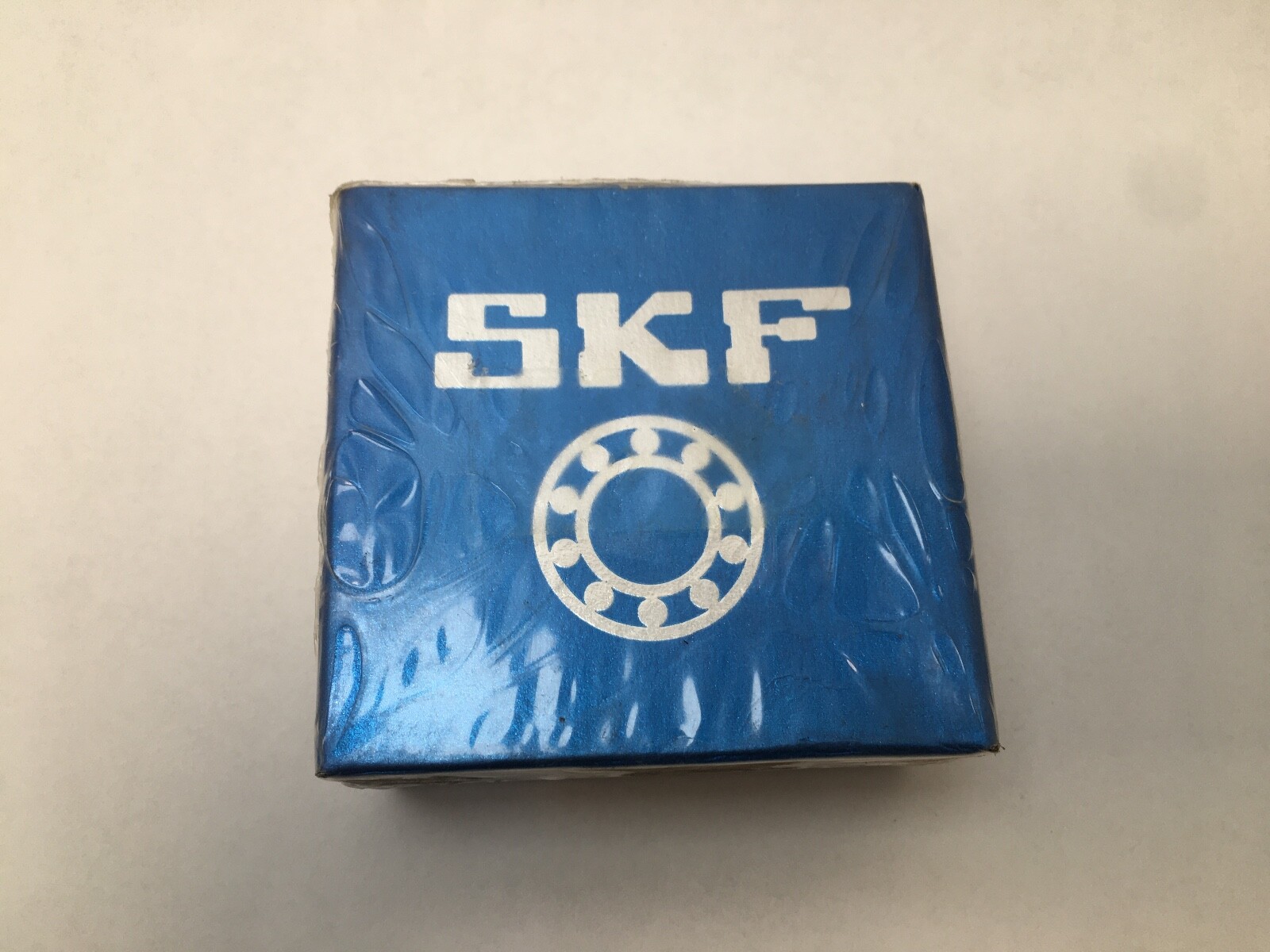

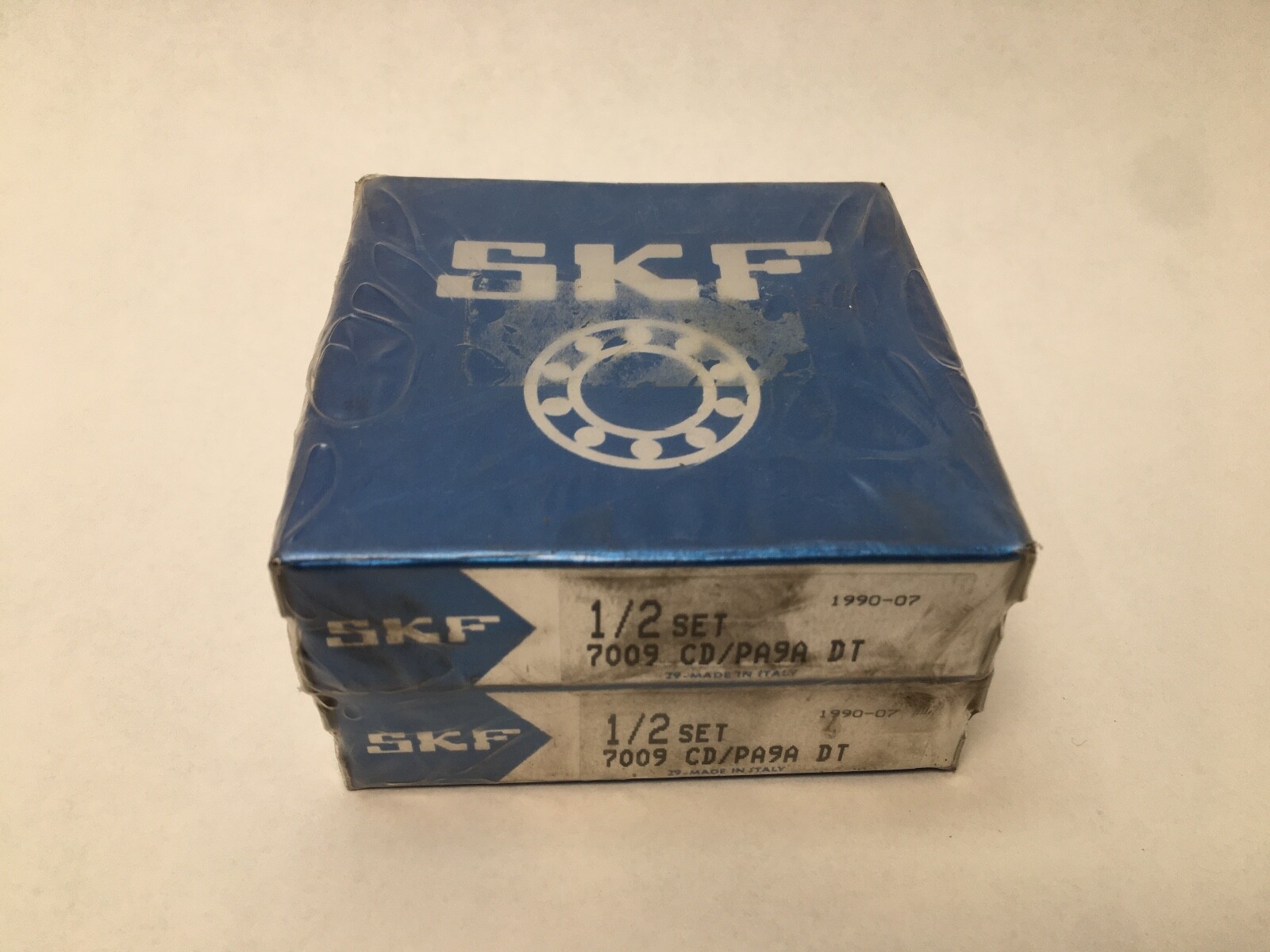

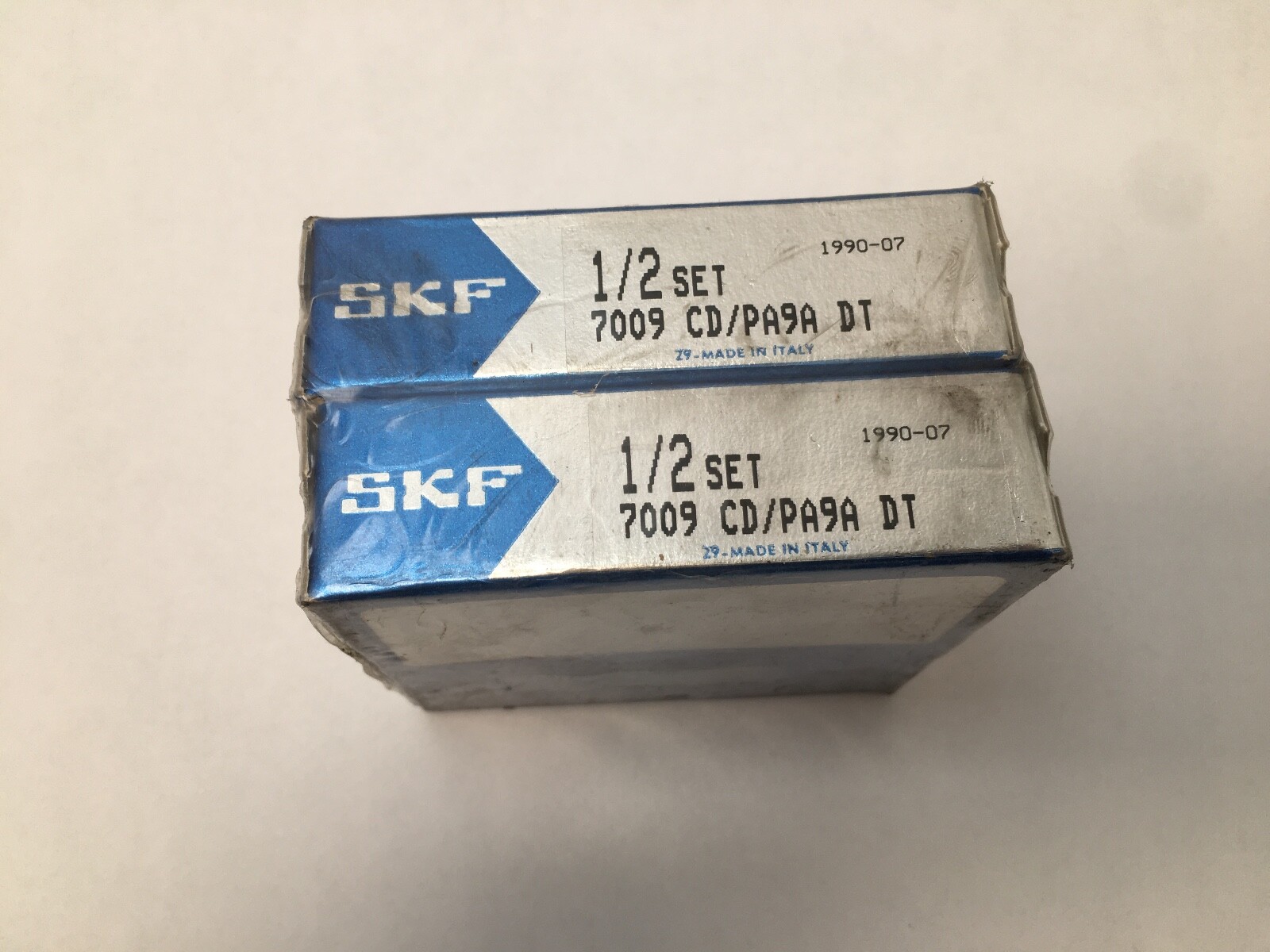

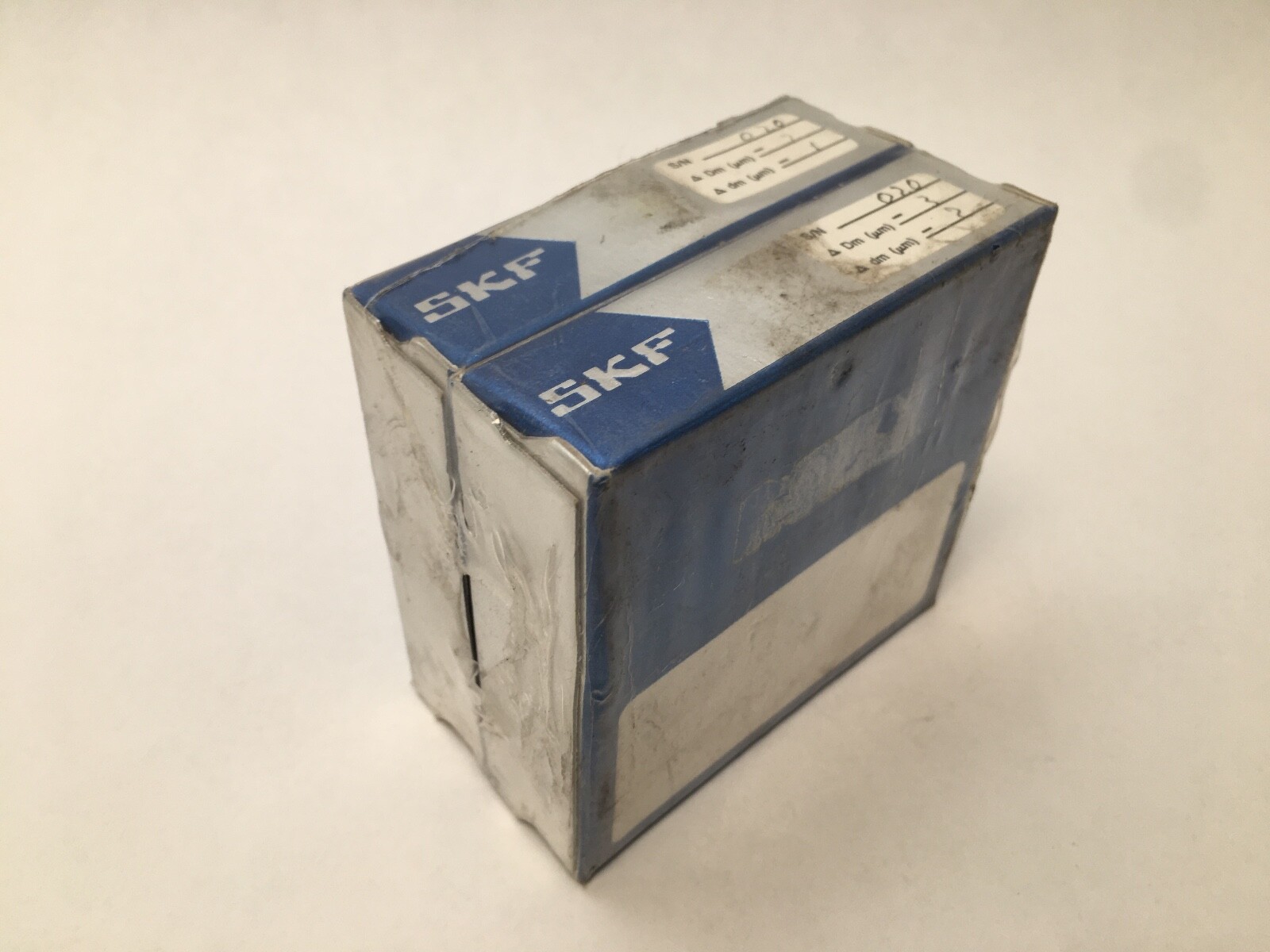

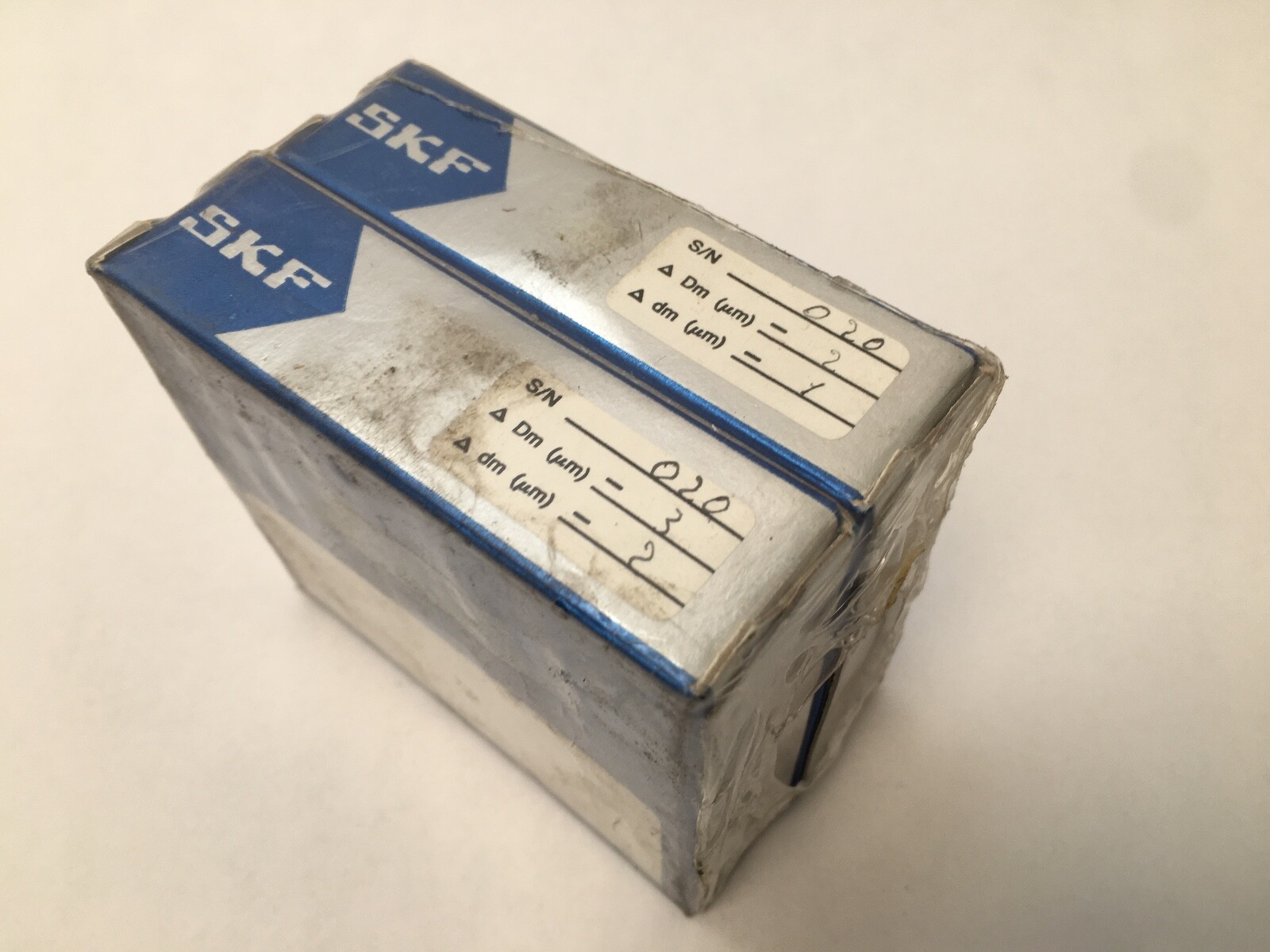

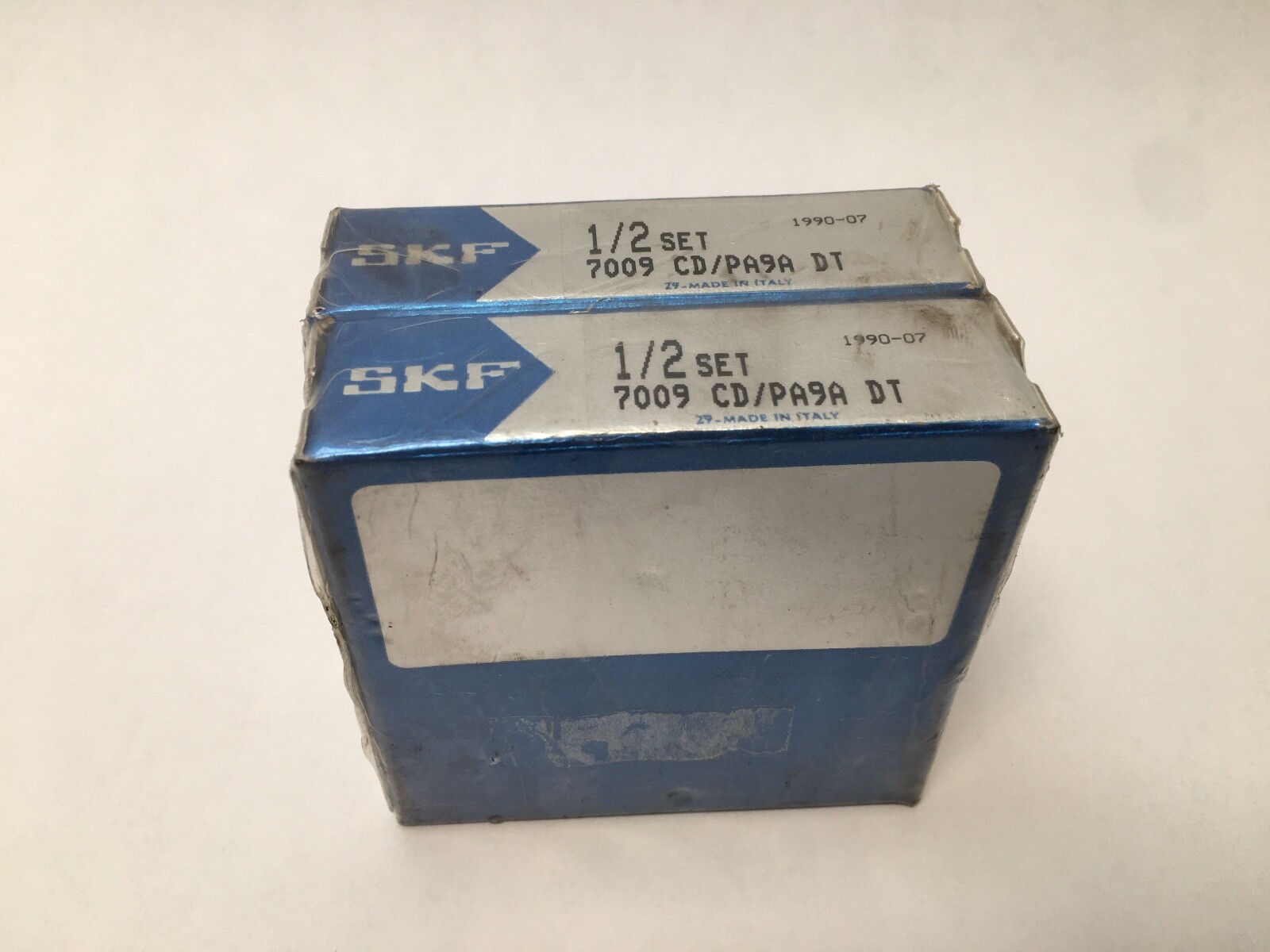

Name: Angular Contact Ball Bearing - 45 mm ID, 75 mm OD, 16 mm Width, Open, 15° Contact Angle, Duplex Tandem.
Brand: SKF
SKU: B-AO3B3#ZFTEVK
Price: 252.31 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	SKF
MPN	7009CDP49ADT
Model	7009CD/P49A DT
Bearing Type	Angular Contact Ball Bearing, Open
ID	45 mm
OD	75 mm
Width	16 mm

Specifications

Advertise	1
Material	Chrome Steel
Series	7000
Condition	New
Lubricant	Oil
Min Temp	-30 °C
Cage Type	Phenolic
Dynamic Load Rating	26.7 kN
Static Load Rating	23.5 kN
Precision Rating	ABEC 7 / P4
Rolling Elements	Ball
Max Temp	120 °C
Item Weight	0.53 lbs
Cage Material	Phenolic
Number Of Rows	2
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Harmonization Code	8482.10.50.28
Contact Angle	15°

Cross-References

Cross Reference 1	FAG B7009-C-T-P4S
Cross Reference 2	NSK 7009CTYNSULP4
