Photo may not represent actual item. Refer to name and product specs for all details.
Availability:
4 in stock
List Price
$125.89
4 in stock
4 in stock
Get Estimated Arrival Date

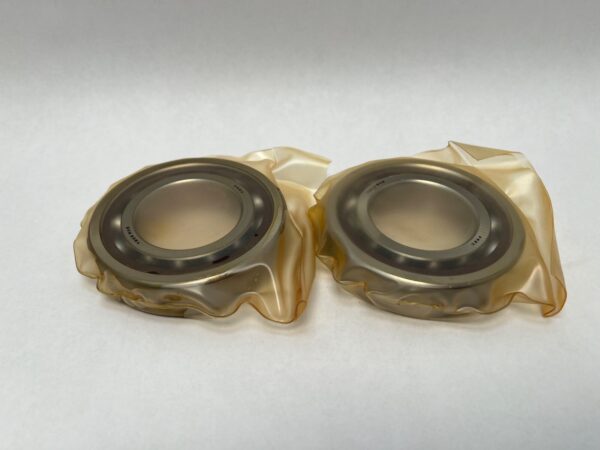

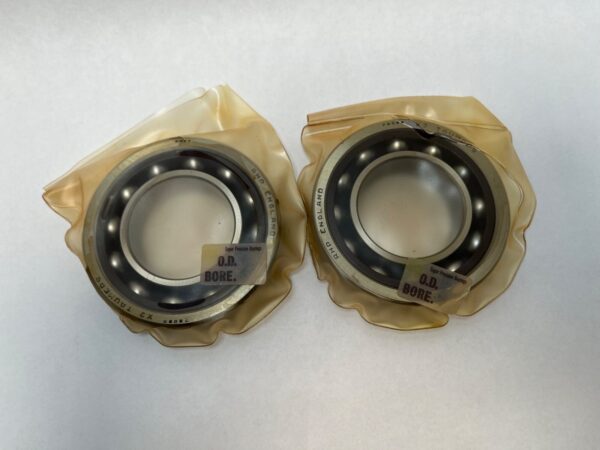

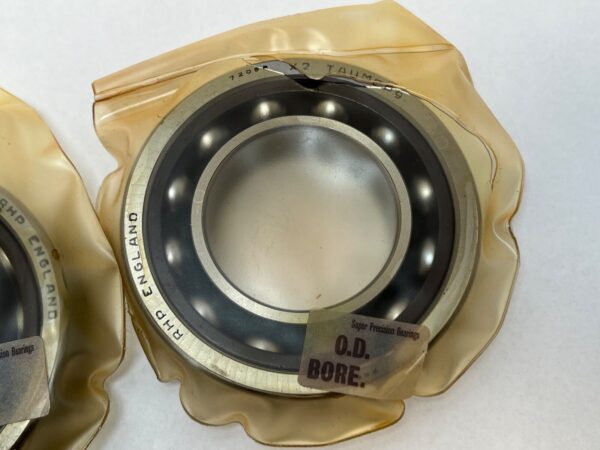

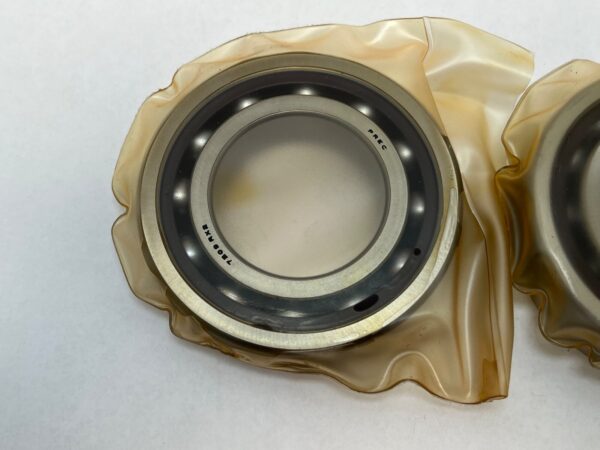

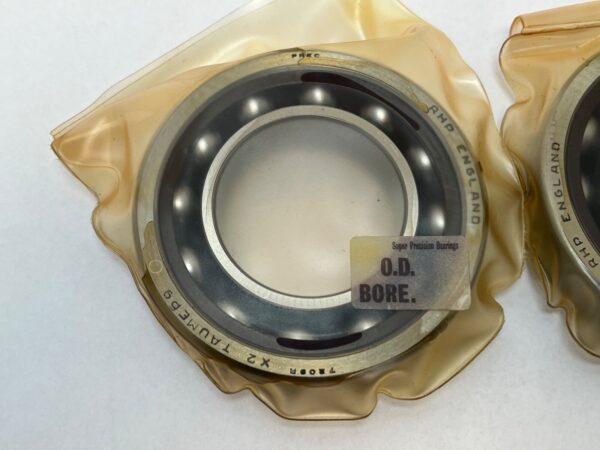

The RHP 7205RCTDUMP2 Angular Bearing is a high-quality product made of steel, designed for industrial automation and motion control applications. With a bore diameter of 25mm and an outside diameter of 52mm, this bearing is suitable for various mechanical power transmission systems. Originally manufactured in the United Kingdom, this unit includes two pieces with dimensions of 24x52x15mm each. The model number ABEC9 7205 R C T DUM P2 indicates the specific design and performance characteristics of this angular contact ball bearing for reliable operation in machinery and equipment.
| MFR / Brand | RHP |
|---|---|
| MPN | 7205RCTDUMP4 |
| Model | ABEC9 7205 R C T DUM P2 / 2MMV205WO CR DUM / 7205-R-X2-TA-DUM-EP9 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 52 mm |
| Width | 15 mm |
| Material | Chrome Steel |
|---|---|
| Unit Type | Unit |
| Unit Quantity | 2 |
| Min Temp | -30 °C |
| Cage Type | Window |
| Dynamic Load Rating | 15.6 kN / 3507 lbf |
| Static Load Rating | 10.4 kN / 2338 lbf |
| Precision Rating | ABEC 9 / P2 |
| Series | 7200 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Condition | New |
| Item Weight | 0.28 lbs |
| Cage Material | Phenolic Resin |
| Limiting Speed | 30000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Lubricant | Oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Preload | Medium Preload |
| Mounting Arrangement | Duplex |
| Cross Reference 1 | FAG B7205-C-T-P2S-DUM |
|---|
