Availability:
8 in stock
List Price
$138.58
8 in stock
8 in stock
Get Estimated Arrival Date
| MFR / Brand | Barden |
|---|---|
| MPN | 103HDM |
| Model | 103H DM |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 17 mm |
| OD | 35 mm |
| Width | 10 mm |
| Material | Chrome Steel |
|---|---|
| Min Temp | -30°C |
| Cage Type | Outer Ring Guided |
| Dynamic Load Rating | 6.4 kN / 1438 lbf |
| Static Load Rating | 3.5 kN / 786 lbf |
| Precision Rating | ABEC 7 / P4 |
| Series | 100 |
| Rolling Elements | Ball |
| Max Temp | 120°C |
| Condition | New |
| Item Weight | 0.09 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 60000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Lubricant | Oil |
| Relubrication Feature | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Running Accuracy | High Precision |
| Running Accuracy Radial And Axial Runout | High Precision |
| Cross Reference 1 | SKF 7003 CD/P4ADGB |
|---|---|
| Cross Reference 2 | NSK 7003CTRDUMP4 |

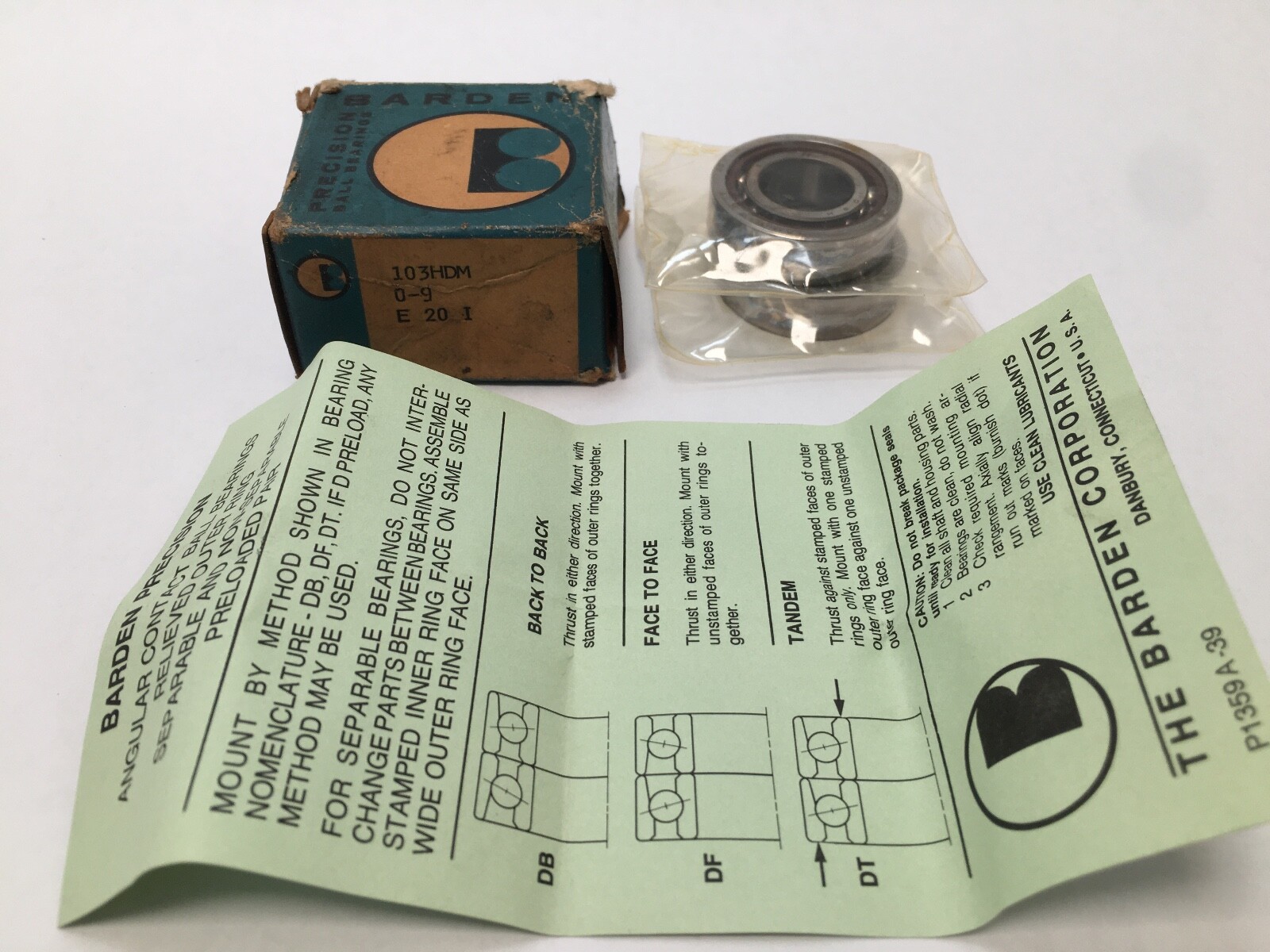

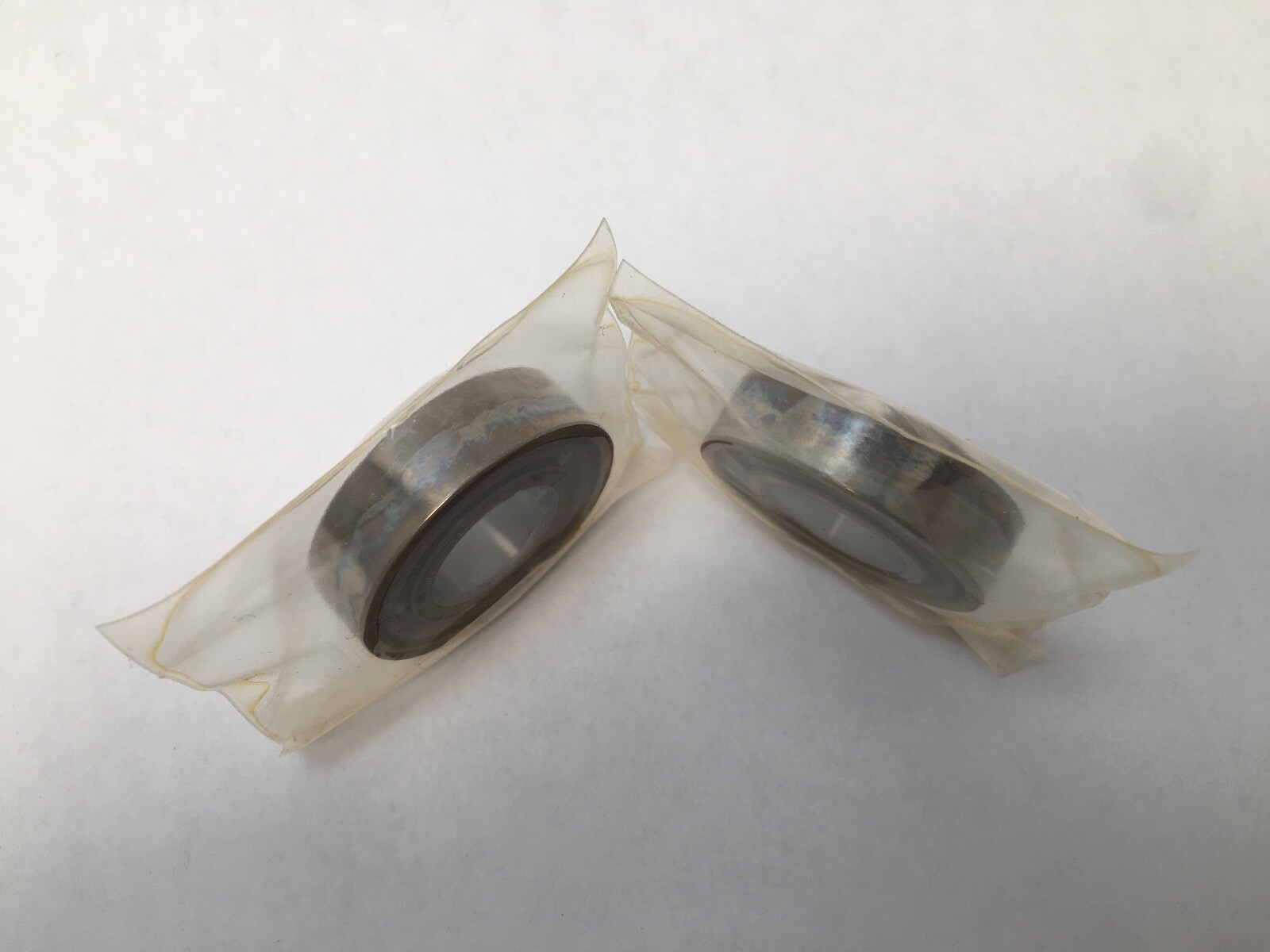

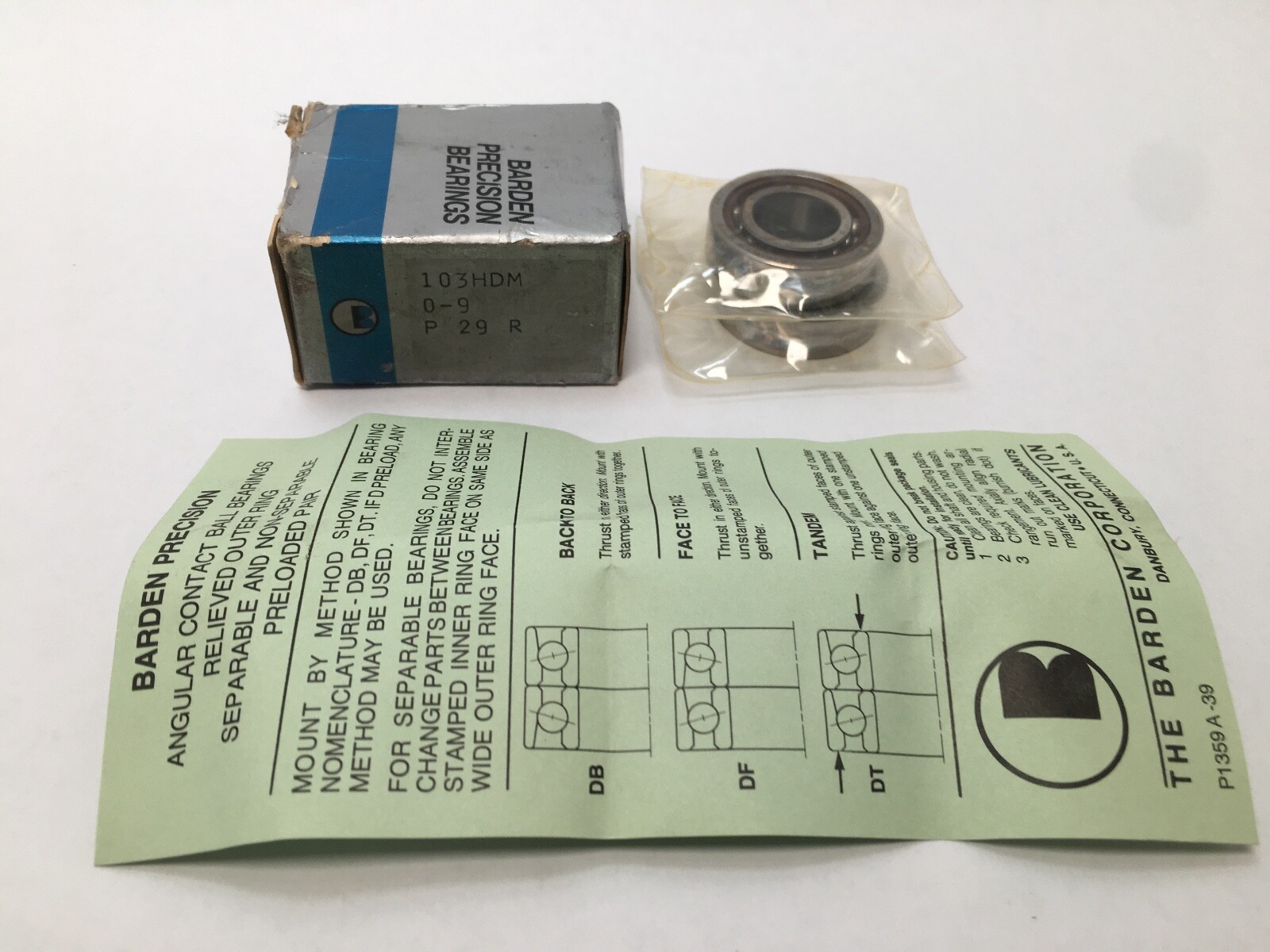

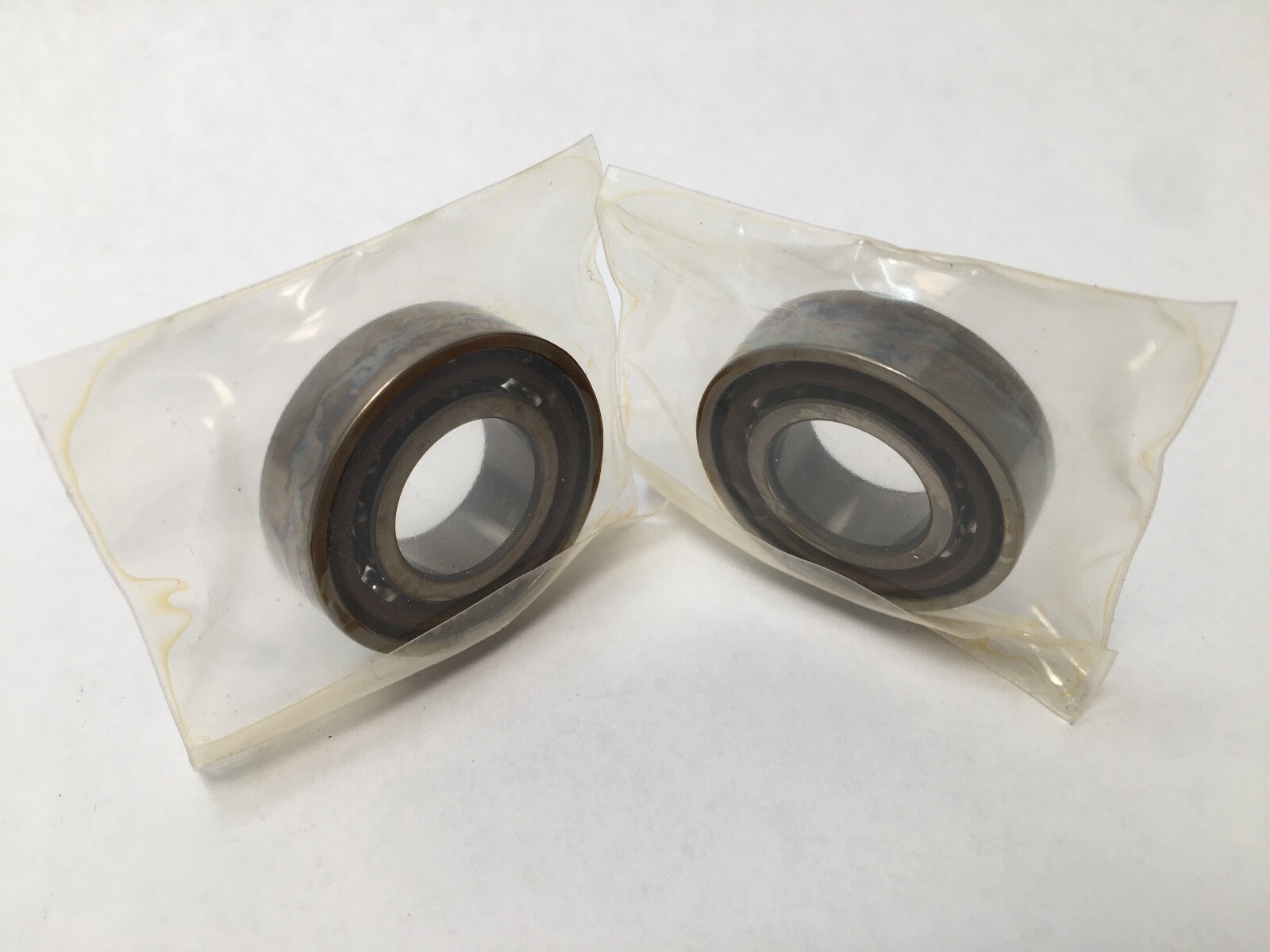

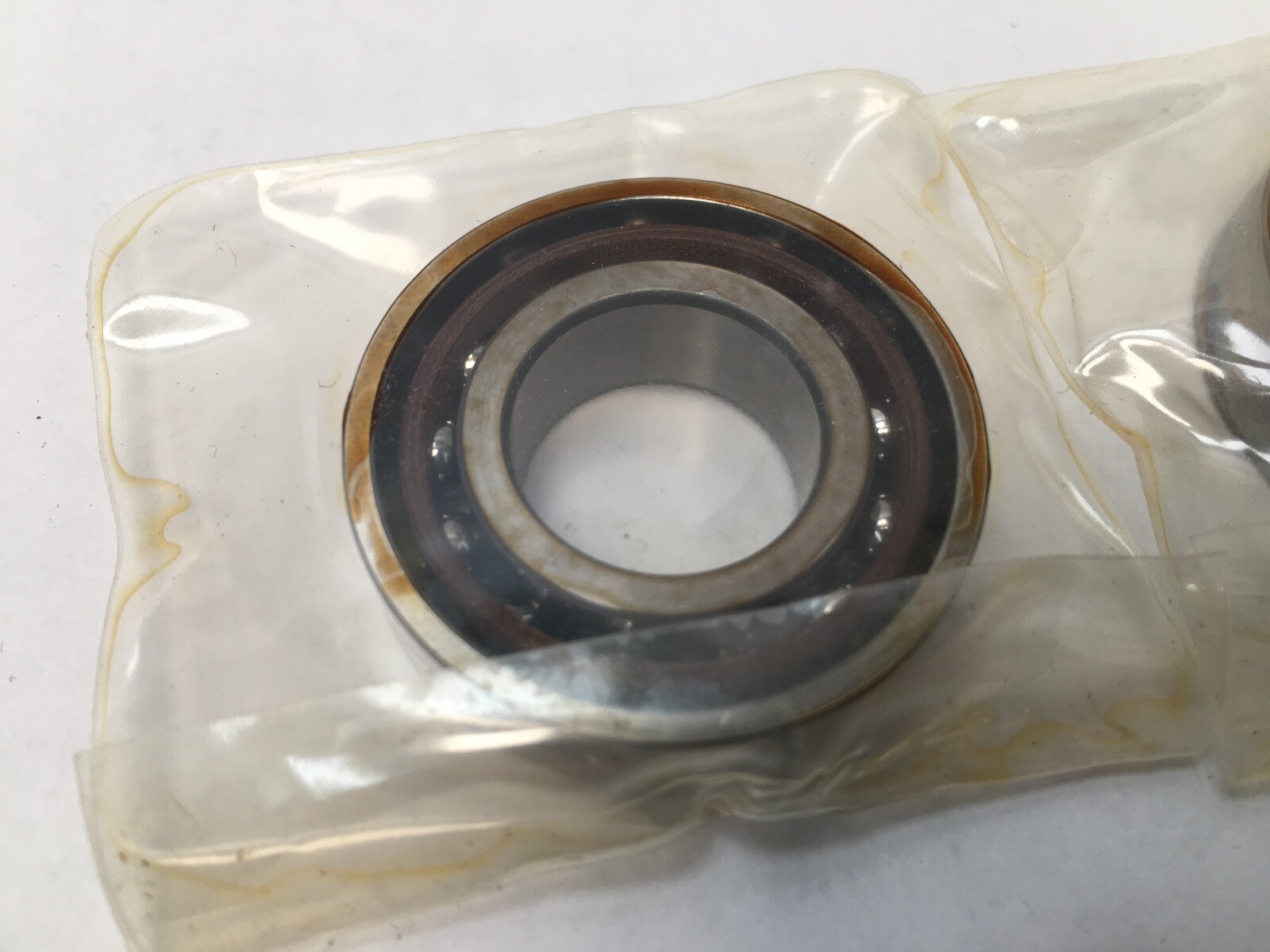

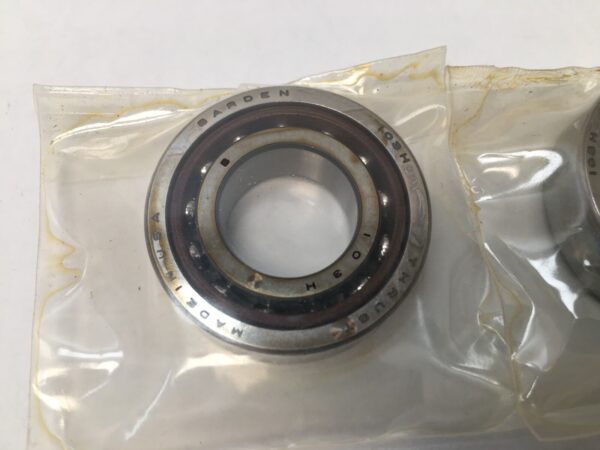

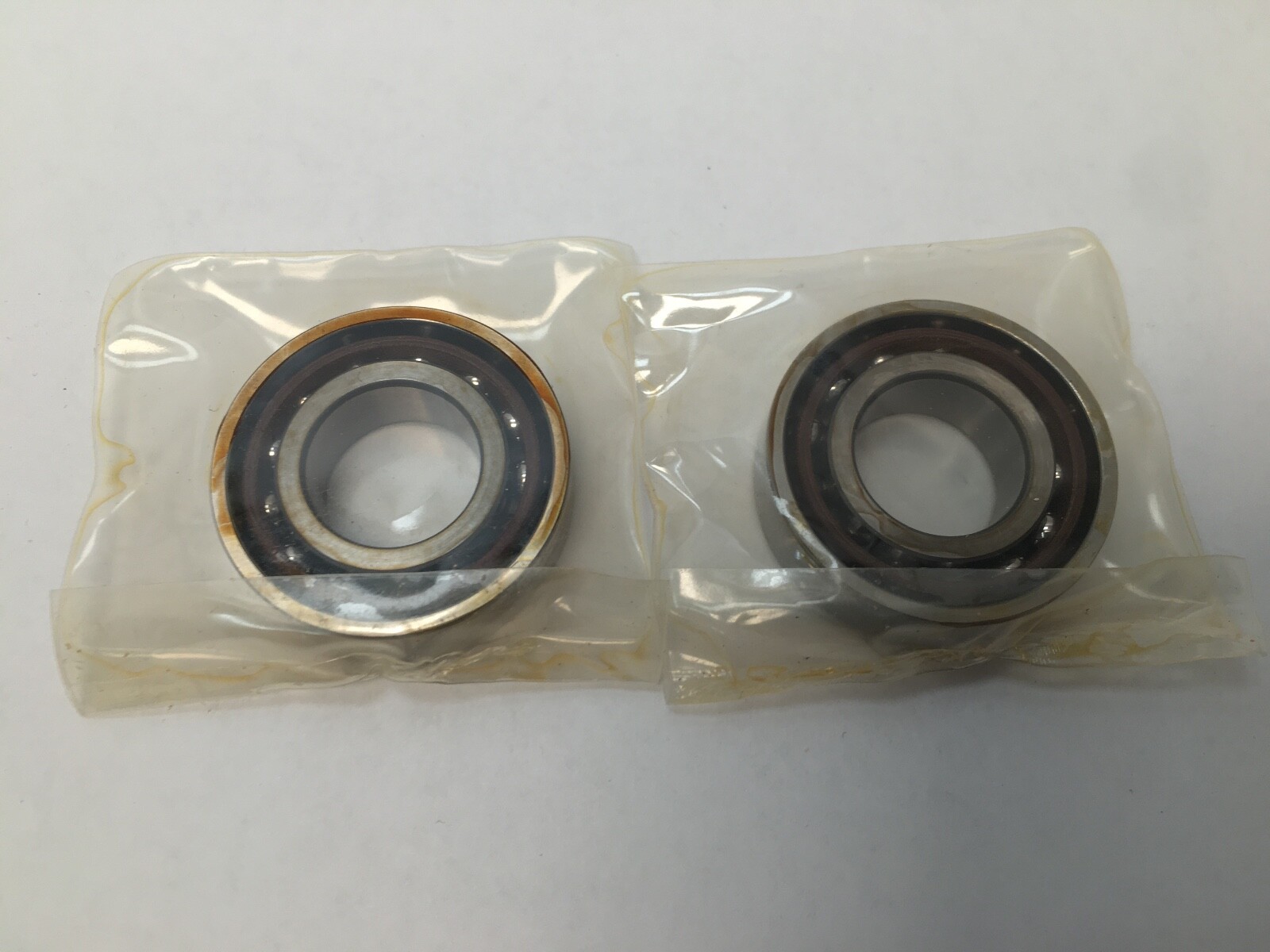

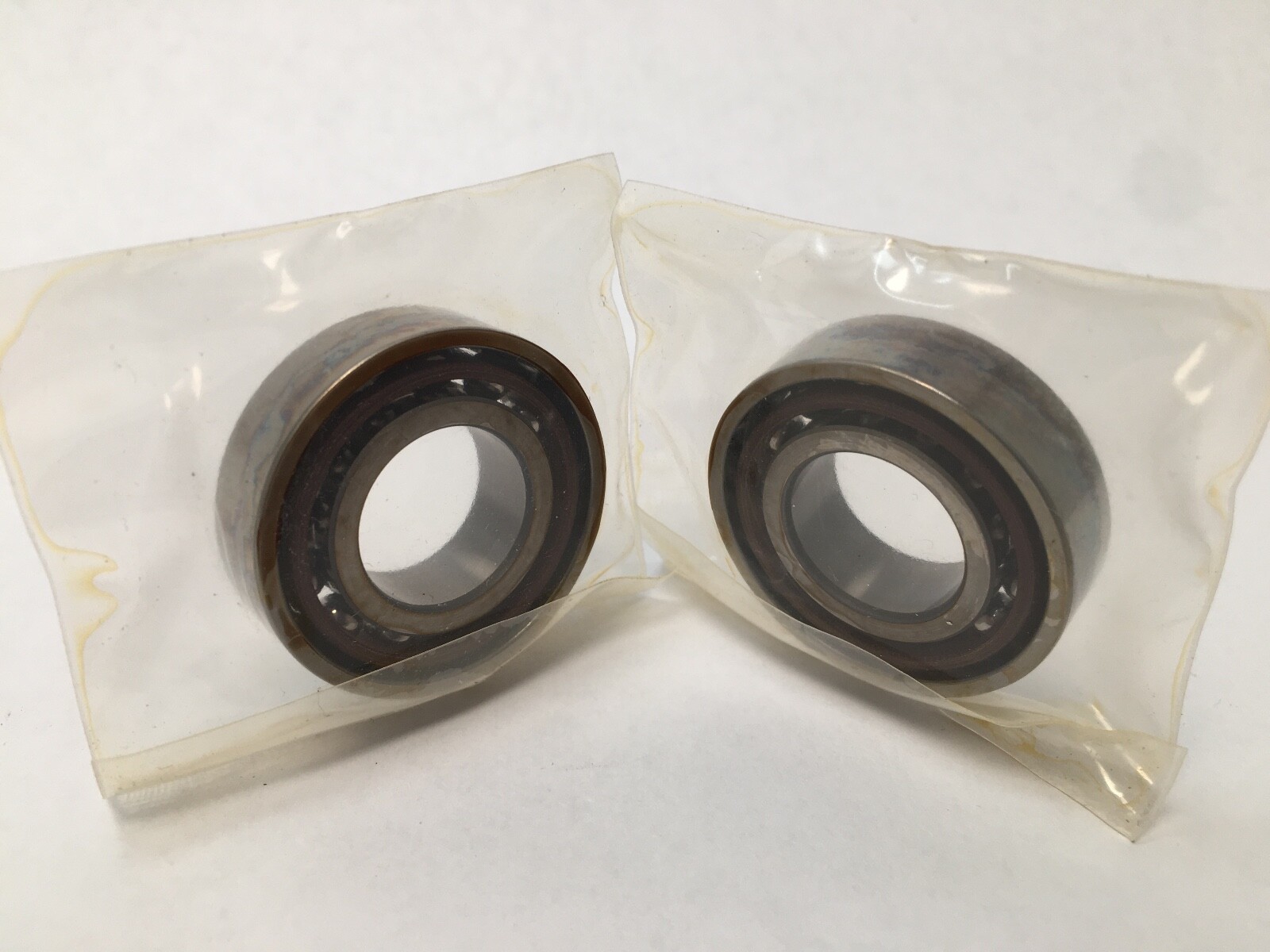

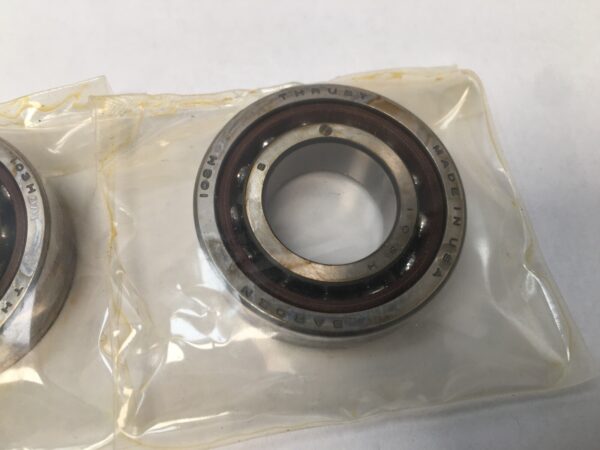

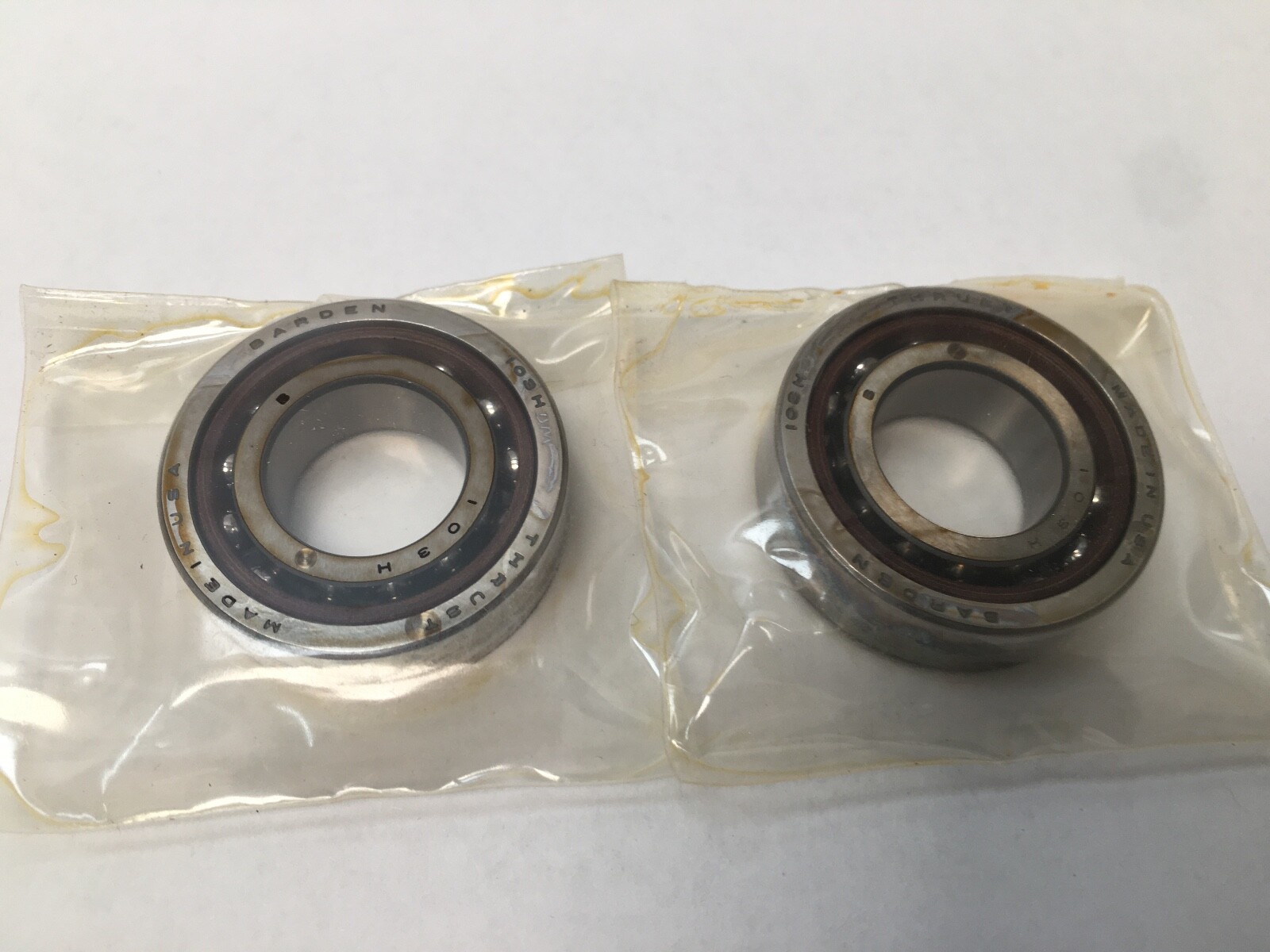

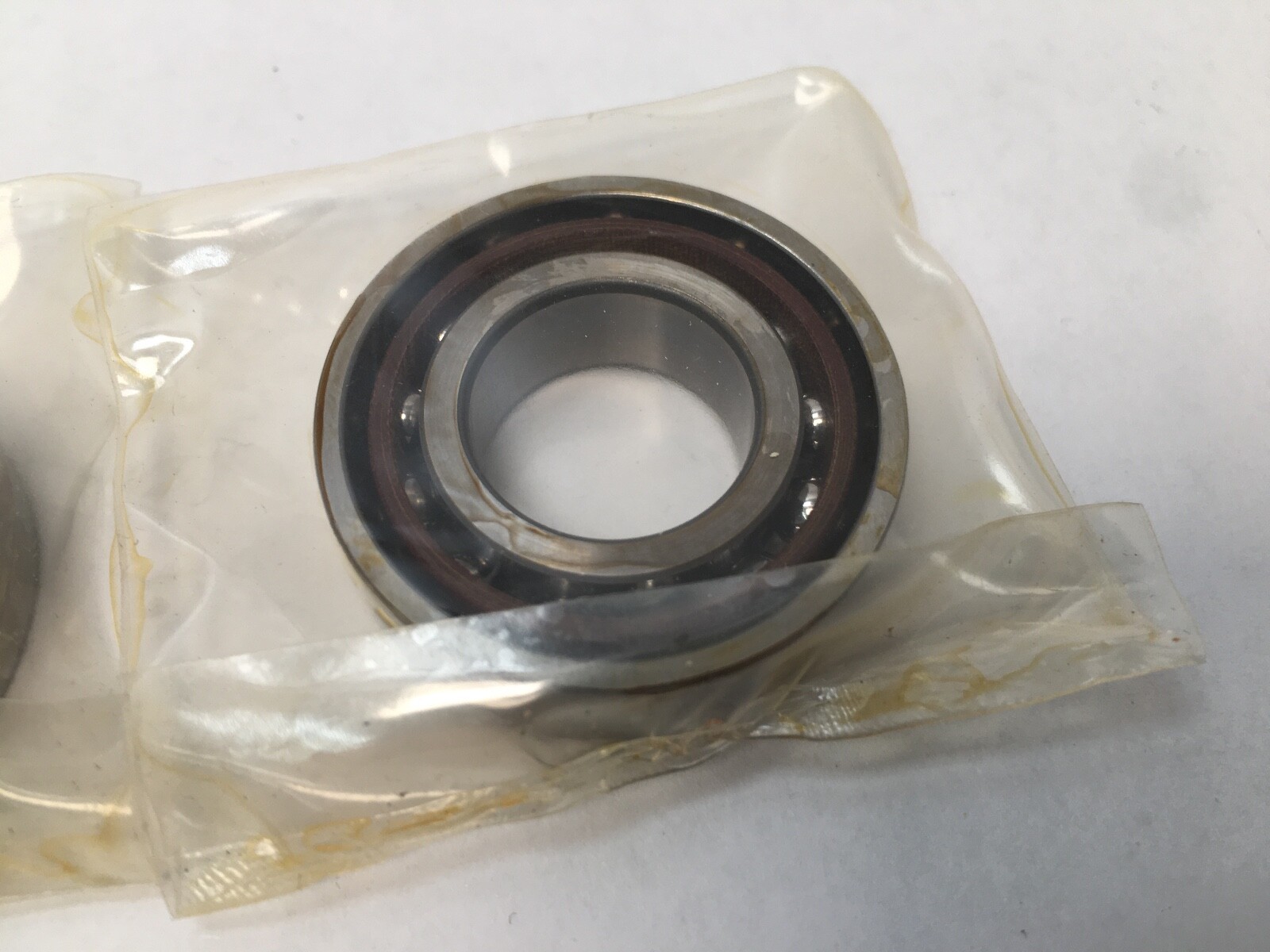

The Barden 103HDM Angular Contact Bearing is a high-precision bearing designed for industrial automation and motion control applications. With a precision rating of ABEC 7 / P4, this bearing features a 15° contact angle and a dynamic load rating of 6.4 kN / 1438 lbf. Made of chrome steel, it operates at a maximum temperature of 120°C and a minimum temperature of -30°C. The bearing is open-sealed, lubricated with oil, and has a limiting speed of 60000 rpm, making it suitable for a wide range of applications. With its high precision and reliability, the Barden 103HDM bearing is a top choice for businesses and industries seeking quality components.
