Photo may not represent actual item. Refer to name and product specs for all details.
Availability:
12 in stock
List Price
$2,641.39
12 in stock
12 in stock
Get Estimated Arrival Date

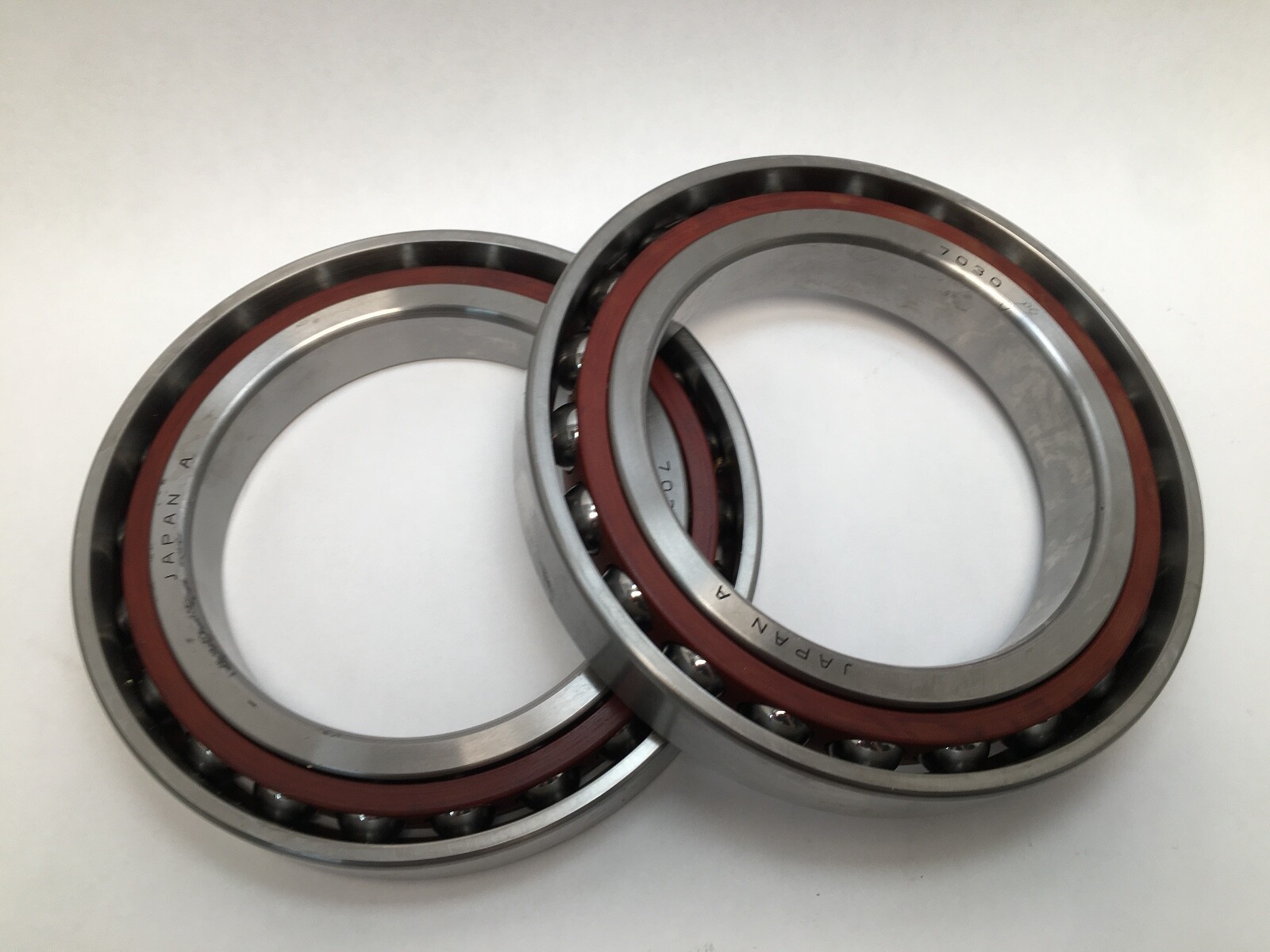

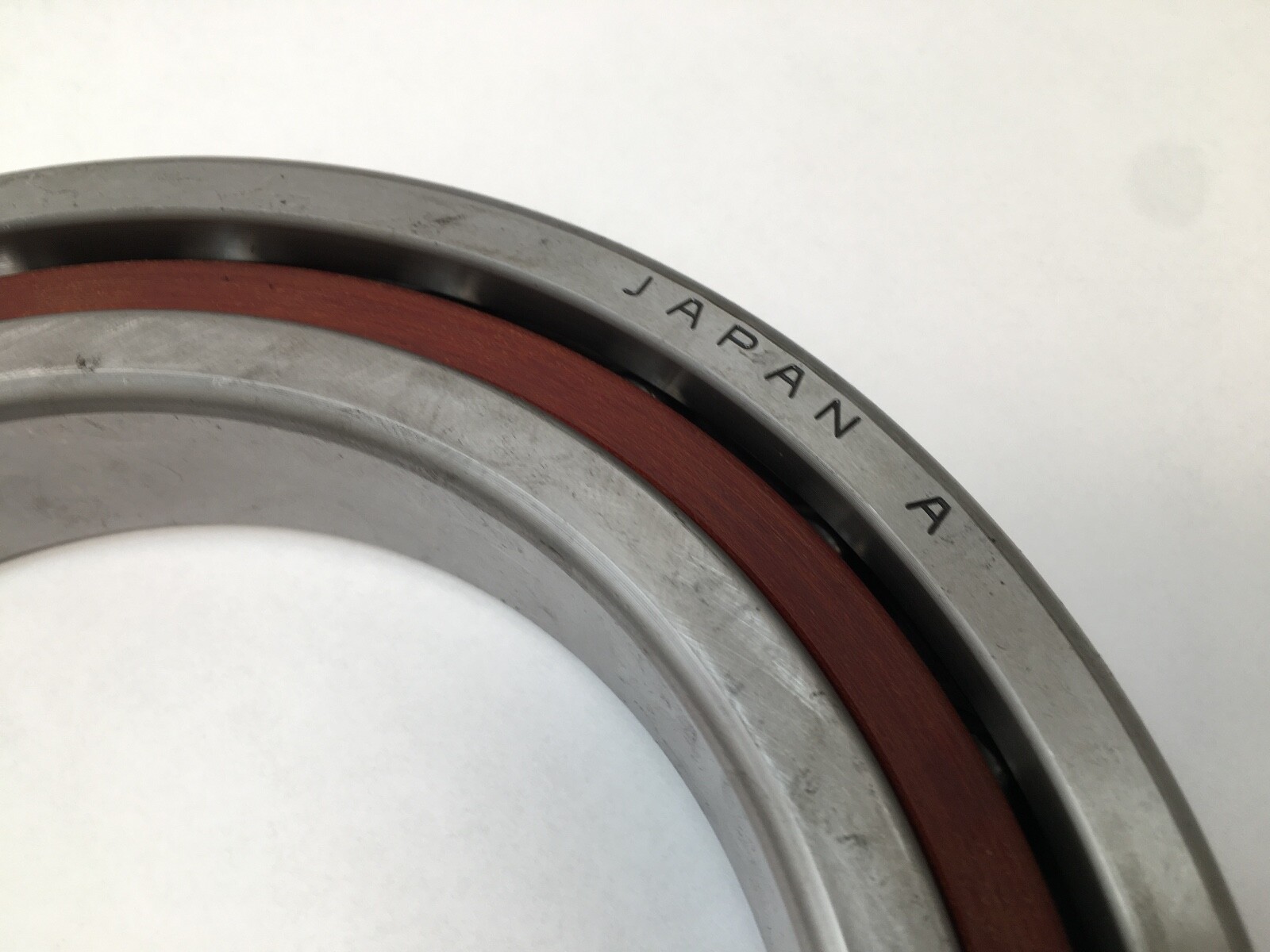

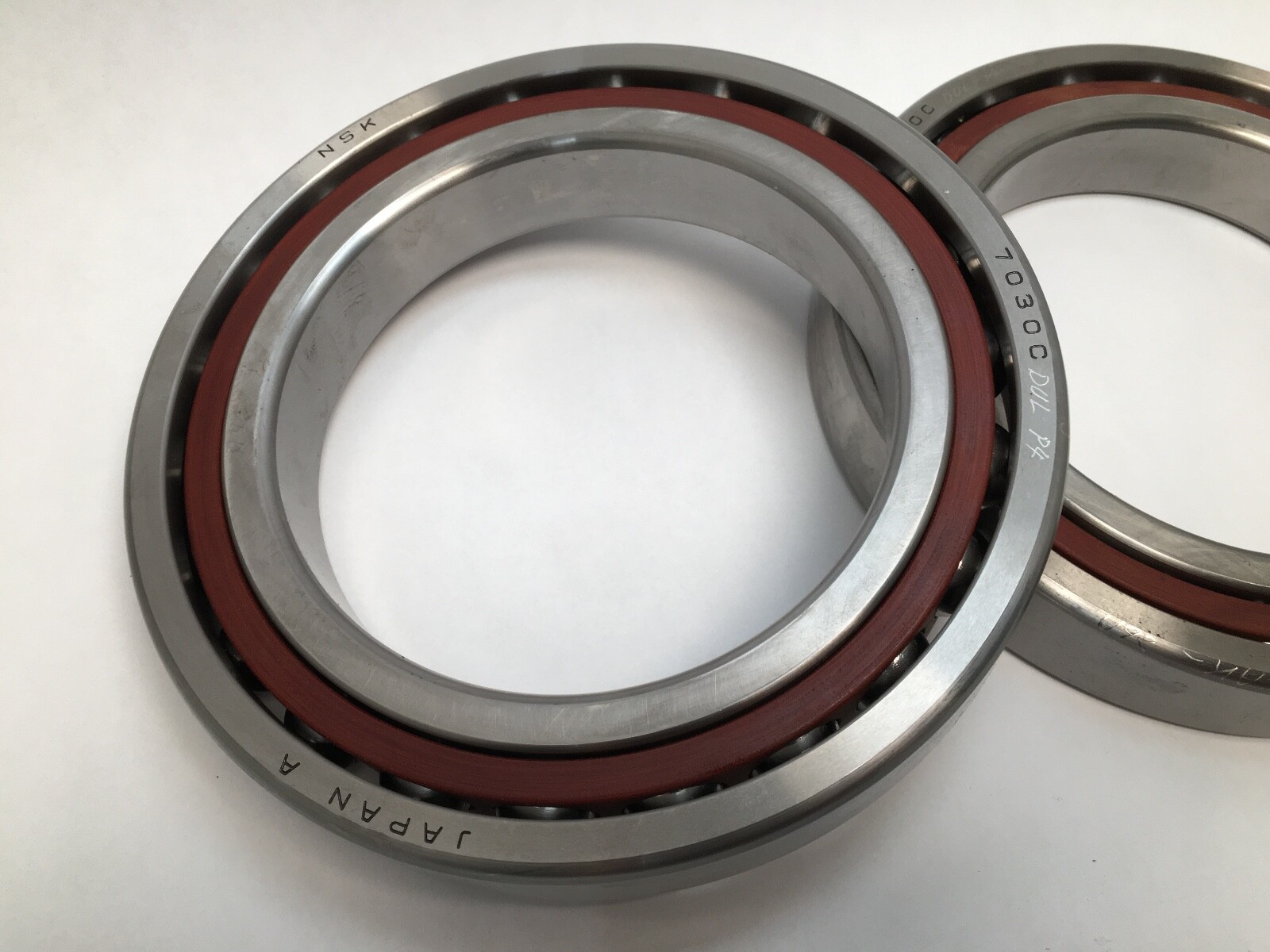

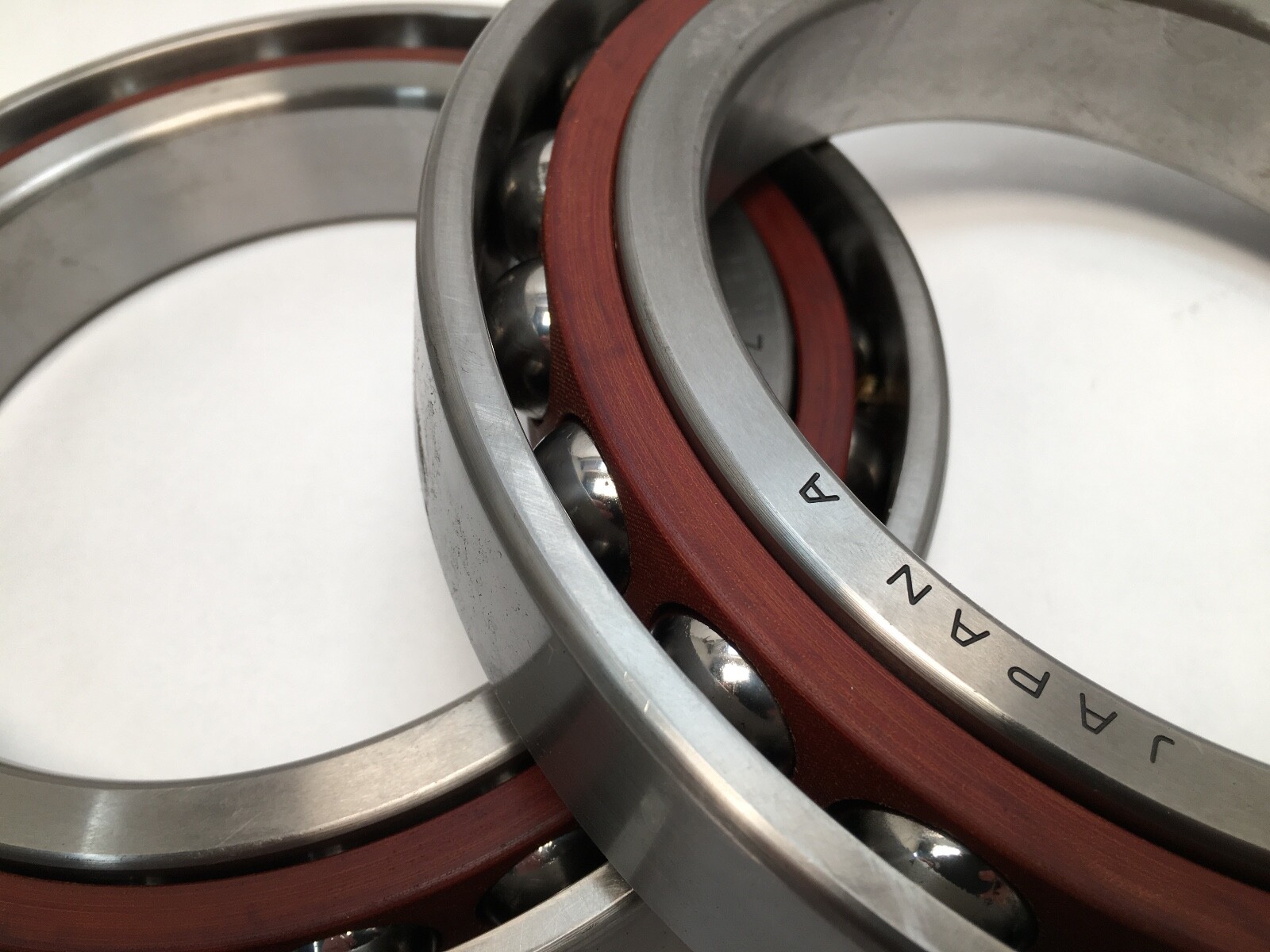

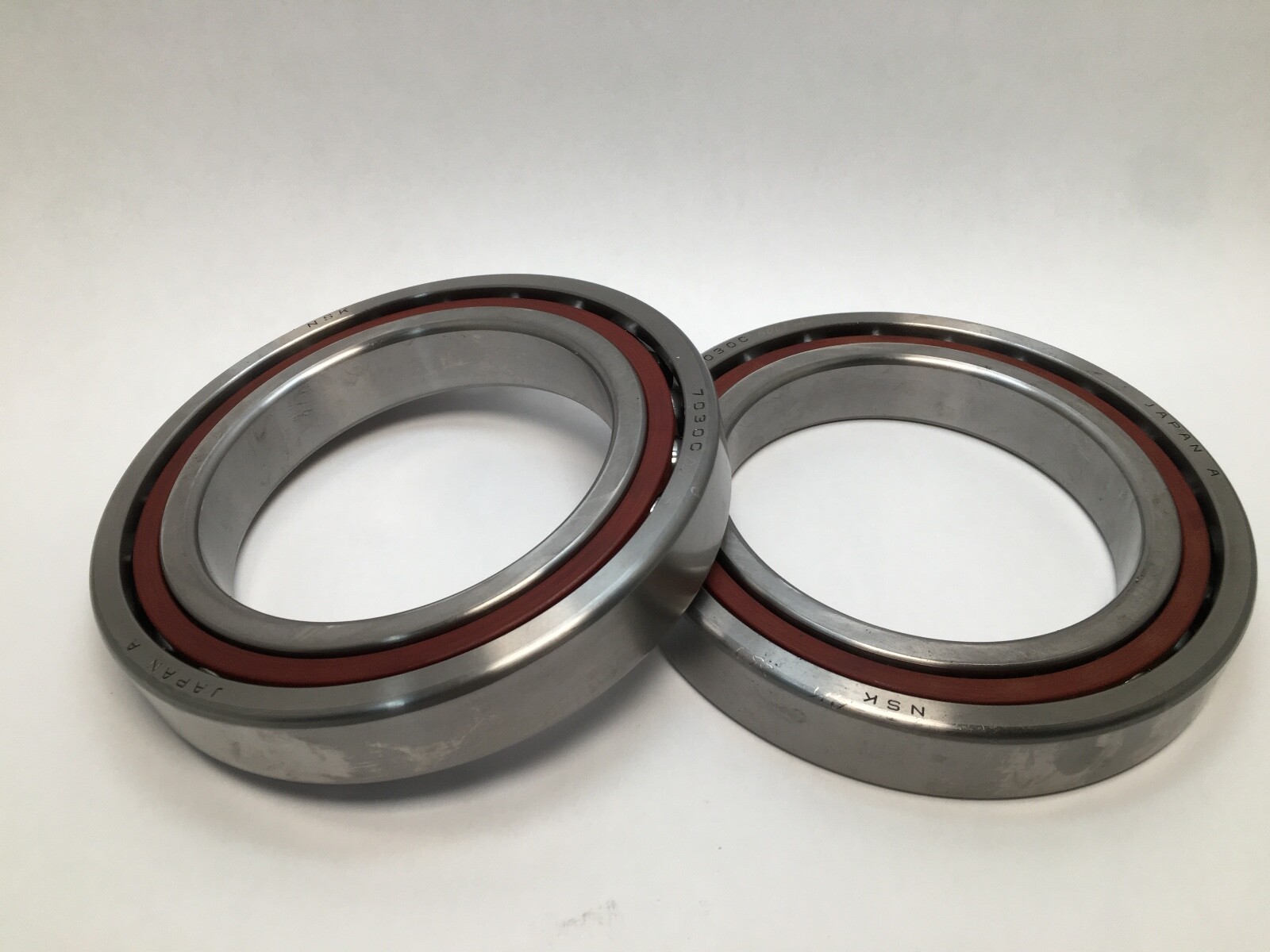

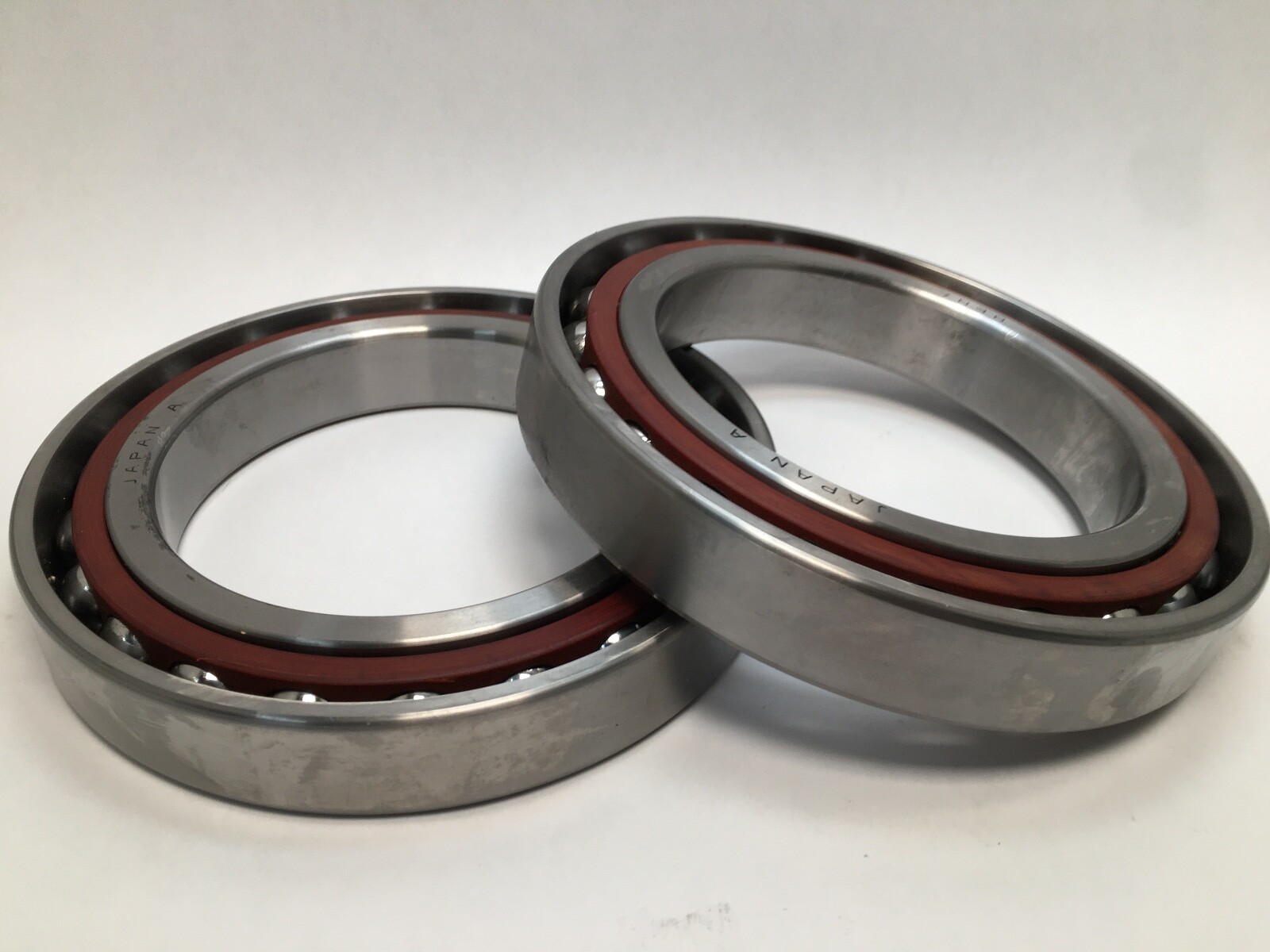

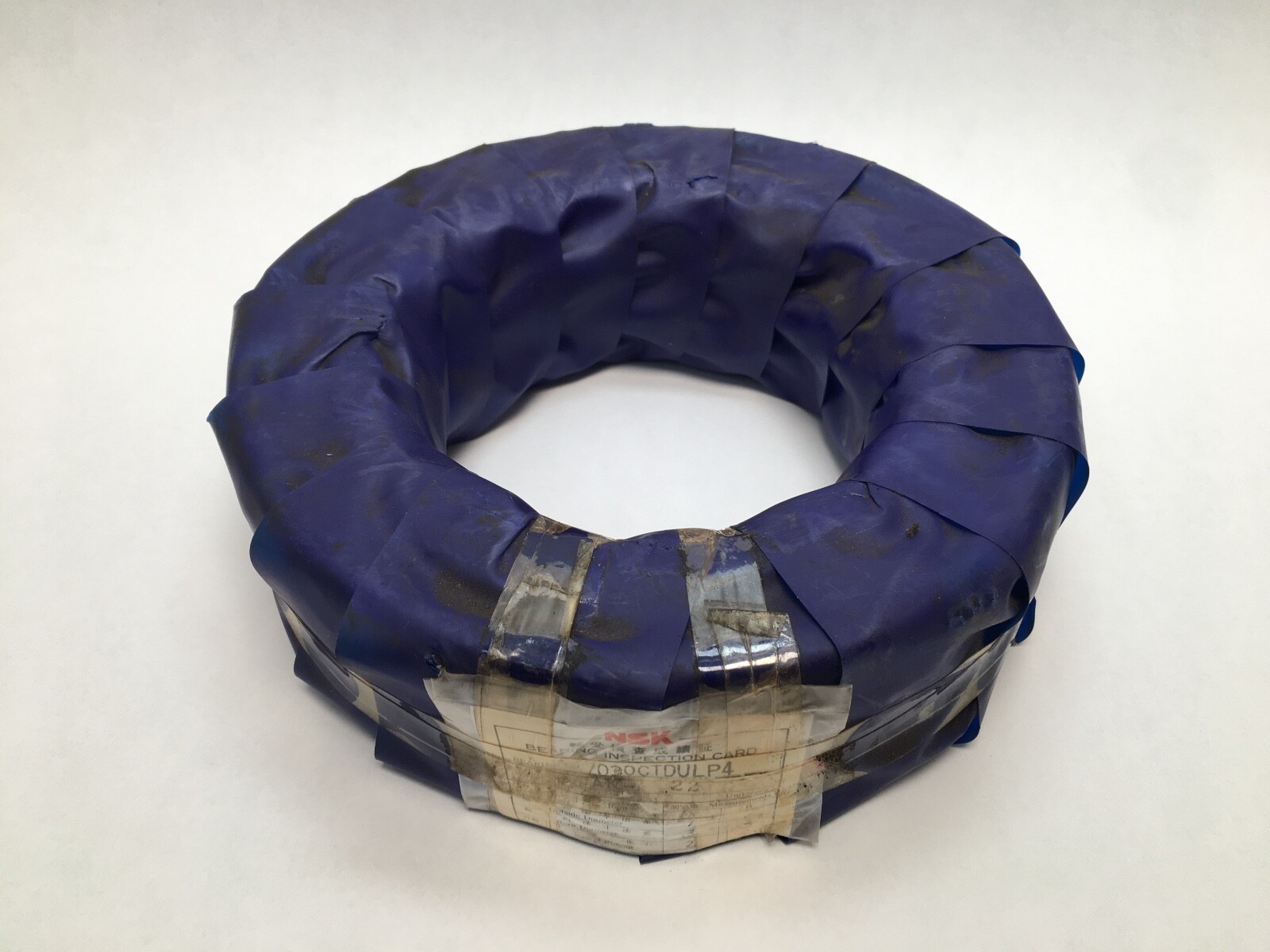

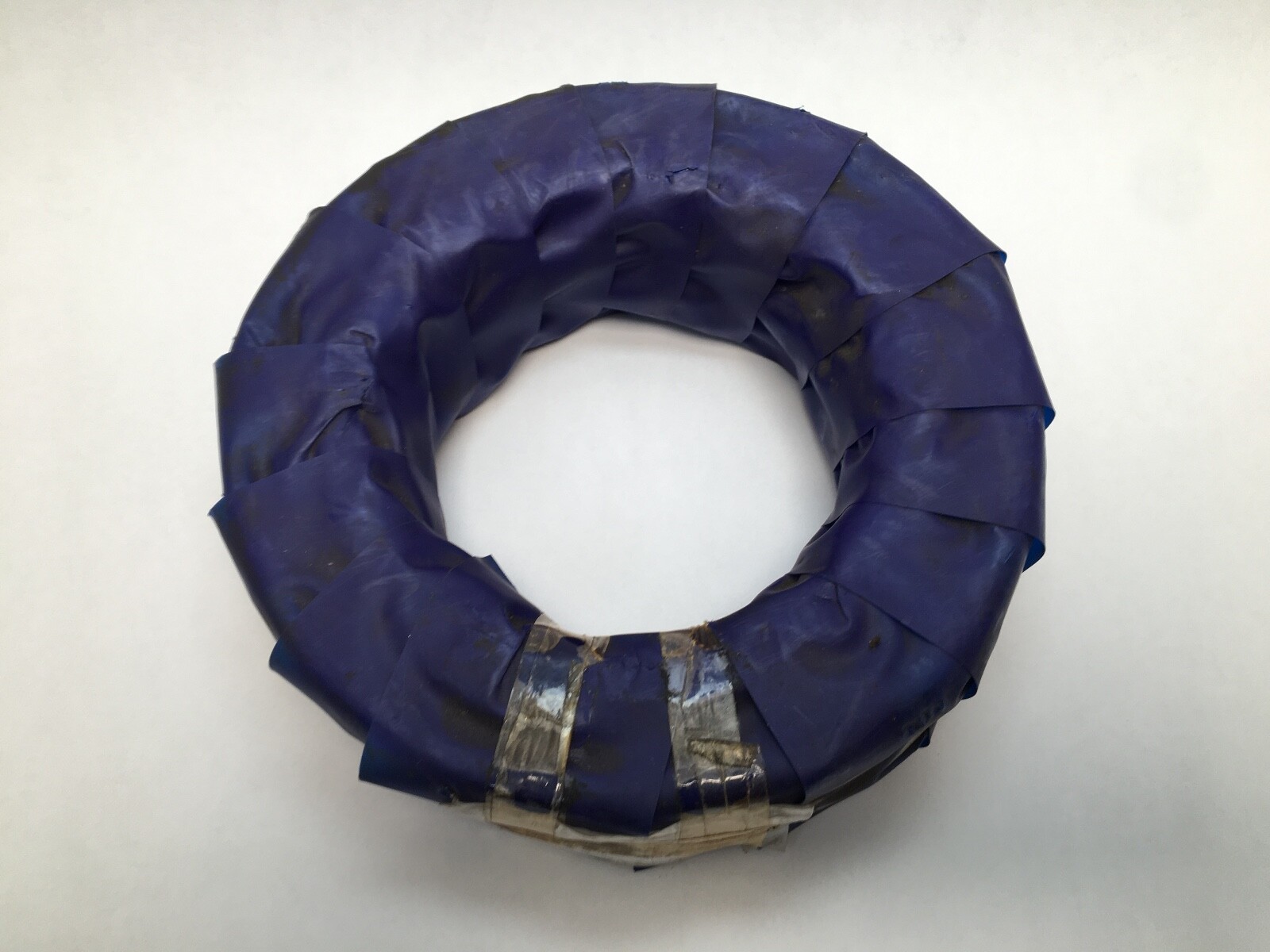

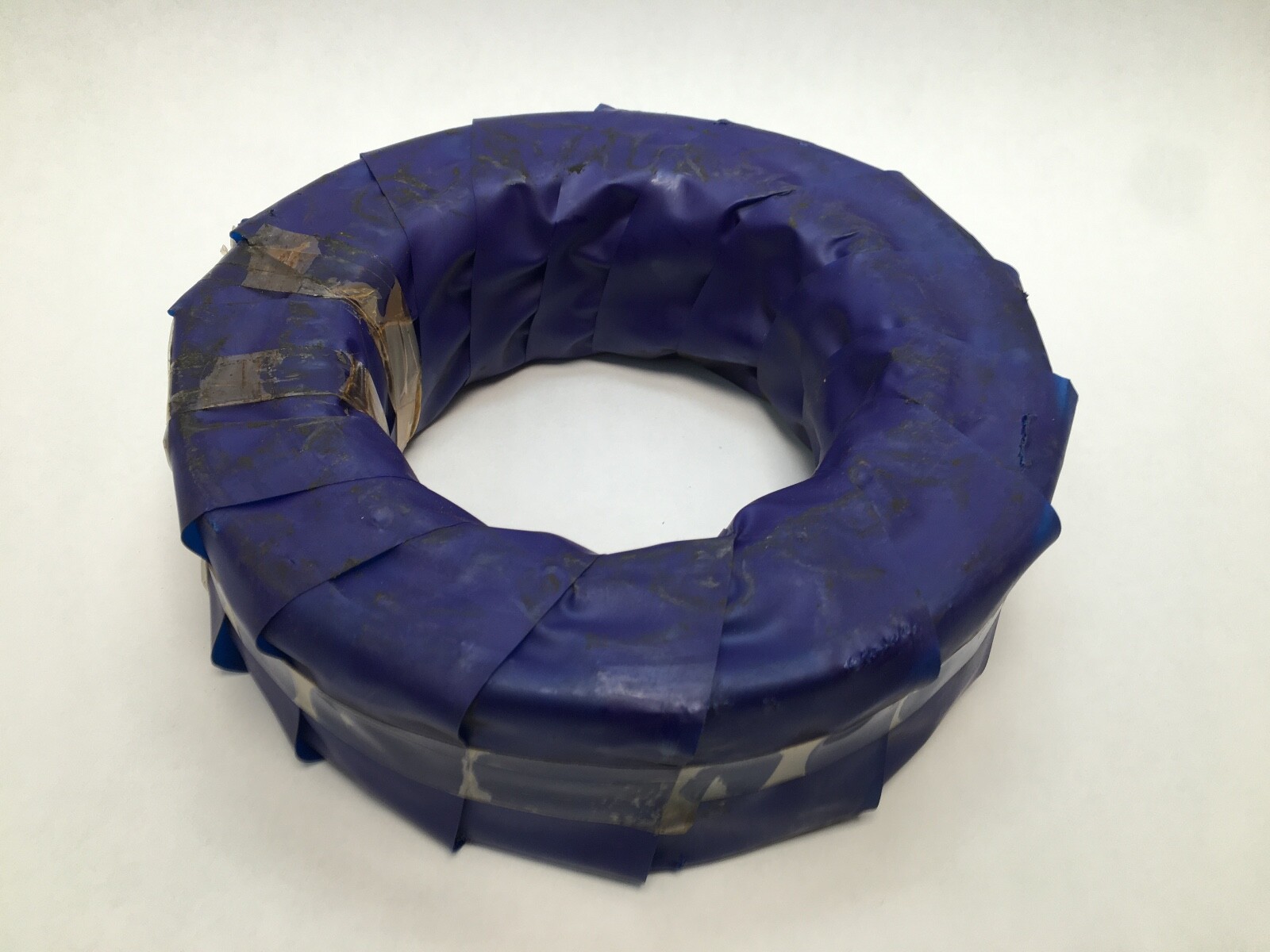

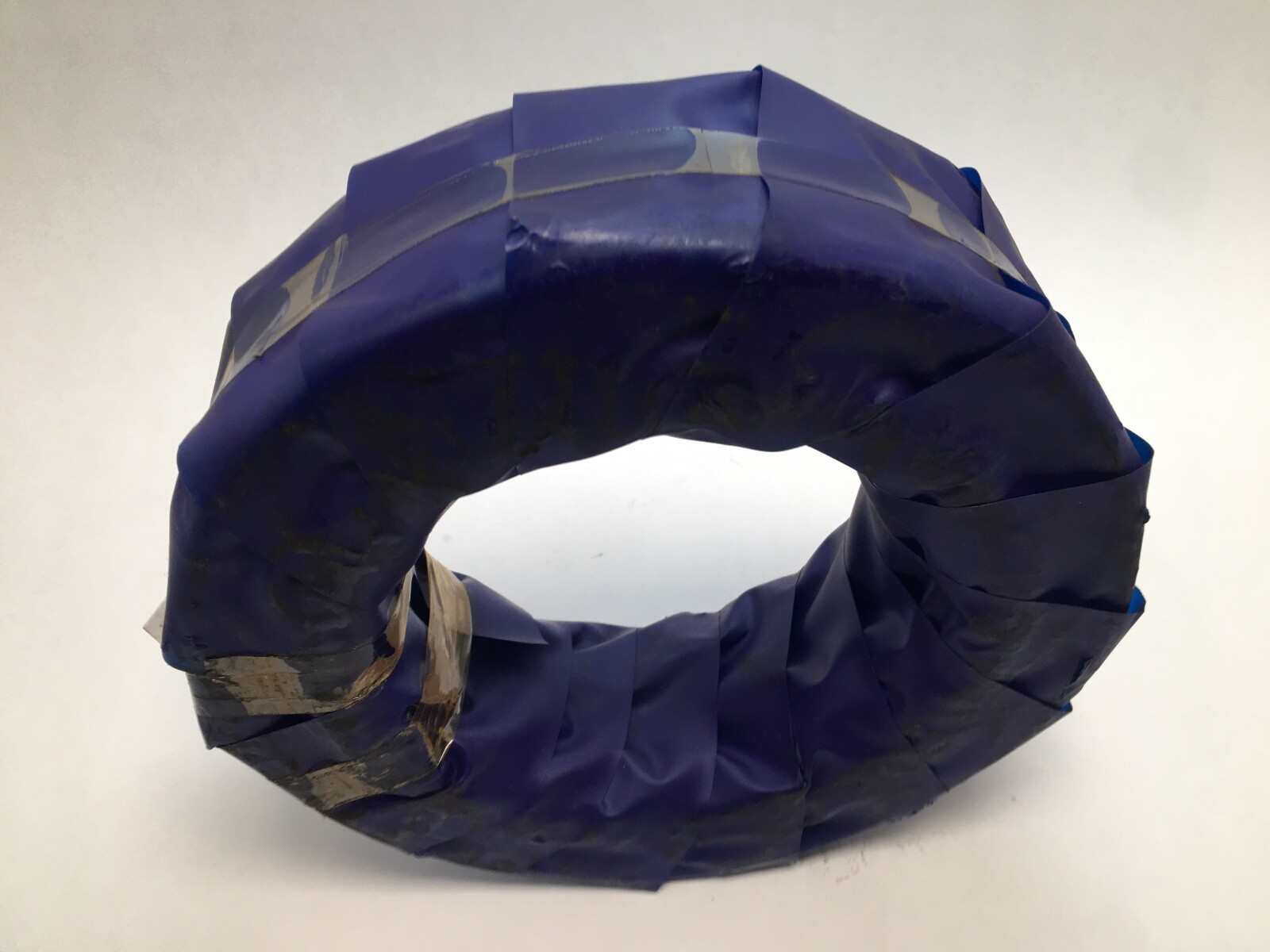

Angular Contact Ball Bearing – 150 mm ID, 225 mm OD, 35 mm Width, Open, 15°, Light preload.
| MFR / Brand | NSK |
|---|---|

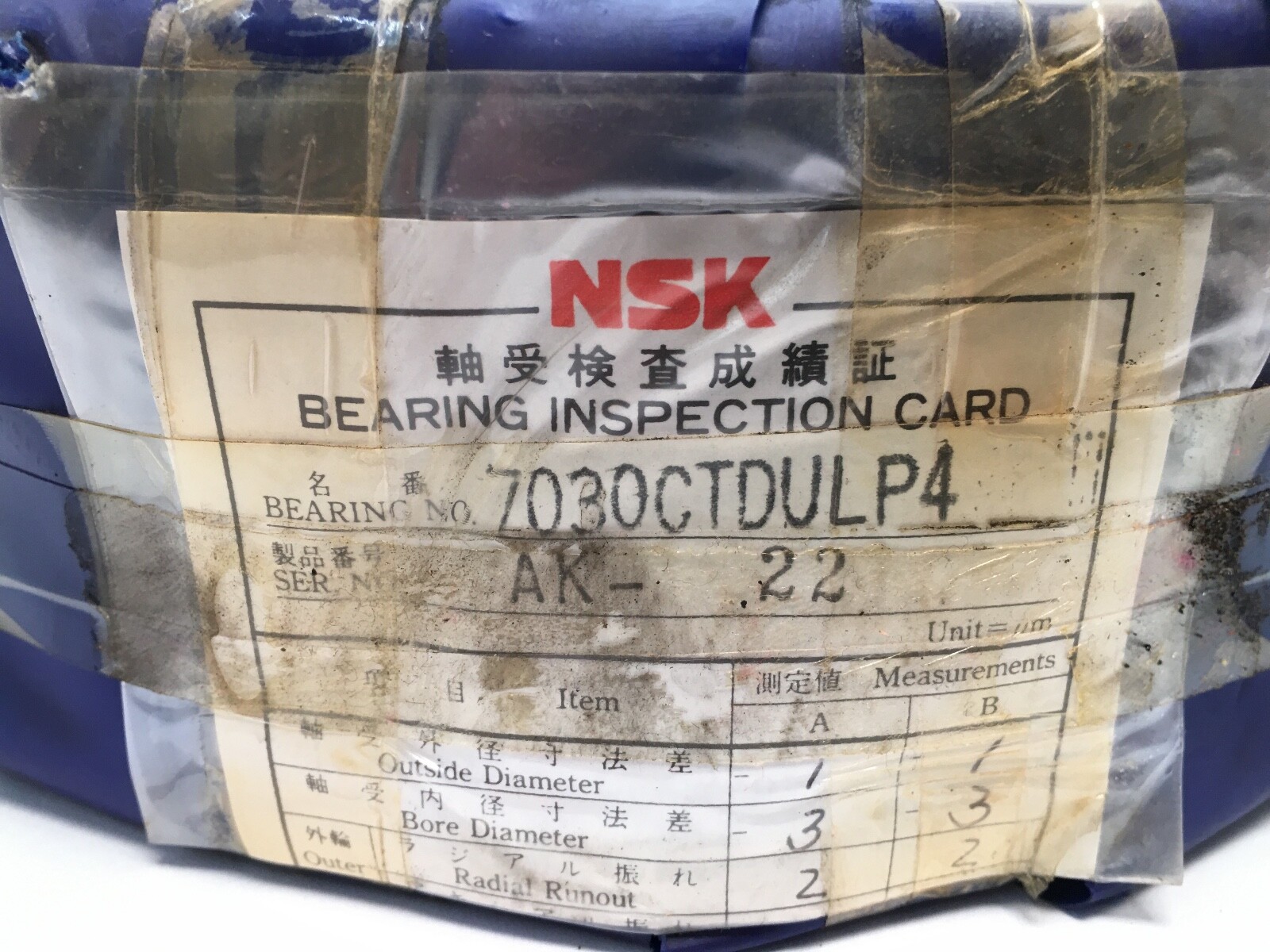

| MPN | 7030CTDULP4 |

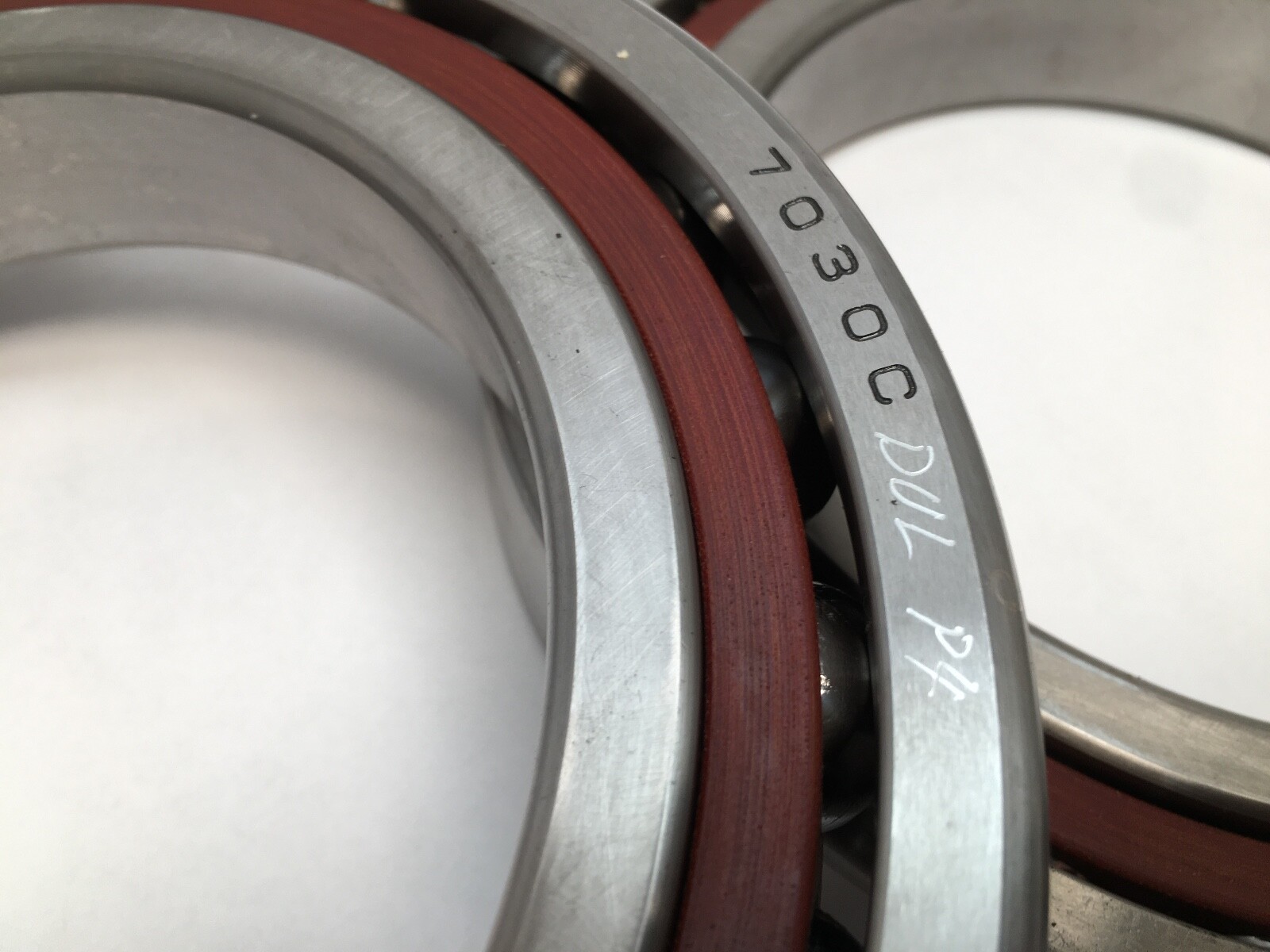

| Model | 7030C-T-DUL-P4 2MM9130WIDUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 150 mm |
| OD | 225 mm |
| Max temp | 120 °C |
|---|---|
| Min temp | -20 °C |
| Cross Reference 1 | SKF 7030 CD/P4ADGA |
| Cross Reference 2 | FAG B7030-C-T-P4S-DUL |
| Lubricant | Oil |
| Material | Bearing Steel |
| Condition | New |
| Harmonization Code | 8482.10.50.28 |
| Item Weight | 10.5 lbs |
| Cage Material | Phenolic |
| Dynamic Load Rating | 143 kN / 32145 lbf |
| Static Load Rating | 148 kN / 33270 lbf |
| Limiting Speed | 3600 rpm |
| Number Of Rows | 1 |
| Series | 7000 |
| Preload | Light Preload |
| Rolling Elements | Ball |
| Mounting Arrangement | Universal |
| Cross Reference 3 | NTN 7030CVDUJ74 |
| Precision Rating | ABEC 7 / P4 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Contact Angle | 15° |
