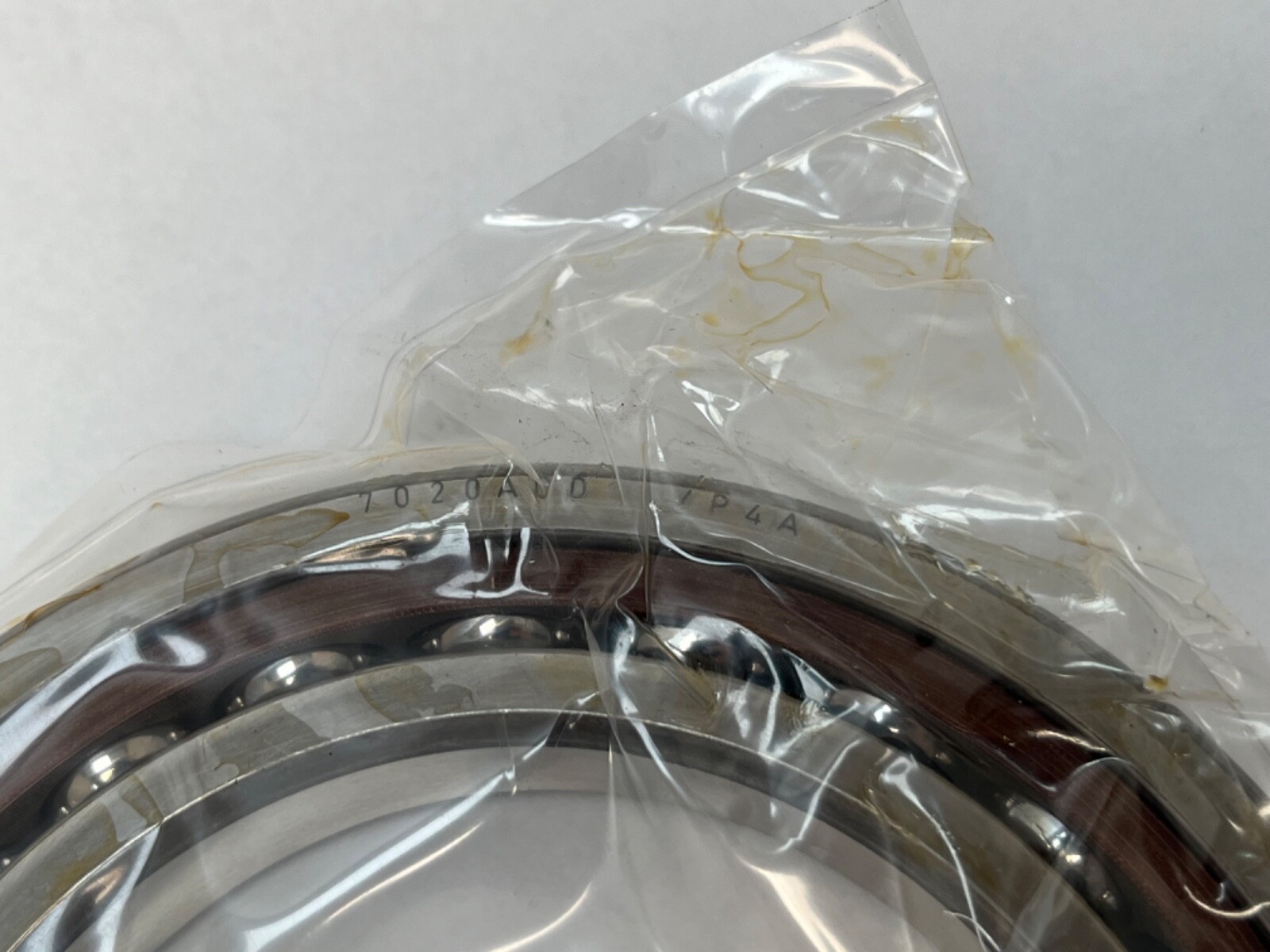

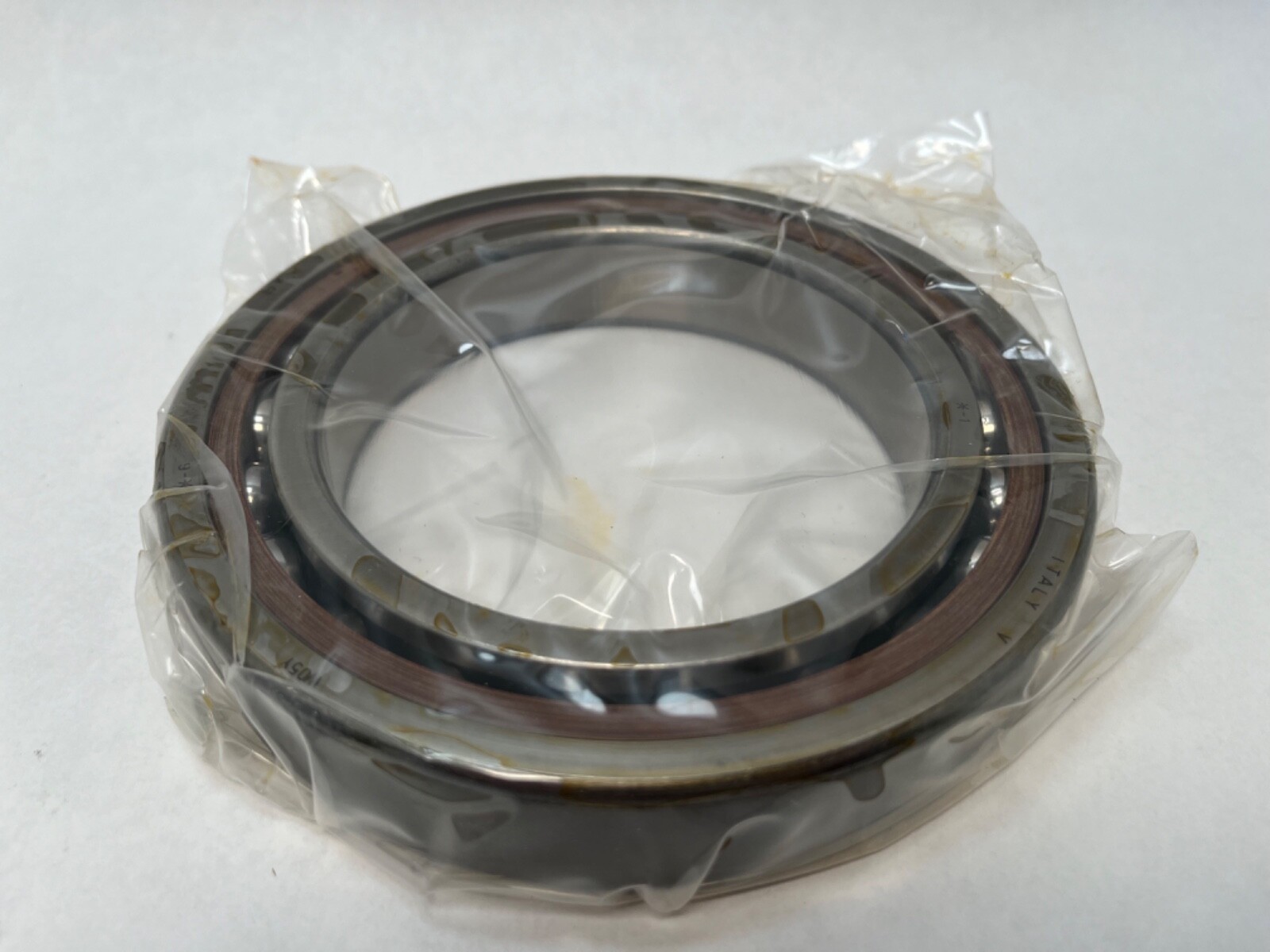

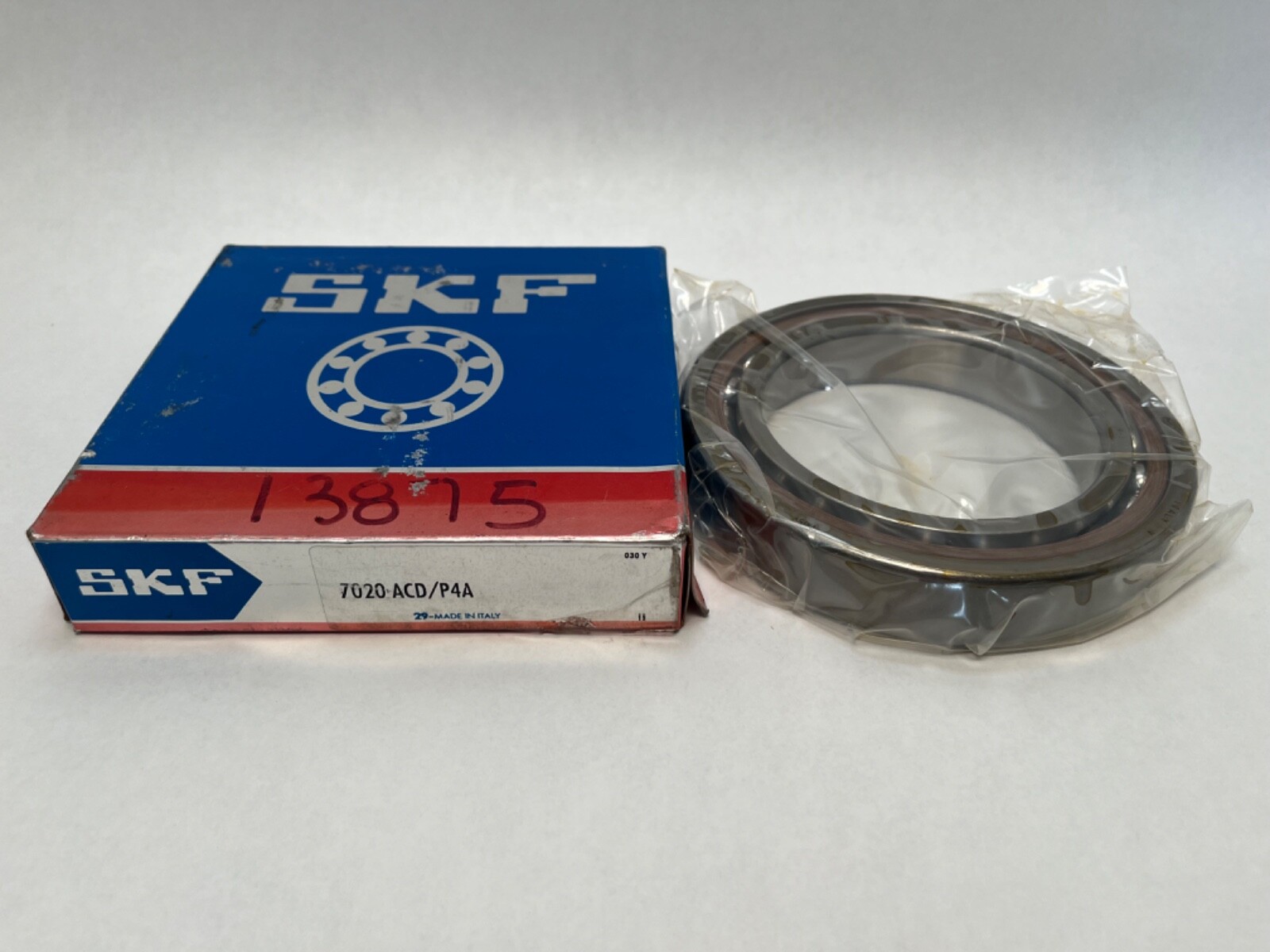

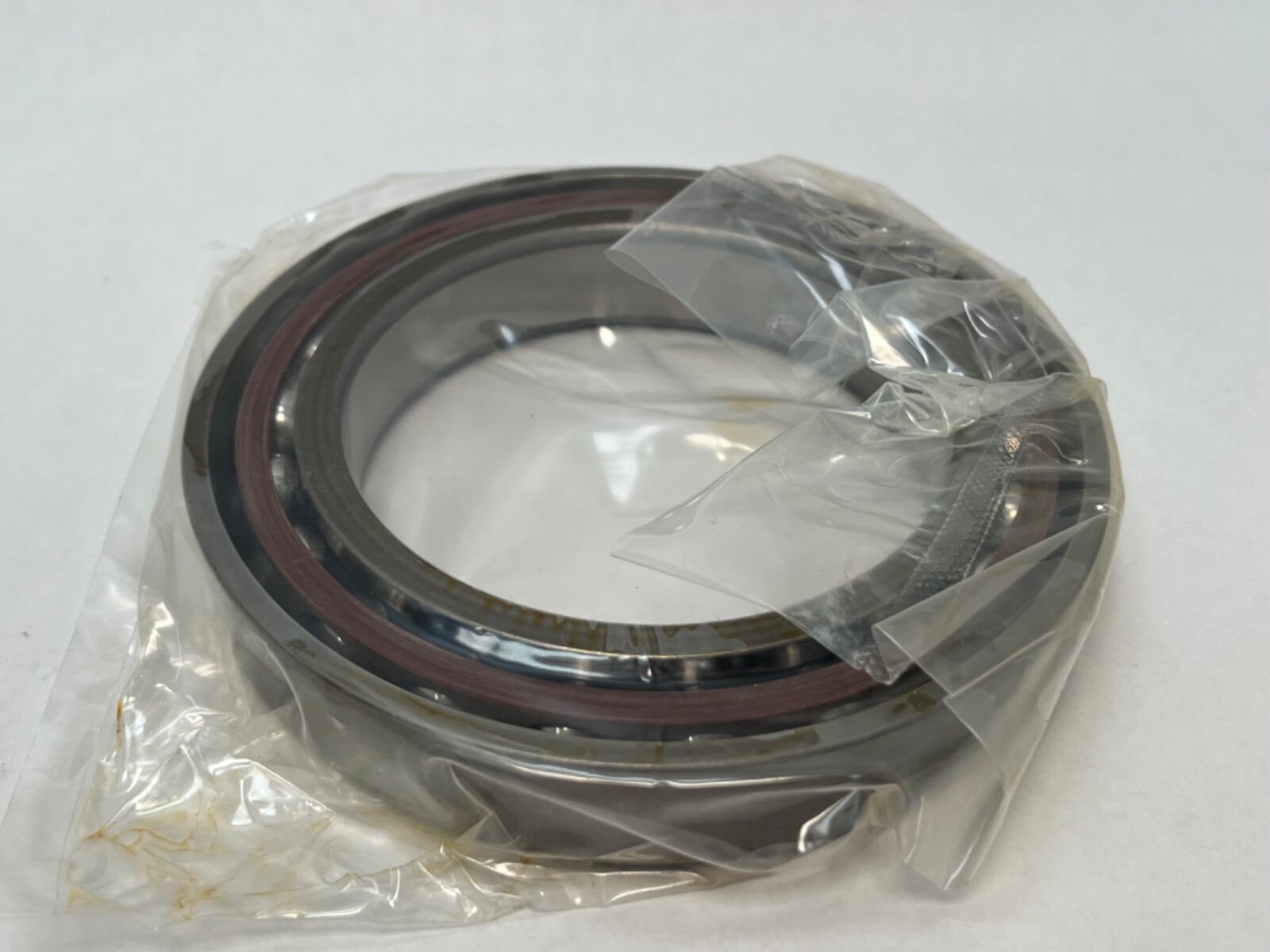

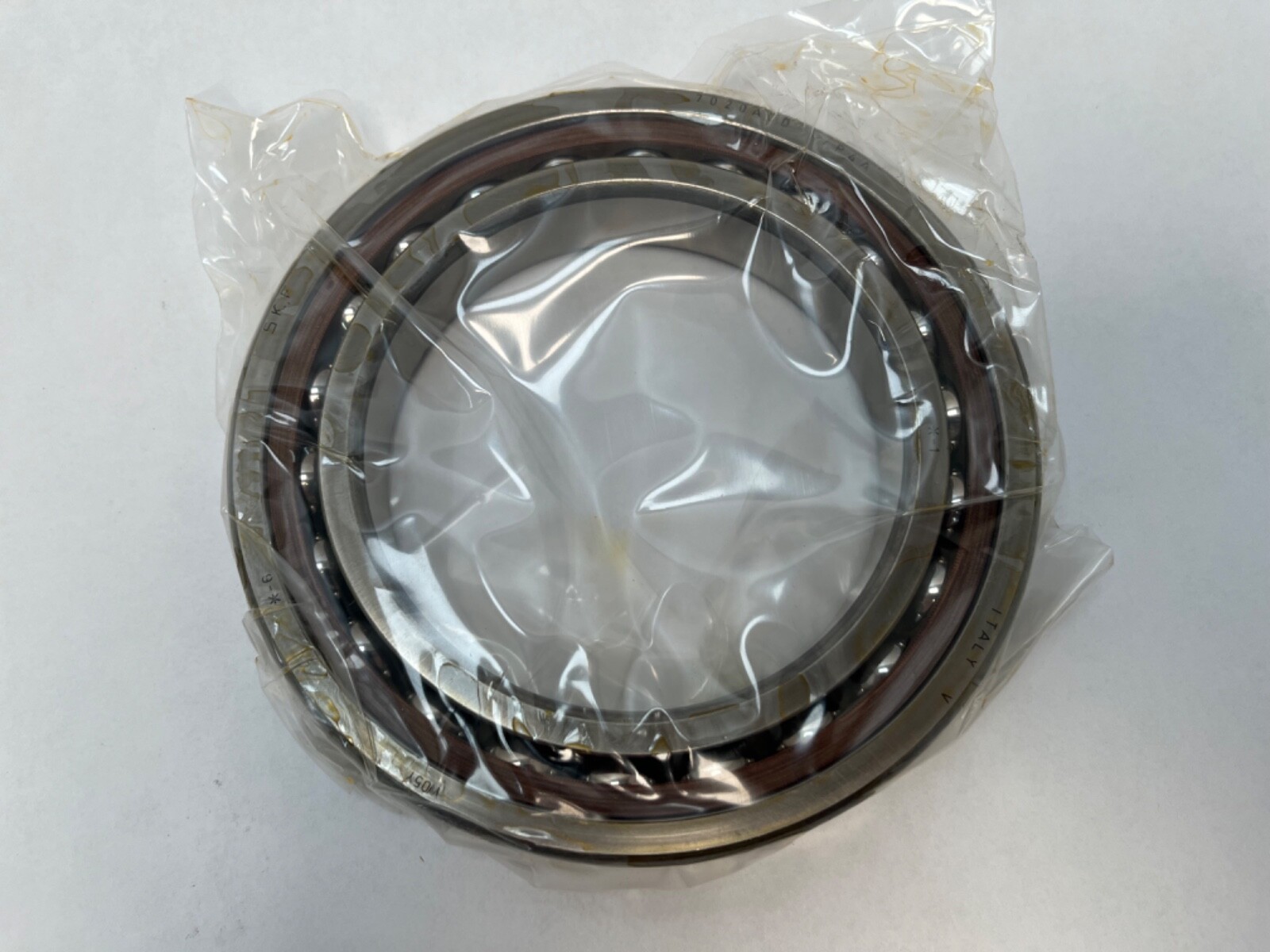

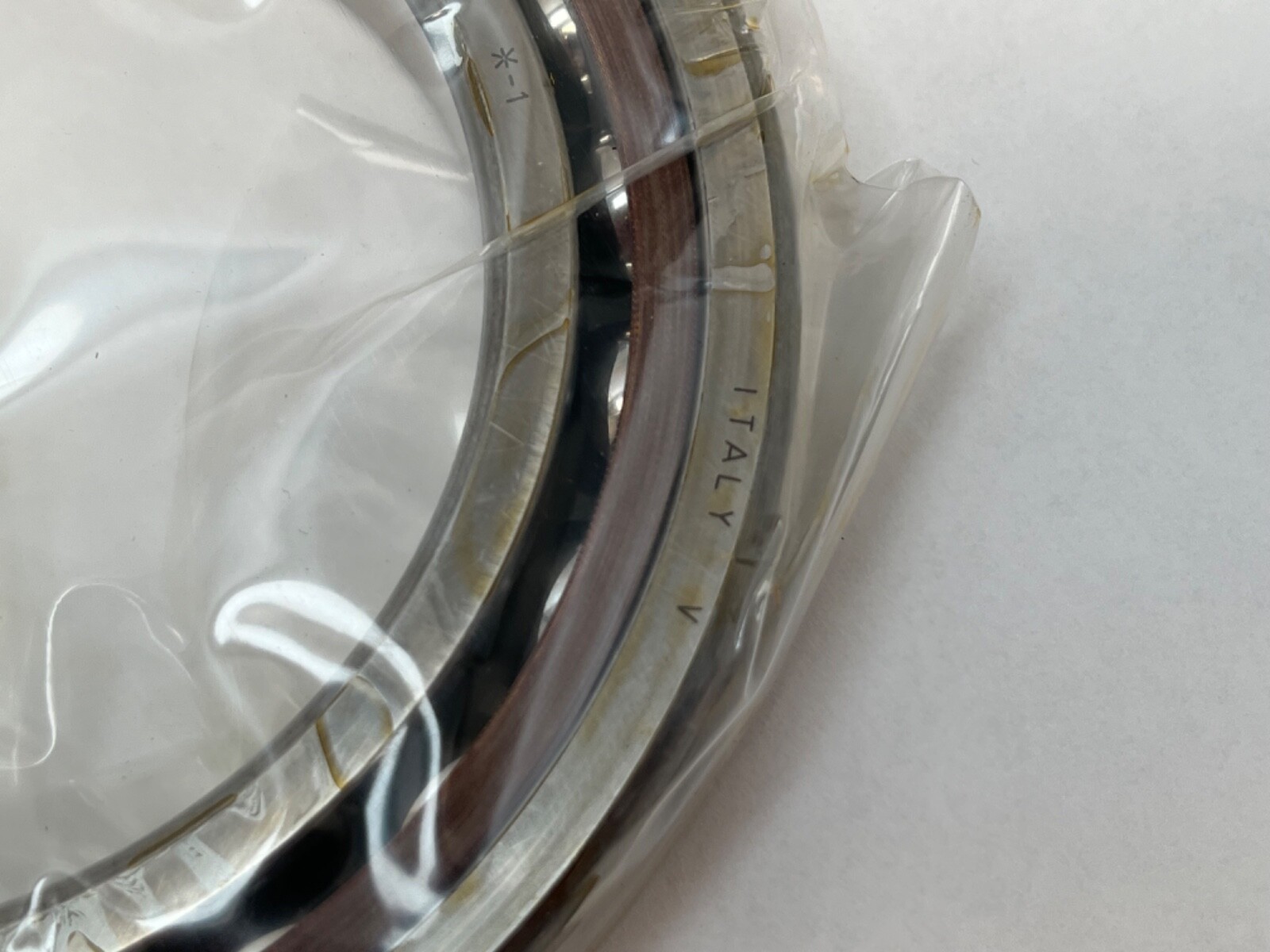

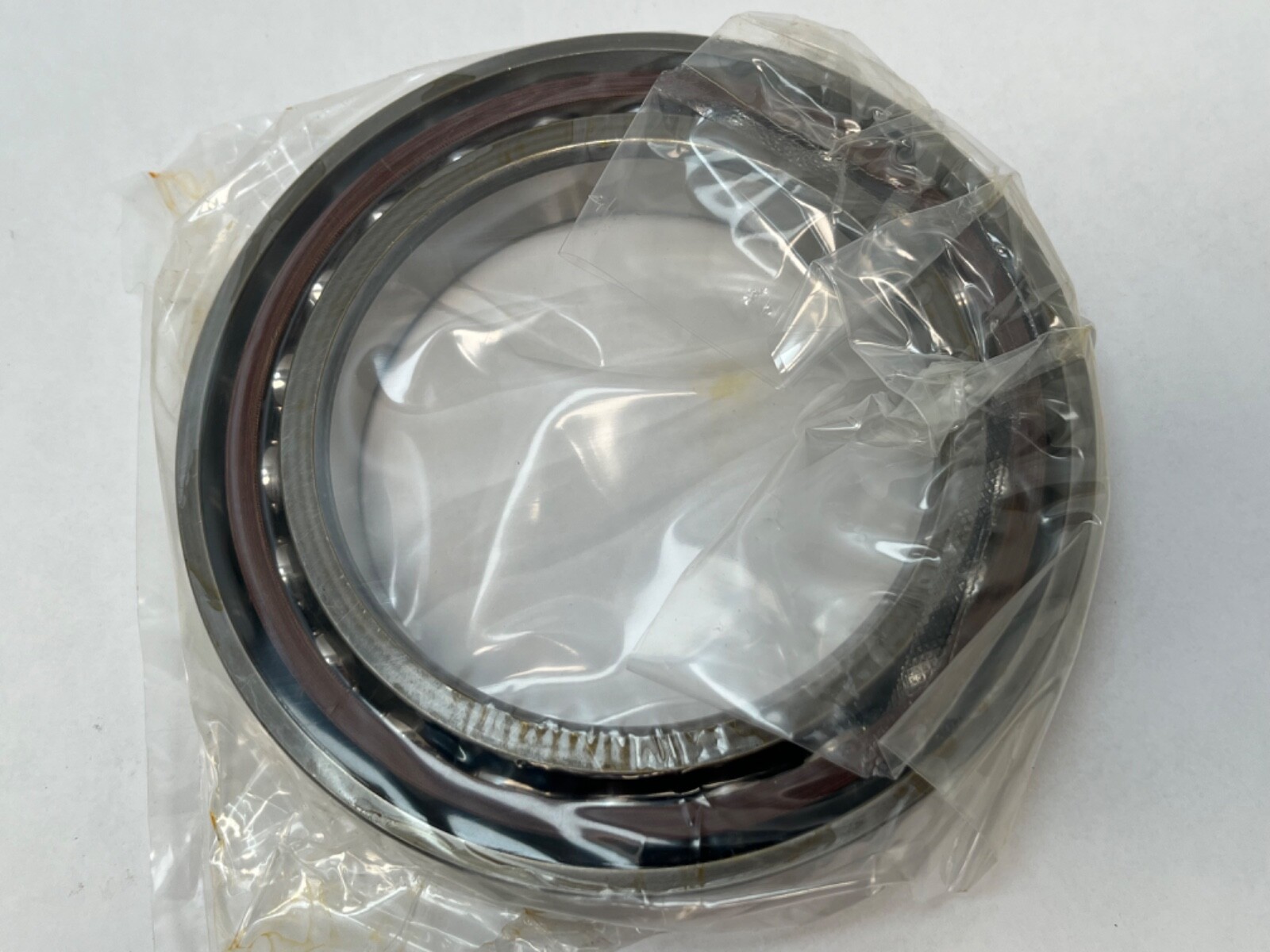

The SKF 7020-ACD/P4A bearing is a high precision angular contact ball bearing with a P4 precision rating. It has a bore diameter of 100mm, an outside diameter of 150mm, and a width of 24mm. This bearing is made of bearing steel and has a contact angle of 25 degrees. It is designed for use in industrial automation and motion control applications, with a dynamic load rating of 78.0 kN and a static load rating of 81.5 kN. The bearing is lubricated with oil or grease and is manufactured in Italy by SKF.
List Price
$378.66
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | SKF |
|---|---|
| MPN | 7020ACDP4A |
| Model | 7020 ACD P4A / 3MM9120WI CR / 7020A5 7020-E 7020A |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 100 mm |
| OD | 150 mm |
| Width | 24 mm |
| Advertise | 1 |
|---|---|
| Material | Bearing Steel |
| Min Temp | -30°C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 78.0 kN |
| Static Load Rating | 81.5 kN |
| Precision Rating | ABEC 7 / P4 |
| Series | 7000 |
| Rolling Elements | Ball |
| Max Temp | 120°C |
| Condition | New |
| Item Weight | 2.78 lbs |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Lubricant | Oil/Grease |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mounting Arrangement | Universal |
| Cross Reference 1 | FAG B7020-E-T-P4S |
|---|---|
| Cross Reference 2 | NSK 7020A5TYNP4 |
