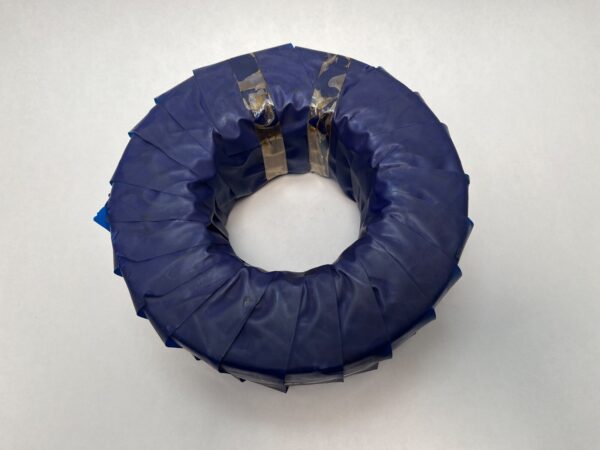

Photo may not represent actual item. Refer to name and product specs for all details.
Availability:
3 in stock
List Price
$2,009.25
3 in stock
3 in stock
Get Estimated Arrival Date

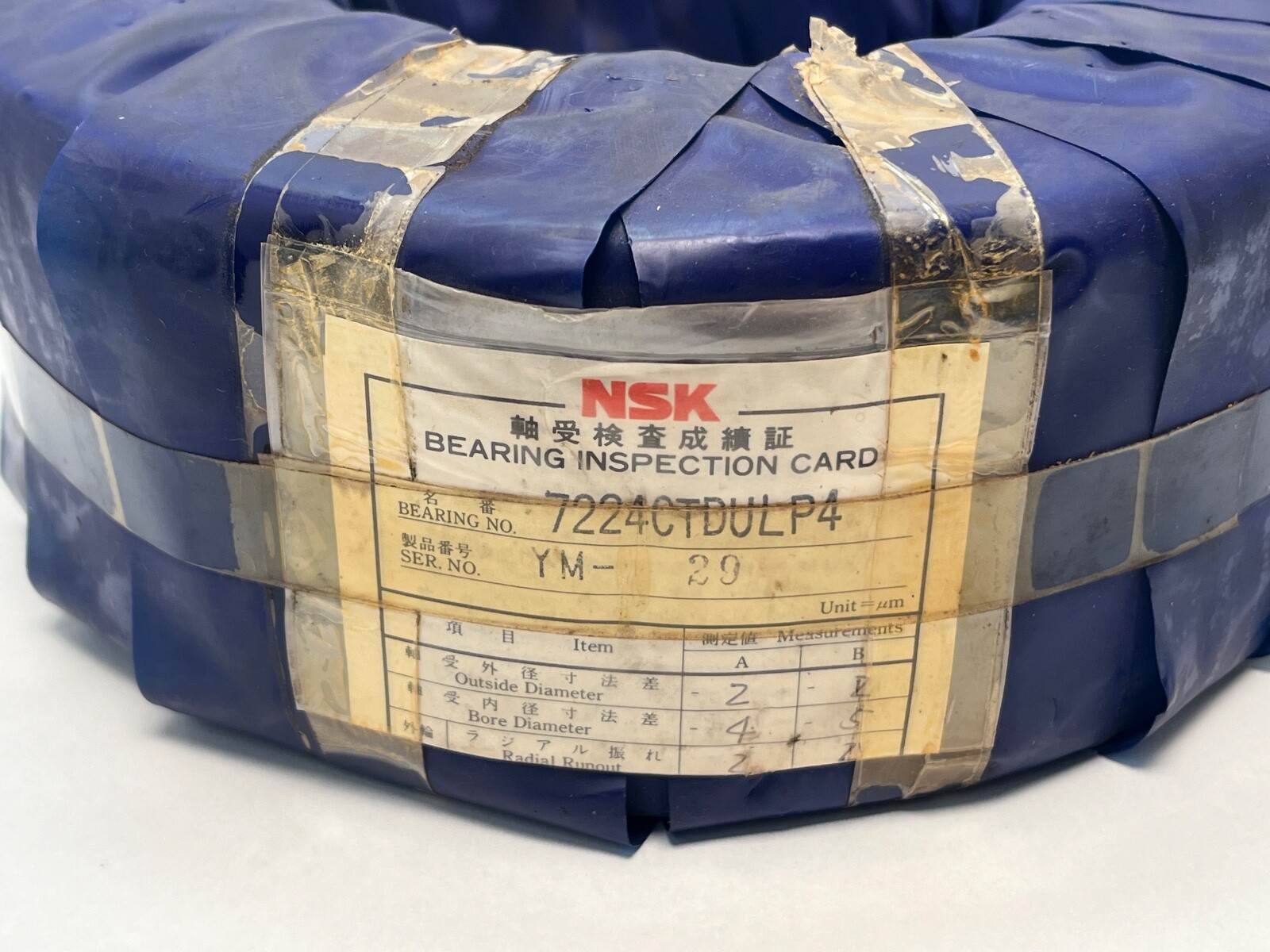

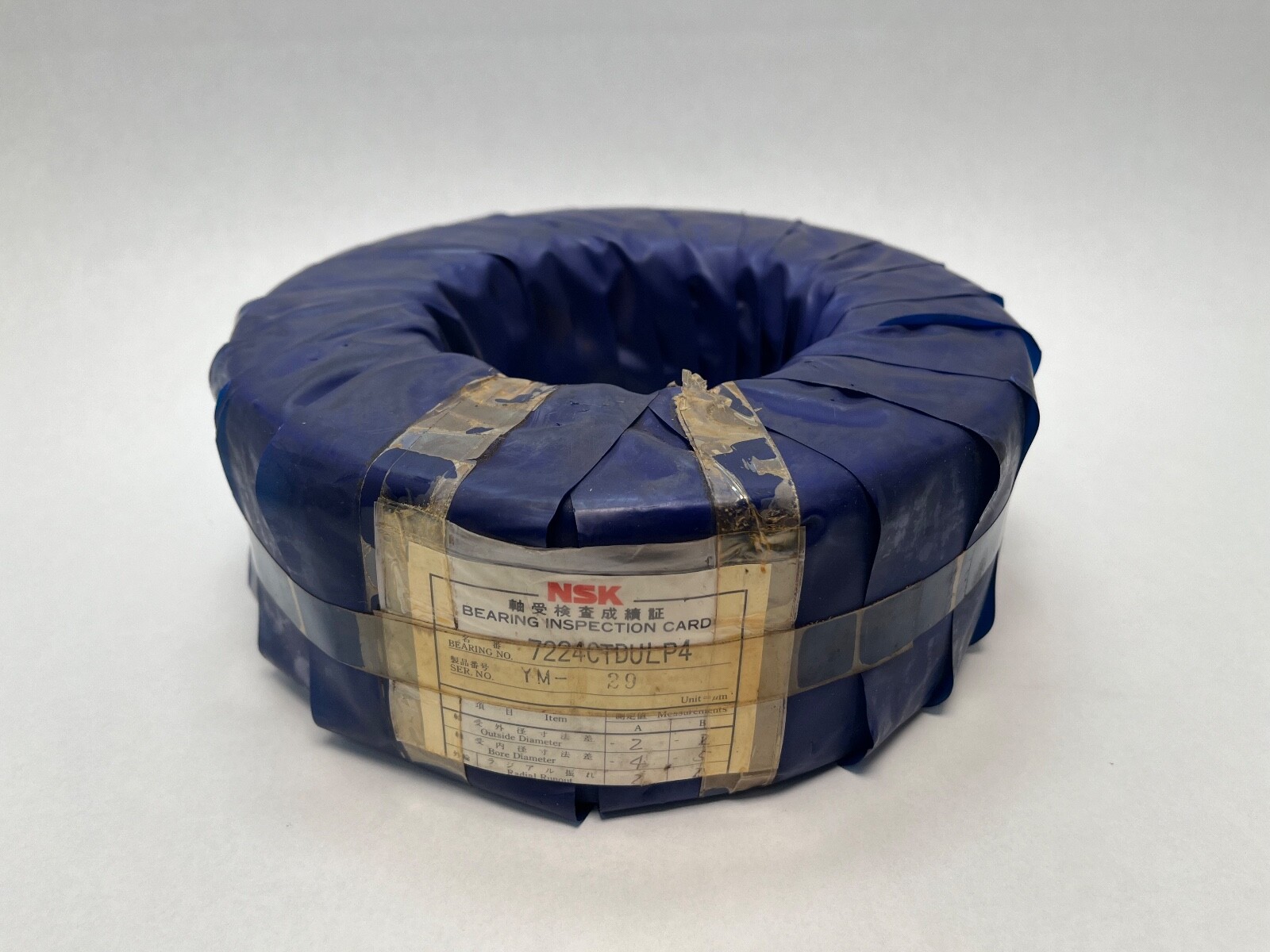

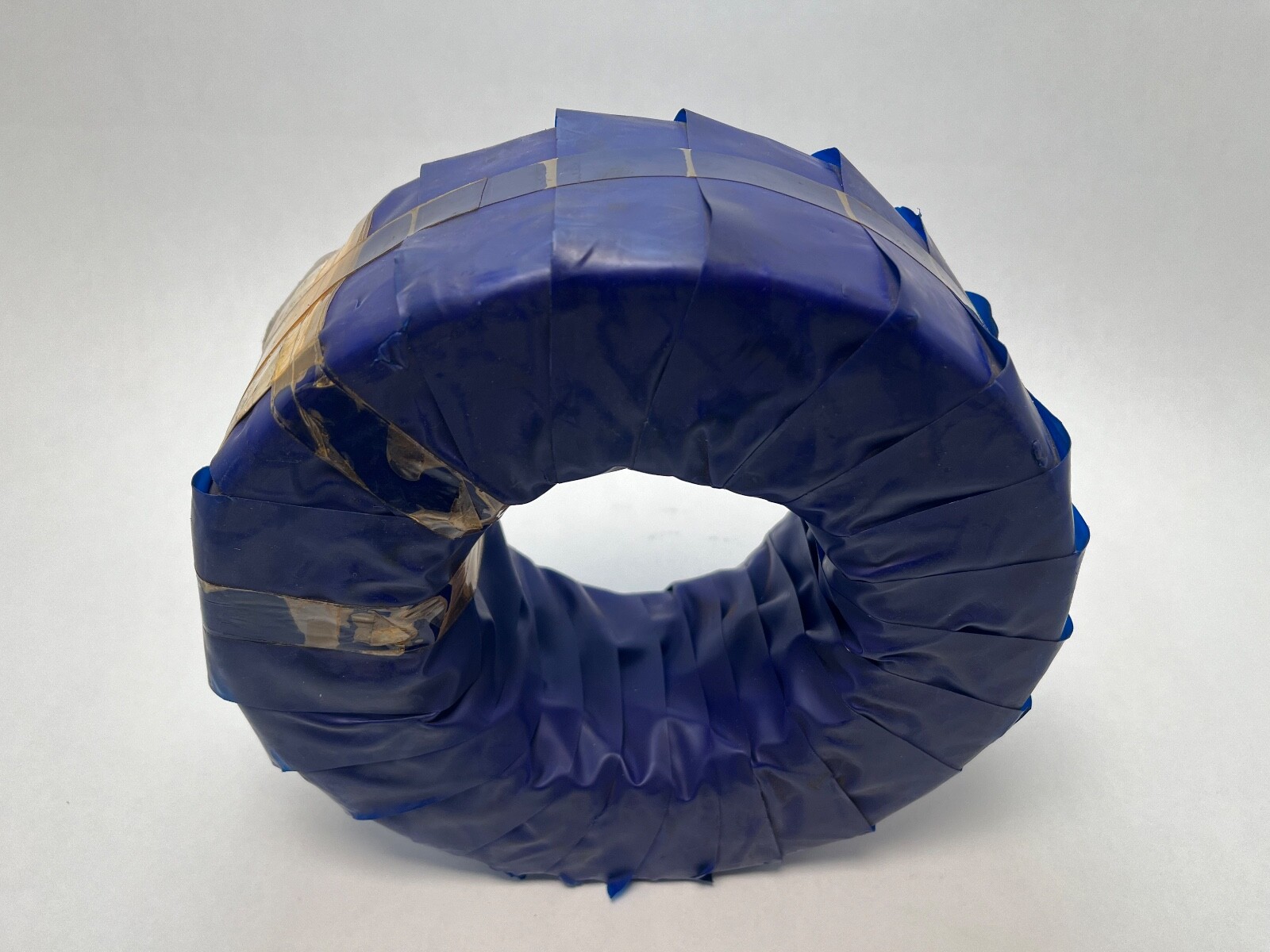

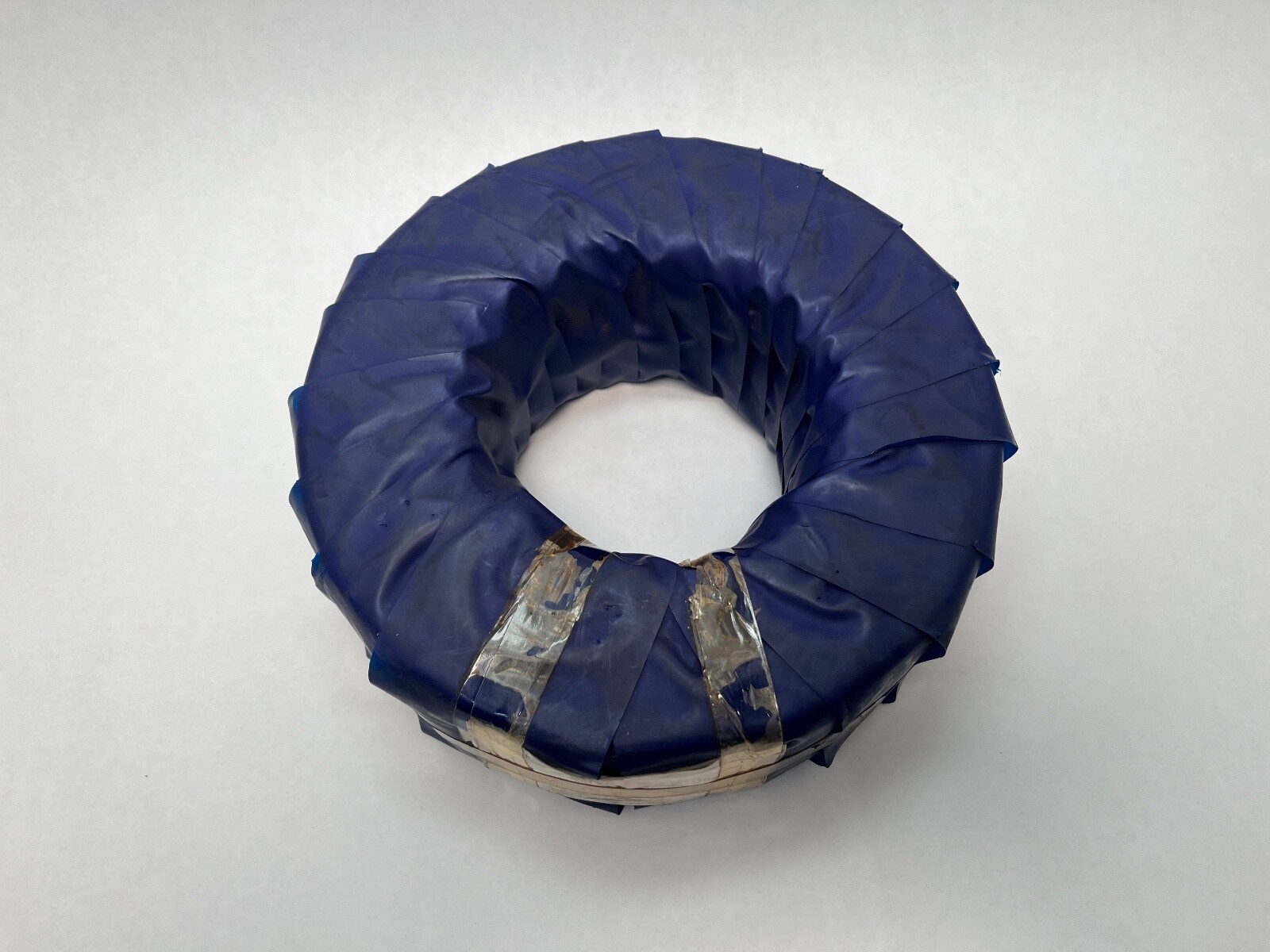

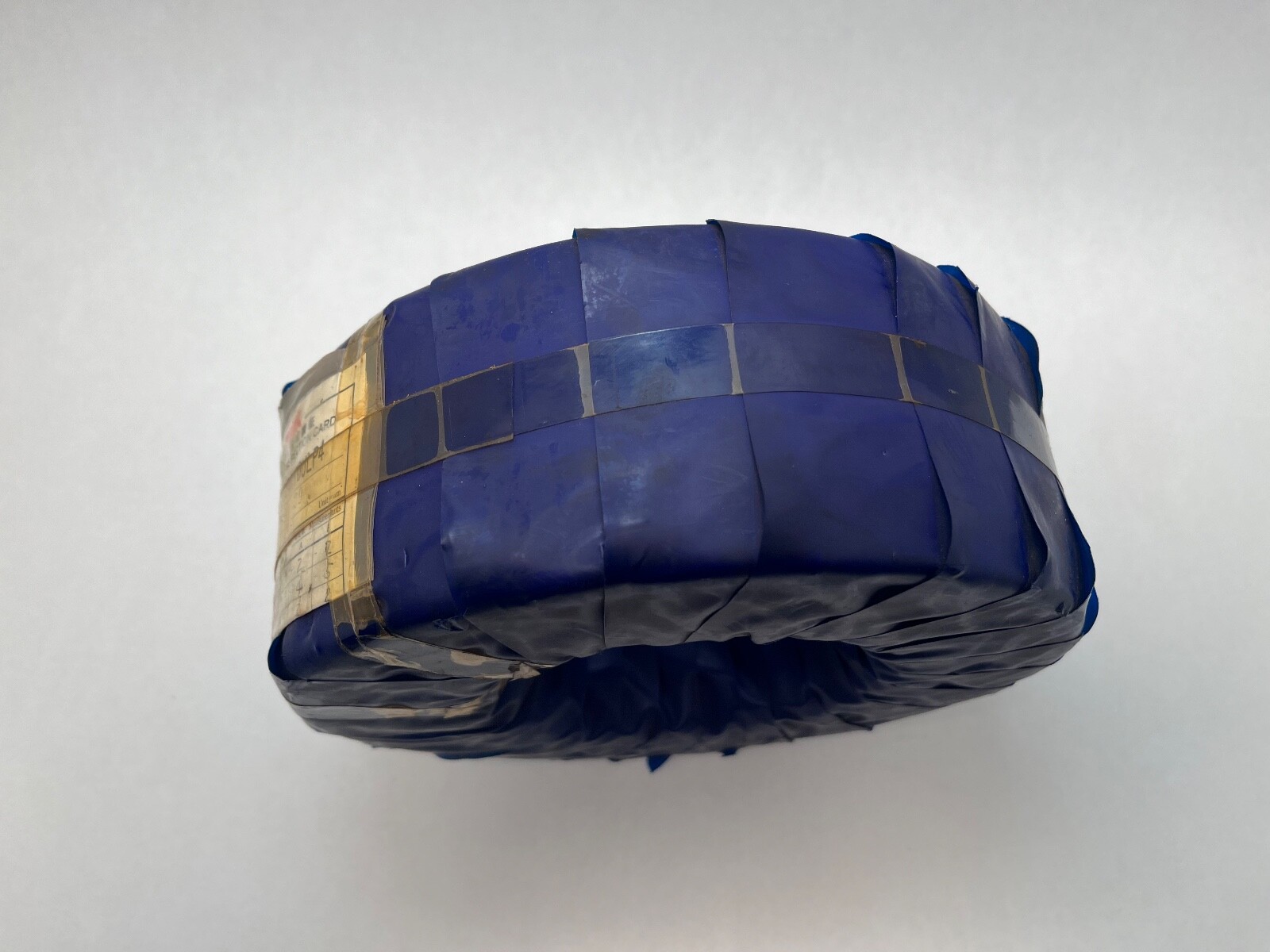

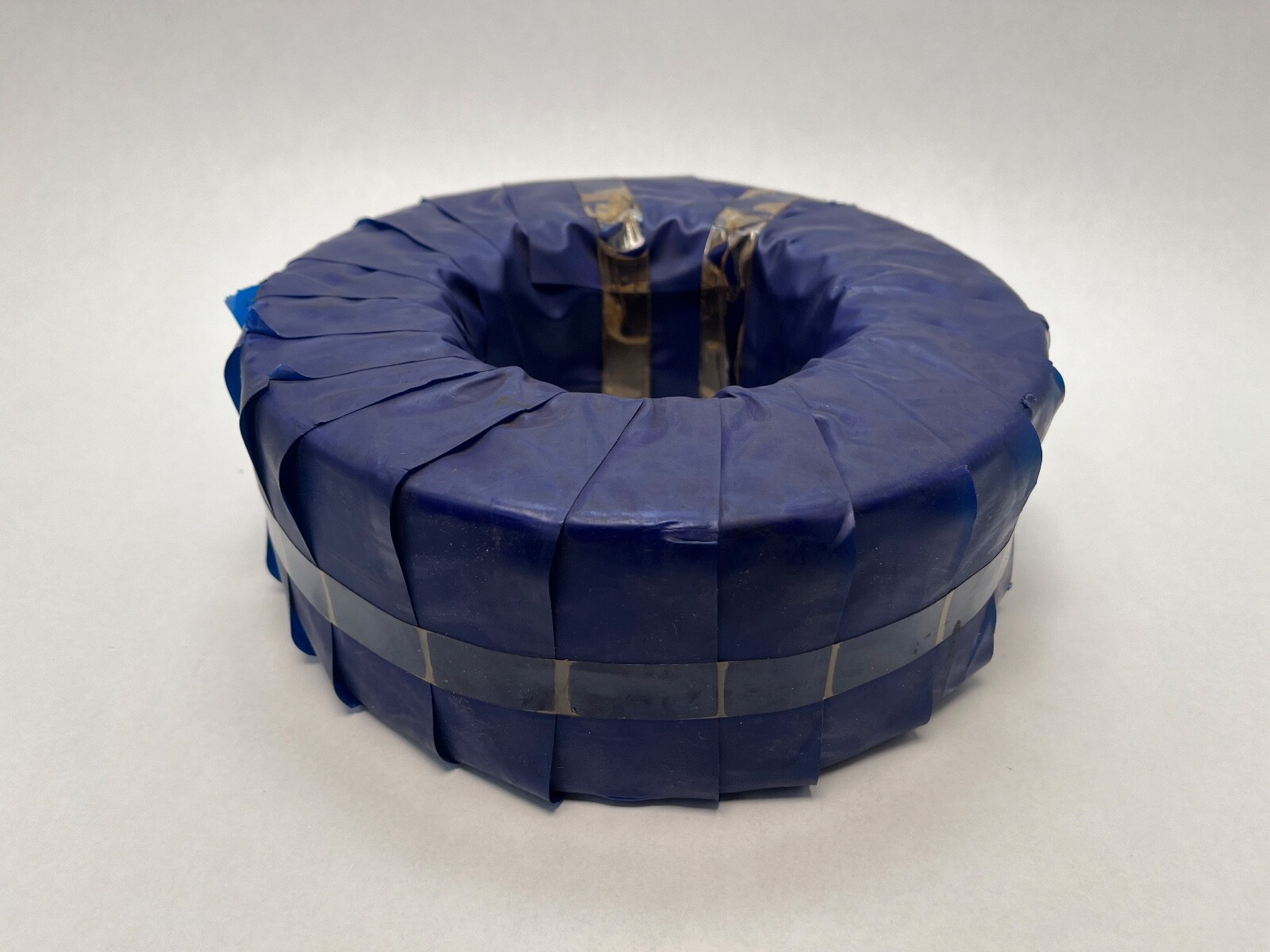

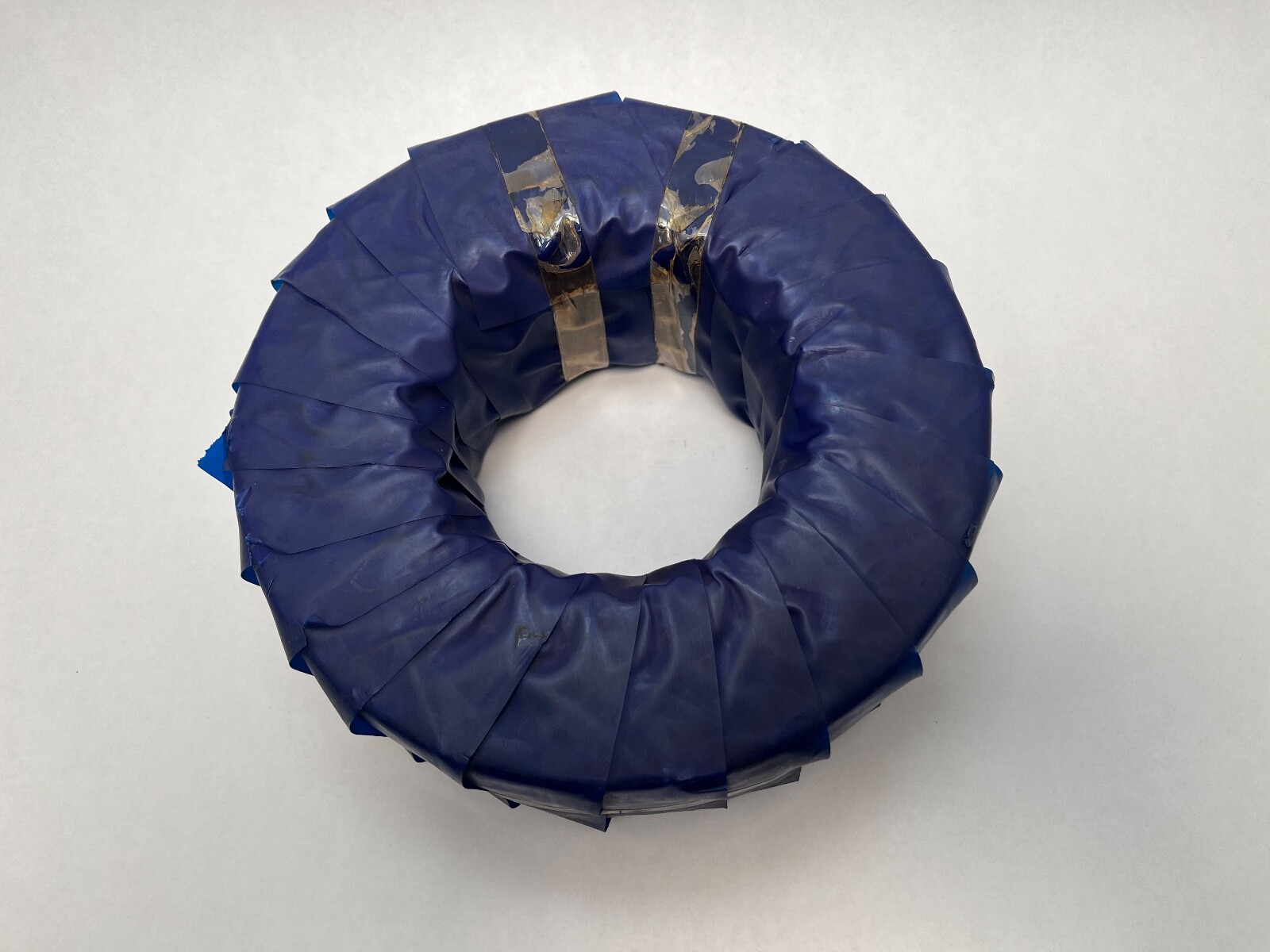

Angular contact bearings – 120 mm ID, 215 mm OD, 40 mm Width, Open, 15°, Light preload.
| MFR / Brand | NSK |
|---|---|
| MPN | 7224CTDULP4 |
| Model | 7224 C T DUL P4 / 2MM224WI DUL / 7224CDP4ADGA |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 120 mm |
| OD | 215 mm |
| Width | 40 mm |
| Material | Chrome Steel |
|---|---|
| Min Temp | -30 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 196 kN / 44062 lbf |
| Static Load Rating | 224 kN / 50357 lbf |
| Precision Rating | ABEC 7 / P4 |
| Series | 7200 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Condition | New |
| Item Weight | 13.5 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 8000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Preload | Light preload |
| Mounting Arrangement | Universal |
| Cross Reference 1 | SKF 7224 CD/P4ADGA |
|---|
