Photo may not represent actual item. Refer to name and product specs for all details.
Availability:
1 in stock
List Price
$47.00
1 in stock
1 in stock
Get Estimated Arrival Date

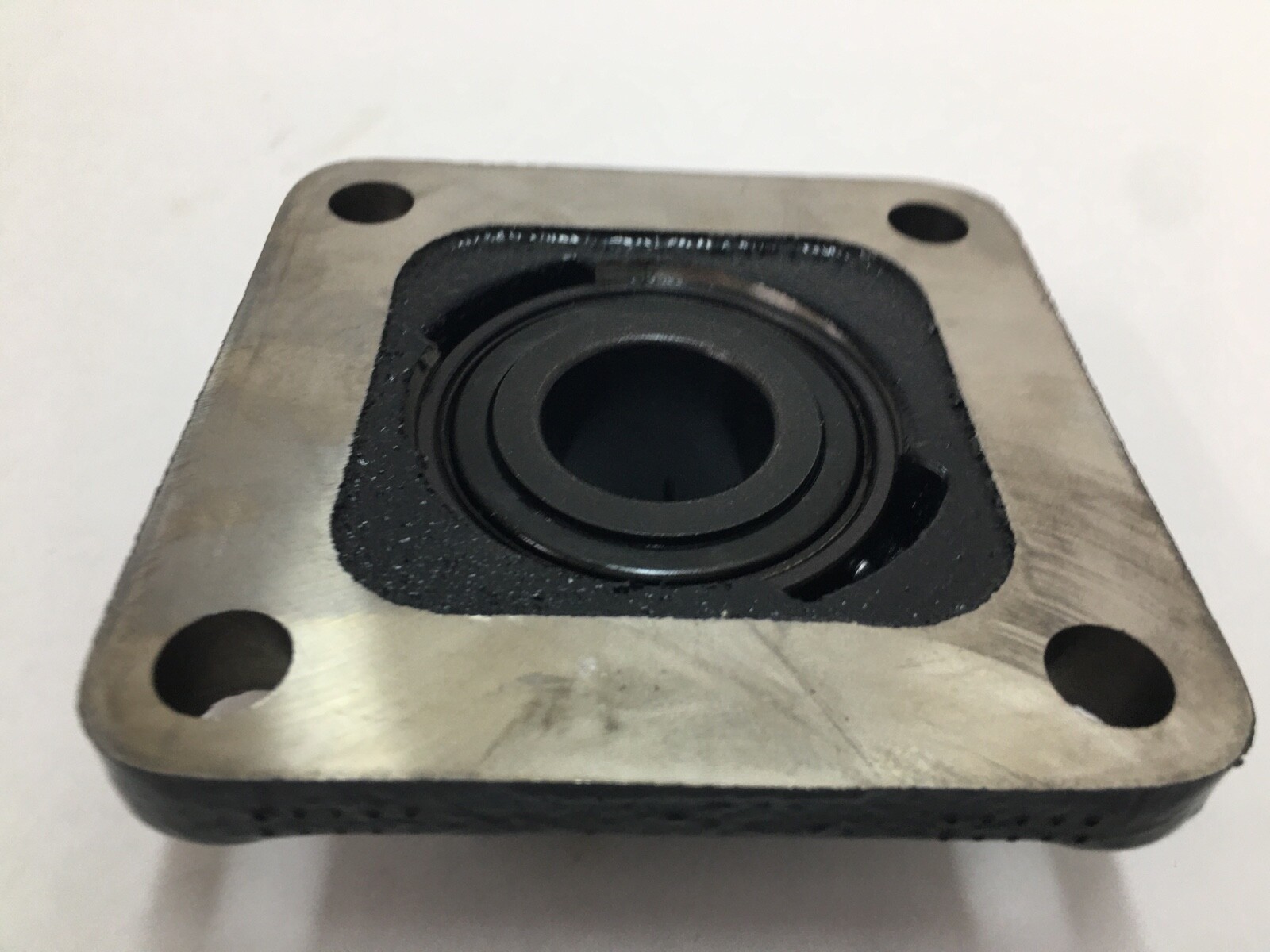

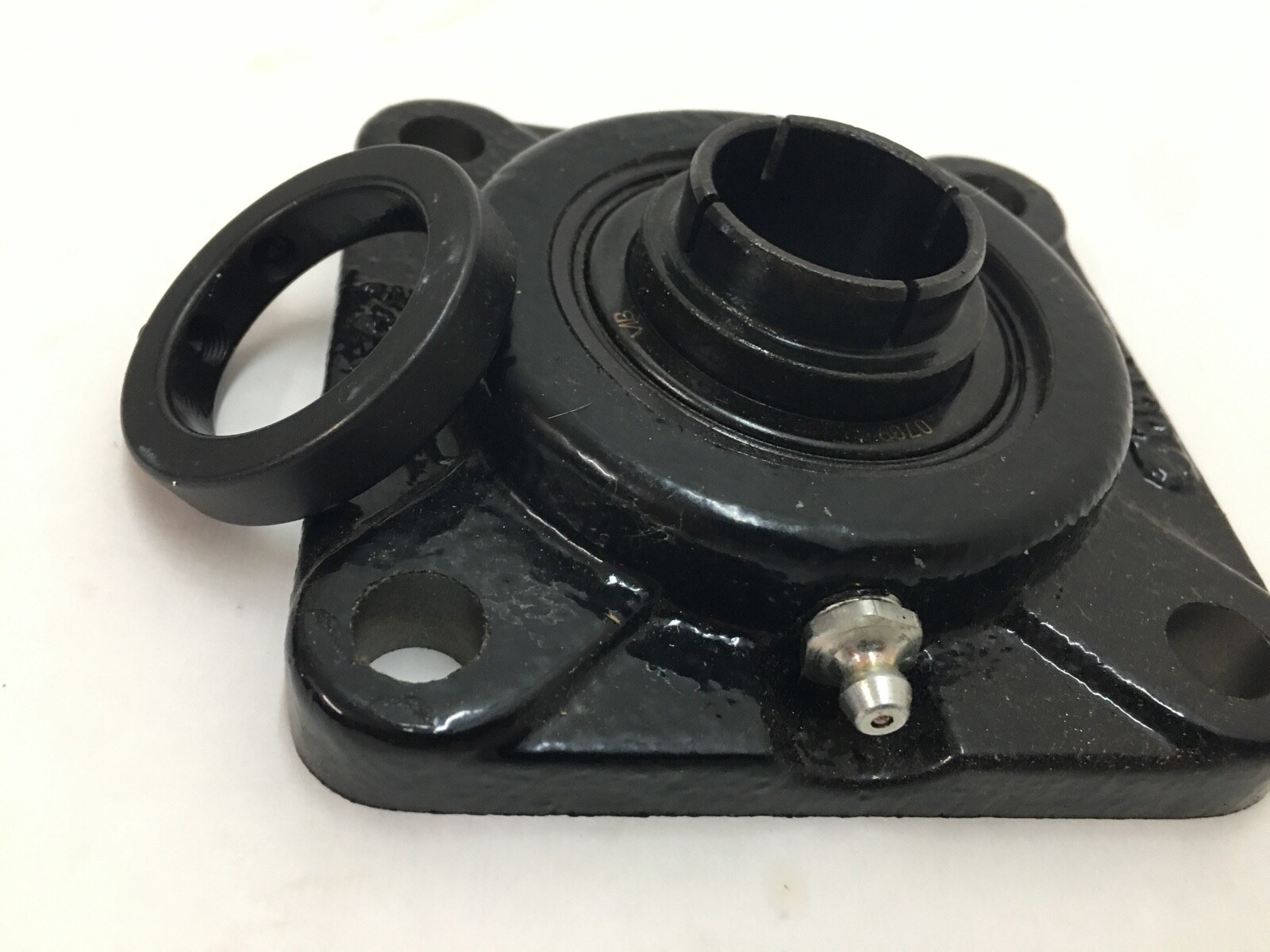

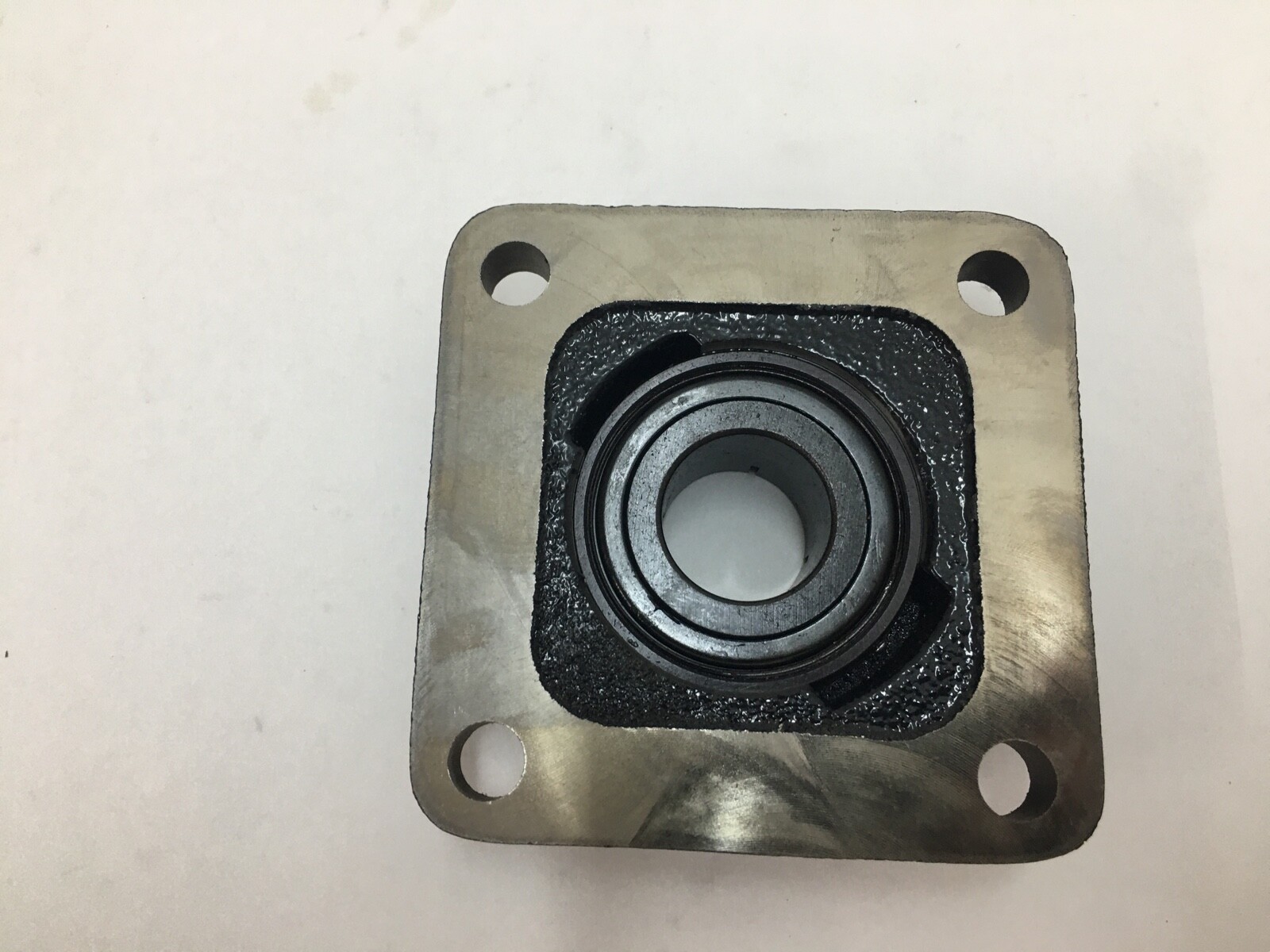

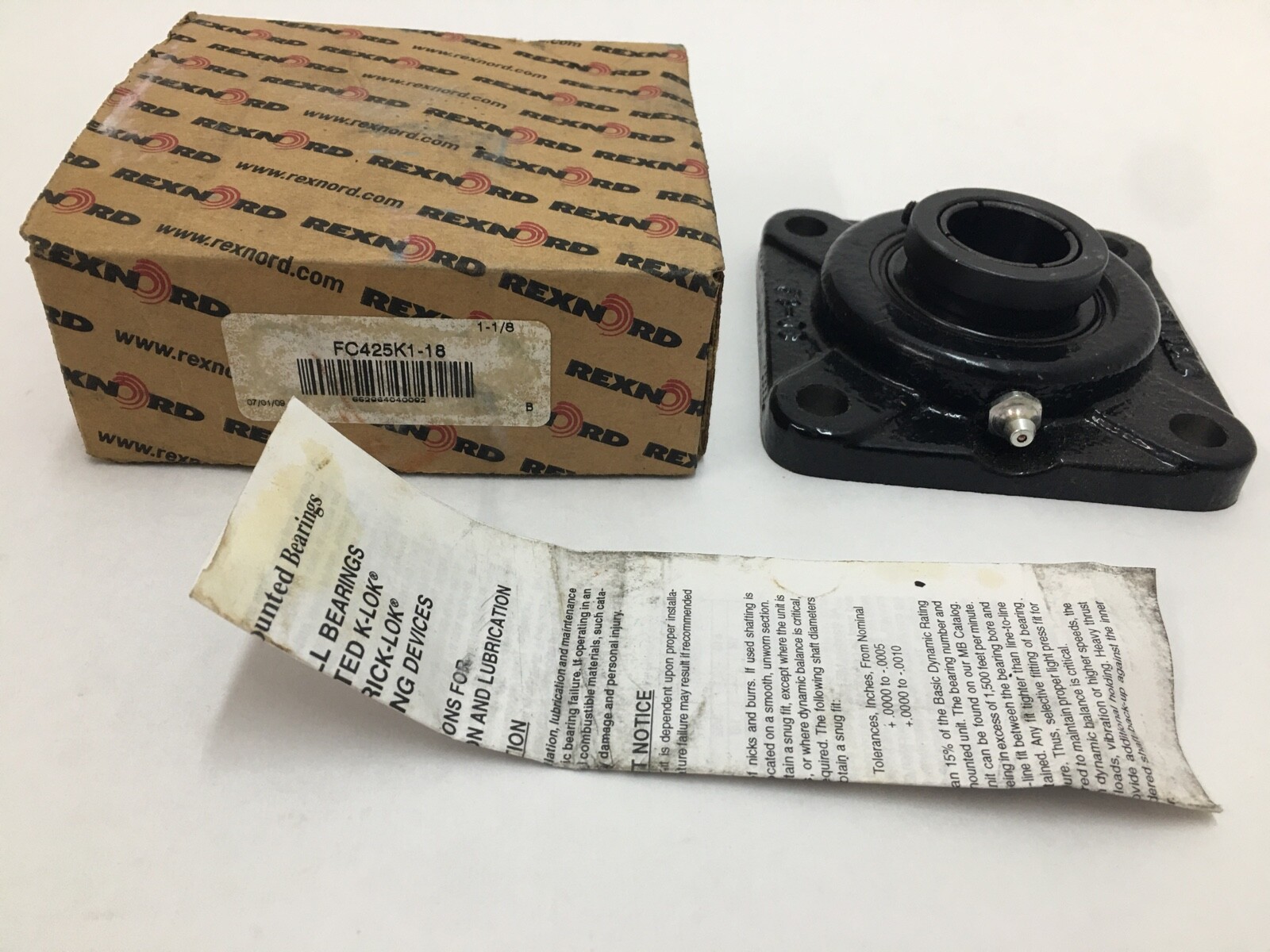

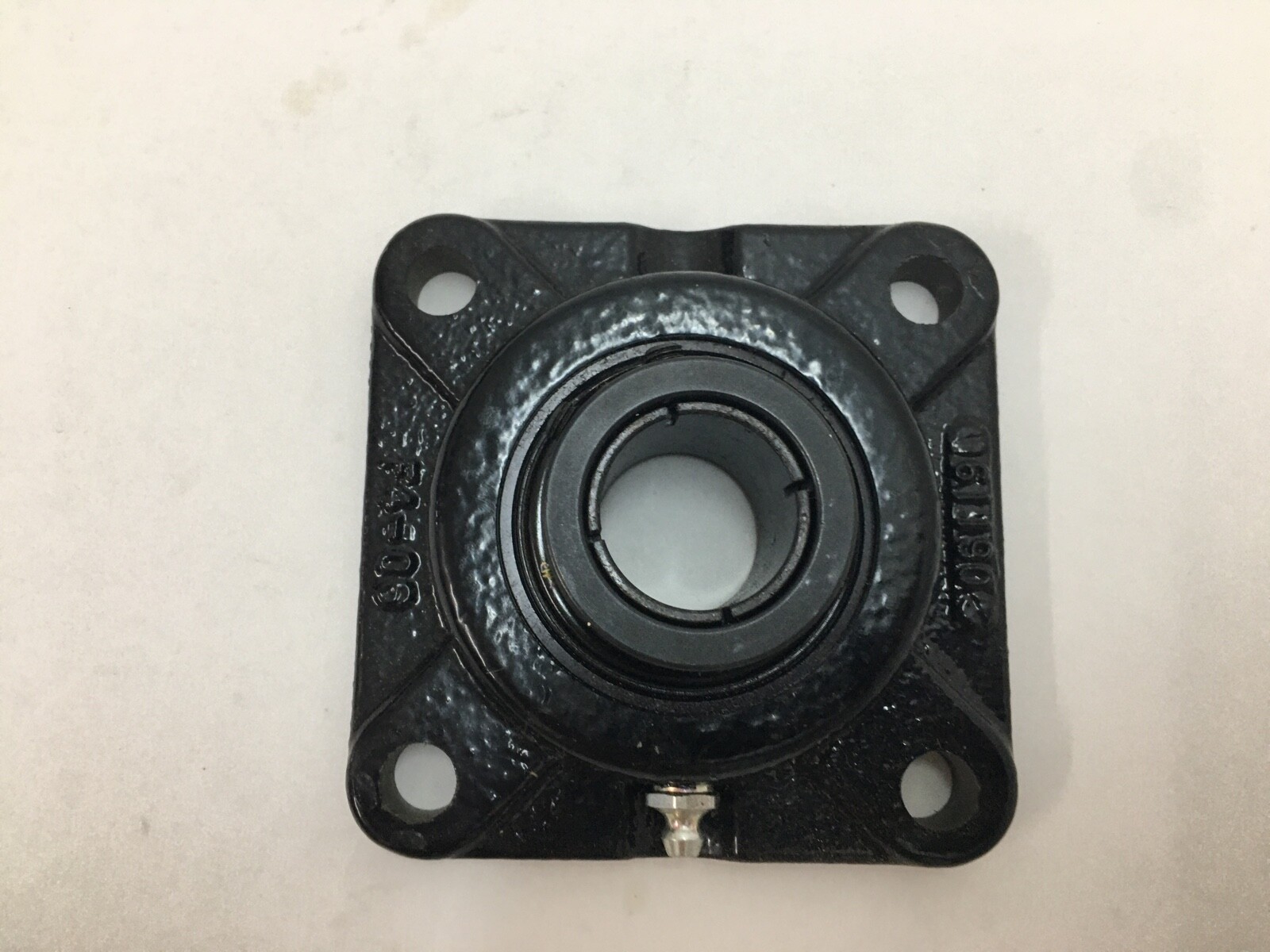

Flange Unit – 1.125 in Bore, 4 bolt, Cast Iron Housing, Standard Duty, Non-Expansion
| MFR / Brand | Rexnord |
|---|---|
| MPN | FC425K1-18 |
| Model | FC4-25K1-1/8 |
| Bearing Type | 4-Bolt Flange Unit, Contact Seal |
| ID | 1.125 in |
| Bore Type | Straight |
|---|---|
| Max temp | 100°C |
| Min temp | -20°C |
| Cross Reference 1 | Dodge F4B-SC-102 |
| Cross Reference 2 | Link-Belt F3-U218N |
| Duty Type | Standard |
| Lubricant | Grease |
| Condition | New |
| Item Weight | 3.00 lbs |
| Dynamic Load Rating | 19.5 kN / 4380 lbf |
| Static Load Rating | 11.3 kN / 2540 lbf |
| Limiting Speed | 5000 rpm |
| Number Of Rows | 1 |
| Housing Material | Cast Iron |
| Series | FC400 |
| Rolling Elements | Balls |
| Cross Reference 3 | SKF FY 1.1/8 TF |
| Cross Reference 4 | Sealmaster SF-18 |
| Cross Reference 5 | Browning VF4-218 |
| Locking Device | Set Screw |
| Expansion Type | Non-Expansion |
| Bolt Center To Center | 3.00 in |
| Bolt Center To Center Length | 3.00 in |
| Internal Clearance | CN |
