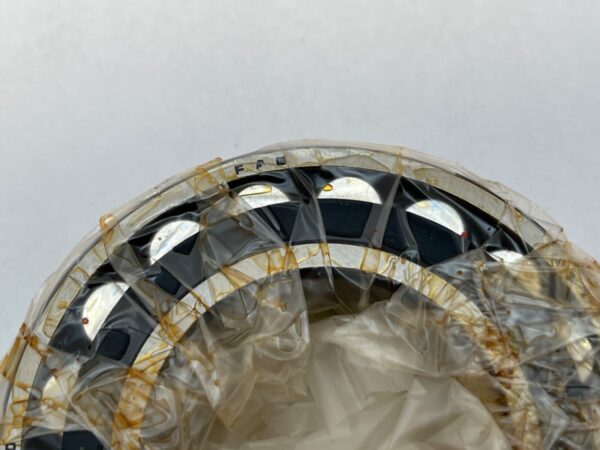

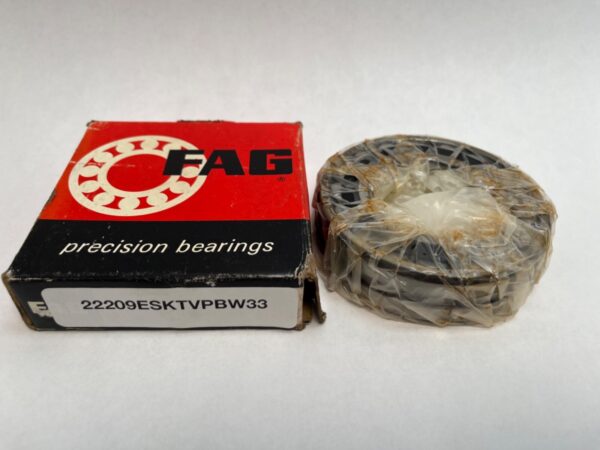

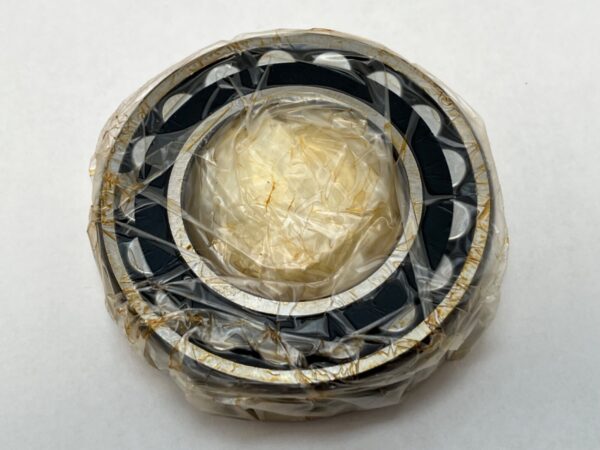

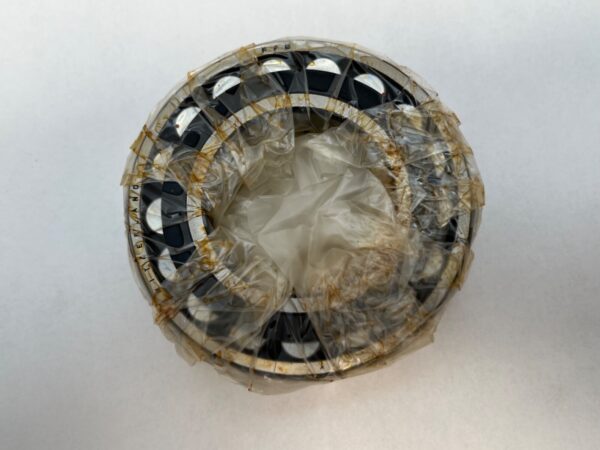

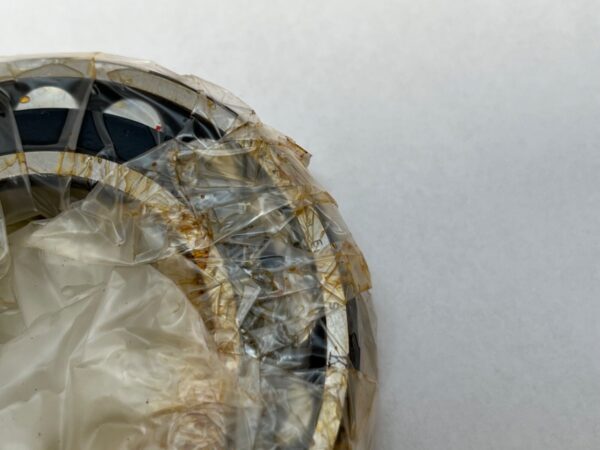

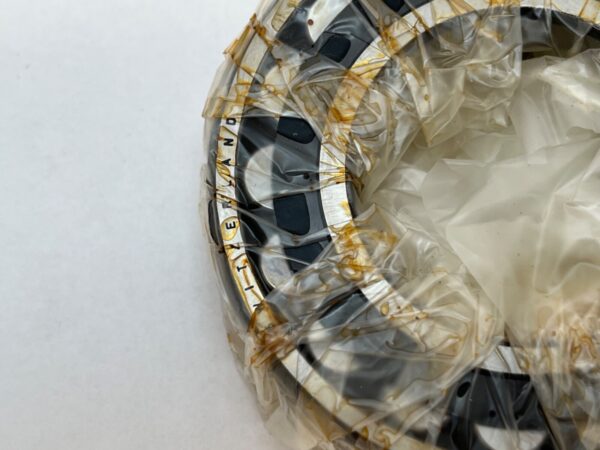

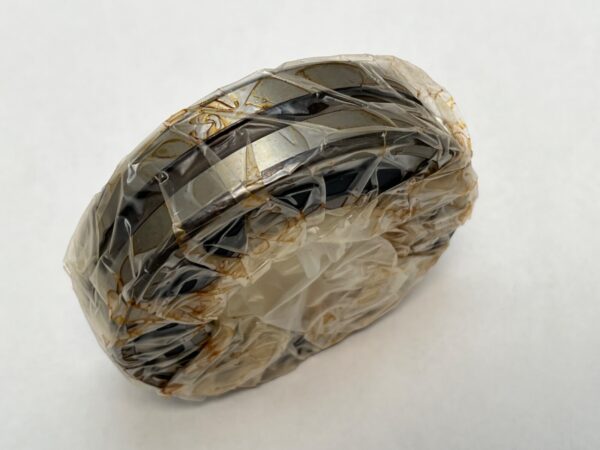

FAG 22209ESK.TVPB Bearing – Precision Performance in Every Rotation Enhance your machinery’s efficiency with the FAG 22209ESK.TVPB Bearing, measuring 45x85x23 mm. This exceptional spherical roller bearing, model 22209-ES-K-TVPB-W33, is manufactured in Switzerland, ensuring top-tier quality and durability. Key Features: Brand: FAG Type: Spherical Roller Bearing Model: 22209 E S K TVPB W33 22209CKJ MPN: 22209ESKTVPBW33 Condition: New This bearing is designed for high load capacity and exceptional reliability, making it ideal for various applications in automotive and industrial machinery. Its spherical design allows for self-alignment, reducing the risk of misalignment, thereby enhancing performance over time. Our customers can enjoy the convenience of same-day shipping on all items, with next-day shipping available at checkout. Do not forget that we offer international shipping on every order, with combined shipping for multiple items. We can source any parts you may need at competitive prices – reach out to us today! Upgrade your equipment with the FAG 22209ESK.TVPB Bearing for unparalleled performance and reliability.

| Model | 22209 E S K TVPB W33 22209CKJ |
|---|---|
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Harmonization Code | 8482.30.00.80 |
|---|---|
| Item Weight | 1.19 lbs |
| Cage Type | Polyamide |
| Cage Material | Polyamide |
| Dynamic Load Rating | 102 kN |
| Static Load Rating | 95 kN |
| Internal Clearance | CN |
| Number Of Rows | 2 |
| Bore Type | Tapered Bore |
| Lubricant | Oil |
| Precision Rating | ABEC 1 / P0 |
| Series | 22200 |
| Max Temp | 120°C |
| Min Temp | -30°C |
| Snap Ring Included | Without Snap Ring |
| Maximum Permissible Misalignment | 1.5° |
| Relubrication Feature | Yes |
| Rolling Elements | Spherical Roller |
| Cross Reference 2 | Timken 22209KJ |
| Material | Chrome Steel |
| Condition | New |
