Availability:
3 in stock

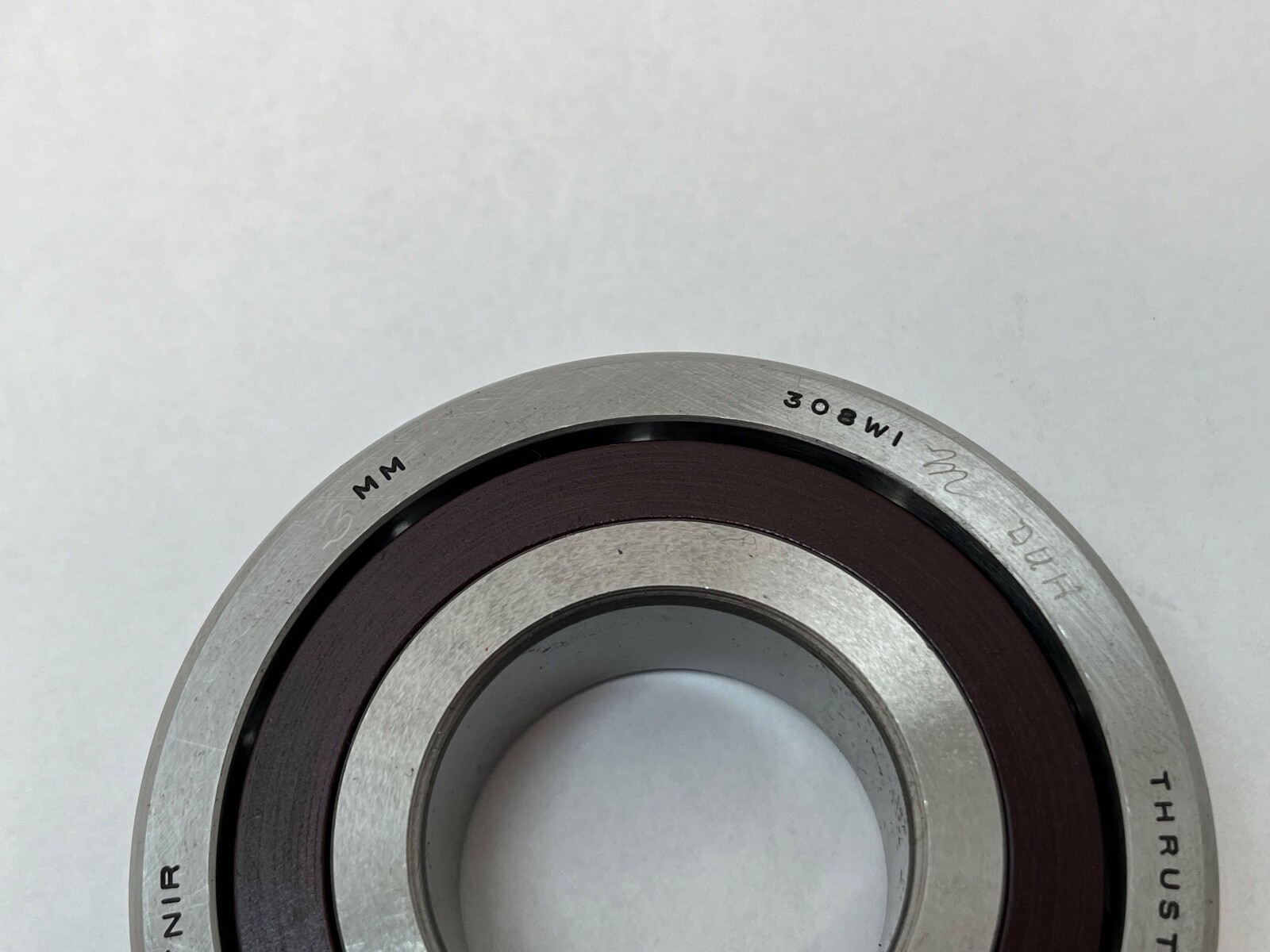

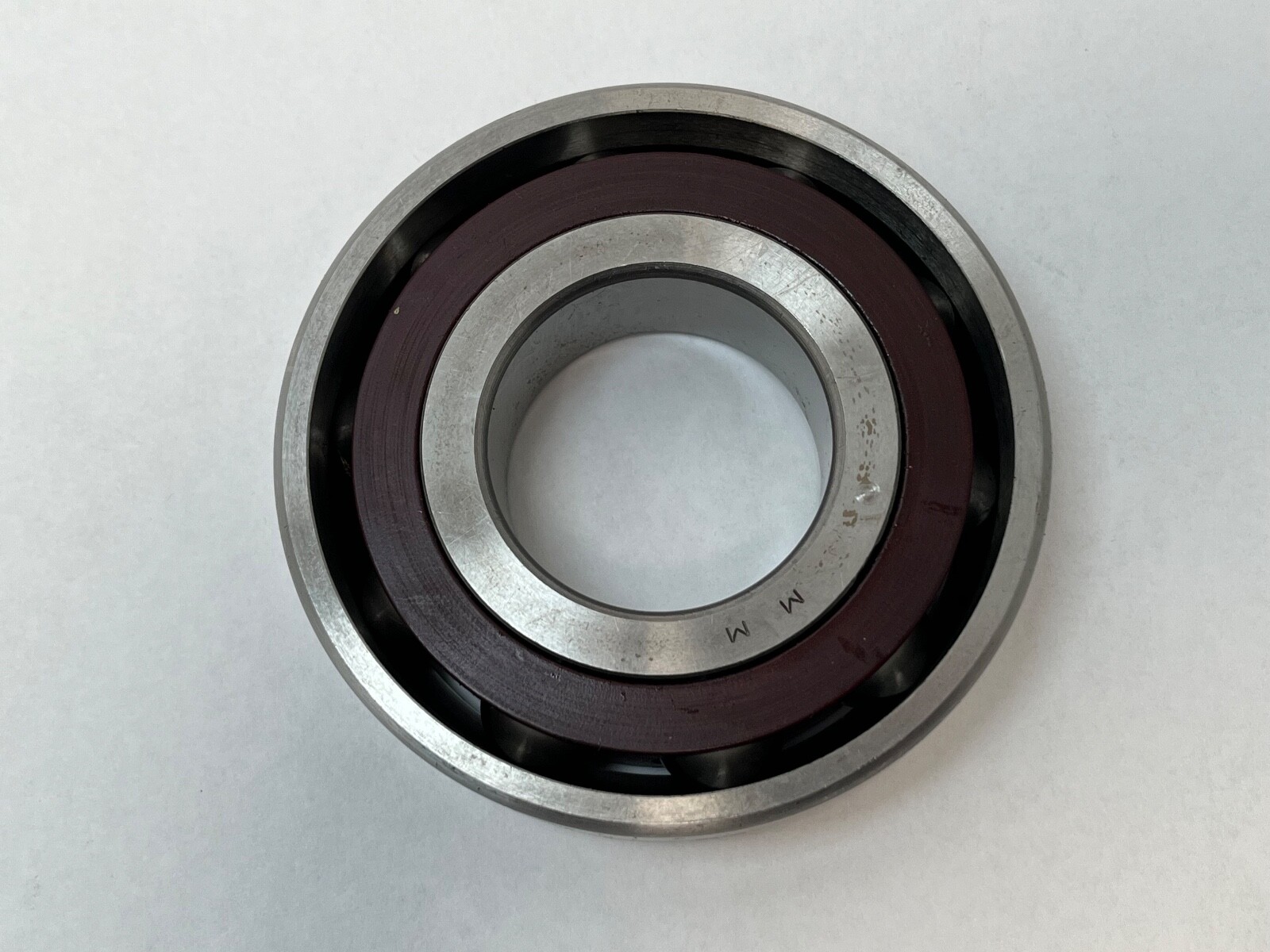

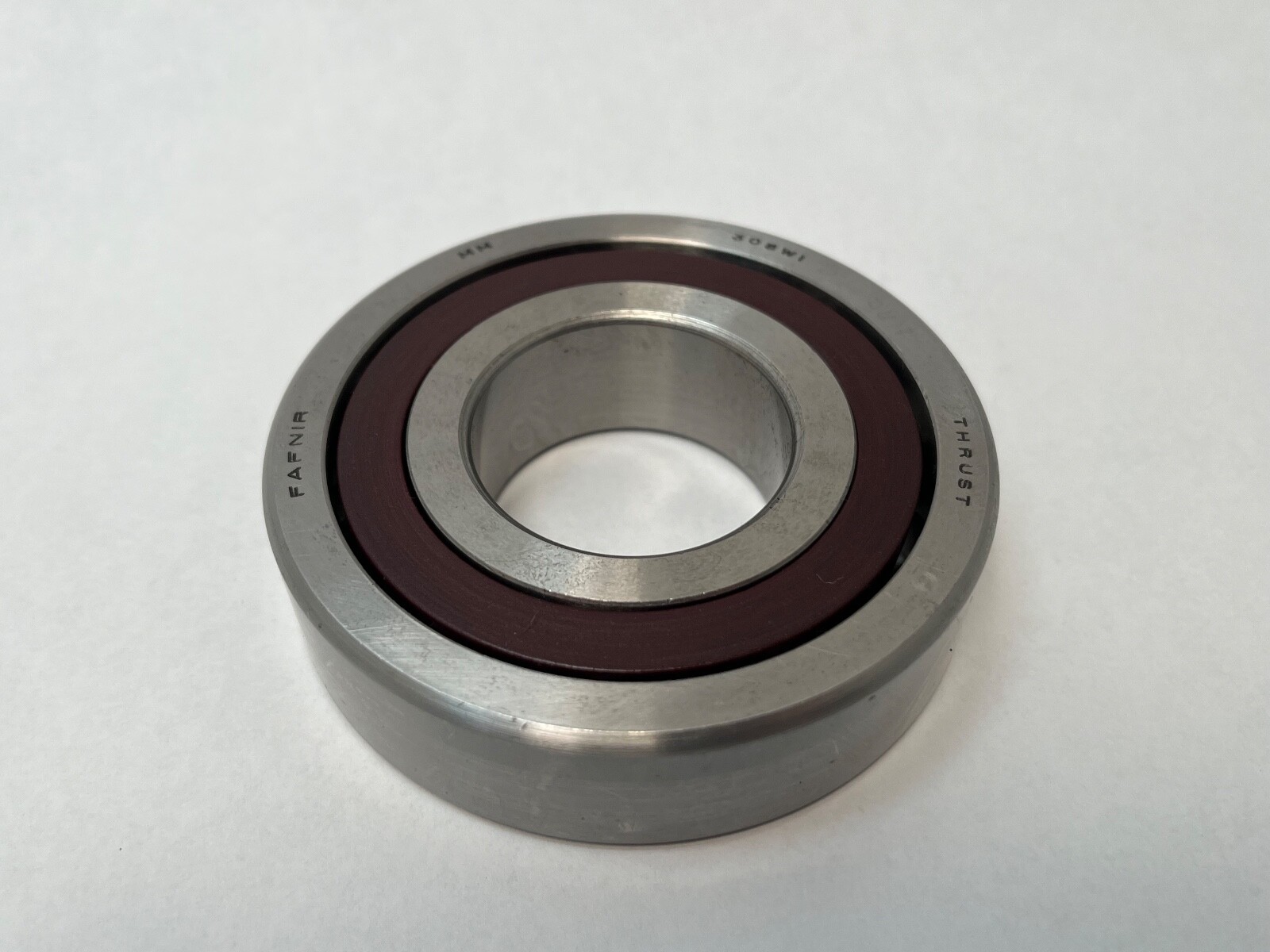

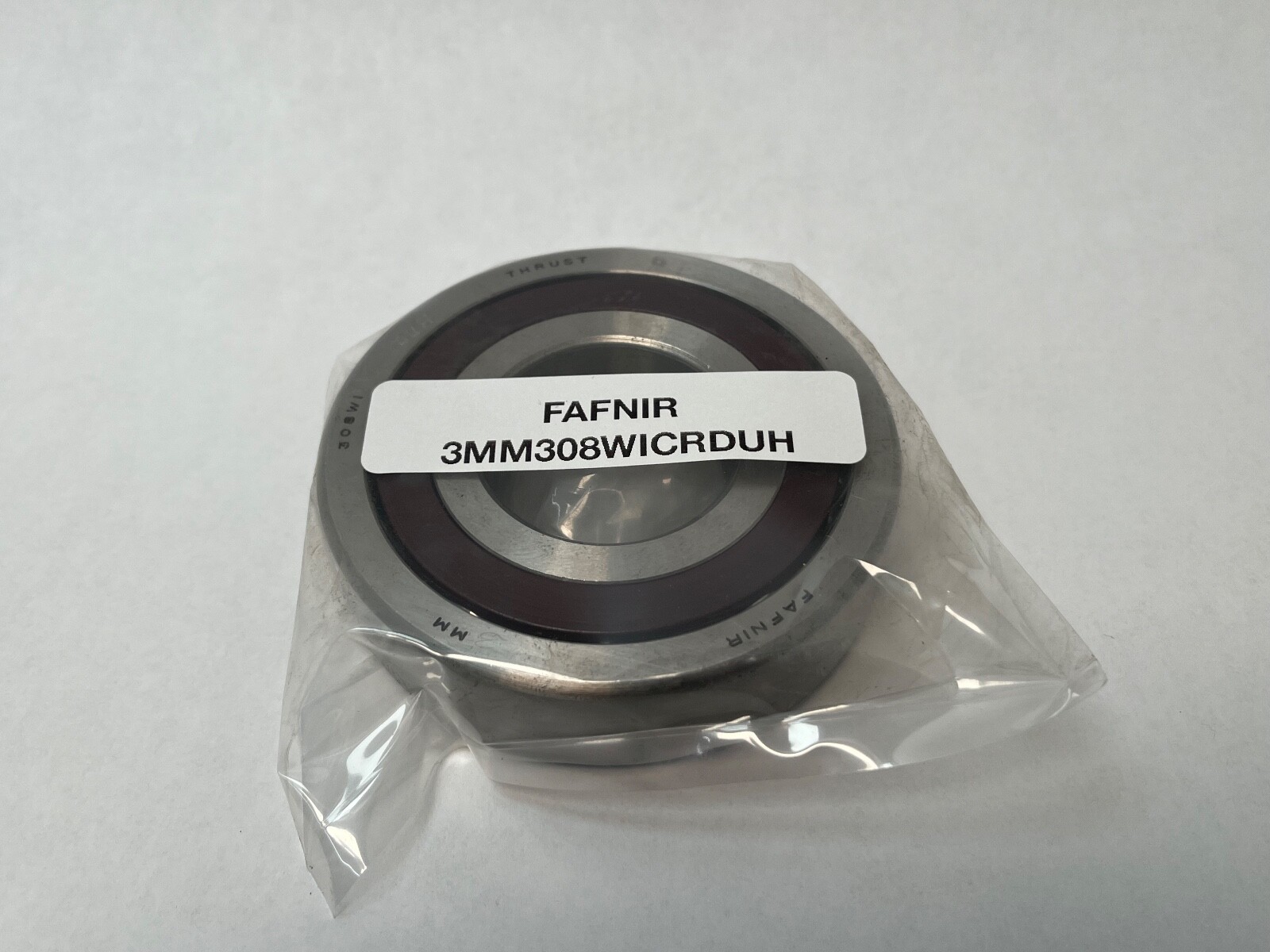

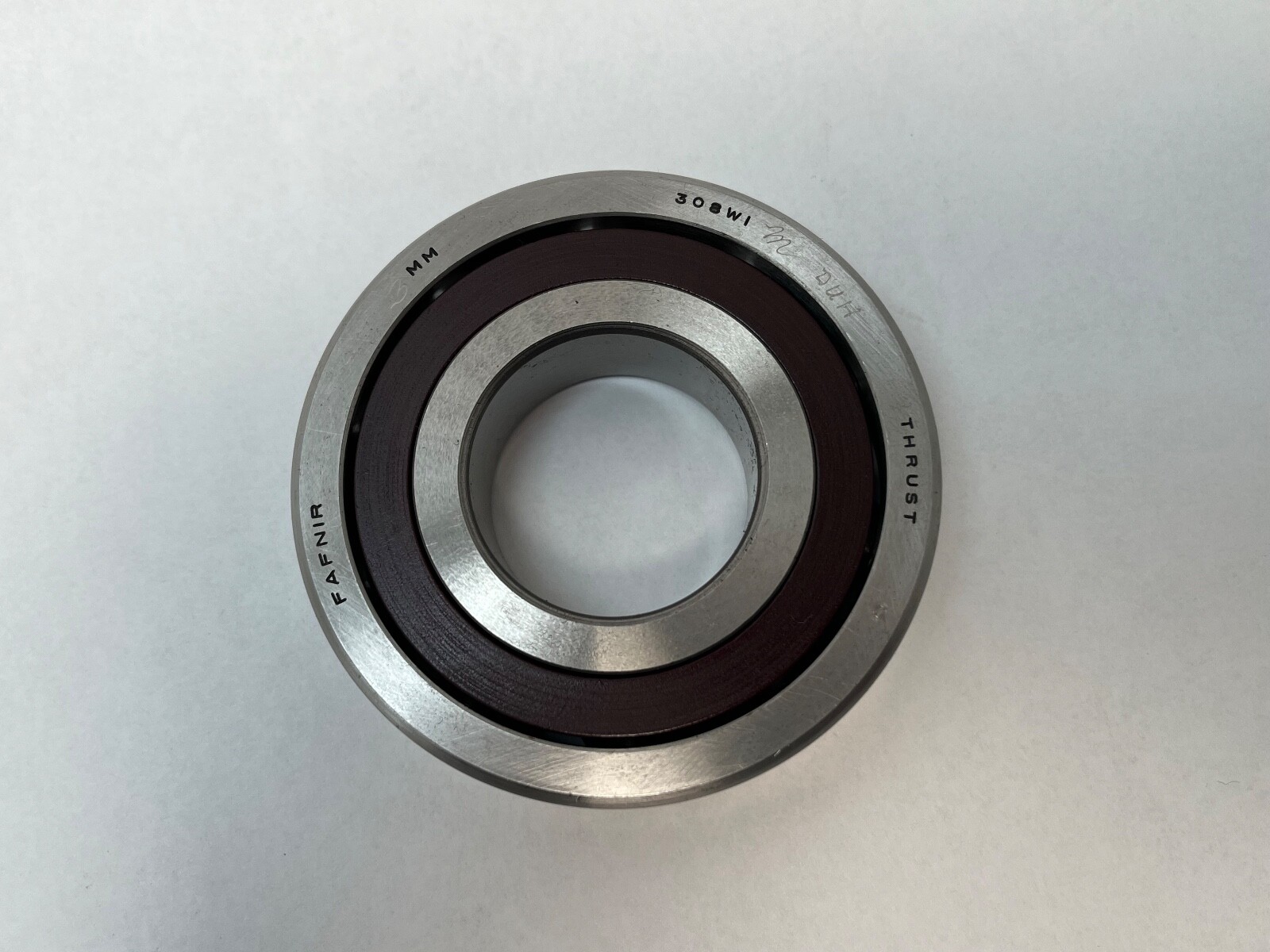

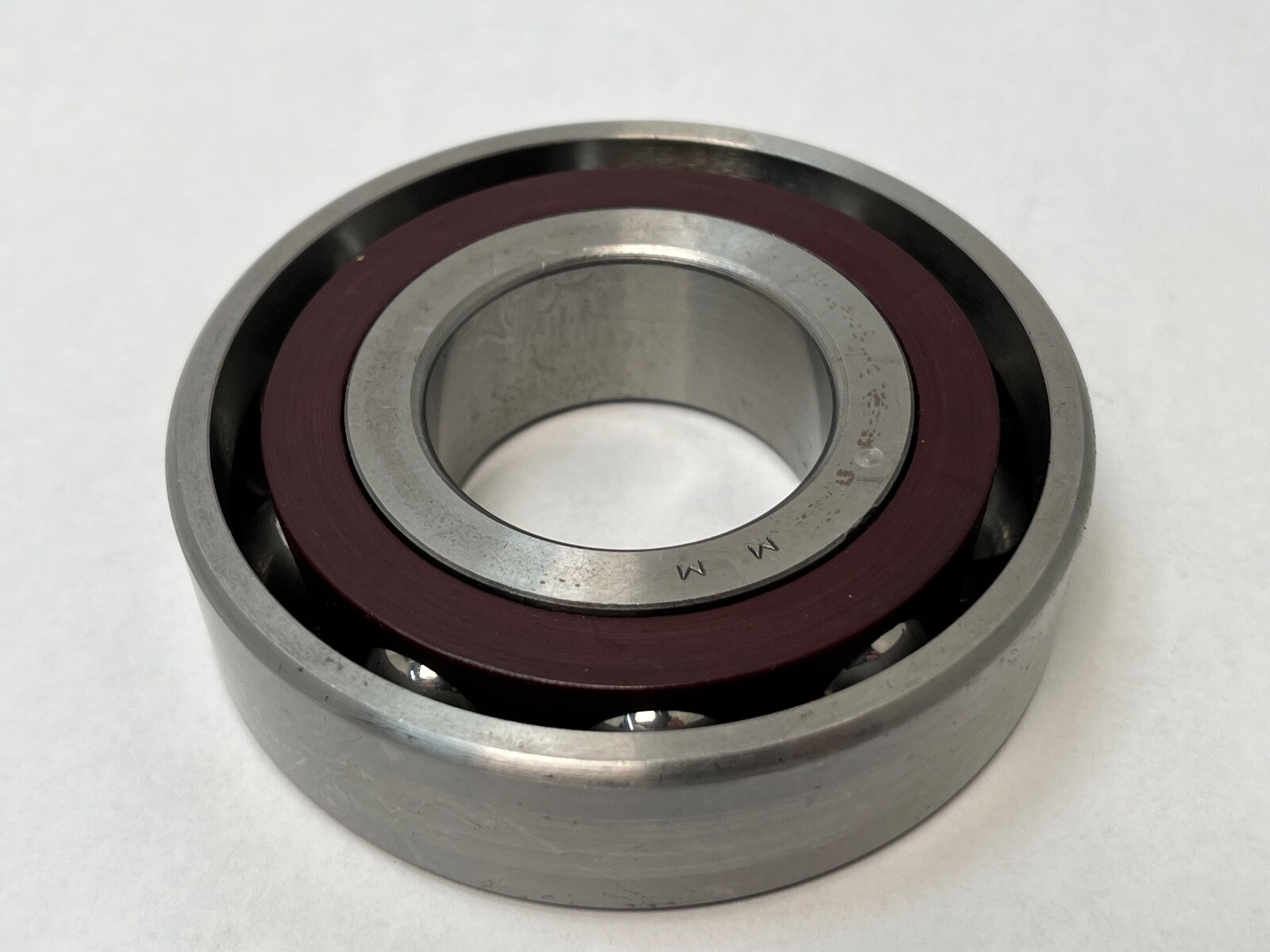

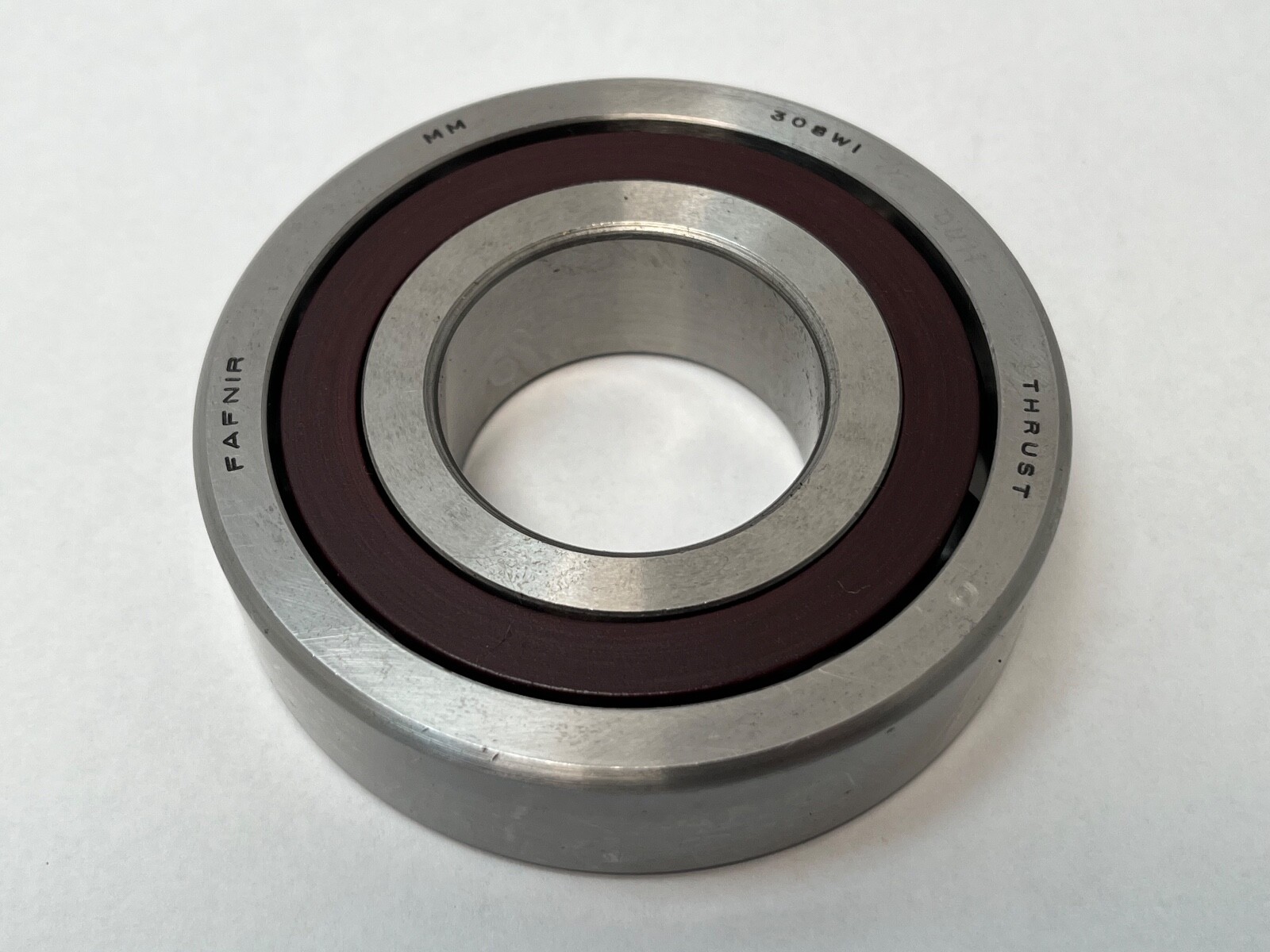

Angular contact bearings – 40 mm ID, 90 mm OD, 23 mm Width, Open, 25°, Heavy preload.
List Price
$41.68
3 in stock
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Fafnir |
|---|---|
| MPN | 3MM308WICRDUH |
| Model | 3 MM 308 WI CR DUH / 7308 E T DUH P4 7308A 7308A5 7308ACD |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 40 mm |
| OD | 90 mm |
| Width | 23 mm |
| Material | Chrome Steel |
|---|---|
| Min Temp | -20 °C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 47.6 kN / 10700 lbf |
| Static Load Rating | 32.5 kN / 7310 lbf |
| Precision Rating | ABEC 7 / P4 |
| Series | 300 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Condition | New – Open box |
| Item Weight | 1.37 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 16600 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 25° |
| Preload | Heavy preload |
| Mounting Arrangement | Universal |
| Cross Reference 1 | SKF 7308 CD/P4ADGC |
|---|
